S.R. Smith Splash! Pool Lift Housing Assembly, Gray Mist, 300-5000A$531⁸⁹

S.R. Smith 300-5000A Gray Mist housing assembly for Splash! pool lifts

S.R. Smith Splash! Pool Lift Housing Assembly, Gray Mist, 300-5000A

Name: S.R. Smith Splash! Pool Lift Housing Assembly, Gray Mist, 300-5000A
Brand: S.R. Smith
SKU: PSU-139879
Price: 531.89 USD
Availability: BackOrder

Ask a questionMPN 300-5000A

$531⁸⁹

FREE Delivery

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Job Shields the base assembly components, including the motor and hub, from the weather.
Fit Named in every Splash! parts list, including the Hi/Lo and Spa, where it is called the Splash! Hi/Lo Housing.
Material Vacuum formed ABS plastic, Gray Mist.
Assembly Must be in place before the mast assembly goes on.
Handling Lift the base by its metal handle, never by the plastic housing.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select S.R. Smith Splash! Pool Lift Housing Assembly, Gray Mist, 300-5000A

S.R. Smith

Splash! Pool Lift Housing Assembly, Gray Mist, 300-5000A

$531⁸⁹

Select

S.R. Smith

Linak Battery Charger for aXs, PAL and Splash Lifts, 100-3500

$179⁹⁹

Select

S.R. Smith

New Style Battery Charger for Multilift, PAL, Splash and aXs Pool Lifts, 1001530

$170⁹⁹

Select

S.R. Smith

Lift-Operator New Style Battery for multiLift, PAL, Splash! and aXs Pool Lifts, 1001495

$372⁹⁹

Select

S.R. Smith

LiftOperator Intelligent 4-Button Control Box, 400-7000

$582⁹⁹

Select

S.R. Smith

Lift-Operator Old Style Battery for PAL, Splash! and aXs Pool Lifts, 100-2000

$418⁹⁹

Select

S.R. Smith

LiftOperator Control Box Cover for S.R. Smith Pool Lifts, Tan, 910-1000T

$97⁹⁹

Subtotal

Similar products

Other products people compare with this one.

S.R. Smith 120-1100 24 V rotation motor for PAL2, Splash! and PAL pool lifts

S.R. Smith 24 V Rotation Motor for PAL2, Splash! and PAL Pool Lifts, 120-1100$452⁶⁷ S.R. Smith LiftOperator 24 V CEC Compliant Battery, BC Version for Pool Lifts, 1001495-BC-R$452⁹⁹

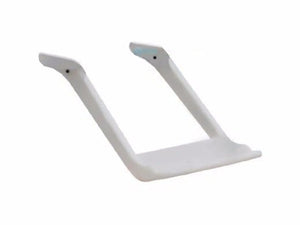

S.R. Smith 160-2300A gray pool lift footrest with hardware

S.R. Smith Pool Lift Footrest with Hardware for Splash!, aXs2 and PAL, Gray, 160-2300A$108⁶¹

Product details

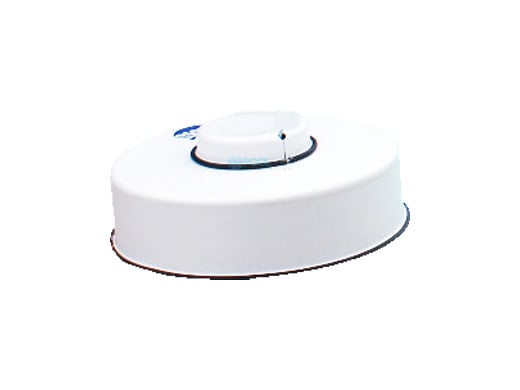

The S.R. Smith 300-5000A is the housing for Splash! pool lifts: a vacuum formed ABS plastic cover in Gray Mist that shields the base assembly components from the weather.

Where it fits

Every Splash! parts list names 300-5000A: the Splash!, Splash! 300, Splash! Extended Reach and Extended Reach Hi/Lo, and the Splash! Hi/Lo and Spa, where it is called the Splash! Hi/Lo Housing.

Assembly

The housing must be in place before the mast assembly is installed. The mast base lowers onto the studs that come up through the housing and is held with washers and lock nuts, and an attachment cover then slides down over the housing to hide that hardware. The motor cable is uncoiled from the top of the housing and plugged into the control box.

Handling

When you set the base into its deck anchor, lift it by the metal handle on top of the housing, not by the plastic. The housing is what keeps the weather off the base assembly, so replace it once it cracks.

From Pool School

Pool Lift Battery, Maintenance and Winter StorageCharging, swapping and storing the battery, what fails first, and winter storage. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. Read

Where this part goes

19 Key 19 on the S.R. Smith Splash! Pool LiftFits every model in the drawing.See it on the diagram All S.R. Smith Splash! Pool Lift Parts 24 parts and the drawing

Specifications
Brand	S.R. Smith
Model	Splash! Housing
Manufacturer part number	300-5000A
Fits	Splash!
Type	Base housing
Material	Vacuum formed ABS plastic
Color	Gray Mist
Shipping weight	2 lb
