S.R. Smith Hub Assembly for Splash! Pool Lifts, Replacement Part, 135-1000$981⁷³

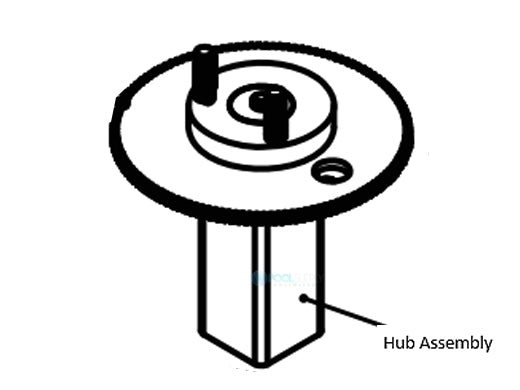

S.R. Smith 135-1000 hub assembly for Splash! pool lifts

S.R. Smith Hub Assembly for Splash! Pool Lifts, Replacement Part, 135-1000

Name: S.R. Smith Hub Assembly for Splash! Pool Lifts, Replacement Part, 135-1000
Brand: S.R. Smith
SKU: PSU-157100
Price: 981.73 USD
Availability: BackOrder

Ask a questionMPN 135-1000

$981⁷³

FREE Delivery

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Contents Hub, bearings, shaft, large gear and mast mounting plate.
Fit Named in the parts lists for the Splash!, Splash! 300, Splash! Hi/Lo and Spa, Extended Reach and Extended Reach Hi/Lo.
Job Carries the mast and the large gear that the rotation motor turns.
Not for PAL The PAL2 and PAL parts lists use a different hub, 130-1000.
Care The manuals call for spraying the gear assembly with a heavy duty rust inhibitor and lubricant.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select S.R. Smith Hub Assembly for Splash! Pool Lifts, Replacement Part, 135-1000

S.R. Smith

Hub Assembly for Splash! Pool Lifts, Replacement Part, 135-1000

$981⁷³

Select

S.R. Smith

Linak Battery Charger for aXs, PAL and Splash Lifts, 100-3500

$179⁹⁹

Select

S.R. Smith

New Style Battery Charger for Multilift, PAL, Splash and aXs Pool Lifts, 1001530

$170⁹⁹

Select

S.R. Smith

Lift-Operator New Style Battery for multiLift, PAL, Splash! and aXs Pool Lifts, 1001495

$372⁹⁹

Select

S.R. Smith

LiftOperator Intelligent 4-Button Control Box, 400-7000

$582⁹⁹

Select

S.R. Smith

Lift-Operator Old Style Battery for PAL, Splash! and aXs Pool Lifts, 100-2000

$418⁹⁹

Select

S.R. Smith

LiftOperator Control Box Cover for S.R. Smith Pool Lifts, Tan, 910-1000T

$97⁹⁹

Subtotal

Similar products

Other products people compare with this one.

S.R. Smith 120-1100 24 V rotation motor for PAL2, Splash! and PAL pool lifts

S.R. Smith 24 V Rotation Motor for PAL2, Splash! and PAL Pool Lifts, 120-1100$452⁶⁷ S.R. Smith LiftOperator 24 V CEC Compliant Battery, BC Version for Pool Lifts, 1001495-BC-R$452⁹⁹

S.R. Smith 160-2300A gray pool lift footrest with hardware

S.R. Smith Pool Lift Footrest with Hardware for Splash!, aXs2 and PAL, Gray, 160-2300A$108⁶¹

Product details

The S.R. Smith 135-1000 is the hub assembly for Splash! pool lifts. S.R. Smith describes it as the hub, bearings, shaft, large gear and mast mounting plate, so it is the part the mast sits on and the lift turns around.

Where it fits

The parts lists for the Splash!, Splash! 300, Splash! Hi/Lo and Spa, Splash! Extended Reach and Splash! Extended Reach Hi/Lo all name 135-1000. The PAL2 and PAL lifts use a different hub, 130-1000, so check the lift model before you order. The part is also listed as 135-1000-R.

How it works with the motor

The rotation motor assembly, a 24 V motor 120-1100 with the small gear 800-5065, drives the large gear in this hub at a 9:1 gearing ratio.

Care

The Splash! manual calls for spraying the gear assembly with a heavy duty rust inhibitor and lubricant as part of routine care, and again before long term storage.

From Pool School

Pool Lift Battery, Maintenance and Winter StorageCharging, swapping and storing the battery, what fails first, and winter storage. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. Read

Where this part goes

8 Key 8 on the S.R. Smith Splash! Pool LiftFits every model in the drawing.See it on the diagram All S.R. Smith Splash! Pool Lift Parts 24 parts and the drawing

Specifications
Brand	S.R. Smith
Model	Hub Assembly
Manufacturer part number	135-1000
Fits	Splash!
Type	Hub assembly
Contents	Hub, bearings, shaft, large gear and mast mounting plate
Related parts	24 V motor 120-1100, small gear 800-5065
Not for	PAL2 and PAL, which use hub 130-1000
Also listed as	135-1000-R
Shipping weight	20 lb
