Aqua Creek Spa Series Lift Parts

11 products

Know which electronics your lift runs before you shop: the Neptune and Nebula use Timotion parts, and no Timotion battery, charger, actuator or remote is sold here, so what this page offers for them is the anchor, a cover and hardware. The drawings are Aqua Creek's exploded views, keyed by its internal inventory numbers; the parts sold carry F catalog numbers, such as the F-ASTSPA concrete anchor and the F-450SLECS covers.

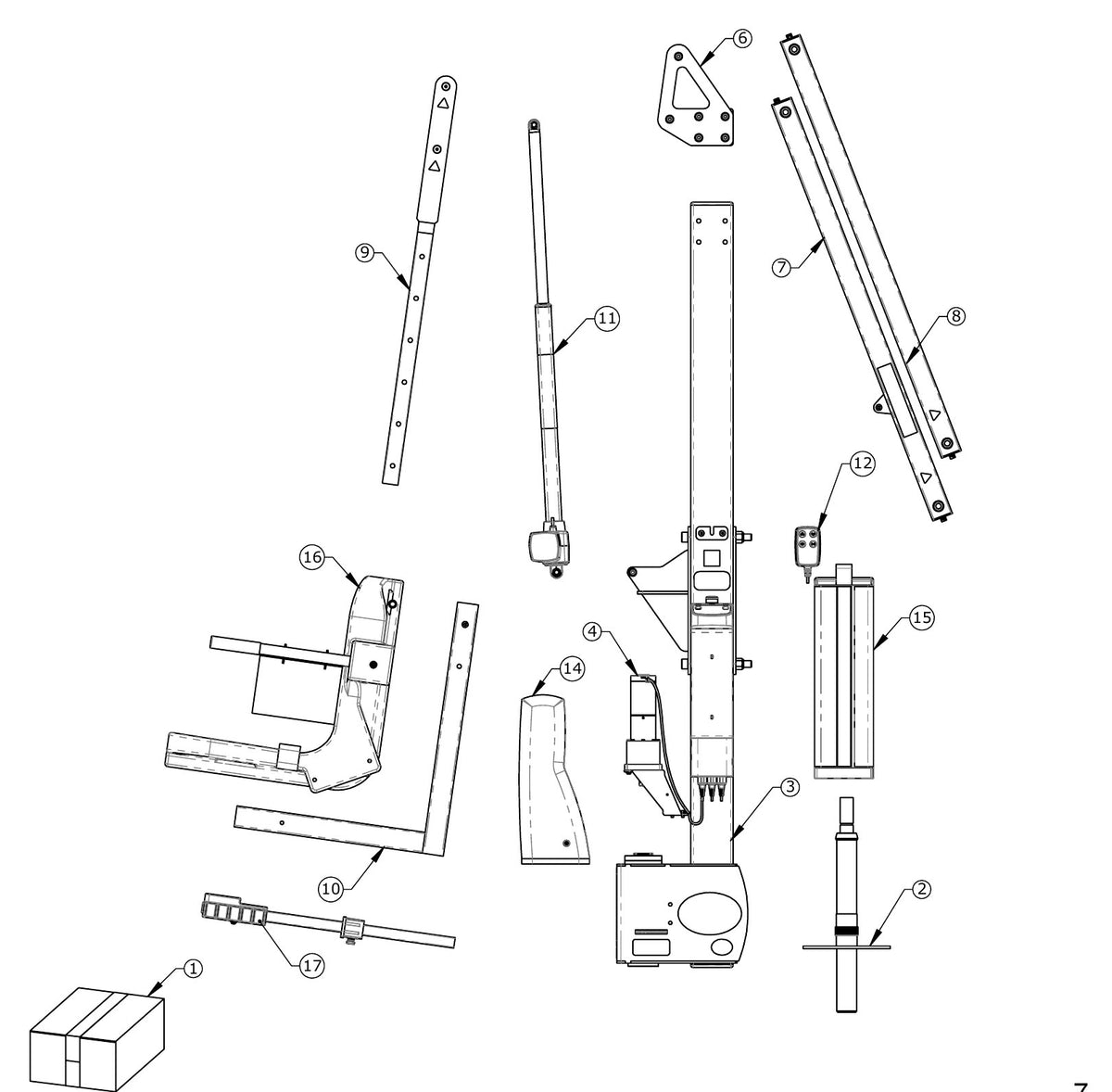

Aqua Creek Neptune Pool Lift exploded parts diagram with numbered keys1234678910111214151617
Numbers are the manufacturer's own.

Stock box, TimotionAqua Creek INV03647

Aqua Creek INV03647 is not sold on Active yet.

Anchor spindle assembly, 1.90 in. dia. square drive 4 holeAqua Creek INV03511

Aqua Creek INV03511 is not sold on Active yet.

Mainframe assembly, NeptuneAqua Creek INV03521

Aqua Creek INV03521 is not sold on Active yet.

Motor mount assembly, TimotionAqua Creek INV03687

Aqua Creek INV03687 is not sold on Active yet.

Spa Series hardware kit assemblyAqua Creek INV03550

Aqua Creek INV03550 is not sold on Active yet.

Lifting arm assemblyAqua Creek INV02954

Aqua Creek INV02954 is not sold on Active yet.

Control arm assemblyAqua Creek INV02955

Aqua Creek INV02955 is not sold on Active yet.

Seat pole assembly, 39 in.Aqua Creek INV01632

Aqua Creek INV01632 is not sold on Active yet.

Seat cradle assemblyAqua Creek INV02756

Aqua Creek INV02756 is not sold on Active yet.

Actuator kit, 400 mm, Timotion rotationalAqua Creek INV03667

Aqua Creek INV03667 is not sold on Active yet.

Timotion, TH24, 4 button remoteAqua Creek INV03603

Aqua Creek INV03603 is not sold on Active yet.

Motor cover assembly (blue, gray or white, tan)Aqua Creek INV03502, INV03504, INV03503

Aqua Creek INV03502 is not sold on Active yet.

Battery and control box cover with screws, TimotionAqua Creek INV03822, INV03824, INV03823

Aqua Creek INV03822 is not sold on Active yet.

Seat assembly, 18 in. (blue, gray, tan, white)Aqua Creek INV01417, INV02860, INV02859, INV02861

Aqua Creek INV01417 is not sold on Active yet.

Legrest accessory (blue, gray, tan, white)Aqua Creek INV01950, INV01952, INV01954, INV01953

Aqua Creek INV01950 is not sold on Active yet.

Drawing and key numbers from Aqua Creek's Neptune owner's manual (F-NPTN, updated 9/4/2025), product components, pages 6 and 7. Generic and kit parts sit at the key for the manufacturer's part they replace.

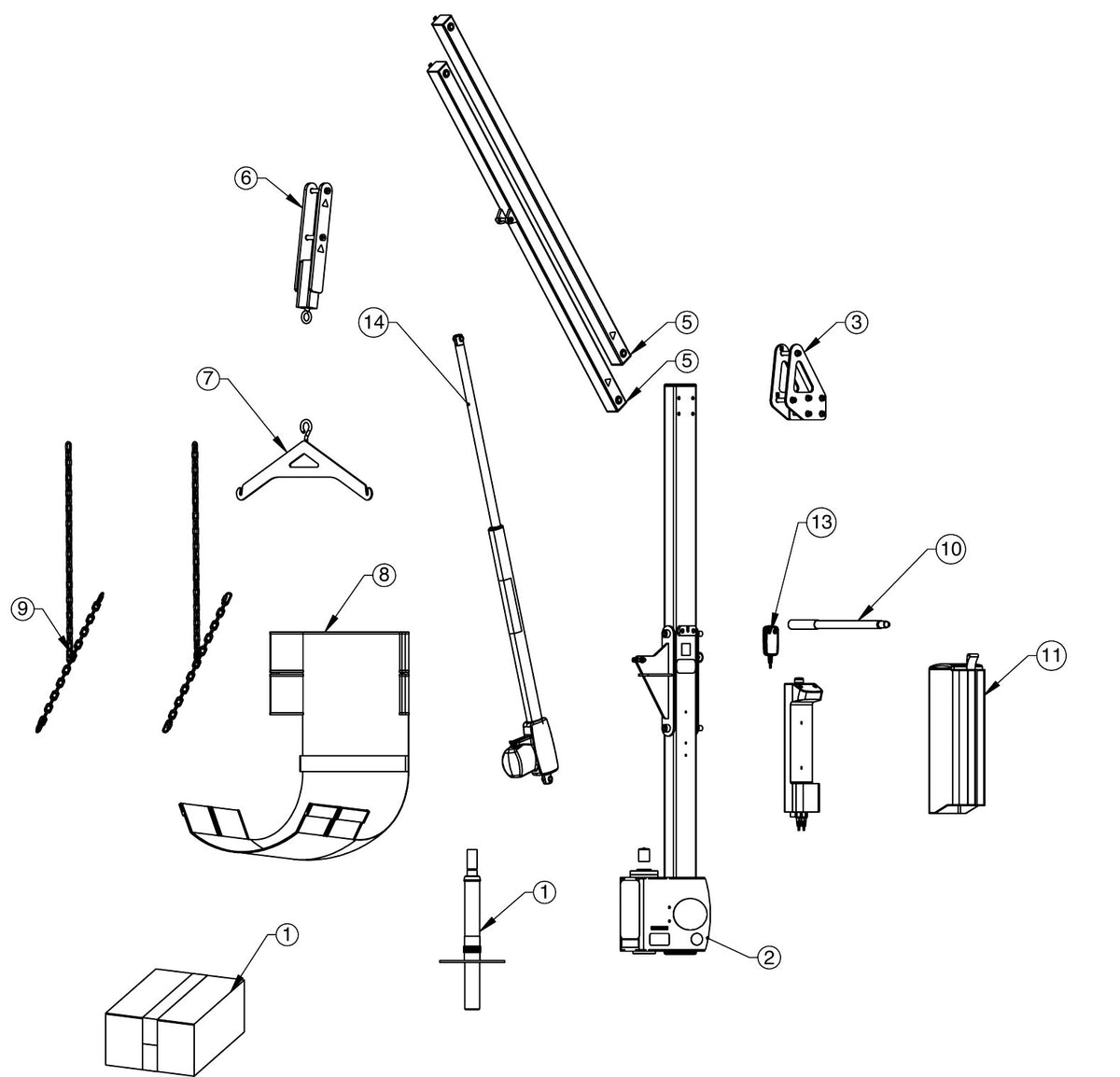

Aqua Creek Nebula Pool and Spa Lift exploded parts diagram with numbered keys123567891011131415
Numbers are the manufacturer's own.

Anchor spindle assembly, 1.90 in. dia. square drive 4 holeAqua Creek INV03511

Aqua Creek INV03511 is not sold on Active yet.

Mainframe assembly, NebulaAqua Creek INV03554

Aqua Creek INV03554 is not sold on Active yet.

Spa Series hardware kit assemblyAqua Creek INV03550

Aqua Creek INV03550 is not sold on Active yet.

Lifting arm and control arm assemblies, 53.75 in.Aqua Creek INV03546, INV03547

Aqua Creek INV03546 is not sold on Active yet.

Straight swivel kit, Revolution/Spa SeriesAqua Creek INV01631

Aqua Creek INV01631 is not sold on Active yet.

Standard sling hanger bar weldmentAqua Creek INV01394

Aqua Creek INV01394 is not sold on Active yet.

Sling with bars (adult 38 in. by 20 in.)Aqua Creek INV01386

Aqua Creek INV01386 is not sold on Active yet.

Sling chain setAqua Creek INV01383

Aqua Creek INV01383 is not sold on Active yet.

Turn barAqua Creek INV01412

Aqua Creek INV01412 is not sold on Active yet.

Battery and control box cover with screws, TimotionAqua Creek INV03822

Aqua Creek INV03822 is not sold on Active yet.

Timotion, TH24, 2 button remoteAqua Creek INV03602

Aqua Creek INV03602 is not sold on Active yet.

Actuator kit, 600 mm, Timotion rotationalAqua Creek INV03668

Aqua Creek INV03668 is not sold on Active yet.

Box, 18 x 12 x 6 in.Aqua Creek INV01725

Aqua Creek INV01725 is not sold on Active yet.

Drawing and key numbers from Aqua Creek's Nebula owner's manual (F-NBLA, updated 2/4/2026), product components, pages 6 and 7. Generic and kit parts sit at the key for the manufacturer's part they replace.

Skip to results list

Filters

11 items

Filter

About Aqua Creek Spa Series Lift Parts

The drawings are the product components views from Aqua Creek's owner's manuals for the Neptune and the Nebula, with our badges set at the manufacturer's item numbers. Aqua Creek numbers each row by an internal inventory code that is not a catalog part anywhere, so every badge shows that code for reference only, and what you can buy is listed under the drawings by its F catalog number. On the Neptune drawing the control box mount, item 5, sits behind the mast, and the label sheet, item 13, is listed but not drawn. The Nebula's list gives both of its 53.75 in. arms the number 5.

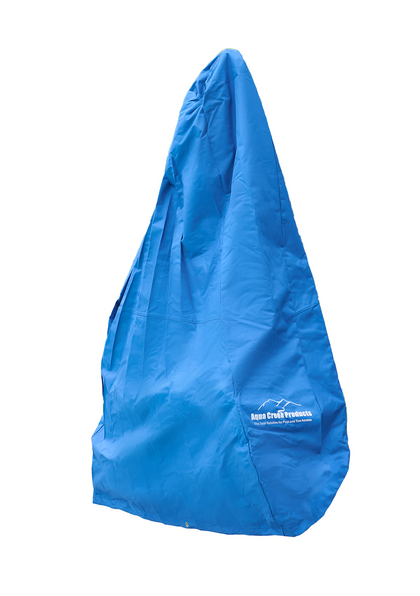

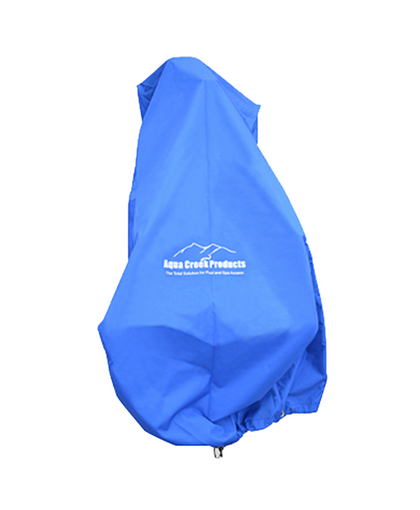

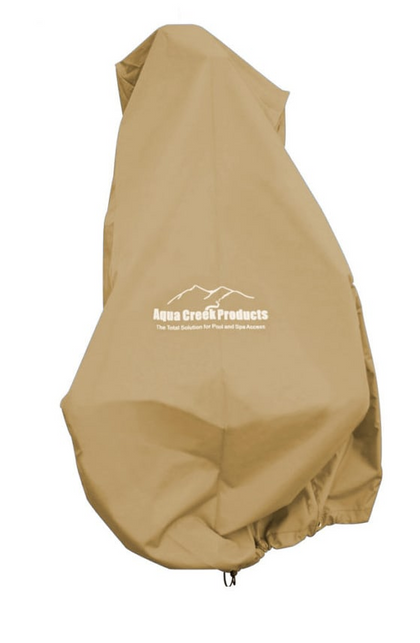

Sold here: the F-ASTSPA concrete anchor, listed for the Nebula and Neptune, and the F-AJSPA jig tool; covers for the Spa Series Elite and Neptune, the F-450SLECS-G, F-450SLECS, F-450SLECS-B-HE and F-450SLECS-T, plus the F-450SLUCS-T for the Spa Series Ultra; the F-SBGR base gear kit, listed for the Scout, Elite and Ultra rather than these two; the F-494DAA actuator, which the manufacturer lists for its Spa Series; the F-UBC universal cover; and the F-SLR solar panel. The Neptune and Nebula manuals name a Timotion actuator, so compare the label on yours with the F-494DAA listing before ordering it.

Both lifts stand beside an above ground pool. The Neptune fits walls 21 to 68 in. high, or 54 to 172 cm, rotates a full circle on a direct drive motor and seats the rider with a pull out leg rest on a 39 in. seat pole. The Nebula fits walls from 16 in. to beyond 60 in., works with spas as well, and hangs the rider in a sling under a hanger bar, lifting under power and turning by hand. Aqua Creek's Powered Rotation Kit, on page 20 of the Nebula manual, makes the turn motorized. The guide to which pool lift fits your pool compares wall heights across lifts.

No Timotion battery, charger or remote is sold here. The Neptune takes a four button TH24 remote and a 400 mm rotational actuator; the Nebula takes a two button TH24 and a 600 mm one, and both charge from a wall mount charger. For those parts, Aqua Creek technical support is at (888) 687-3552. Of the three anchors the two lifts share, the F-ASTSPA 1.90 by 6 in. kit is here; the F-AWDSPA wood deck anchor and the F-APVSPA 1.90 by 10 in. paver kit are not.

Spare batteries and chargers, covers and anchors have their own pages, and the pool lift battery and maintenance guide covers charging and care. Drawings for the other Aqua Creek lifts: Ranger 2, Scout Excel, Pro Pool Series, Mighty Series, Revolution and Power EZ. The S.R. Smith drawings are PAL2, Splash!, aXs2 and multiLift2. The lifts themselves are on Aqua Creek pool lifts, and the parent page is Pool lift parts.

Questions about Aqua Creek Spa Series Lift Parts

Where do I get a battery for an Aqua Creek Neptune pool lift?

Not from this page. The Neptune and Nebula run Timotion electronics, and none of them, the battery, charger, TH24 remote or actuator, is sold here. The Linak and Vito packs on the batteries page are listed for other Aqua Creek lifts. Aqua Creek technical support at (888) 687-3552 is the place to ask for the Timotion part your lift needs.

Neptune or Nebula: which Aqua Creek lift fits my above ground pool wall?

The Neptune is listed for walls of 21 to 68 in. and the Nebula for walls of 16 in. to beyond 60 in., with the exact limit on the Nebula depending on how wide the wall is and how tall the user is. Both carry 400 lb. The Neptune turns under power and has a seat with a pull out leg rest; the Nebula carries the rider in a sling and is rotated by hand unless the powered kit is fitted.

Can an Aqua Creek Nebula be converted to powered rotation?

Yes. The Nebula lifts under power but is swung through its 360 degrees by hand. Fitting Aqua Creek's Powered Rotation Kit makes the turn motorized as well, and the Nebula manual covers it on page 20. The kit is not sold on this page, and like the rest of the lift's electronics it is a Timotion system, so ask Aqua Creek technical support for it.

What anchor does an Aqua Creek Neptune need?

The Neptune and Nebula share three: the F-ASTSPA 1.90 by 6 in. kit for concrete, the F-AWDSPA for a wood deck and the F-APVSPA 1.90 by 10 in. kit for pavers. The F-ASTSPA is the one sold here, alongside the F-AJSPA jig tool. Pick by what the lift will stand on, and set the anchor before the lift goes together.

Do Spa Series Elite covers fit the Neptune?

Yes. The F-450SLECS covers, in the F-450SLECS-T, F-450SLECS, F-450SLECS-G and F-450SLECS-B-HE versions, are listed for both the Spa Series Elite and the Neptune. The Spa Series Ultra takes the F-450SLUCS-T instead. No cover on this page is listed for the Nebula.
