S.R. Smith multiLift2 Pool Lift Parts

12 products

Note the lift's color before ordering multiLift2 parts. S.R. Smith adds -TP to the base, main arm, seat interface and seat leveling numbers for taupe and -ST for slate, so one key on the drawing can mean three orders. The parts list is a hardware level bill of materials, down to each bolt, washer and bushing, with the 100-8000 actuator doing all the lifting. The multiLift2 only raises and lowers, so there is no turning motor or gear to wear, and its battery and control box are LiftOperator units.

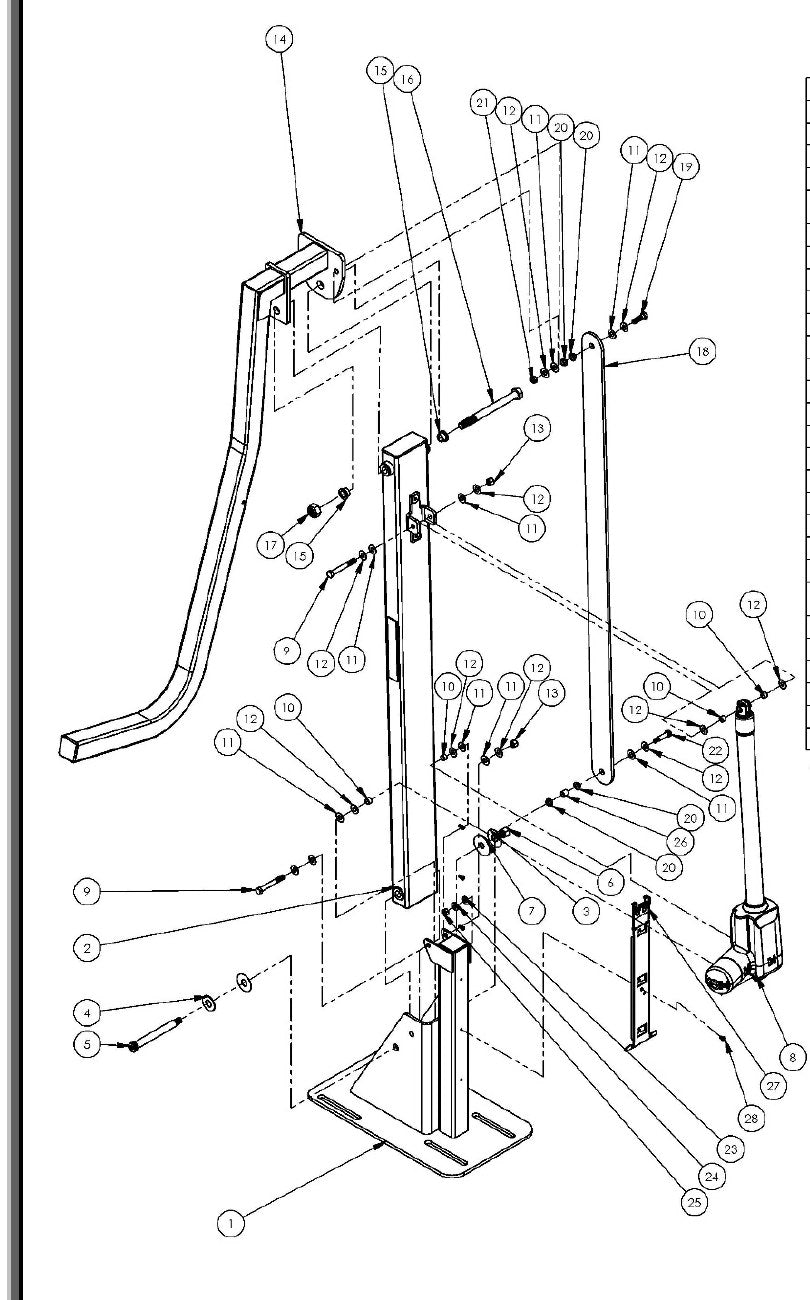

S.R. Smith multiLift2 Pool Lift exploded parts diagram with numbered keys12345678910111213141516171819202122232425262728
Numbers are the manufacturer's own.

multiLift2 base assemblyS.R. Smith 580-1000A

S.R. Smith 580-1000A is not sold on Active yet.

Weldment, main arm assemblyS.R. Smith 580-1100A

S.R. Smith 580-1100A is not sold on Active yet.

5/8 x 1-3/4 in nylon washerS.R. Smith 05-631

S.R. Smith 05-631 is not sold on Active yet.

Washer, 5/8 in ID x 1-1/2 in OD x 1/16 in thick, stainlessS.R. Smith 800-0145

S.R. Smith 800-0145 is not sold on Active yet.

5/8 in shoulder screw, 1/2-13 x 5 in long, 18-8 stainlessS.R. Smith 05-50-50-625SB

S.R. Smith 05-50-50-625SB is not sold on Active yet.

1/2-13 lock nut, 18-8 stainlessS.R. Smith 800-2003

S.R. Smith 800-2003 is not sold on Active yet.

Flat washer, wide, b18.22.1S.R. Smith 05-14-133-MG

S.R. Smith 05-14-133-MG is not sold on Active yet.

ActuatorS.R. Smith 100-8000

S.R. Smith 100-8000 is not sold on Active yet.

3/8-16 x 3 in hex head screw, 316 stainlessS.R. Smith 05-375-3-MG

S.R. Smith 05-375-3-MG is not sold on Active yet.

Sleeve, actuator centeringS.R. Smith 580-1320

S.R. Smith 580-1320 is not sold on Active yet.

3/8 in nylon protective washerS.R. Smith 05-32-111

S.R. Smith 05-32-111 is not sold on Active yet.

3/8 x 7/8 in flat washer, 316 stainlessS.R. Smith 5-145-MG

S.R. Smith 5-145-MG is not sold on Active yet.

3/8-16 nyloc nut, stainlessS.R. Smith 800-2000

S.R. Smith 800-2000 is not sold on Active yet.

Lift seat interfaceS.R. Smith 580-1200A

S.R. Smith 580-1200A is not sold on Active yet.

Oil embedded bronze sleeve bearingS.R. Smith 05-625-05-075FB

S.R. Smith 05-625-05-075FB is not sold on Active yet.

5/8-11 x 7 in long hex bolt, 316 stainlessS.R. Smith 05-625-7

S.R. Smith 05-625-7 is not sold on Active yet.

316 stainless extra wide thin nylon insert locknutS.R. Smith 05-625-TLN-MG

S.R. Smith 05-625-TLN-MG is not sold on Active yet.

Seat leveling assemblyS.R. Smith 580-1300A

S.R. Smith 580-1300A is not sold on Active yet.

3/8-16 x 1-1/4 in long hex bolt, 316 stainlessS.R. Smith 05-375-125MG

S.R. Smith 05-375-125MG is not sold on Active yet.

Flange bushing, .375 in ID x .5 in OD x .25 in longS.R. Smith 800-0102

S.R. Smith 800-0102 is not sold on Active yet.

3/8-16 316 stainless thin nylon insert locknutS.R. Smith 05-375-TLN-MG

S.R. Smith 05-375-TLN-MG is not sold on Active yet.

5/16-18 x 1-1/8 in long, 3/8 shoulder screwS.R. Smith 05-3125-1625-375SB-MG

S.R. Smith 05-3125-1625-375SB-MG is not sold on Active yet.

5/16 in nylon flat washerS.R. Smith 05-625

S.R. Smith 05-625 is not sold on Active yet.

5/16 in ID x 3/4 in OD flat washer, 316 stainlessS.R. Smith 5-303

S.R. Smith 5-303 is not sold on Active yet.

5/16-18 nylon locknut, 316 stainlessS.R. Smith 800-0102

S.R. Smith 800-0102 is not sold on Active yet.

Sleeve bearing, nylon, 3/8 in ID x 1/2 in OD x 1/2 in longS.R. Smith 05-375-05B

S.R. Smith 05-375-05B is not sold on Active yet.

Mount plate assemblyS.R. Smith 1001498

S.R. Smith LiftOperator Mount Plate for aXs2 and multiLift2 Pool Lifts, 1001498

S.R. Smith OEM

$6786 In stock

Screw, #10-24 x 3/8 in pan head TorxS.R. Smith 1001494

S.R. Smith 1001494 is not sold on Active yet.

Drawing and key numbers from S.R. Smith's multiLift2 owner's manual 700-9700 (9.26.2022), Appendix C, page 37. Generic and kit parts sit at the key for the manufacturer's part they replace.

Skip to results list

Filters

12 items

Filter

About S.R. Smith multiLift2 Pool Lift Parts

The drawing is Appendix C of S.R. Smith's multiLift2 owner's manual, badged at the manufacturer's 28 item numbers. Most keys are fasteners: nylon and stainless washers, lock nuts, shoulder screws, hex bolts and sleeve bearings, each with its own number, so a lost bolt can be ordered by key rather than by guess. A part this store does not sell keeps its badge and number for reference.

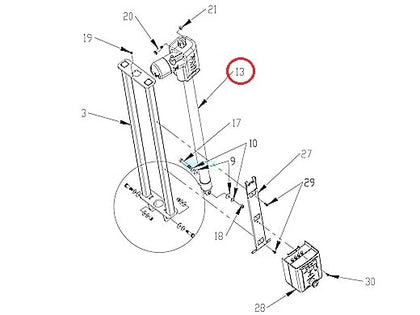

Sold here: the 1001498 mount plate assembly (key 27), the plate the LiftOperator battery and control box hang on, also used on the aXs2, and the 500-5000 new construction anchor jig the manual names for pouring the anchors into a new deck. The jig comes without the four flush deck anchors, which S.R. Smith numbers as kit 300-6700A. The 910-1000T console cover keeps water off the battery and control box. The 600 mm actuator 100-7000 sold here is for the first multiLift; the multiLift2 list names the 100-8000.

The multiLift2 is a fixed lift on a flange base, rated at 350 lb, with a 58.5 in. mast, about 51 in. of seat travel and a seat that can be set up on either side in the field. Two cables run from the control box, one to the hand control and one to the actuator. Its parts list leaves out the battery, charger and control box, which are on the batteries and chargers page; the anchor side is on pool lift anchors, and the ADA measurements the seat has to meet are in ADA pool lift requirements.

If the lift will not move, charge the battery until the light by its charging port turns green; a light that flashes red means a faulty pack. If the control box lights show under 25 percent on a freshly charged pack, replace the battery. No lights at all with the battery seated points to the control box. The pool lift battery and maintenance guide covers the daily routine.

Spare batteries and chargers, covers and anchors are filed on their own pages. Parts drawings for the other S.R. Smith lifts: PAL2, Splash! and aXs2. The lifts themselves are on S.R. Smith pool lifts, and the parent page is Pool lift parts.

Questions about S.R. Smith multiLift2 Pool Lift Parts

Is the multiLift2 actuator the same as the original multiLift's?

No. The multiLift2 parts list names the 100-8000 actuator at key 8, held by actuator centering sleeves and 3/8 in. stainless hardware. The 600 mm actuator 100-7000 belongs to the first multiLift. Since the multiLift2 has no turning motor, the actuator is its only moving electrical part, so read the number on the actuator's label before ordering, and match it to the list for your model.

Why do multiLift2 part numbers end in TP or ST?

They name the color. The base, main arm, seat interface and seat leveling assembly are powder coated, and S.R. Smith adds -TP for taupe and -ST for slate to the end of those four numbers; the plain number is the gray mist finish. The actuator, mount plate and hardware carry one number whatever the color. Check the model number on the lift's serial label, which ends the same way.

My multiLift2 hand control does nothing but the lift is charged. What now?

Check the hand control plug is pushed fully into the control box, that its pins are straight and that the cable is undamaged. Then press up and down on the control box's own buttons. If the lift moves from the panel, the hand control needs replacing. If it does not move from either and the battery lights come on, call S.R. Smith; if no lights come on with the battery seated, the control box is the likely fault.

Where is the serial number on an S.R. Smith multiLift2?

On a silver label about 2.5 by 3.25 in. on the mast. It carries the model or product number and the serial, and that is what to read before ordering: the model number shows the color suffix, and the serial is what S.R. Smith asks for, with photos, on any warranty claim. Its warranty runs from the date of manufacture, not the date of purchase.
