S.R. Smith LiftOperator Mount Plate for aXs2 and multiLift2 Pool Lifts, 1001498$6786
S.R. Smith LiftOperator Mount Plate for aXs2 and multiLift2 Pool Lifts, 1001498
30 day returns · Easy, with prepaid labels provided
Quick overview
- Job Holds the LiftOperator control box on the lift, and the battery latches onto it.
- Fit Named in the aXs2 parts list as the Battery Bracket and in the multiLift2 list as the Mount plate assembly.
- Control box The controller hooks onto the plate by tabs and is held with one screw.
- Battery The battery latch bracket locks into slots on the plate and lifts off for charging.
Need a hand?
Similar products
Other products people compare with this one.
S.R. Smith 2 Button Hand Control for ML300 and multiLift Pool Lifts, 1001601$22406
S.R. Smith LiftOperator 24 V CEC Compliant Battery, BC Version for Pool Lifts, 1001495-BC-R$45299
S.R. Smith New Construction Anchor Jig with Anchors for ML300 Pool Lifts, 500-5000A$40468
S.R. Smith 4-Button LiftOperator Hand Control, 100-4300-R$23699
Product details
The S.R. Smith 1001498 is the mount plate that holds the LiftOperator control box and its battery on the lift. The aXs2 parts list calls it the Battery Bracket, and the multiLift2 parts list calls it the Mount plate assembly.
How it is used

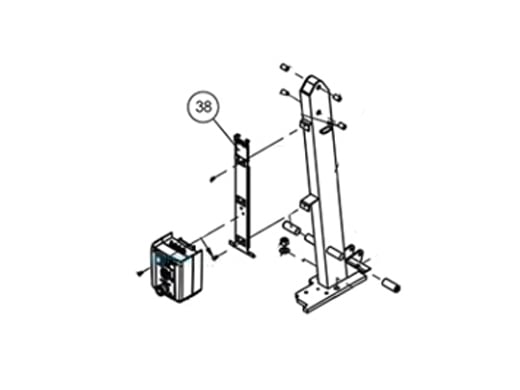

In the multiLift2 assembly steps, the tabs on the bottom of the mounting bracket go into the slots in the lower back of the controller, and a single screw, part 1001494 in that parts list, holds the controller in place. The battery latch bracket then locks into the slots on the same bracket. To take the battery off for charging, pull outward on the handle until the latch clears the slots and lift it up. On the aXs2, the battery pack slides onto the top of the mounting plate and down onto the control box.
When to replace it
If the tabs or slots are bent or cracked so the controller or the battery latch no longer locks in place, replace the plate.
From Pool School
Pool Lift Battery, Maintenance and Winter StorageCharging, swapping and storing the battery, what fails first, and winter storage. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. ReadWhere this part goes
10
Key 10 on the S.R. Smith aXs2 Pool LiftFits every model in the drawing.See it on the diagramAll S.R. Smith aXs2 Pool Lift Parts 23 parts and the drawing
27
Key 27 on the S.R. Smith multiLift2 Pool LiftFits every model in the drawing.See it on the diagramAll S.R. Smith multiLift2 Pool Lift Parts 12 parts and the drawing
| Brand | S.R. Smith |
|---|---|
| Model | Mount plate assembly |
| Manufacturer part number | 1001498 |
| Fits | aXs2, multiLift2 |
| Type | LiftOperator control box and battery mounting plate |
| Also called | Battery Bracket (aXs2 parts list) |
| Fastener | Screw 1001494 in the multiLift2 parts list |
| Shipping weight | 1 lb |
