Pleatco PJAN145 replacement filter cartridge for Jandy CL580 and CV580, 145 sq ftPleatco Cartridge 4-Pack 145 sq ft CL580/CV580, PJAN145-PAK4$29499
Pleatco PJAN145 replacement filter cartridge for Jandy CL580 and CV580, 145 sq ft
Shop all Pleatco

Pleatco Cartridge 4-Pack 145 sq ft CL580/CV580, PJAN145-PAK4

Ask a questionMPN PJAN145-PAK4
$29499
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Full set of four The CL580 and CV580 take four cartridges. This pack replaces all of them at once.
  • 145 sq ft each Four elements bring the filter back to its full 580 sq ft of area.
  • Fits Jandy CL580 and CV580 Pleatco PJAN145 is made for these Jandy Industries filters.
  • Exact dimensions 32-7/8 in. tall, 7-1/8 in. outside diameter, 3 in. inner hole.
  • Pleatco made Aftermarket replacement built to the original cartridge dimensions.
  • Single cartridge option If only one element is damaged, the same cartridge is available individually as PJAN145.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pleatco Cartridge 4-Pack 145 sq ft CL580/CV580, PJAN145-PAK4, SKU PLE-051-9463. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pleatco Cartridge 4-Pack 145 sq ft CL580/CV580, PJAN145-PAK4
Pleatco

Cartridge 4-Pack 145 sq ft CL580/CV580, PJAN145-PAK4

$29499
Pleatco 7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4
Pleatco

7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4

$33399
Pleatco 7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4
Pleatco

7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4

$28799
Pleatco 7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4
Pleatco

7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4

$25099
Pleatco Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M
Pleatco

Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M

$12899
Pleatco Cartridge Filter, 90 Sq. Ft., PA90
Pleatco

Cartridge Filter, 90 Sq. Ft., PA90

$7199
Pleatco PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460
Pleatco

PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460

$11799
Subtotal

Similar products

Other products people compare with this one.

Pleatco X15-ULT-A6-Q4 Advanced Ultra filter cartridge 4 pack for Pentair Clean and Clear Plus 420 Pleatco 7 in. Diameter 105 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean and Clear Plus 420, X15-ULT-A6-Q4$30999 Pleatco X15-ULT-A6-M-Q4 Xtreme Blue A6 filter cartridges for CCP420, 4-pack Pleatco Xtreme Blue A6 CCP420 Filter Cartridge, 4-Pack, X15-ULT-A6-M-Q4$37399 Hayward CX580XREPAK4 set of four replacement cartridge elements for the SwimClear C3030 Hayward OEM Cartridge Filter Element for SwimClear C3030 (4-Pack), CX580XREPAK4$31599 Unicel C-7471-4 four pack of replacement cartridges for the Pentair Clean & Clear Plus 420 Unicel Replacement Cartridge Filters for Clean & Clear Plus CCP420 4-Pack, C-7471-4$34899 Hayward CX591XREPAK4 replacement cartridge set for the SwimClear C7030 filter Hayward Replacement Filter Cartridge Set for SwimClear C7030, 4 Pack, CX591XREPAK4$33199 Pentair 179136 Clean and Clear Plus 520 filter cartridge four pack Pentair Clean & Clear Plus 520 Cartridge Filter 4-Pack, 179136$38399 Unicel C-7488-4 replacement filter cartridge for Hayward SwimClear C4020, C4025 and C4030 Unicel Filter Cartridge 4-Pack for Hayward SwimClear C4020/4025/4030, C-7488-4$31199 Pentair 179134 Clean and Clear Plus 320 replacement filter cartridge 4-pack Pentair OEM Clean & Clear Plus 320 Cartridge Filter 4-Pack, 179134$28999 Hayward CX880XREPAK4 SwimClear replacement filter cartridge elements, 4 pack Hayward Replacement Filter Cartridge Elements for SwimClear, 4 Pack, CX880XREPAK4$40899 Hayward CX481XREPAK4 replacement filter cartridge element for SwimClear C2030 filters Hayward Replacement Filter Cartridge for C2030 SwimClear Filters, 4 Pack, CX481XREPAK4$25299
Unicel C-7459-4 replacement filter cartridge four pack for the Jandy CL340 Unicel Cartridge Filter, 4 Pack, Jandy CL340, C-7459-4$29399 Unicel C-7469-4 60 sq ft filter cartridge, four pack Unicel 60 SQFT Filter Cartridge (4 Pack), C-7469-4$24199 Xtreme Blue C4 X15-ULT-C4-M replacement filter cartridge for Pentair Clean and Clear Plus and Predator Pleatco Xtreme Blue C4 150 sqft Clean and Clear Plus 420/Predator Filter Cartridge, X15-ULT-C4-M$17299 Xtreme Blue X15-ULT-A5-M-Q4 A5 replacement filter cartridge SuperPro Xtreme Blue A5 Replacement Filter Cartridge 4 Per Pack, for Clean & Clear Plus 320, X15-ULT-A5-M-Q4$35799 Unicel C-7483-4 four pack of 81 sq ft filter cartridges for Hayward SwimClear C-3025 Unicel Filter Cartridge 4-Pack, C-7483-4$25899 Unicel C-7494 131 sq ft filter cartridge for Hayward SwimClear filters Unicel Filter Cartridge CX1280XRE, 4 Pack, C-7494-4$36899 Filbur FC-6460 60 sq ft replacement filter cartridge four pack for Pentair Clean and Clear Plus 240 Filbur Filter Cartridge 60 Sq Ft, 4-Pack, for Pentair Clean & Clear Plus 240, FC-6460$15999 Unicel C-7490-4 137 sq ft replacement filter cartridge quad pack for Hayward CX1380-RE Unicel Replacement Filter Cartridge for Hayward CX1380-RE, 137 Sq Ft, 4-Pack, C-7490-4$33099 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward CX225XREM 225 sq ft replacement cartridge element for the SwimClear C225SC Hayward SwimClear C225SC 225 Sq Ft Filter Cartridge CX225XREM$27899

Product details

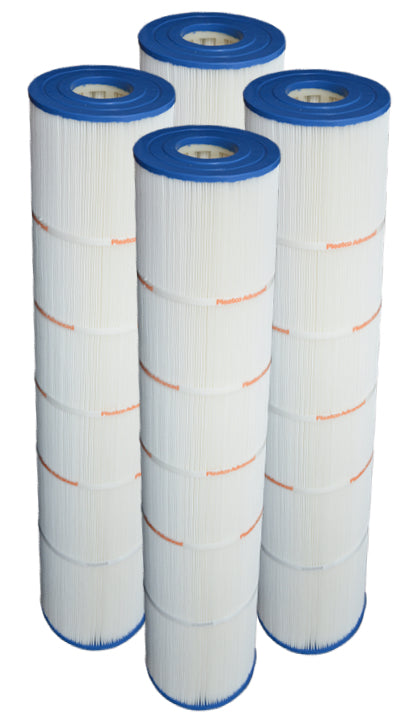

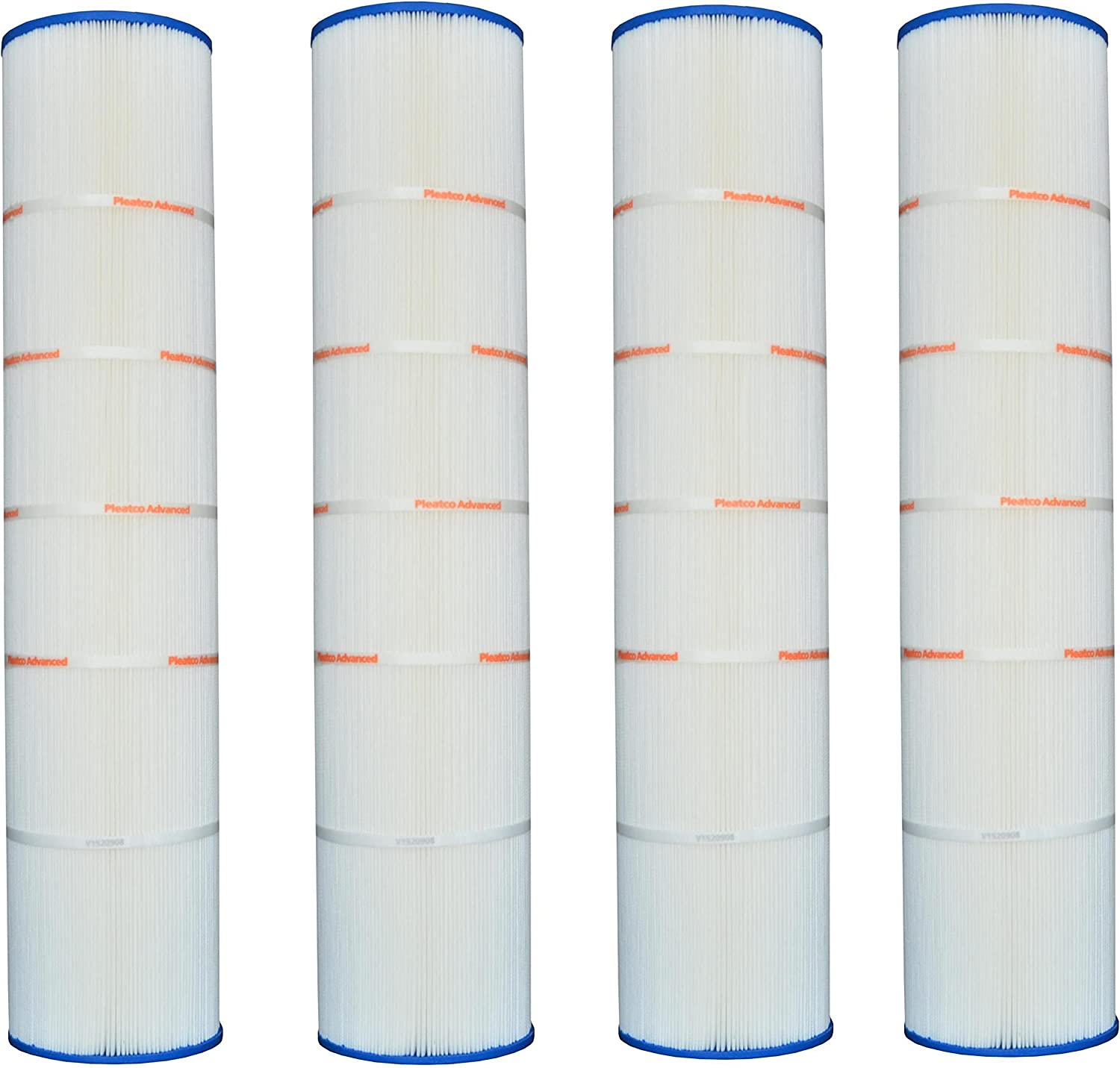

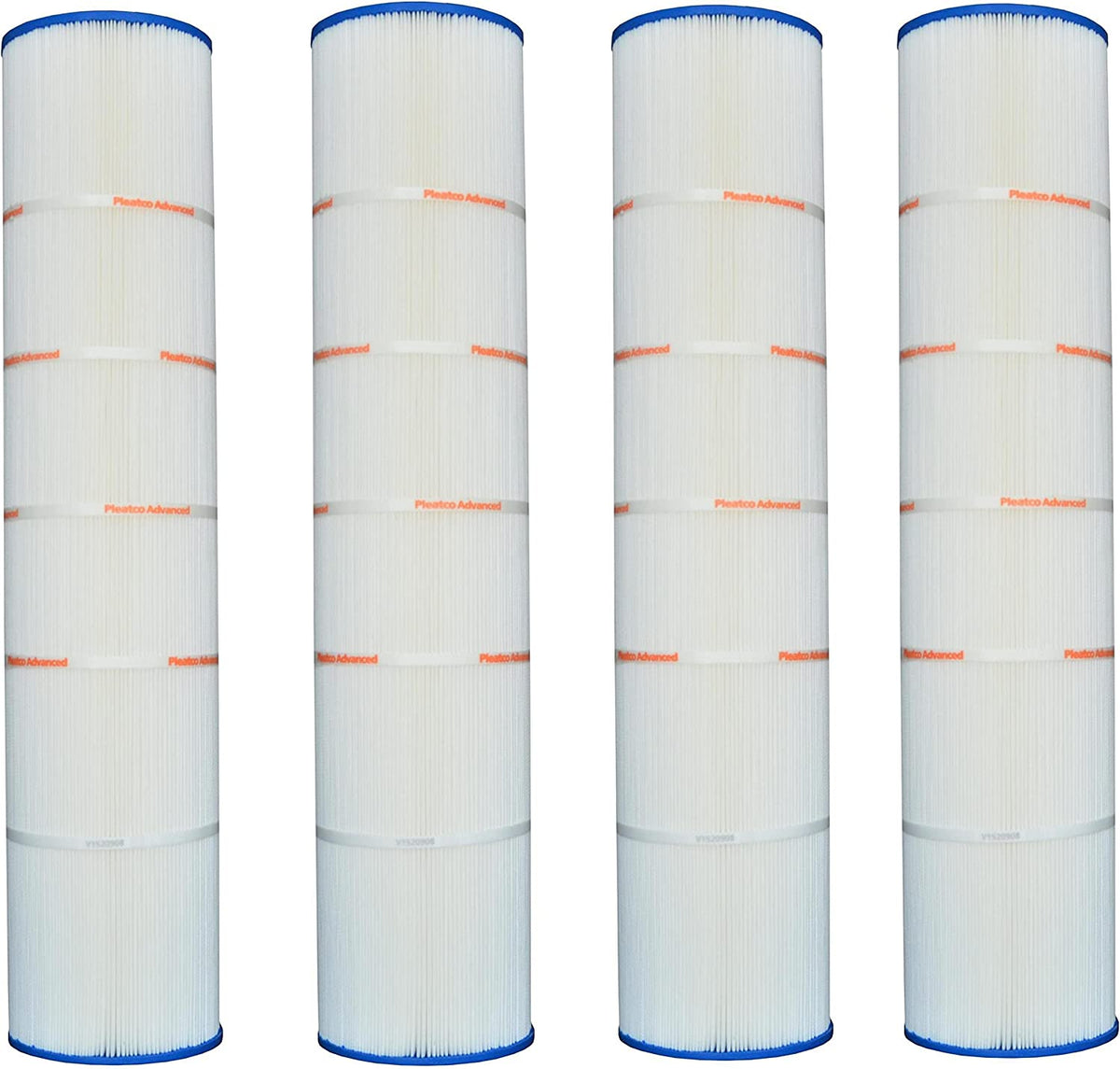

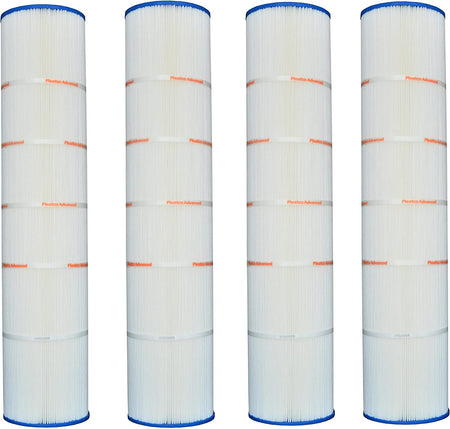

The Pleatco PJAN145-PAK4 is a set of four replacement cartridges for the Jandy CL580 and CV580 cartridge filters. Each element carries 145 sq ft of media, so the four together restore the full 580 sq ft the filter was built around.

Dimensions

Each cartridge is 32-7/8 in. long with a 7-1/8 in. outside diameter and a 3 in. inner hole. Measure the cartridges coming out of your filter against those numbers if you are not certain of the model.

Why buy the set

Cartridges in a four element filter share the flow. When one is new and three are tired, the new one does most of the work and clogs first. Replacing all four at once keeps them loading evenly and lets you clean them on the same schedule. If a single element is damaged, the individual PJAN145 is available separately.

Specifications
Brand Pleatco
Manufacturer part number PJAN145-PAK4
UPC 090164684451
Quantity 4 cartridges
Filter area 145 sq ft per cartridge
Length 32-7/8 in.
Outside diameter 7-1/8 in.
Inner hole diameter 3 in.
Fits Jandy CL580, CV580
Filter manufacturer Jandy
Shipping weight 26.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pleatco

Pleatco X15-ULT-A9-Q4 Advanced Ultra filter cartridge for Jandy CL460, 4-pack Pleatco 7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4$33399 Pleatco X15-ULT-A7-Q4 Advanced Ultra 7 in. filter cartridge for Pentair Clean & Clear Plus CCP520, 4 pack Pleatco 7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4$28799 Pleatco PJAN115 115 sq ft filter cartridge for the Jandy CL 460 Pleatco PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460$11799 Pleatco X15-ULT-A5-Q4 Advanced Ultra filter cartridge, four pack for Pentair Clean & Clear Plus 320 Pleatco 7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4$25099 Pleatco X15-ULT-A1-M Advanced Ultra Xtreme Blue A1 filter cartridge for Hayward C4025 and C4030 Pleatco Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M$12899 Pleatco PH105-4 105 sq ft filter cartridge for Harmsco Tropic Flo 100 Pleatco 105 Sq Ft Filter Cartridge, Harmsco Tropic Flo 100, BF100SC, PH105-4$12999 Pleatco PA90 90 sq. ft. replacement filter cartridge for Hayward Star-Clear Plus C-900 and Sta-Rite PXC-95 Pleatco Cartridge Filter, 90 Sq. Ft., PA90$7199 Pleatco PCC130-PAK4 520 sq ft filter cartridge pack Pleatco 520 Sq Ft Filter Cartridge Pack, Clean and Clear Plus 520, Crystal Water, PCC130-PAK4$41399 Pleatco PA120 120 sq ft replacement filter cartridge for Hayward Star Clear Plus C1200 Pleatco Cartridge Filter, 120 Sq Ft, PA120$11799 Pleatco PA137 137 sq ft pool filter cartridge, angled view Pleatco PA137 Filter Cartridge 137 Sq Ft, CX1380-RE$10499
Pleatco PFAB150 150 square foot filter cartridge for the PacFab Pentair FMY-150 Pleatco 150 Sq Ft Filter Cartridge, FMY-150, PFAB150$10399 Pleatco PA50 50 sq ft pool filter cartridge Pleatco 50 Sq Ft Filter Cartridge, Star-Clear C500, Pentair Purex CF-50, PA50$6699 Pleatco X15-PCC130 130 square foot filter cartridge for Pentair Clean and Clear Plus 520 Pleatco 130 Sq Ft Filter Cartridge, Clean & Clear Plus 520, X15-PCC130$13699 Pleatco PWW50L 50 sq ft filter cartridge for Waterway Teleweir Pleatco PWW50L 50 Sq Ft Filter Cartridge for Waterway Teleweir$3799 Pleatco PSR137 replacement cartridge for Sta-Rite Posi-Flo II PTM-135 Pleatco Cartridge PTM-135 Posi-Flo II, PSR137$12699 Pleatco PA40 40 sq ft filter cartridge for Hayward C-410 and Easy Clear C400 Pleatco 40 Sq Ft Filter Cartridge, C-410, Easy Clear C400, PA40$4799 Pleatco PCS75N 75 sq ft replacement filter cartridge for Coleman Spas Pleatco 75 sq ft Filter Cartridge for Coleman Spas, PCS75N$7799 Pleatco PJAN145 145 sq ft replacement filter cartridge for the Jandy CL 580 Pleatco 145 sq ft Filter Cartridge for Jandy CL 580, PJAN145$10199 Web Price Pleatco PAP100-4 100 square foot filter cartridge for Predator 100 and Clean & Clear 100 Pleatco 100 Sq Ft Filter Cartridge for Predator 100 and Clean & Clear 100, PAP100-4$11599 Pleatco PCC60 60 sq ft pool filter cartridge Pleatco 60 sq ft Filter Cartridge, Clean & Clear Plus 240, American Quantum, PCC60$7799

Questions and answers

What people ask about this product, answered by our pool techs.

How many cartridges does my CL580 need?
Four. The CL580 and CV580 use four 145 sq ft elements for a total of 580 sq ft, and this pack contains all four.
What are the cartridge dimensions?
Each is 32-7/8 in. long with a 7-1/8 in. outside diameter and a 3 in. inner hole.
Can I replace just one cartridge?
You can, and the single PJAN145 is sold separately. Replacing all four together keeps the flow balanced across the elements and puts them on the same cleaning schedule.
Are these genuine Jandy cartridges?
No. They are Pleatco replacements made to fit the Jandy CL580 and CV580.
