Eco-Matic M0657USA replacement salt cell for ESC24, ESC36 and ESC48 systemsEco-Matic Replacement Salt Cell ESC24/36/48, M0657USA In stock$71699
Eco-Matic M0657USA replacement salt cell for ESC24, ESC36 and ESC48 systems
Shop all Balboa Instruments

Eco-Matic Replacement Salt Cell ESC24/36/48, M0657USA

Ask a questionMPN M0657USA
$71699
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • One cell, three systems Serves the ESC24/ESC7000, ESC36/ESC8000 and ESC48/ESC9000 salt systems.
  • Reverse polarity The cell reverses its polarity to shed scale from the plates during normal operation.
  • Blades included Supplied complete with the blades, not as a bare housing.
  • Part M0657USA The Eco-Matic replacement cell part number.
  • Restores chlorine output A cell that has lost its coating stops producing, no matter how good the salt level looks.
  • The wear part of the system Cells are consumable. The control box usually outlives several of them.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Eco-Matic Replacement Salt Cell ESC24/36/48, M0657USA, SKU ECM-45-934. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Eco-Matic Replacement Salt Cell ESC24/36/48, M0657USA
Balboa Instruments

Eco-Matic Replacement Salt Cell ESC24/36/48, M0657USA

$71699
Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator
Jandy

R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$24599
Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder
Hayward

CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder

$12999
Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws
Jandy

R0984100 AquaPure Power Interface PCB, Large Backboard with Screws

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Subtotal

Similar products

Other products people compare with this one.

CompuPool GRC/J/APURE1400-3 3 port 14 blade replacement salt cell for Jandy AquaPure 1400 CompuPool 3-Port 14-Blade Replacement Salt Cell for Jandy AquaPure System 40,000 Gallons$56799 CaliMar CMARCHA40-2Y replacement salt cell for Hayward T-Cell-15, 40,000 gallons CaliMar Salt Cell Compatible with Hayward® T-Cell-15®, 2-Year Warranty, 40K Gallons, CMARCHA40-2Y$54900 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$84099 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price CompuPool GRC40GH replacement salt cell with cord for Hayward T-Cell-15 systems CompuPool Salt Cell Compatible with Hayward® T-Cell-15®, with Cord, 40K Gallons, GRC40GH$56299 AutoPilot PPC1 5-blade replacement salt cell with unions and inline strainer AutoPilot PPC1 OEM Replacement Salt Cell with Unions, 5-Blade, 40K gal$59900 CompuPool GRC25GH clear housing replacement salt cell for Hayward T-CELL-9, with cord CompuPool Salt Cell with Cord Compatible with Hayward® T-CELL-9®, 3-Year Warranty, 25K Gallons, GRC25GH$48999 CaliMar CMARCIC40-1Y replacement salt cell compatible with IntelliChlor IC40 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC40, 40K Gallons, CMARCIC40-1Y$89900 Web Price CaliMar CMARCFS40-1Y replacement salt cell for Zodiac Nature 2 Fusion R0503000 CaliMar Replacement Salt Cell Compatible with Zodiac Nature 2 Fusion R0503000, 40,000 Gallons, CMARCFS40-1Y$69900 Web Price
AutoPilot PPC2 replacement salt cell with unions, for pools up to 32,000 gallons AutoPilot PPC2 Replacement Cell With Unions$88900 Jandy PLC700 AquaPure PureLink three port salt cell kit with 16 ft cables Jandy AquaPure PureLink Salt Chlorine Generator Cell Kit, 12K Gallon Pools, PLC700$99900 AutoPilot PPC3 replacement salt cell with unions for Pool Pilot systems AutoPilot PPC3 Replacement Cell with Unions$88900 CaliMar CMARCPC40-2Y replacement salt cell for SGS Wave and Breeze 540 and CMP Powerclean 540 systems CaliMar Replacement Salt Cell for SGS Wave & Breeze 540 Systems and CMP Powerclean 540 Systems, 40K Gallons, CMARCPC40-2Y$52900 Web Price CompuPool GRC20GH replacement salt cell for Hayward T-CELL-5 with cord CompuPool Salt Cell with Cord Compatible with Hayward® T-CELL-5, 3-Year Warranty, 20K Gallons, GRC20GH$38399 Solaxx CLG125A-010 PureChlor 25K gallon replacement salt cell Solaxx PureChlor 25K Gallon Replacement Salt Cell, CLG125A-010$88399 CompuPool GRC/AP-SC48 seven blade replacement salt cell for AutoPilot SC-48, RC-42 and PPC3 CompuPool Replacement Salt Cell for AutoPilot SC-48 RC-42 PPC3, 7-Blade for up to 50K Gallons$37199 CompuPool GRC/R/AE7 seven blade replacement salt cell for Resilience A7 and E7C, up to 60,000 gallons CompuPool Resilience 7-Blade Salt Cell Replacement, For up to 60K Gallons$60399 CaliMar CMARCHA15-2Y replacement salt cell for Hayward T-CELL-3, 15,000 gallons CaliMar Salt Cell Compatible with Hayward® T-CELL-3®, 15,000 Gallons, CMARCHA15-2Y$40900 Web Price CaliMar CMARCPC20-2Y replacement salt cell for SGS Wave 320, Breeze 320 and CMP Powerclean 320 CaliMar Replacement Salt Cell for SGS Wave & Breeze 320 Systems and CMP Powerclean 320 Systems, CMARCPC20-2Y$39900 Web Price

Product details

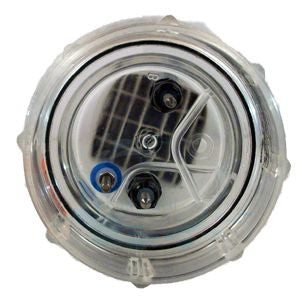

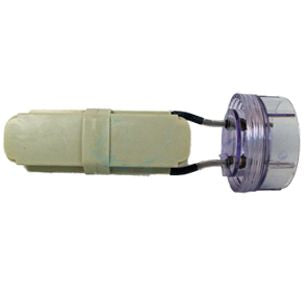

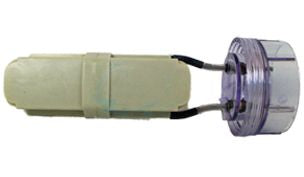

The M0657USA is the Eco-Matic reverse polarity replacement salt cell, supplied with blades. It covers three system pairs: ESC24 and ESC7000, ESC36 and ESC8000, ESC48 and ESC9000.

Why reverse polarity matters

Salt cells scale. Calcium builds on the plates, insulates them, and output falls. A reverse polarity cell flips the current across the plates on a cycle so that deposits lift and wash away with the flow, which means fewer acid baths and a cell that holds its output longer between services.

Cells are consumable

The plate coating wears out with use. When it does, chlorine production drops even though the salt level, the flow and the water balance all read correctly, and no amount of cleaning brings it back. That is the point at which the cell, not the control box, is replaced.

Before you order

Check your system model against the list. The same cell covers all six model designations above.

From Pool School

How to Clean a Salt CellHose first, acid only on scale that stays, and each manufacturer's own mix and time limit. Read When to Replace a Salt CellThe life each manufacturer prints, what looks like a dead cell and is not, and choosing the next one. Read Generic vs OEM Salt CellsWhat you can compare on paper between the original and another manufacturer's cell, and what you cannot. Read
Specifications
Brand Eco-Matic
Manufacturer part number M0657USA
Type Replacement salt cell
Technology Reverse polarity
Includes Blades
Fits ESC24/ESC7000, ESC36/ESC8000 and ESC48/ESC9000 salt systems
Shipping weight 2.95 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Balboa Instruments

Balboa 1070021 one speed spa circulation pump, 0.25 HP 230 V, front view Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz$30999 Eco-Matic M2679 cell cord for all ESC model chlorinators Eco-Matic 10' Cell Cord for All ESC Models, M2679$9799 Davey M1217 Eco-Matic o-ring for ESC and ESR series cell head Davey Eco-Matic O-Ring for ESC/ESR Series Cell Head, M1217$2599 Balboa 21619 heater o-ring, 2 inch Balboa Heater O-Ring 2", 21619$599 Balboa 50-3500WHT Hydro-Air standard wall fitting assembly in white with gasket Balboa Hydro-Air Standard Wall Fitting Assembly with Gasket, White, 50-3500WHT$1499 Balboa 30337 700 series dual sensor kit with hi-limit and temperature sensors Balboa 700 Series Sensor Kit, 30337$4699 Balboa 21087 amp plug cord for a 2-speed spa pump Balboa Amp Plug for 2-Speed Pump, 21087$2699 Balboa G7417 remote FloThru heater, VS100, 4.0 kW Balboa Remote FloThru Heater, VS100, 4.0kW, G7417$16799 Balboa Instruments White Air Control Assembly .5" | 10-2200WHT Balboa Instruments White Air Control Assembly .5" | 10-2200WHT$2199 Balboa Instruments HYDRO JET ASSY WHT | 10-5100WHT Balboa Instruments HYDRO JET ASSY WHT | 10-5100WHT$4599
Balboa Instruments JET MICROSSATE WHITE 1" X 1" | 16-5200WHT Balboa Instruments JET MICROSSATE WHITE 1" X 1" | 16-5200WHT$4599

Questions and answers

What people ask about this product, answered by our pool techs.

Which systems does this cell fit?
The ESC24 and ESC7000, the ESC36 and ESC8000, and the ESC48 and ESC9000.
What does reverse polarity mean?
The cell periodically reverses the current across its plates. Scale that has built up on one side loosens and washes off, so the cell needs less manual acid cleaning.
Do the blades come with it?
Yes. The cell is supplied with blades.
How do I know the cell is finished?
Chlorine output falls off while salt level, flow and water balance all read normal, or the controller reports low output after cleaning. Plates that have lost their coating cannot be restored.
Ask your own question
