Jandy R0501300 complete DE grid assembly for DEV48 and DEL48 filtersJandy Complete Grid Assembly for DEV/DEL 48 Sq Ft Filters, R0501300 In stock$49499

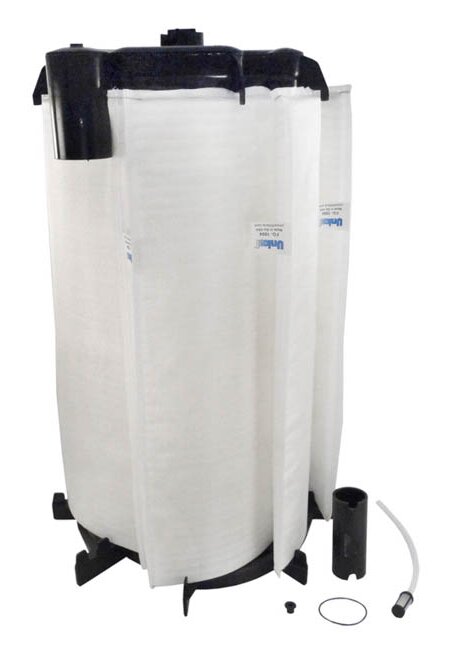

Jandy R0501300 complete DE grid assembly for DEV48 and DEL48 filters
Shop all Jandy

Jandy Complete Grid Assembly for DEV/DEL 48 Sq Ft Filters, R0501300

Ask a questionMPN R0501300
$49499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete assembly Every grid plus the manifold, already assembled, so the swap is pull the old set and drop in the new.
  • For 48 sq ft filters Made for the Jandy DEV48 and DEL48 DE filters.
  • Genuine Jandy Zodiac part R0501300, UPC 052337039918.
  • Chemical and UV resistant Grid material and frame are built to hold up to pool chemicals and sun over many seasons.
  • Even flow The manifold spreads water across all the grids so the full filter area does the work.
  • Restores clarity Torn or blinded grids let DE pass and cloud the water; a fresh set brings the filter back to spec.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Complete Grid Assembly for DEV/DEL 48 Sq Ft Filters, R0501300, SKU R0501300. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Complete Grid Assembly for DEV/DEL 48 Sq Ft Filters, R0501300
Jandy

Complete Grid Assembly for DEV/DEL 48 Sq Ft Filters, R0501300

$49499
Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Jandy

Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500

$69499
Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200
Jandy

Genuine Replacement Gauge with Air Release Assembly, R0357200

$8299
Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80
Jandy

2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80

$32799
Jandy CV Series Cartridge Filter Tank Top R0554700
Jandy

CV Series Cartridge Filter Tank Top R0554700

$53899
Jandy Top Housing Assembly CS100, CS150, R0461900
Jandy

Top Housing Assembly CS100, CS150, R0461900

$33699
Jandy Tank Body O-Ring, R0357800
Jandy

Tank Body O-Ring, R0357800

$6399
Subtotal

Similar products

Other products people compare with this one.

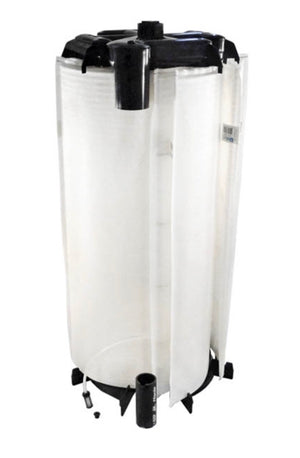

Jandy R0501400 complete grid assembly for DEV60 and DEL60 DE filters Jandy Complete Grid Assembly for DEV60/DEL60 Filters, R0501400$61099 Jandy R0442600 complete DEV60 DE filter grid set Jandy Complete Set of OEM DEV60 Grids, R0442600$64899

Product details

The Jandy R0501300, also sold under the Zodiac name, is the complete grid assembly for the 48 sq ft DEV and DEL DE filters. It is the full grid set and the manifold in one pre-assembled unit, which makes it the quick way to bring a tired DE filter back to full filtration.

Built for the tank

The assembly is shaped to fit the DEV48 and DEL48, and the grids and frame are made from materials chosen to resist pool chemicals and UV over many seasons. The manifold distributes water evenly across the grids so the entire 48 sq ft of filter area is working.

Installation

Because it arrives assembled, the job is to open the tank, lift out the old grid assembly and set the new one in place. There is no stacking individual grids or lining up a manifold on the bench.

Check the size

The 60 sq ft DEV60 and DEL60 filters use a different complete assembly, so confirm your filter is the 48 sq ft model before ordering.

Specifications
Brand Jandy
Manufacturer part number R0501300
UPC 052337039918
Also sold as Zodiac R0501300
Type Complete DE grid assembly
Fits Jandy DEV48, DEL48 DE filters
Filter area 48 sq ft
Includes Grids and manifold, pre-assembled
Shipping weight 33.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299

Questions and answers

What people ask about this product, answered by our pool techs.

Does this fit the DEV60 or DEL60?
This is the 48 sq ft assembly for the DEV48 and DEL48. The 60 sq ft DEV60 and DEL60 use a separate complete grid assembly.
What is included?
The full set of grids and the manifold, pre-assembled. You are not buying individual grids and building the stack yourself.
Is it hard to install?
No. It comes assembled and is shaped to fit the DEV48 and DEL48 tank, so it is a matter of removing the old assembly and setting the new one in place.
How do I know the grids need replacing?
DE showing up in the pool, cloudy water soon after a fresh charge, or visible tears and stiff, discolored fabric on the grids all point to a worn set.
Ask your own question
