S.R. Smith poolLUX Premier PLX-PRM light control system with wireless remoteS.R. Smith poolLUX Premier Light Control System with Remote Control, PLX-PRM$69099

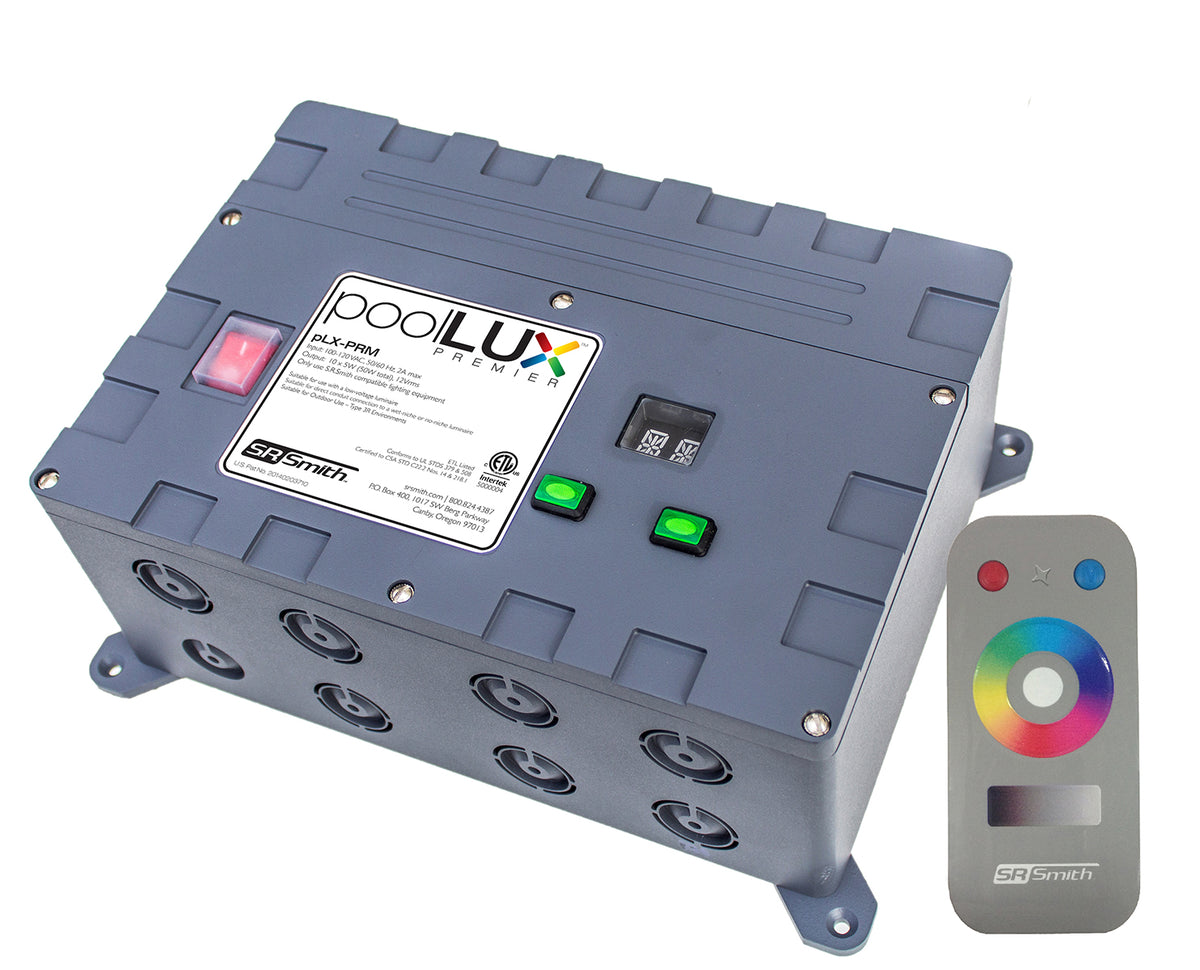

S.R. Smith poolLUX Premier PLX-PRM light control system with wireless remote
Shop all S.R. Smith

S.R. Smith poolLUX Premier Light Control System with Remote Control, PLX-PRM

Ask a questionMPN PLX-PRM
$69099
FREE Delivery
Typically ships within 7 days This item ships directly from the manufacturer.
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • S.R. Smith lights only Works exclusively with S.R. Smith LED lights, including Treo, Treo Micro, Fiberglass LED and Color Light Stream.
  • Wireless remote Extended range at 100 ft line of sight, with a color selection wheel and a dimming bar.
  • Colors and shows Six standard colors and two shows through the on and off power toggle, and up to 49 color variations from the selection wheel.
  • Dimming two ways Four dimming options from the remote dimming bar and 15 more from the control panel dimming button.
  • Ten stations, 70W A ten wiring station system with a built in 70W power supply, 7W maximum per station.
  • Built for outside Corrosion resistant NEMA 3R sound dampening housing, with six low voltage and two line voltage combination knockouts at 3/4 in. or 1 in.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About S.R. Smith poolLUX Premier Light Control System with Remote Control, PLX-PRM, SKU FST-30-6014. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item S.R. Smith poolLUX Premier Light Control System with Remote Control, PLX-PRM
S.R. Smith

poolLUX Premier Light Control System with Remote Control, PLX-PRM

$69099
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$26199
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340
Pentair

Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340

$30299
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7099
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX3200LCD digital control interface assembly for TriStar VS pumps Hayward Digital Control Interface Assembly, SPX3200LCD$44599 Hayward AquaPod 2.0 AQL2-POD2 wireless waterproof touchscreen remote Hayward AquaPod 2.0 Wireless Waterproof Touchscreen Remote, AQL2-POD2$55099 Pentair IntelliConnect EC-523317 control and monitoring system, front view Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317$59900 Web Price Hayward LKCUS1100 ColorLogic standalone light controller Hayward ColorLogic Light Controller, Standalone, LKCUS1100$37699 Jandy 8050 four function spa side remote switch, gray, with 150 ft cable Jandy 4 Function Spa Side Remote Switch, Gray, 150 ft., 8050$50599 Hayward AQL-CHEM2 Sense and Dispense pH Dispense 120 V CO2 solenoid valve Hayward Sense and Dispense pH Dispense, 120V Solenoid Valve for CO2, AQL-CHEM2$44599 Pentair SunTouch 520859 single body control system power center Pentair SunTouch Single Body Control System, Includes Temp Sensors and 3 Relays, 520859$70899 Hayward AQL2-BASE-RF AQL2 wireless base station Hayward AQL2 Wireless Base Station, AQL2-BASE-RF$35799 Pentair 520548 EasyTouch Indoor Control Panel for 4 circuit systems Pentair EasyTouch Indoor Control Panel for 4 Circuit Systems, 520548$57399 Pentair 618031 Color Sync Controller for color changing pool lights Pentair Color Sync Controller, 618031$38099
Hayward AQL2-SS-RF wireless spa side remote Hayward Wireless Spa Side Remote, AQL2-SS-RF$55399 Pentair 521886 iS4 spa-side remote in gray with 100 foot cord Pentair Genuine OEM iS4 Spa-side Remote, Gray, 100 ft., 521886$36499 Hydroquip 50-BP7-600-40-K BP7 Water Pro Series three load retro-fit control system Hydroquip BP7 Water Pro Series Control System, 4.0 kW, TP600, Three Load Retro-Fit Kit, 50-BP7-600-40-K$57900 Web Price Hayward HLXPLCONTROL replacement OmniPL controller Hayward HLXPLCONTROL Replacement OmniPL Controller$78699 Hayward GL-235 AquaSolar dual differential solar control Hayward AquaSolar Control, GL-235$39699 S.R. Smith PT-6001 poolLUX Plus2 60W single zone LED light control power tower S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001$87399 Pentair 522035 IntelliCenter white indoor control panel Pentair IntelliCenter White Indoor Control Panel, 522035$53199 Hydro-Quip 50-BP7-600-55-K Water Pro BP7 spa control with TP600 topside panel Hydro-Quip TP600 Controller 5.5kW BP7 Retro-Fit Kit, 50-BP7-600-55-K$57900 Web Price Pentair 523529 IntelliCenter next generation upgrade kit for IntelliTouch and EasyTouch Pentair IntelliTouch/EasyTouch to IntelliCenter Next Generation Upgrade Kit CLC/CPC, 523529$96599 Hayward HLIOEXPAND I/O expansion board for the OmniLogic base system Hayward I/O Expansion Board for OmniLogic Base System, HLIOEXPAND$48999

From S.R. Smith

A white diving board at the edge of a backyard pool. Pool better. S.R. Smith

S.R. Smith lighting

S.R. Smith Treo 5W LED Color Changing RGB Light, 80' Cord, FLED-C-TR S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001 S.R. Smith RGB Treo LED Pool Light 12V, 30' Cord, FLED-C-TR-30 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN
Shop S.R. Smith equipment

S.R. Smith parts

S.R. Smith Cantilever Steel Jump Stand with Jig, Radiant White, 69-209-001 S.R. Smith 6' White Spring Assembly for 606 Cantilever Jump Stand, 69-209-026 S.R. Smith 5W Replacement RGB LED Lamp, 12VAC, FLED-LAU-C S.R. Smith 18" Commercial Mounting Kit, 67-209-903-SS
Shop S.R. Smith parts
Pool slides: a curved slide set into a rock waterfall beside a backyard poolDiving boards: a white diving board over a backyard pool
S.R. Smith makes pool slides, diving boards, ladders, rails, in-pool furniture and pool lighting.Shop all S.R. Smith

Product details

The S.R. Smith poolLUX Premier, part PLX-PRM, is a light control system and wireless remote for S.R. Smith LED pool lighting. It combines the power supply, the wiring stations and the color control in one corrosion resistant enclosure.

Power and stations

The panel is a ten wiring station system with a built in 70W power supply, rated at 7W maximum per station. The housing is NEMA 3R corrosion resistant with sound dampening, and it carries six low voltage and two line voltage combination knockouts sized for 3/4 in. or 1 in.

Color, shows and dimming

Six standard colors and two shows are reached by toggling power on and off, so they work even without the remote in your hand. The wireless remote extends that to a color selection wheel with up to 49 variations and a dimming bar with four levels, and the control panel adds 15 more dimming steps of its own. The remote is rated for extended range at 100 ft line of sight.

What it controls, and what you still need

poolLUX Premier drives Treo, Treo Micro, Fiberglass LED lights and Color Light Stream products, and works exclusively with S.R. Smith LED lights. There is also an onboard dry contact option for limited third party system interface, which the factory can advise on. This listing covers the controller and the remote, so order the lights separately.

Specifications
Brand S.R. Smith
Manufacturer part number PLX-PRM
UPC 840671131470
Type Light control system with wireless remote
Compatible lights Treo, Treo Micro, Fiberglass LED lights and Color Light Stream products
Compatibility note Works exclusively with S.R. Smith LED lights
Stations 10 wiring station system
Power supply Built in 70W, 7W maximum per station
Remote Wireless, 100 ft line of sight, color selection wheel and dimming bar
Colors 6 standard colors and 2 shows via on/off power toggle, up to 49 color variations via the color selection wheel
Dimming 4 options via the wireless remote dimming bar, 15 available via the control panel dimming button
Housing Corrosion resistant NEMA 3R, sound dampening
Knockouts 6 low voltage and 2 line voltage combination knockouts, 3/4 in. or 1 in.
Third party interface Onboard dry contact option for limited third party system interface, contact the factory for details
Included Controller and remote only, lights purchased separately
Shipping weight 11.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Does this kit include lights?
No. The kit is the controller and the remote. Lights are bought separately.
Will it run lights from another brand?
No. poolLUX Premier works exclusively with S.R. Smith LED lights, which covers Treo, Treo Micro, Fiberglass LED lights and Color Light Stream products.
How many lights can it power?
It is a ten wiring station system with a built in 70W power supply, and each station is rated to 7W maximum.
How do the colors and dimming work?
Six standard colors and two shows are selected by toggling power on and off, and the wireless remote adds a color wheel with up to 49 variations. Dimming is four steps on the remote dimming bar and 15 more from the dimming button on the control panel.
Ask your own question
