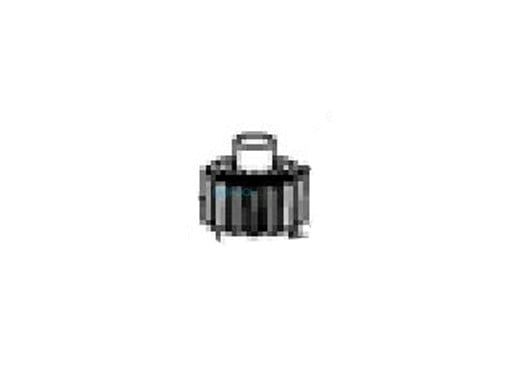

S.R. Smith Small Spur Gear for PAL2, Splash! and PAL Pool Lifts, Plated, 800-5065$13997
S.R. Smith Small Spur Gear for PAL2, Splash! and PAL Pool Lifts, Plated, 800-5065
30 day returns · Easy, with prepaid labels provided
Quick overview
- Job Part of the rotation motor assembly with the mounting plate and the 24 V motor.
- Fit Named in the PAL2, PAL2 Hi/Lo, every Splash! and the CEC compliant PAL parts lists.
- Gearing The rotation runs at a 9:1 gearing ratio.
- Finish Plated spur gear.
- Care Spray the gear assembly with a heavy duty rust inhibitor and lubricant.
Need a hand?
Similar products
Other products people compare with this one.
Product details
The S.R. Smith 800-5065 is the plated small spur gear in the rotation motor assembly of PAL2, Splash! and PAL pool lifts.
Where it fits
The PAL2 and PAL2 Hi/Lo, the Splash!, Splash! 300, Splash! Hi/Lo and Spa, Splash! Extended Reach and Extended Reach Hi/Lo, and the CEC compliant PAL and PAL Hi/Lo and Spa parts lists all name 800-5065. The aXs2 list does not.
What it does
S.R. Smith describes the rotation motor assembly as a mounting plate, the 24 V motor 120-1100 and this small gear. The hub assembly carries the large gear, and the lift turns at a 9:1 gearing ratio. On the PAL2, loosening the nut on the tension spring beside the turning motor disengages the gears so the lift can be turned by hand.
Care
The manuals call for spraying the gear assembly with a heavy duty rust inhibitor and lubricant as routine care, and again before the lift goes into storage.
From Pool School
Pool Lift Battery, Maintenance and Winter StorageCharging, swapping and storing the battery, what fails first, and winter storage. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. ReadWhere this part goes
5
Key 5 on the S.R. Smith PAL2: Detail A, motor mount assemblyFits every model in the drawing.See it on the diagramAll S.R. Smith PAL2 Pool Lift Parts 23 parts and the drawing
10
Key 10 on the S.R. Smith Splash! Pool LiftFits every model in the drawing.See it on the diagramAll S.R. Smith Splash! Pool Lift Parts 24 parts and the drawing
| Brand | S.R. Smith |
|---|---|
| Model | Small Gear |
| Manufacturer part number | 800-5065 |
| Fits | PAL2, Splash!, PAL |
| Type | Spur gear |
| Finish | Plated |
| Assembly | Rotation motor assembly |
| Related parts | 24 V motor 120-1100, motor mount assembly 120-1000 |
| Shipping weight | 1 lb |
