Gecko Alliance AquaFlo FloMaster XP2 3.0 HP 2-Speed 230V | 05334012-2040Gecko Alliance Aqua-Flo Flo-Master XP2e 3.0 Operating HP 2-Speed 230V 56 Frame Spa Pump, 05334012-2040 In stock$45699
Gecko Alliance AquaFlo FloMaster XP2 3.0 HP 2-Speed 230V | 05334012-2040
Shop all Gecko Alliance

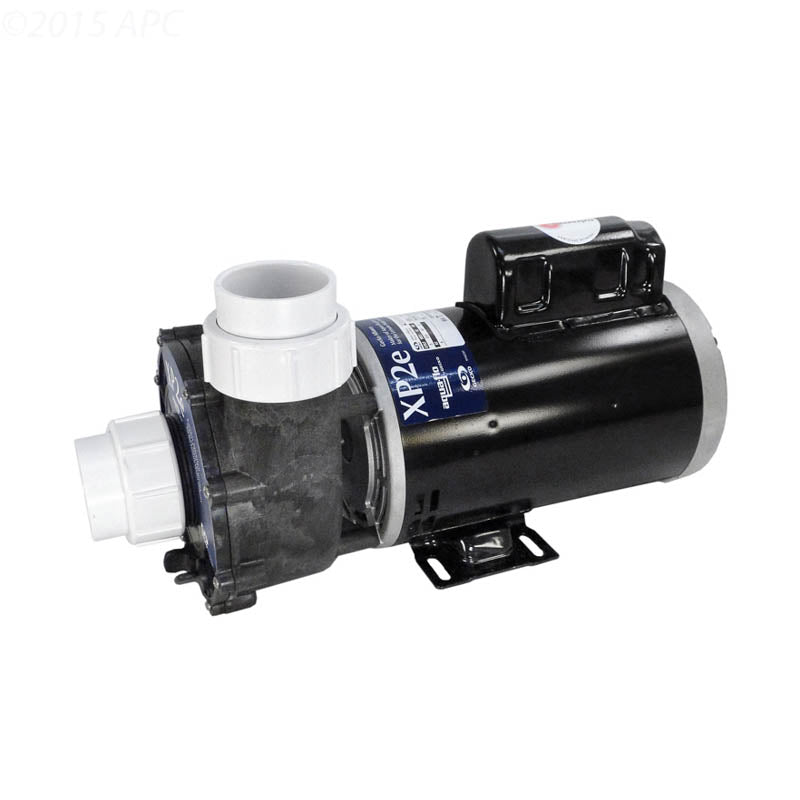

Gecko Alliance Aqua-Flo Flo-Master XP2e 3.0 Operating HP 2-Speed 230V 56 Frame Spa Pump, 05334012-2040

Ask a questionMPN 05334012-2040
$45699
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Large spa flow The Flo-Master XP2e is designed for large spas with multiple jets that need more flow, so a spa can use more jets per pump.
  • Same envelope as the XP2 The XP2e fits within the same envelope as the original XP2 pump while moving more water than its predecessor.
  • Two ratings Rated 4.0 HP and 3.0 operating horsepower (OP.HP), with the OP.HP figure used for the newer rating style.
  • 2-speed, 230 V Two-speed motor on 230 V power, drawing 3.9 and 12.0 amps.

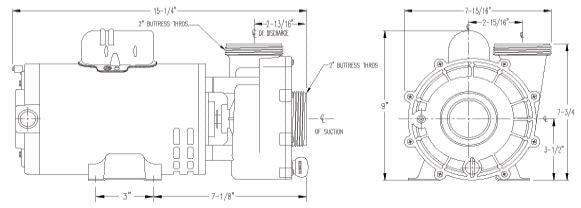

  • 2 in. plumbing Intake and discharge are both 2 in., with a side discharge on a 56 frame motor.
  • Fittings included Supplied with two compression fittings and without a power cord.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Gecko Alliance Aqua-Flo Flo-Master XP2e 3.0 Operating HP 2-Speed 230V 56 Frame Spa Pump, 05334012-2040, SKU AQF-10-467. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Gecko Alliance Aqua-Flo Flo-Master XP2e 3.0 Operating HP 2-Speed 230V 56 Frame Spa Pump, 05334012-2040
Gecko Alliance

Aqua-Flo Flo-Master XP2e 3.0 Operating HP 2-Speed 230V 56 Frame Spa Pump, 05334012-2040

$45699
Air Supply of the Future Cyclone Pro 3HP Pool Line Blower and Liner Vac, 120V 2-Stage for Winterizing Pools, 4128100
Air Supply of the Future

Cyclone Pro 3HP Pool Line Blower and Liner Vac, 120V 2-Stage for Winterizing Pools, 4128100

$34900
Cover Butler Spa Cover Lifter, Black, CB-BLACK
Cover Butler

Spa Cover Lifter, Black, CB-BLACK

$16099
Laing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K
Hydro-Quip

Laing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K

$19899
Air Supply of the Future 2" Clear Check Valve for Blowers, 1112500
Air Supply of the Future

2" Clear Check Valve for Blowers, 1112500

$2799
Air Supply of the Future Silencer Air Blower, 2HP, 240V, 5.0 Amps, 6320241
Air Supply of the Future

Silencer Air Blower, 2HP, 240V, 5.0 Amps, 6320241

$23099
Balboa Slimline Escutcheon and Eyeball White 10-3955, 10-3955WHT
Hydro Air/itt Industries

Balboa Slimline Escutcheon and Eyeball White 10-3955, 10-3955WHT

$1399
Subtotal

Similar products

Other products people compare with this one.

Waterway Executive 48 Frame 2-Speed 4.5HP 230V 2" Intake | 3421821-1A Waterway Executive 48 Frame Spa Pump, 4.5 HP, 2 Speed, 230V, 2 in. Intake and Discharge, 3421821-1A$46399 Waterway Executive 56 Frame 2HP 2-Speed 2" Intake 2" Discharge | 3720821-1D Waterway Executive 56 Frame Spa Pump, 2 HP, 2 Speed, 230V, 2 in. Intake and Discharge, 3720821-1D$40799 Waterway Tiny Might 1-16HP 115V | 3312610-14 Waterway Tiny Might 1/16 HP 115V Spa Circulation Pump with 1 in. Connections, 3312610-14$31499

Product details

The Gecko Alliance Aqua-Flo 05334012-2040 is the Flo-Master XP2e side discharge spa pump, a 2-speed, 230 V, 56 frame pump rated 4.0 HP and 3.0 operating horsepower.

What it does

The Flo-Master XP2e is designed for large spas with multiple jets that require increased flow. It fits within the same envelope as the original XP2 pump yet provides greater flow than its predecessor, which lets a spa use more jets per pump. Intake and discharge are both 2 in., and the motor is a two-speed unit on 230 V power that draws 3.9 and 12.0 amps.

Reading the horsepower rating

OP.HP stands for operational horsepower. If the label on an older XP2 pump shows only an HP rating and no OP.HP rating, the new style is rated by OP.HP. If your label shows both an HP rating and an OP.HP rating, the new style is the same.

Before you order

Each pump comes with two compression fittings and without a cord. Check the voltage, the 56 frame size, the side discharge and the 2 in. connections against your spa and its plumbing before you order.

Specifications
Brand Gecko Alliance
Manufacturer part number 05334012-2040
UPC 533401202044
Type 2-speed side discharge spa pump
Series Aqua-Flo Flo-Master XP2e
Horsepower 4.0 HP
Operating horsepower 3.0 OP.HP
Speed 2-speed
Voltage 230 V
Amps 3.9 / 12.0
Frame 56 frame
Intake and discharge size 2 in.
Discharge Side
Includes Two compression fittings, supplied without a power cord
Shipping weight 36.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Gecko Alliance

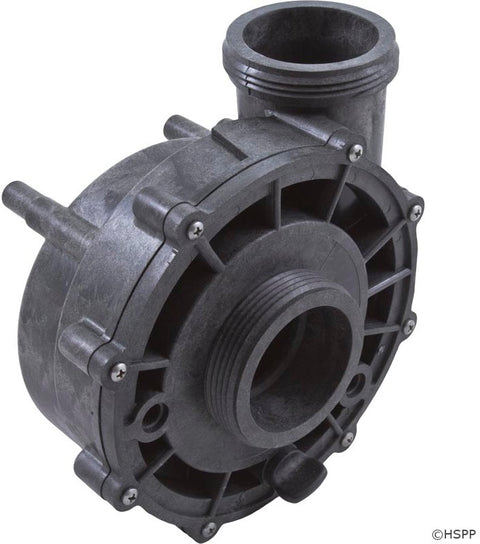

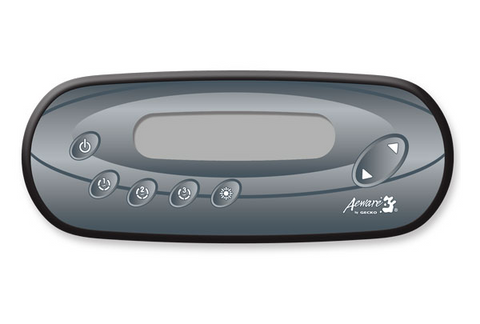

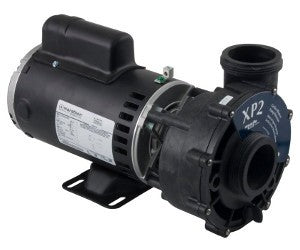

Gecko Alliance 0607-005012 Aeware IN.K450 seven button spa control panel with overlay Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012$16799 Aqua-Flo 91041820 2 HP FMXP2e 48 frame side discharge wet end Aqua-Flo 2 HP FMXP2e 48 Frame Wet End, 91041820-000$9499 Aqua-Flo Flo-Master XP2 spa pump, 1.5 HP 230 V 2 speed Aqua-Flo Flo-Master XP2 Pump, 1.5 HP, 230 V, 2 Speed, 06115517-2040$37799 Aqua-Flo Circ-Master CMHP 1/15 HP 230V circulation pump, part 02093001-2010 Aqua-Flo Circ-Master CMHP 1/15 HP 230V Circulation Pump, 02093001-2010$25699 Aqua-Flo 91694110 1 HP impeller for Flo-Master XP and XP2 pumps Aqua-Flo 1 HP Impeller for Flo-Master XP and XP2 Pumps, 91694110$3599 Aqua-Flo by Gecko 95100517 AMP style pump cord, 14/3, 48 inches Aqua-Flo Gecko 14/3 x 48" AMP Style Cord 95100517$2499 Gecko 0200-007119 TSC-4-GE1 topside keypad with overlay Gecko TSC-4-GE1 Topside Keypad with Overlay, 1 Pump, 0200-007119$14399

Questions and answers

What people ask about this product, answered by our pool techs.

What is the difference between HP and OP.HP on the Gecko Alliance 05334012-2040?
OP.HP means operational horsepower. This XP2e pump is rated 4.0 HP and 3.0 OP.HP. If an older XP2 pump label shows only an HP rating, the newer style is rated by OP.HP, and if your label shows both, the new style is the same.
Does the Aqua-Flo 05334012-2040 come with a power cord?
No. Each pump comes with two compression fittings and without a cord, so plan on supplying your own cord.
What plumbing size does the Flo-Master XP2e 05334012-2040 use?
Intake and discharge are both 2 in., and the discharge is on the side of the pump.
Will the XP2e fit where my original XP2 pump was?
The XP2e fits within the same envelope as the original XP2 pump. Confirm the 230 V supply, the 56 frame size and the 2 in. connections against your spa before ordering.
