Waterway Tiny Might 1/16 HP 115V Spa Circulation Pump with 1 in. Connections, 3312610-14 In stock$31499
Waterway Tiny Might 1/16 HP 115V Spa Circulation Pump with 1 in. Connections, 3312610-14
30 day returns · Easy, with prepaid labels provided
Quick overview
- Side discharge design The Tiny Might is a side discharge circulation pump built to move a high volume of water at very low horsepower.
- Rotatable wet end The wet end can be rotated, which makes it easier to line up with existing plumbing during installation.
- Large wet end A 6-1/2 in. diameter wet end supports higher head pressure.
- Stainless motor shaft The motor has a larger 303 stainless steel, 3/8 in. shaft that improves impeller stack-up height.
- Built for continuous circulation The pump is designed for 24 hour circulation and is rated to use less power than a 100 watt light bulb.
- Motor cooling and starting A larger motor housing improves ventilation, and a higher capacitor rating allows easy starting when line voltage is low.
Need a hand?
Frequently bought together
Tiny Might 1/16 HP 115V Spa Circulation Pump with 1 in. Connections, 3312610-14
Similar products
Other products people compare with this one.
Waterway Executive 48 Frame Spa Pump, 4.5 HP, 2 Speed, 230V, 2 in. Intake and Discharge, 3421821-1A$46399
Waterway Executive 56 Frame Spa Pump, 2 HP, 2 Speed, 230V, 2 in. Intake and Discharge, 3720821-1D$40799
Gecko Alliance Aqua-Flo Flo-Master XP2e 3.0 Operating HP 2-Speed 230V 56 Frame Spa Pump, 05334012-2040$45699
Product details

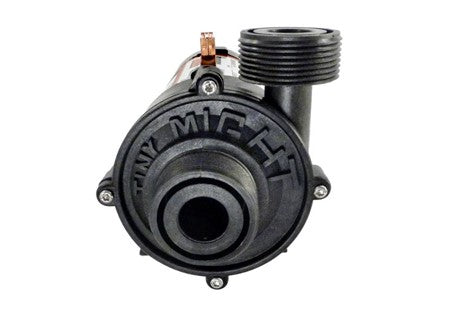

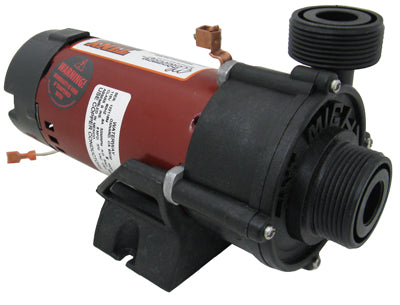

The Waterway Tiny Might 3312610-14 is a complete 1/16 HP, 115V, single speed circulation pump with 1 inch suction and discharge connections, made for spas, hot tubs and swimming pools.
What it does
This is a side discharge circulation pump. It moves a high volume of water at a very low horsepower, which suits continuous circulation, and it is designed for 24 hour operation. The manufacturer rates it to use less power than a 100 watt light bulb. The manufacturer model number is TM-0061N11C.
Construction
The wet end is a large 6-1/2 inch diameter unit made of thermoplastic, which supports higher head pressure, and it can be rotated to suit the plumbing layout. The motor has a larger 303 stainless steel, 3/8 inch shaft that improves impeller stack-up height, larger motor bearings for longer motor life, a larger motor housing that improves ventilation and keeps the motor running cooler, and a higher capacitor rating that allows easy starting when line voltage is low. A larger rear wire casing protects the wire connections.
Before you order
Check that your installation uses 115V power and a 1 inch connection size. The pump takes 1 inch union or 1 inch barb connections, and the unions are noted as sold separately. The 230V Tiny Might is a different part number.
| Brand | Waterway |
|---|---|
| Manufacturer part number | 3312610-14 |
| UPC | 806105065902 |
| Type | Complete circulation pump |
| Series | Tiny Might |
| Model | TM-0061N11C |
| Horsepower | 1/16 HP |
| Speed | 1 speed |
| Voltage | 115 V, 60 Hz |
| Suction size | 1 in. |
| Discharge size | 1 in. |
| Discharge style | Side discharge |
| Connections | 1 in. union or 1 in. barb |
| Wet end diameter | 6-1/2 in. |
| Wet end material | Thermoplastic |
| Motor shaft | 303 stainless steel, 3/8 in. |
| Shipping weight | 6.2 lb |
| Ships | Parcel |
