Waterway Executive 48 Frame 2-Speed 4.5HP 230V 2" Intake | 3421821-1AWaterway Executive 48 Frame Spa Pump, 4.5 HP, 2 Speed, 230V, 2 in. Intake and Discharge, 3421821-1A In stock$46399
Waterway Executive 48 Frame 2-Speed 4.5HP 230V 2" Intake | 3421821-1A
Shop all Waterway

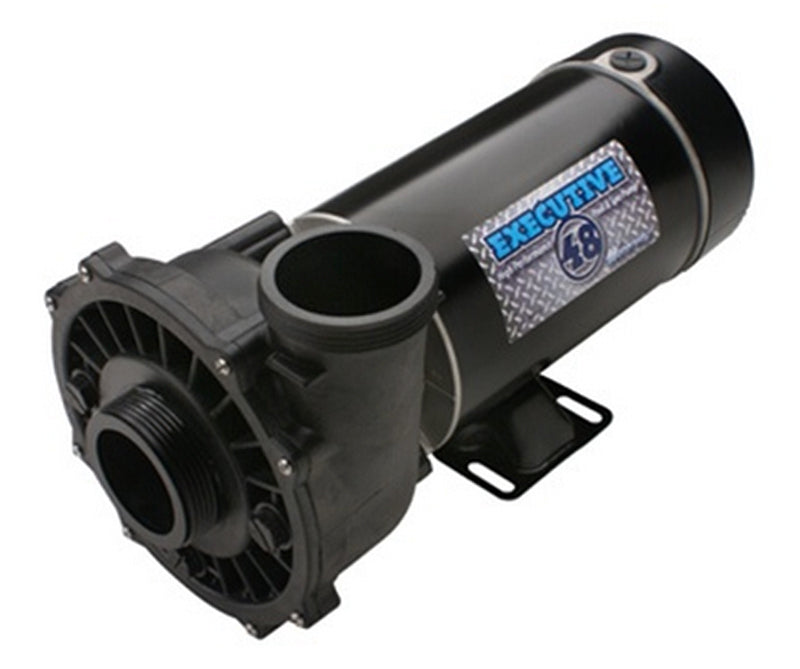

Waterway Executive 48 Frame Spa Pump, 4.5 HP, 2 Speed, 230V, 2 in. Intake and Discharge, 3421821-1A

Ask a questionMPN 3421821-1A
$46399
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Motor 4.5 HP, 2 speed, 230 volt, 60 Hz, 48 frame motor.
  • Amp draw 12.0 amps on high speed and 3.5 amps on low speed.
  • Plumbing 2 in. intake and 2 in. discharge, bolt through flange.
  • Wet end Large 6-1/2 in. diameter wet end for higher head pressure, with Viton seals.
  • Motor protection Thermally protected to extend the life expectancy of the motor.
  • Flexible position The wet end can be rotated every 90 degrees.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Executive 48 Frame Spa Pump, 4.5 HP, 2 Speed, 230V, 2 in. Intake and Discharge, 3421821-1A, SKU WWP-10-1415. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Executive 48 Frame Spa Pump, 4.5 HP, 2 Speed, 230V, 2 in. Intake and Discharge, 3421821-1A
Waterway

Executive 48 Frame Spa Pump, 4.5 HP, 2 Speed, 230V, 2 in. Intake and Discharge, 3421821-1A

$46399
Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127
Waterway

Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127

$1999
Waterway Polyjet Internal Standard Adjustable Deluxe, Gray, 210-6087
Waterway

Polyjet Internal Standard Adjustable Deluxe, Gray, 210-6087

$3499
Waterway 5-Scallop Twin Roto Thread In Poly Storm Gunite Jet Internals, White, 229-8120
Waterway

5-Scallop Twin Roto Thread In Poly Storm Gunite Jet Internals, White, 229-8120

$1799
Waterway Deluxe Adjustable Scalloped Pulsator Poly Jet Internal, 210-6070B
Waterway

Deluxe Adjustable Scalloped Pulsator Poly Jet Internal, 210-6070B

$3699
Waterway Poly Storm Gunite Jet Internal, Directional 5-Scallop White, 229-8050
Waterway

Poly Storm Gunite Jet Internal, Directional 5-Scallop White, 229-8050

$1699
Waterway Poly Jet Body 1" x 1.5", 211-5860
Waterway

Poly Jet Body 1" x 1.5", 211-5860

$1099
Subtotal

Similar products

Other products people compare with this one.

Waterway Executive 56 Frame 2HP 2-Speed 2" Intake 2" Discharge | 3720821-1D Waterway Executive 56 Frame Spa Pump, 2 HP, 2 Speed, 230V, 2 in. Intake and Discharge, 3720821-1D$40799 Gecko Alliance AquaFlo FloMaster XP2 3.0 HP 2-Speed 230V | 05334012-2040 Gecko Alliance Aqua-Flo Flo-Master XP2e 3.0 Operating HP 2-Speed 230V 56 Frame Spa Pump, 05334012-2040$45699 Waterway Tiny Might 1-16HP 115V | 3312610-14 Waterway Tiny Might 1/16 HP 115V Spa Circulation Pump with 1 in. Connections, 3312610-14$31499

Product details

The Waterway 3421821-1A is the Executive 48 frame spa pump with a 4.5 HP, 2 speed, 230 volt motor and 2 in. intake and discharge.

Motor and electrical

The 48 frame motor runs on 230 volts at 60 Hz and draws 12.0 amps on high speed and 3.5 amps on low speed. The motor is thermally protected to extend its life expectancy. The model is also listed as PF-45-2N22C4.

Wet end

The Executive wet end is designed specifically for 48 frame motors and has a large 6-1/2 in. diameter for higher head pressure. It has a 2 in. intake and a 2 in. discharge with a bolt through flange, uses Viton seals, and is highly versatile because it can be rotated every 90 degrees.

Before you order

Check that your spa has 2 in. plumbing and a 230 volt supply, and compare the 48 frame size and horsepower with the pump you are replacing.

Specifications
Brand Waterway
Manufacturer part number 3421821-1A
UPC 806105075369
Type Spa pump
Series Executive
Horsepower 4.5 HP
Speed 2 speed
Voltage 230 V, 60 Hz
Motor frame 48 frame
Amps 12.0 high speed, 3.5 low speed
Intake size 2 in.
Discharge size 2 in.
Wet end diameter 6-1/2 in.
Seals Viton
Also listed as PF-45-2N22C4
Shipping weight 36.45 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3199 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 550-0611B ProClean Plus filter lid and lock-ring assembly Waterway ProClean Plus Filter Lid and Lock-Ring Assembly, 75 to 100 Sq. Ft., 550-0611B$24999 Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1399 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$4099 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$2199 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1399

Questions and answers

What people ask about this product, answered by our pool techs.

What motor does the Waterway 3421821-1A spa pump have?
It has a 4.5 HP, 2 speed, 230 volt, 60 Hz, 48 frame motor that draws 12.0 amps on high speed and 3.5 amps on low speed.
What size are the intake and discharge on the 3421821-1A?
The Waterway 3421821-1A has a 2 in. intake and a 2 in. discharge, with a bolt through flange.
Can the wet end of the 3421821-1A be rotated?
Yes. The Executive wet end is highly versatile and can be rotated every 90 degrees.
Is PF-45-2N22C4 the same pump?
The Waterway Executive 4.5 HP 2 speed pump is also listed under model PF-45-2N22C4 alongside part number 3421821-1A.
