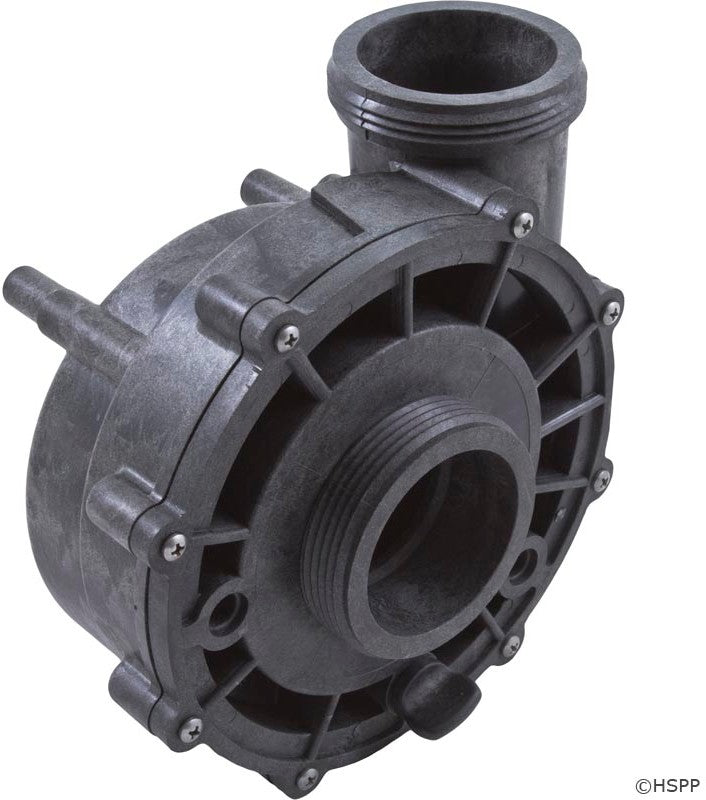

Aqua-Flo 91041820 2 HP FMXP2e 48 frame side discharge wet endAqua-Flo 2 HP FMXP2e 48 Frame Wet End, 91041820-000 In stock$9799
Aqua-Flo 91041820 2 HP FMXP2e 48 frame side discharge wet end
Shop all Gecko Alliance

Aqua-Flo 2 HP FMXP2e 48 Frame Wet End, 91041820-000

Ask a questionMPN 91041820-000
$9799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete wet end Sold as the whole wet end for the 2 HP FMXP2e, not a single housing piece.
  • Side discharge The side discharge layout the FMXP2e uses, so the plumbing lines up the way it did before.
  • Fits 48 frame motors Made to mate with a 48 frame motor, the frame size this wet end was designed around.
  • 2 inch plumbing Suction and discharge are sized for 2 inch pipe.
  • Matched to 2 HP This is the 2 HP version of the FMXP2e wet end, so it suits the motor already on the pump.
  • Cross referenced Also catalogued as 91041820, 5121-65 and 34-402-1206.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Aqua-Flo 2 HP FMXP2e 48 Frame Wet End, 91041820-000, SKU AQF-101-1820. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Aqua-Flo 2 HP FMXP2e 48 Frame Wet End, 91041820-000
Gecko Alliance

Aqua-Flo 2 HP FMXP2e 48 Frame Wet End, 91041820-000

$9799
Aqua-Flo 1 HP Impeller for Flo-Master XP and XP2 Pumps, 91694110
Gecko Alliance

Aqua-Flo 1 HP Impeller for Flo-Master XP and XP2 Pumps, 91694110

$3399
Aqua-Flo Gecko 14/3 x 48" AMP Style Cord 95100517
Gecko Alliance

Aqua-Flo Gecko 14/3 x 48" AMP Style Cord 95100517

$2199
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Polaris Front Housing Volute Cover with O-Ring, R0536300
Polaris

Front Housing Volute Cover with O-Ring, R0536300

$6699
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$11799
Subtotal

Similar products

Other products people compare with this one.

Aqua-Flo 91040820-000 1.5HP FMCP center discharge wet end for 48Y frame motors Aqua-Flo 1.5HP FMCP Wet End, 48Y Frame, 91040820-000$11399 Gecko Aqua-Flo 2" 2.5HP XP2E 48 Frame Wet End | 91041825-000 Gecko Aqua-Flo 2" 2.5HP XP2E 48 Frame Wet End | 91041825-000$9999 Gecko Aqua-Flo 2" 3HP XP2E 48 Frame Wet End | 91041830-000 Gecko Aqua-Flo 2" 3HP XP2E 48 Frame Wet End | 91041830-000$11599 Aqua-Flo 2" 1.5HP XP2E 48 Frame Wet End | 91041815-000 Aqua-Flo 2" 1.5HP XP2E 48 Frame Wet End | 91041815-000$10499 Gecko Aqua-Flo Flo-Master HP 1.5HP Wet End | 91040720-000 Gecko Aqua-Flo Flo-Master HP 1.5HP Wet End | 91040720-000$9399 Gecko Aqua-Flo Flo-Master HP 2HP Wet End 91040730 | 91040730-000 Gecko Aqua-Flo Flo-Master HP 2HP Wet End 91040730 | 91040730-000$9399 Gecko Aqua-Flo Flo-Master CP .75HP Wet End | 91040800-000 Gecko Aqua-Flo Flo-Master CP .75HP Wet End | 91040800-000$10199 Gecko Aqua-Flo Flo-Master HP 1HP Wet End 91040700 | 91040700-000 Gecko Aqua-Flo Flo-Master HP 1HP Wet End 91040700 | 91040700-000$9399 Gecko Aqua-Flo Flo-Master CP 1HP Wet End 91040810 | 91040810-000 Gecko Aqua-Flo Flo-Master CP 1HP Wet End 91040810 | 91040810-000$9999 Waterway 310-1510 Executive 5HP wet end, 2-1/2 inch by 2 inch ports, 56 frame Waterway 5HP Executive Wet End, 2-1/2" x 2", 56 Frame, 310-1510$8999
Gecko Wet End Assy Compl 2HP FMCP | 91040840-000 Gecko Wet End Assy Compl 2HP FMCP | 91040840-000$9399 Waterway Waterways 2" Executive Wet End 48-Frame 3HP | 310-1900 Waterway Waterways 2" Executive Wet End 48-Frame 3HP | 310-1900$8199 Waterway 310-1740 Executive 4 HP complete wet end with 2 in. inlet and 2 in. side discharge Waterway Executive 4 HP 2 in. Wet End, 310-1740$8899 Waterway 310-1140 1.5HP spa center discharge complete wet end Waterway 1.5HP Wet End, Spa Center Discharge, 310-1140$8599 Waterway 310-1440 Executive 4HP complete wet end with 2.5 inch ports Waterway 4HP 2.5" Executive Wet End, 310-1440$8799 Waterway 310-1730 Executive 3 HP 2 inch wet end Waterway 3 HP 2" Executive Wet End, 310-1730$8199 Waterway 310-1910 Executive 2 inch wet end, 4 HP, 48 frame Waterway 2 Inch Executive Wet End, 4 HP, 310-1910$10499 CMP 25357-300-000 replacement seal plate for Pentair Whisper-Flo pumps CMP Replacement Pentair Whisper-Flo Pump Seal Plate, 25357-300-000$9999 Waterway 310-1720 complete 2 inch Executive wet end, 2 HP, 56 frame Waterway 2" Executive Wet End, 2 HP, 310-1720$8999 Waterway 310-1130 1HP wet end for spa center discharge pumps Waterway 1HP Wet End, Spa Center Discharge, 310-1130$10099

Product details

The Aqua-Flo 91041820-000 is the complete wet end for the 2 HP FMXP2e pump. It is the side discharge version, sized for 2 inch plumbing and built to mate with a 48 frame motor.

When a wet end is the right fix

A pump that still runs but leaks from the housing, has a cracked volute or has been run dry is usually a wet end problem, not a motor problem. Replacing the wet end lets you keep a healthy motor and put the pump back in service in one step instead of chasing individual pieces.

Check before ordering

Two things decide whether this part fits: the motor frame and the horsepower. This is the 2 HP FMXP2e wet end for 48 frame motors, and the discharge comes out the side. If your catalog or invoice shows 91041820, 5121-65 or 34-402-1206, those all point at this same part.

Specifications
Brand Aqua-Flo
Manufacturer part number 91041820-000
Substitute part numbers 91041820, 5121-65, 34-402-1206
Type Complete wet end
Series FMXP2e
Horsepower 2 HP
Motor frame 48 frame
Discharge Side discharge
Plumbing size 2"
Shipping weight 2.95 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Gecko Alliance

Gecko Alliance 0607-005012 Aeware IN.K450 seven button spa control panel with overlay Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012$16799 Aqua-Flo Flo-Master XP2 spa pump, 1.5 HP 230 V 2 speed Aqua-Flo Flo-Master XP2 Pump, 1.5 HP, 230 V, 2 Speed, 06115517-2040$35599 Aqua-Flo Circ-Master CMHP 1/15 HP 230V circulation pump, part 02093001-2010 Aqua-Flo Circ-Master CMHP 1/15 HP 230V Circulation Pump, 02093001-2010$26499 Aqua-Flo 91694110 1 HP impeller for Flo-Master XP and XP2 pumps Aqua-Flo 1 HP Impeller for Flo-Master XP and XP2 Pumps, 91694110$3399 Aqua-Flo by Gecko 95100517 AMP style pump cord, 14/3, 48 inches Aqua-Flo Gecko 14/3 x 48" AMP Style Cord 95100517$2199 Gecko Alliance AquaFlo FloMaster XP2 3.0 HP 2-Speed 230V | 05334012-2040 Gecko Alliance AquaFlo FloMaster XP2 3.0 HP 2-Speed 230V | 05334012-2040$47099 Gecko 0200-007119 TSC-4-GE1 topside keypad with overlay Gecko TSC-4-GE1 Topside Keypad with Overlay, 1 Pump, 0200-007119$14399

Questions and answers

What people ask about this product, answered by our pool techs.

Is this the whole wet end or only the housing?
It is the complete side discharge wet end for the 2 HP FMXP2e, sold as one assembly.
Will it fit my motor?
It is built for 48 frame motors. Check the frame size on the motor plate before you order, because a different frame will not mate up.
What size plumbing does it take?
2 inch. That is the plumbing size listed for this wet end.
I was given part number 5121-65, is that the same part?
Yes. Aqua-Flo 91041820-000 is also listed as 91041820, 5121-65 and 34-402-1206 depending on the catalog.
