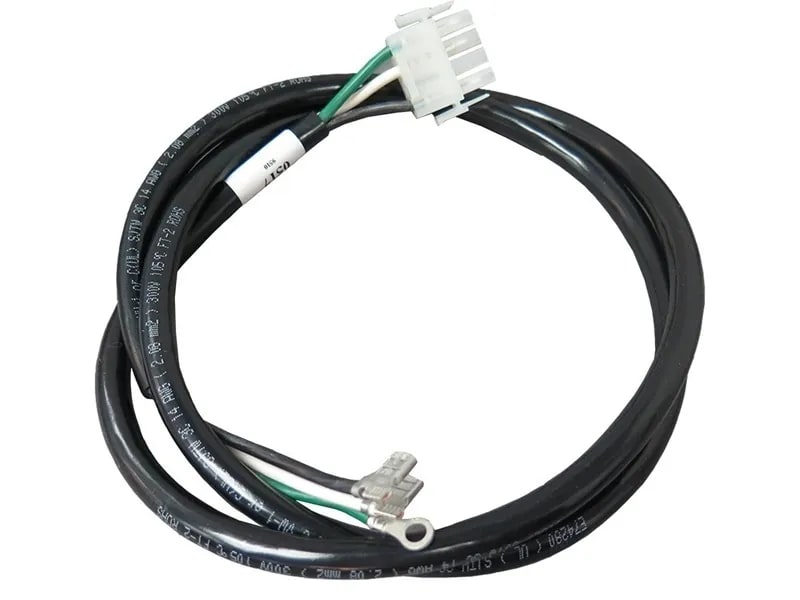

Aqua-Flo by Gecko 95100517 AMP style pump cord, 14/3, 48 inches
Shop all Gecko Alliance

Aqua-Flo Gecko 14/3 x 48" AMP Style Cord 95100517

Ask a questionMPN 95100517
$2099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Gecko AMP style cord The AMP plug pattern Gecko uses on its spa control packs.
  • 48 inches long A short service length, sized for the run between the pack and the equipment it feeds.
  • 14/3 cable 14 gauge, three conductor cable.
  • Terminated ends Supplied with the ends finished, so it is a swap rather than a wiring job at the equipment end.
  • 1 speed Listed as a 1 speed cord, for a single speed device rather than a two speed pump.
  • Pump 2, blower or ozone Listed for the pump 2, blower and ozone connections on the pack.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Aqua-Flo Gecko 14/3 x 48" AMP Style Cord 95100517, SKU GEA-851-1005. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Aqua-Flo Gecko 14/3 x 48" AMP Style Cord 95100517
Gecko Alliance

Aqua-Flo Gecko 14/3 x 48" AMP Style Cord 95100517

$2099
Aqua-Flo 2 HP FMXP2e 48 Frame Wet End, 91041820-000
Gecko Alliance

Aqua-Flo 2 HP FMXP2e 48 Frame Wet End, 91041820-000

$9499
Aqua-Flo 1 HP Impeller for Flo-Master XP and XP2 Pumps, 91694110
Gecko Alliance

Aqua-Flo 1 HP Impeller for Flo-Master XP and XP2 Pumps, 91694110

$3299
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Polaris Front Housing Volute Cover with O-Ring, R0536300
Polaris

Front Housing Volute Cover with O-Ring, R0536300

$7499
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$11799
Subtotal

Similar products

Other products people compare with this one.

Gecko 92200300 volute O-ring for Aqua-Flo Flo-Master XP and XP2 pumps Gecko Volute O-Ring for Aqua-Flo Pumps, 92200300$1399 Aqua-Flo 92830070 wear ring for Flo-Master XP2 pumps Aqua-Flo Wear Ring for Flo-Master XP2, 92830070$1599 Aqua-Flo 91431150 2 inch pump union nut Aqua-Flo 2" Pump Union Nut, 91431150$1399 Aladdin B-33 5 inch pump strainer basket Aladdin Replacement Pump Strainer Basket for Sta-Rite, Premier and Aqua-Flo Pumps, 5 in., B-33$1108 Polaris R0536600 new style backplate o-ring for PB4-60 booster pump Polaris PB4-60 Backplate O-Ring, New Style, R0536600$2499 SuperPro GO-KIT1-9 rebuild kit for Hayward Max-Flo pumps SuperPro Rebuild Kit for Hayward® Max-Flo® Pump, GO-KIT1-9$2199 Hayward SPX5500H Power-Flo Matrix strainer housing o-ring Hayward Power-Flo Matrix Strainer Housing O-Ring, SPX5500H$1999 Hayward SPX1600T rubber housing gasket for Super Pump and Max-Flo pumps Hayward Housing Gasket for Super Pump and Max-Flo Pumps, SPX1600T$1374 Hayward SPX1500P strainer cover O-ring for Power-Flo pumps Hayward O-Ring, Strainer Cover for Power-Flo Pump, SPX1500P$1999 Hayward SPX0710XZ5 Power-Flo Matrix pump housing o-ring Hayward Power-Flo Matrix Housing O-Ring, SPX0710XZ5$2399
Sta-Rite U109-93SS old style pump shaft seal Sta-Rite Shaft Seal, Old Style, U109-93SS$2699 Hayward SPX2700M plastic pump strainer basket for Max-Flo II pumps Hayward Strainer Basket for Max-Flo II, SPX2700M$2899 Waterway 310-4030 impeller for the 2 HP Hi Flo pump Waterway Impeller 2HP Hi Flo, 310-4030$2699 Hayward SPX2800M new style strainer basket for Max-Flo pumps Hayward Strainer Basket for Max-Flo SP10800X and SP2800X Series, SPX2800M$2599 Waterway 806-1400 faceplate gasket for Champion 56 frame pump Waterway Faceplate Gasket for Champion 56 and Econo-Flo, 806-1400$1299 SuperPro O-76-9 o-ring for the Hayward Max-Flo pump strainer cover SuperPro O-Ring for Hayward® Max-Flo® Pump and Strainer Cover, SPX0125T, O-76-9$1099 Hayward SPX1515C strainer housing C-clip for Power-Flo pool pumps Hayward Strainer Housing C-Clip for Power-Flo Pump, SPX1515C$1799 Balboa 21087 amp plug cord for a 2-speed spa pump Balboa Amp Plug for 2-Speed Pump, 21087$2699 Waterway 310-3990 3/4 HP impeller for Hi-Flo pool pumps Waterway Impeller 3/4 HP Hi-Flo, 310-3990$3099 Gecko O-Ring Volute 251 FMCP/TMCP | 92200270 Gecko O-Ring Volute 251 FMCP/TMCP | 92200270$1299

Product details

This is the Aqua-Flo by Gecko 95100517 cord, a 14/3 cable 48 inches long with an AMP style plug and terminated ends. Gecko lists it for the pump 2, blower and ozone connections in the 1 speed configuration.

How these cords are used

Gecko packs use plug in cords rather than hard wiring, so each device on the pack has its own short cord with a keyed AMP plug. That makes a failed cord a swap instead of a rewire, and it keeps the pack connections consistent from one install to the next.

Check the plug before ordering

This listing describes the connector two different ways, as a 3 pin plug in the product name and as a 4 pin AMP plug in the detail line. Those readings are both carried here rather than one being picked for you. The reliable check is the plug already on your equipment: count the pins, note the keying, and match it.

One speed

It is listed as a 1 speed cord. A two speed pump uses a different cord, so confirm what the device is before you order.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read
Specifications
Brand Aqua-Flo
Manufacturer part number 95100517
Type AMP style cord
Cable 14/3
Length 48"
Ends Terminated
Speed 1 speed
Listed for Pump 2, blower, ozone
Pin count Listed as 3 pin in one place and 4 pin AMP in another, count the pins on your existing plug before ordering
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Gecko Alliance

Gecko Alliance 0607-005012 Aeware IN.K450 seven button spa control panel with overlay Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012$16799 Aqua-Flo 91041820 2 HP FMXP2e 48 frame side discharge wet end Aqua-Flo 2 HP FMXP2e 48 Frame Wet End, 91041820-000$9499 Aqua-Flo Flo-Master XP2 spa pump, 1.5 HP 230 V 2 speed Aqua-Flo Flo-Master XP2 Pump, 1.5 HP, 230 V, 2 Speed, 06115517-2040$34499 Aqua-Flo Circ-Master CMHP 1/15 HP 230V circulation pump, part 02093001-2010 Aqua-Flo Circ-Master CMHP 1/15 HP 230V Circulation Pump, 02093001-2010$25699 Aqua-Flo 91694110 1 HP impeller for Flo-Master XP and XP2 pumps Aqua-Flo 1 HP Impeller for Flo-Master XP and XP2 Pumps, 91694110$3299 Gecko Alliance AquaFlo FloMaster XP2 3.0 HP 2-Speed 230V | 05334012-2040 Gecko Alliance AquaFlo FloMaster XP2 3.0 HP 2-Speed 230V | 05334012-2040$45699 Gecko 0200-007119 TSC-4-GE1 topside keypad with overlay Gecko TSC-4-GE1 Topside Keypad with Overlay, 1 Pump, 0200-007119$14399

Questions and answers

What people ask about this product, answered by our pool techs.

Is it a 3 pin or a 4 pin plug?
The source describes it both ways: the product name says 3 pin and the detail line says 4 pin AMP. Count the pins on the plug you are replacing and match it before ordering.
How long is the cord?
48 inches, with terminated ends.
What does it plug into?
It is listed for the pump 2, blower and ozone connections on a Gecko pack, in the 1 speed configuration.
Can I use it for a two speed pump?
No. This is listed as a 1 speed cord. A two speed pump needs the cord built for that switching, so check the pump before ordering.
Ask your own question
