Lasco 1" Slip x Slip Compact MIP Valve, V10491N In stock$1599
Lasco 1" Slip x Slip Compact MIP Valve, V10491N
30 day returns · Easy, with prepaid labels provided
Quick overview
- Genuine Lasco Fittings Part number V10491N from Lasco Fittings, Inc.
- 1 inch slip x slip Solvent welds straight onto 1 inch PVC pipe on both ends.
- Compact and lightweight Built small enough to fit tight equipment pad plumbing.
- Bi-directional Flow can run either way through the valve, so orientation is not a concern.
- Good flow characteristics The commercial molded in place design keeps restriction low for its size.
- Leak tested Every valve is individually boxed and 100 percent leak tested before it ships.
Need a hand?
Similar products
Other products people compare with this one.
CMP PVC Ball Valve 2" Slip x Slip, 25800-210-000$2099
CMP 1 in. Slip x Slip PVC Ball Valve, 25800-110-000$1099
Dura Plastics 1-1/4 in. White PVC Compression Ball Valve, Thread x Thread, T1-012W$899
Dura Plastics 1 in. TT White Comp Ball Valve, T1-010W$899
Dura Plastics 1-1/2 in. White PVC Compression Ball Valve, Slip x Slip, S1-015W$1199
Dura Plastics 1-1/2 in. TT White Comp Ball Valve, T1-015W$1199
Dura Plastics 2 in. White PVC Compression Ball Valve, Thread x Thread, T1-020W$1299
Dura Plastics 3/4 in. TT White Comp Ball Valve, T1-007W$799
Dura Plastics 3/4 in. White PVC Compression Ball Valve, Slip x Slip, S1-007W$718
Dura Plastics 1/2 in. White PVC Compression Ball Valve, Slip x Slip, S1-005W$620
Dura Plastics 1/2 in. TT White Comp Ball Valve, T1-005W$620
Hayward Male Combo Adaptor Check Valve 1-1/2" x 1-1/4", SP1091CV$2699
Ocean Blue 180 Degree Straight Check Valve, 1.5 in. x 2 in., CPVC, 176101$2699
SuperPro 1-1/2" Slip x Slip PVC Ball Valve with Union, 25802-150-000$2999
SuperPro 1 Inch Swing-Spring Clear Check Valve with Unions, 0.5 lb Slip x Slip, SP0823-10C$2999
Lasco 2" PVC Slip Ball Valve SCH80, V20491N$3099
CMP Hydroseal Swing Check Valve, 2" Clear, 25062-209-000$3099
Ocean Blue 90 Degree Straight Check Valve, 2 in. x 2.5 in., CPVC, 176202$3099
PoolMiser Valve Only, RP-402$3199
DEL Ozone Check Valve, 5 lb, 1.5 inch Socket by 2 inch Spigot, CO-0103$3399
Product details

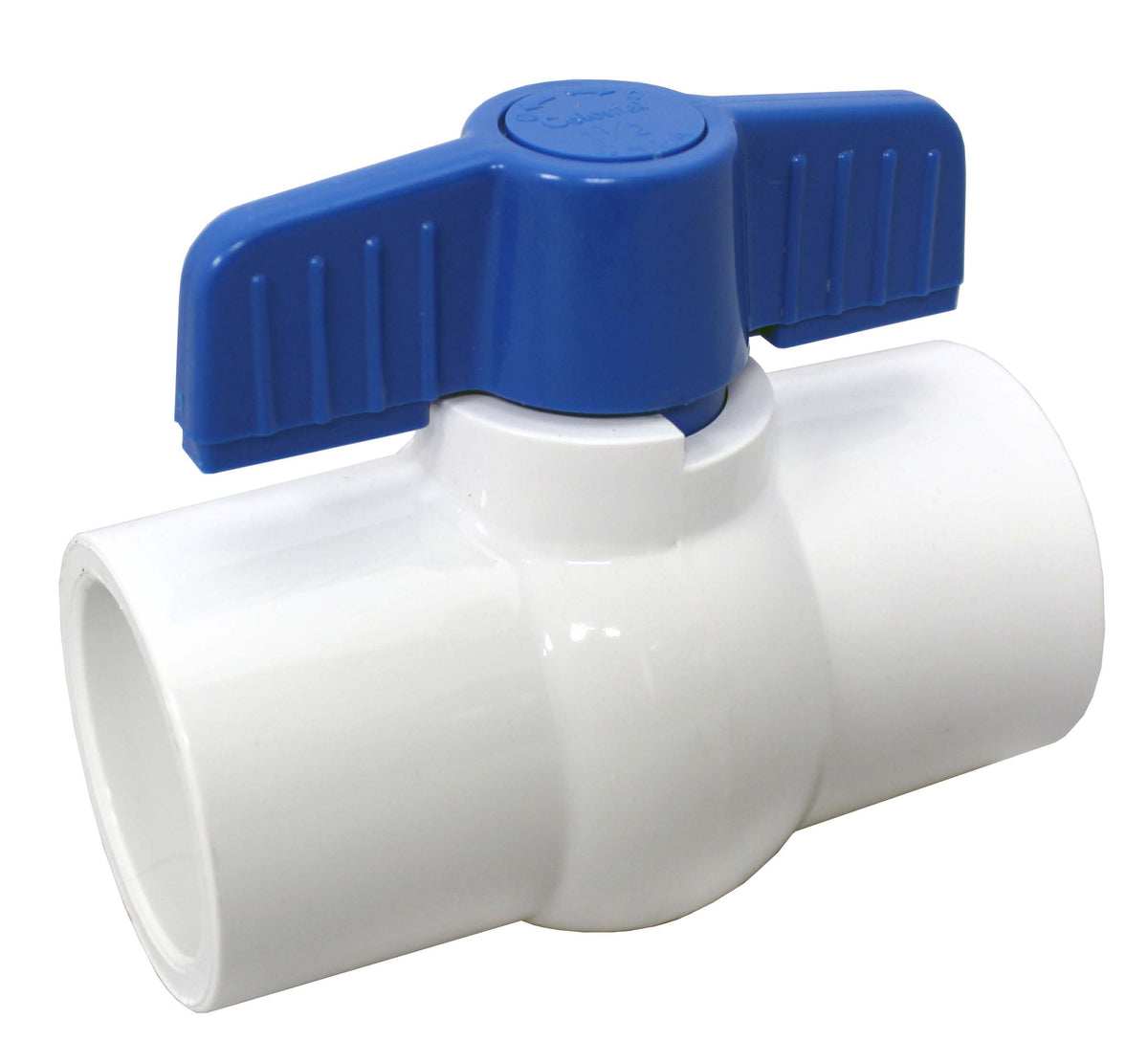

The Lasco Fittings V10491N is a 1 inch slip x slip compact ball valve in PVC. Both ends are slip sockets, so it solvent welds straight into 1 inch pipe.
The design
This is a commercial molded in place valve, which is where the MIP in the name comes from. The compact, lightweight body suits an equipment pad where there is not much room between fittings, and the valve keeps good flow characteristics for its size. It is bi-directional, so there is no inlet or outlet to get wrong when you plumb it in.
Quality control
Lasco boxes each valve individually and leak tests every one before it leaves the factory, which matters on a part that gets glued permanently into a pipe run.
Installing it
Dry fit the valve into the run first and confirm the handle can swing clear of the pipes and equipment around it. Once it is solvent welded there is no adjusting the orientation, and a valve you cannot turn is no better than no valve at all.
| Brand | Lasco |
|---|---|
| Manufacturer part number | V10491N |
| UPC | 054554513509 |
| Type | Compact ball valve, molded in place |
| Size | 1 inch |
| Connections | Slip x slip |
| Material | PVC |
| Pipe schedule | Schedule 80 |
| Flow direction | Bi-directional |
| Grade | Commercial |
| Testing | 100 percent leak tested, individually boxed |
| Shipping weight | 0.55 lb |
| Ships | Parcel |
