Tecmark TBS339A SPNO air switchTecmark SPNO Air Switch TBS339A In stock$2299
Tecmark TBS339A SPNO air switch
Shop all Tecmark

Tecmark SPNO Air Switch TBS339A

Ask a questionMPN TBS339A
$2299
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Tecmark Factory part number TBS339A.
  • SPNO configuration Single pole, normally open, so the circuit closes when the switch is actuated.
  • Air actuated A puff of air down the tubing from the button trips the switch, keeping line voltage away from the bather.
  • Single pole Switches one circuit, so match it to the equipment it controls before ordering.
  • Spa and pool equipment Used on spa packs and equipment where a pneumatic button starts a pump or blower.
  • Direct replacement Swaps for a failed TBS339A without rewiring the panel.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Tecmark SPNO Air Switch TBS339A, SKU TDI-851-0339. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Tecmark SPNO Air Switch TBS339A
Tecmark

SPNO Air Switch TBS339A

$2299
Tecmark Hot Tub Air Switch, TBS310A
Tecmark

Hot Tub Air Switch, TBS310A

$2199
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Pentair Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218
Pentair

Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218

$30299
Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012
Gecko Alliance

Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012

$16799
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$25899
Subtotal

Similar products

Other products people compare with this one.

Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999 Jandy R0411600 gear kit for the 2444 valve actuator Jandy Gear Kit for 2444 Valve Actuator, R0411600$3399 Pentair 8023304 four position plug-in screw terminal for ComPool and IntelliTouch Pentair 4 Position Plug-In Screw Terminal for ComPool IntelliTouch, 8023304$1899 Pentair Seal Cord Assembly Kit | 670044 Pentair Seal Cord Assembly Kit | 670044$2999 Pentair SpaBrite AquaLight Kwik Change Lens Red | 79108900 Pentair SpaBrite AquaLight Kwik Change Lens Red | 79108900$1199 Pool Tool Light Security Clip | 132-A Pool Tool Light Security Clip | 132-A$2999 Hayward Lens Gasket Hi-Temp | SPX0550Z2 Hayward Lens Gasket Hi-Temp | SPX0550Z2$3299 Pentair Kwik-Change Plastic Lens Red | 78900900 Pentair Kwik-Change Plastic Lens Red | 78900900$2199 Pentair FACEPLATE HINGE PINS 2/SET LX | LXPIN Pentair FACEPLATE HINGE PINS 2/SET LX | LXPIN$2699 IPS Controllers FLSW flow switch for chemical controller flow cell IPS Controllers Flow Switch Only, FLSW$5500
Pentair 520010Z micro switch set with levers and screws for CVA-24 valve actuator Pentair Genuine OEM Micro Switch Set with Levers and Screws for CVA-24, 520010Z$8699 PAL Lighting 64-PCR-1Z-SM-65 single zone color control transformer, 65W 24V DC PAL Lighting Multi-Color Single Zone Switch Control Transformer, 65W 24V DC, 64-PCR-1Z-SM-65$16399 Pentair REMOTE SPA JETS SWITCH | RCS1 Pentair REMOTE SPA JETS SWITCH | RCS1$20999 Pentair ESO2 double gang plate shut off switch with alarm for ComPool pool and spa control systems Pentair Double Gang Plate Shut-Off Switch with Alarm for ComPool Pool and Spa, ESO2$30599 Aladdin (PKG ONLY) SCREWS FOR LIGHT RINGS 3PK | 500S Aladdin (PKG ONLY) SCREWS FOR LIGHT RINGS 3PK | 500S$899 Pentair 9321004 2-3/4 inch hose clamp for sensor hose Pentair 2-3/4 in. Hose Clamp for Sensor, ComPool, IntelliTouch and MiniMax Plus, 9321004$899 Pentair 10-24 x .5" Stainless Steel Grounding Screw | 98204400 Pentair 10-24 x .5" Stainless Steel Grounding Screw | 98204400$599 Hayward Lens Gasket Special Hi-Temp | SPX0503W Hayward Lens Gasket Special Hi-Temp | SPX0503W$3999 Zodiac TERMINAL BAR CONN 4-PIN RED | 6609 Zodiac TERMINAL BAR CONN 4-PIN RED | 6609$4299 Solaxx GNR00006 temperature sensor with round connector Solaxx Temperature Sensor with Round Connector, GNR00006$4399

Product details

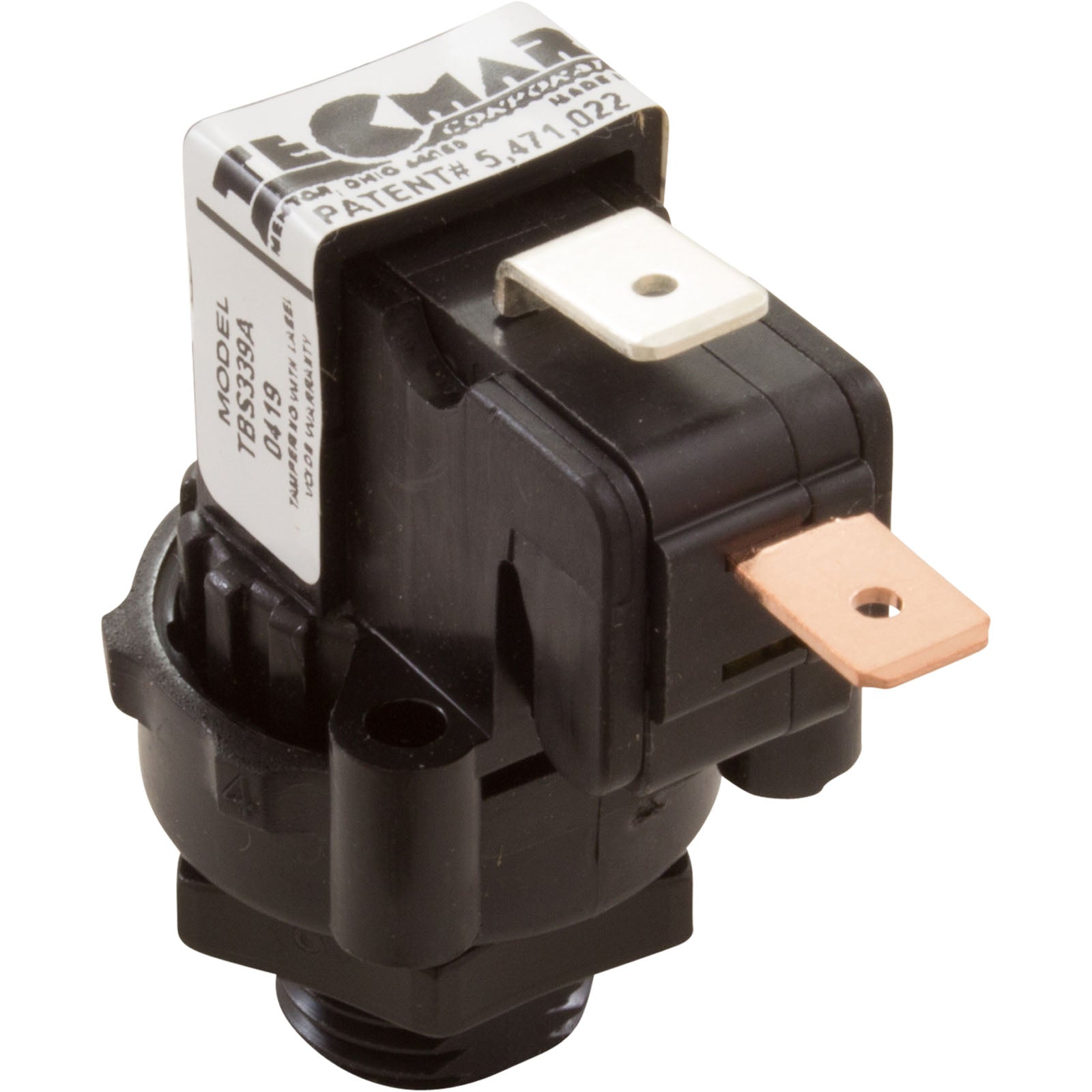

The Tecmark TBS339A is a single pole, normally open air switch. It is the genuine Tecmark part.

How an air switch is used

Air switches let a bather start a pump or a blower without any electrical connection at the button. Pressing the button sends a pulse of air down a small tube to the switch, which sits back at the equipment. The diaphragm inside moves and closes the circuit. Because only air travels to the button, there is no line voltage anywhere the user can reach.

Before you order

Match the configuration to what the equipment needs. This one is SPNO, single pole and normally open, so it closes a single circuit when actuated. If your panel uses a different pole or contact arrangement, a different Tecmark switch is required.

Specifications
Brand Tecmark
Manufacturer part number TBS339A
Type Air switch
Configuration SPNO, single pole normally open
Actuation Air, pneumatic
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

What does SPNO mean?
Single pole, normally open. The switch holds one circuit open at rest and closes it when air actuates it.
How does an air switch work?
A button at the pool or spa pushes air down a length of tubing. That pressure trips a diaphragm inside the switch, so no electrical wiring has to run out to the button.
Is this a genuine Tecmark part?
Yes. It is the Tecmark air switch, part number TBS339A.
My spa button no longer starts the pump. Is the switch at fault?
It can be, but check the air tubing and the button first. A cracked tube or a leaking button loses the pressure the switch needs before the switch itself is the problem.
Ask your own question
