Aquatic Access Above-Deck 180 Degree Seat Rotation Pool Lift, 350 lb, Deck Socket, IGAT-180-AD$6,11399
Aquatic Access Above-Deck 180 Degree Seat Rotation Pool Lift, 350 lb, Deck Socket, IGAT-180-AD
30 day returns · Easy, with prepaid labels provided
Quick overview
- Capacity Lifts up to 350 lb at 55 to 65 psi of open flow water pressure.
- Above-deck design The whole lift stays out of the water until the seat enters, which suits automatic covers and raised coping.
- Compliance Meets the ADA requirements under the 2010 Standards for Accessible Design.
- Power Water pressure only: no battery, charger or wiring.
- Rotation The seat turns 180 degrees clockwise; 90 degree, 135 degree and opposite turn builds are also offered.
- Operation Upper and lower controls let the user run it from the deck or from the water.
Need a hand?
Frequently bought together
Above-Deck 180 Degree Seat Rotation Pool Lift, 350 lb, Deck Socket, IGAT-180-AD
Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW
Get your unadvertised price ›
Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue
Get your unadvertised price ›
Similar products
Other products people compare with this one.
S.R. Smith Splash! ADA Pool Lift, 400 lb, No Anchor, Radiant White, 300-0000N$8,07499
Global Pool Products C-375 Pool Access Lift, No Anchor, C375NA$6,99900
Web Price
Aqua Creek Ranger 2 ADA Pool Lift, 350 lb, No Anchor, White Powder Coat with Blue Seat, F-RNGR2$4,20799
S.R. Smith PAL2 Portable ADA Pool Lift, 300 lb, Secure-It Kit Included, Gray Mist, 202-0000$8,98099
Aqua Creek Revolution XL ADA Pool Lift, 500 lb, No Anchor, White with Blue Seat, F-REVXL$8,52800
Global Pool Products Rotational Series R-375 ADA Pool Lift, 375 lb, 360 Degree Rotation, No Anchor, R375NA$6,99900
S.R. Smith 30in Sentry Lifeguard Chair | SLGC-30$1,08899
Spectrum Aquatics Traveler BP500 ADA Pool Lift, 500 lb, Battery Powered, 360 Degree Rotation, 163330$13,14399
Shade Science Pool Buoy Floating Pool Umbrella, Tide White, PB-16011-TW$21900
Web Price
Traffic Graphix 8-Way California Safety Sign, TGPS1001$5899
Pentair Deck Jet II Replacement Nozzle, 590041$3699
Jandy Deck Jet Coverplate, Bronze, 4 Pack, R0561200$9699
Traffic Graphix 16 x 16 in. Sign, Diarrhea / Pool Gate Closed, TGDS1020$2199
CMI 3' x 100' Equipotential Bonding Grid Kit, EB31001.0 (1)
$75999
Paragon Ladder Tread 19" Vertical, 44101$9799
Perma-Cast Slide Flange, Aluminum with 4 Anchors, 1.9" Rail, PF-3119-A$3699
S.R. Smith 8' Cantilever Complete Diving Board and Base, Radiant White, 68-209-5982$2,40399
Perma-Cast 1.9" Escutcheon, Stainless Steel, PE-0019-S$1599
S.R. Smith Stainless Steel Escutcheon Plate, 1.90 in. OD Rail, EP-100F$2099
S.R. Smith 6' White Spring Assembly for 606 Cantilever Jump Stand, 69-209-026$41099
Product details

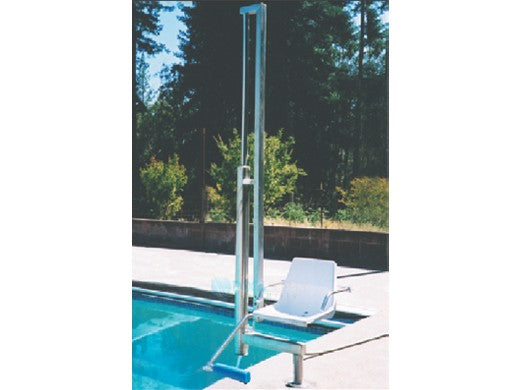

The Aquatic Access IGAT-180-AD is a 350 lb water powered pool lift that installs in a deck socket and keeps its whole mechanism above the deck until the seat enters the water, built for pools and spas with automatic covers or raised coping.
What it is
The lift meets the ADA requirements under the 2010 Standards for Accessible Design. The above-deck layout suits pools with automatic covers, raised coping, pool and spa combinations and swim events. Upper and lower controls let the rider run it alone, from the deck or from the water.
Power and operation
It runs on water pressure with no battery. Lifting 350 lb takes 55 to 65 psi of open flow pressure, or about 60 psi measured at a faucet with no water flowing. Vertical seat travel is 44 in. The seat turns 180 degrees clockwise on the way into the water and returns on the way out. The footrest flips up and its mount sits under the seat for an unobstructed transfer. The seat comes with a single right arm, and a flip-up outer arm, a headrest and upper and lower seat belts are optional.
Fit
It sets into a deck socket of 3.5 in. by 10 in., and the raised height is 110.25 in. The manufacturer also builds 90 degree, 135 degree and opposite rotation versions, so tell it about your pool cover and any adjacent spa when you order.
A filled out deck profile form confirms the lift reaches the water before the manufacturer builds it, and the lift is sold with its deck socket as listed.
From Pool School
Pool Lift ConfiguratorMeasure the pool edge, compare the lifts that fit, add the anchor and accessories. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. Read ADA Pool Lift Requirements: Which Pools Need One and What the Lift Must DoWho has to provide an accessible entry, how many, and what the lift has to do. Read| Brand | Aquatic Access |
|---|---|
| Model | IGAT-180-AD |
| Manufacturer part number | IGAT-180-AD |
| Lifting capacity | 350 lb at 55 to 65 psi open flow water pressure |
| Mount | Portable lift in a deck socket |
| Anchor | Deck socket, 3.5 in. x 10 in. |
| Seat rotation | 180 degrees clockwise |
| Vertical seat travel | 44 in. |
| Raised height | 110.25 in. |
| Power | Water pressure, no battery |
| Controls | Upper and lower controls, from deck or water |
| Footrest | Flip-up, included |
| Armrests | Right arm standard; flip-up outer arm optional |
| Options | Headrest, upper and lower seat belts |
| ADA compliance | Meets the 2010 Standards for Accessible Design |
| Shipping weight | 180 lb |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Questions and answers
What people ask about this product, answered by our pool techs.
What is the above-deck lift for?
Does it need a battery or a power connection?
Can a different rotation be ordered?
What does the manufacturer need before building it?
