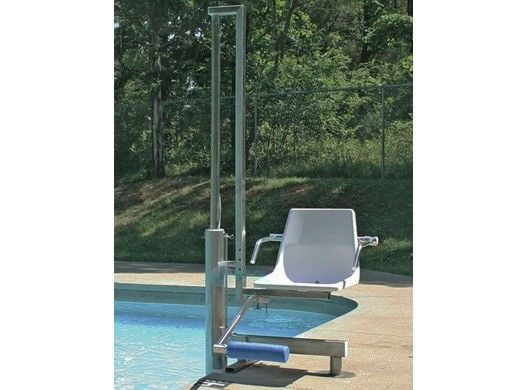

Aquatic Access IGAT-180 water powered ADA pool lift with automatic 180 degree seat turnAquatic Access IGAT-180 ADA Water Powered Pool Lift, 400 lb, 180 Degree Automatic Seat Turn, with Anchor, IGAT-180$5,56324
Aquatic Access IGAT-180 water powered ADA pool lift with automatic 180 degree seat turn
Shop all Aquatic Access

Aquatic Access IGAT-180 ADA Water Powered Pool Lift, 400 lb, 180 Degree Automatic Seat Turn, with Anchor, IGAT-180

Ask a questionMPN IGAT-180
$5,56324
FREE Delivery
Typically ships within 7 days This item ships directly from the manufacturer.
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Capacity Lifts up to 400 lb when the open flow water pressure is 55 to 65 psi.
  • Compliance Certified to meet the 2010 Standards for Accessible Design and the ADA and ABA requirements.
  • Mount A fixed deck socket holds the lift, which lifts out for off season storage and can be padlocked in the deck position.
  • Power Runs on water pressure alone: no battery and no wiring.
  • Automatic turn The seat turns 180 degrees clockwise on its own, forward when entering the pool and back when exiting.
  • Seat Includes a seat belt and a flip-up footrest, with seat height adjustable for wheelchair heights.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Aquatic Access IGAT-180 ADA Water Powered Pool Lift, 400 lb, 180 Degree Automatic Seat Turn, with Anchor, IGAT-180, SKU PSU-12. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Aquatic Access IGAT-180 ADA Water Powered Pool Lift, 400 lb, 180 Degree Automatic Seat Turn, with Anchor, IGAT-180
Aquatic Access

IGAT-180 ADA Water Powered Pool Lift, 400 lb, 180 Degree Automatic Seat Turn, with Anchor, IGAT-180

$5,56324
Shade Science Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW
Shade Science

Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW

$24900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue
Shade Science

Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue

$21900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Poolguard PGRM-2 In-Ground Pool Alarm
American Granby

Poolguard PGRM-2 In-Ground Pool Alarm

$25199
S.R. Smith 20" U-Frame Fulcrum Cover, FC-200A-R
S.R. Smith

20" U-Frame Fulcrum Cover, FC-200A-R

$6499
National Stock Sign Co. 41" x 47" Texas Pool Rules Sign, Plastic, TX4148
National Stock Sign

Co. 41" x 47" Texas Pool Rules Sign, Plastic, TX4148

$10899
Pool Buoy Replacement Umbrella, Harbor Blue, PB-16011-HAR-RE-UMBRELLA
Pool Buoy

Replacement Umbrella, Harbor Blue, PB-16011-HAR-RE-UMBRELLA

$3799
Subtotal

Similar products

Other products people compare with this one.

S.R. Smith 300-0000N Splash! pool lift, Radiant White, without anchor jig S.R. Smith Splash! ADA Pool Lift, 400 lb, No Anchor, Radiant White, 300-0000N$8,07499 Global Pool Products C-375 pool access lift, no anchor version Global Pool Products C-375 Pool Access Lift, No Anchor, C375NA$6,99900 Web Price Aqua Creek Permanent Ranger Lift without Anchor | F-411RPL Aqua Creek Ranger 2 ADA Pool Lift, 350 lb, No Anchor, White Powder Coat with Blue Seat, F-RNGR2$4,23899 S.R. Smith aXs2 ADA compliant pool lift without anchor, part 310-0000N S.R. Smith aXs2 ADA Pool Lift, 300 lb, No Anchor, 360 Degree Rotation, Gray Mist, 310-0000N$5,07299 Global Pool Products Rotational Series R-375 R375NA ADA pool lift sold without an anchor Global Pool Products Rotational Series R-375 ADA Pool Lift, 375 lb, 360 Degree Rotation, No Anchor, R375NA$6,99900 Aqua Creek Revolution XL F-REVXL white pool lift with a blue seat Aqua Creek Revolution XL ADA Pool Lift, 500 lb, No Anchor, White with Blue Seat, F-REVXL$8,52800 S.R. Smith PAL2 202-0000 portable pool lift in Gray Mist S.R. Smith PAL2 Portable ADA Pool Lift, 300 lb, Secure-It Kit Included, Gray Mist, 202-0000$8,98099 S.R. Smith 30in Sentry Lifeguard Chair | SLGC-30 S.R. Smith 30in Sentry Lifeguard Chair | SLGC-30$1,05899 Spectrum Aquatics Traveler BP500 163330 battery powered ADA pool lift Spectrum Aquatics Traveler BP500 ADA Pool Lift, 500 lb, Battery Powered, 360 Degree Rotation, 163330$13,14399 Shade Science Pool Buoy floating pool umbrella in Tide White, PB-16011-TW Shade Science Pool Buoy Floating Pool Umbrella, Tide White, PB-16011-TW$21900 Web Price
Traffic Graphix TGPS1001 8-Way California Safety Sign Traffic Graphix 8-Way California Safety Sign, TGPS1001$5899 Pentair 590041 Deck Jet II replacement nozzle Pentair Deck Jet II Replacement Nozzle, 590041$3699 Jandy R0561200 bronze deck jet cover plate, 4 pack Jandy Deck Jet Coverplate, Bronze, 4 Pack, R0561200$9699 Traffic Graphix TGDS1020 16 x 16 in. diarrhea and pool gate closed safety sign Traffic Graphix 16 x 16 in. Sign, Diarrhea / Pool Gate Closed, TGDS1020$2199 CMI EB3100 3 ft by 100 ft equipotential bonding grid kit CMI 3' x 100' Equipotential Bonding Grid Kit, EB31001.0 (1) $75999 Paragon 44101 19 in. white vertical ladder tread Paragon Ladder Tread 19" Vertical, 44101$9799 Perma-Cast PF-3119-A aluminum slide flange with four anchors for 1.9 in. rail Perma-Cast Slide Flange, Aluminum with 4 Anchors, 1.9" Rail, PF-3119-A$3699 S.R. Smith 8 ft Cantilever diving board with base in Radiant White, part 68-209-5982 S.R. Smith 8' Cantilever Complete Diving Board and Base, Radiant White, 68-209-5982$2,40399 Perma-Cast PE-0019-S 1.9 inch stainless steel pool rail escutcheon Perma-Cast 1.9" Escutcheon, Stainless Steel, PE-0019-S$1599 S.R. Smith EP-100F stainless steel escutcheon plate for 1.90 in. OD pool rails S.R. Smith Stainless Steel Escutcheon Plate, 1.90 in. OD Rail, EP-100F$2099

Product details

The Aquatic Access IGAT-180 is a 400 lb ADA pool lift that runs on water pressure and turns the seat 180 degrees automatically, sold with its deck socket and set up as a removable lift in a fixed anchor.

What it is

Aquatic Access has built water powered lifts since 1980, and the IGAT-180 is its standard in-ground automatic turn model. Its design is certified to the 2010 Standards for Accessible Design, along with the ADA and ABA requirements. The user operates it alone, from the deck or the water, and the seat height adjusts to suit different wheelchair heights.

Power and operation

There is no battery, charger or wiring. The lift needs 55 to 65 psi of open flow water pressure to raise 400 lb, and it travels 44 in. vertically. The seat turns 180 degrees clockwise by itself, forward on the way into the water and backward on the way out. The footrest flips up and its mounting arm sits under the seat, so a side transfer is unobstructed. The seat comes with a single right arm, and a flip-up outer arm can be added.

Fit

The deck socket measures 2.375 in. OD by 7 in. and the pool needs a straight wall at least 36 in. deep. There is no underwater installation, but the bottom of the cylinder touches the wall, so a vinyl liner wall pad is available for liner pools. The lifting apparatus comes out of the socket for off season storage and can be padlocked in the deck position. It can also be set up to use deck sockets from other brands of lift.

Included

The seat belt, flip-up footrest and installation components ship with the lift. A heavy duty version with a higher capacity is a custom build.

The deck socket is included with this part number, so no separate anchor purchase is needed.

From Pool School

Pool Lift ConfiguratorMeasure the pool edge, compare the lifts that fit, add the anchor and accessories. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. Read ADA Pool Lift Requirements: Which Pools Need One and What the Lift Must DoWho has to provide an accessible entry, how many, and what the lift has to do. Read
Specifications
Brand Aquatic Access
Model IGAT-180
Manufacturer part number IGAT-180
Lifting capacity 400 lb at 55 to 65 psi open flow water pressure
Mount Portable lift in a fixed deck socket
Anchor Deck socket, 2.375 in. OD x 7 in., included
Wall requirement 36 in. minimum straight wall
Seat rotation 180 degrees clockwise, automatic
Vertical seat travel 44 in.
Raised height 74.5 in.
Power Water pressure, no battery
Controls User operable for independent use
Seat belt Included
Footrest Flip-up, included
Armrests Right arm standard; flip-up outer arm available
ADA compliance Certified to the 2010 Standards for Accessible Design
Shipping weight 126 lb

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Does the IGAT-180 run on a battery?
No. It is powered by water pressure and needs 55 to 65 psi of open flow pressure to lift its full 400 lb. Static pressure at a faucet reads higher than the pressure while lifting, so the running figure is the one that counts.
Can a person use it without help?
Yes. The lift is user operable for independent use. The seat turns automatically 180 degrees, and the footrest flips up so a side to side transfer is unobstructed.
What wall and deck does it need?
The deck socket is 2.375 in. OD by 7 in., and the lift needs a straight pool wall at least 36 in. deep. The cylinder rests against the pool wall, and a vinyl liner wall pad is available for liner pools.
Does it come with everything needed to install it?
The listing says every component needed for installation and operation ships with the lift, including the seat belt and the flip-up footrest. A flip-up outer armrest is an optional addition.
Ask your own question
