Blue-White Industries FLEXFLO High Pressure Metering Pump with Analog Timer 115V 60Hz, A1N20A-6T In stock$62499
Blue-White Industries FLEXFLO High Pressure Metering Pump with Analog Timer 115V 60Hz, A1N20A-6T
30 day returns · Easy, with prepaid labels provided
Quick overview
- Peristaltic feed a squeeze tube design, so the chemical never touches a piston, seal or check valve.
- 24 GPD at 100 PSI rated for 24 gallons per day against up to 100 PSI, enough to feed into a pressurized return line.
- Analog timer on board run the feed on a timed cycle without a separate controller.
- 3/8 in. OD tubing connections for 3/8 in. outside diameter feed tubing.
- 115V 60Hz runs on standard 115V, 60Hz power.
- Polypropylene polypropylene construction for chlorine and acid duty.
Need a hand?
Similar products
Other products people compare with this one.
Pentair Commercial High Capacity Chlorine or Bromine Off-Line Chlorinator HC3315, 15 lbs, R171215$33499
Pentair Rainbow Automatic Commercial High Capacity Chlorinator HC-3340, 40 lb, R171240$41599
Stenner Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA$48999
King Technology Pool Frog Model 5400 In-Line System, Up to 40,000 Gallons, 01-01-5480$51095
Web Price
Pentair Chlorine Tank with Tank Mounted Pump for IntelliChem, 522473$54199
Hayward Peristaltic Chemical Feed Pump, AC035$32199
Stenner 45MFL5A1SUAA 120V 50 GPD 25 PSI .25" Fixed 1-Head Classic Pump$36099
Blue-White Industries FLEXFLO A1N30A-7T Peristaltic Metering Pump with Analog Timer, 60 Hz$63399
Stenner Pumps .25" Single Head Adjustable Chemical Injection Pump 100 PSI 10 GPD 120V, 45MJH2A1STAA$53099
Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A3STAA$52899
Stenner Classic Series 10GPD 120V 1/4" 45M2 Pump ADJ 25PSI | 45MJL2A1STAA$52099
Stenner Classic Series 85M5 Adjustable Chemical Feed Pump, 85 GPD, 25 PSI, 120V, 3/8 in. Tubing, 85MJL5A3STAA$50799
Stenner Classic Series 85GPD 120V .25in 85M5 Pump | 85MJL5A1STAA$49599
Stenner Classic Pump 120V 22GPD 25PSI .25" Adjustable 1-Head | 45MJL3A2STAA$53699
Stenner Classic Series 22GPD 120V 1/4" 45M3 Pump ADJ 25PSI | 45MJL3A1STAA$53099
Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A4STAA$51299
Stenner Stennner Classic Series 170GPD 120V 1/4" W 170DMP5 Pump FXD 25PSI | 170FL5A1SUAA$55099
Stenner Classic Series 5GPD 120V 1/4" 85M1 Pump ADJ 25PSI | 85MJL1A1STAA$61899
Stenner Classic Series 3GPD 120V 1/4" 45M1 Pump ADJ 25PSI | 45MJL1A1STAA$55899
Pentair Rainbow Commercial Chlorinator #300-29X, Offline, R171070$23699
Product details

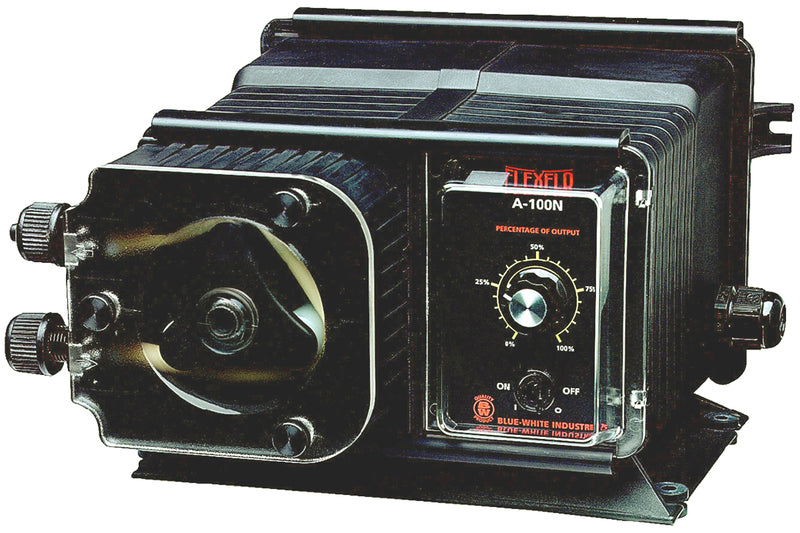

The Blue-White A1N20A-6T is a FLEXFLO A-100N series high pressure peristaltic metering pump with an analog timer, built to feed liquid chemical into a pool system on a schedule. It is rated for 24 gallons per day at up to 100 PSI, takes 3/8 in. OD tubing, is polypropylene, and runs on 115V 60Hz power.
Why a peristaltic pump
A peristaltic pump moves chemical by squeezing a tube, so the liquid never contacts a piston, a seal or a check valve. That matters with chlorine and acid, which crystallize and gas off: the pump keeps its prime, does not vapor lock, and the only wear part is the tube.
Timer built in
The analog timer lets you set the feed to run on a timed cycle straight from the pump, without wiring in a separate controller. The 100 PSI rating means it can inject into a pressurized return line rather than needing a low pressure point.
Specs at a glance
24 GPD output, 100 PSI maximum, 3/8 in. OD tubing connections, polypropylene, 115V 60Hz.
| Brand | Blue-White Industries |
|---|---|
| Manufacturer part number | A1N20A-6T |
| Series | FLEXFLO A-100N |
| Type | High pressure peristaltic metering pump |
| Output | 24 GPD |
| Maximum pressure | 100 PSI |
| Tubing connection | 3/8 in. OD |
| Material | Polypropylene |
| Power | 115V 60Hz |
| Timer | Analog |
| Shipping weight | 19.95 lb |
| Ships | Parcel |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
