Stenner 45MJL5A1STAA Classic 45 single head adjustable chemical injection pump, 120V, 50 gpdStenner Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA In stock$48999

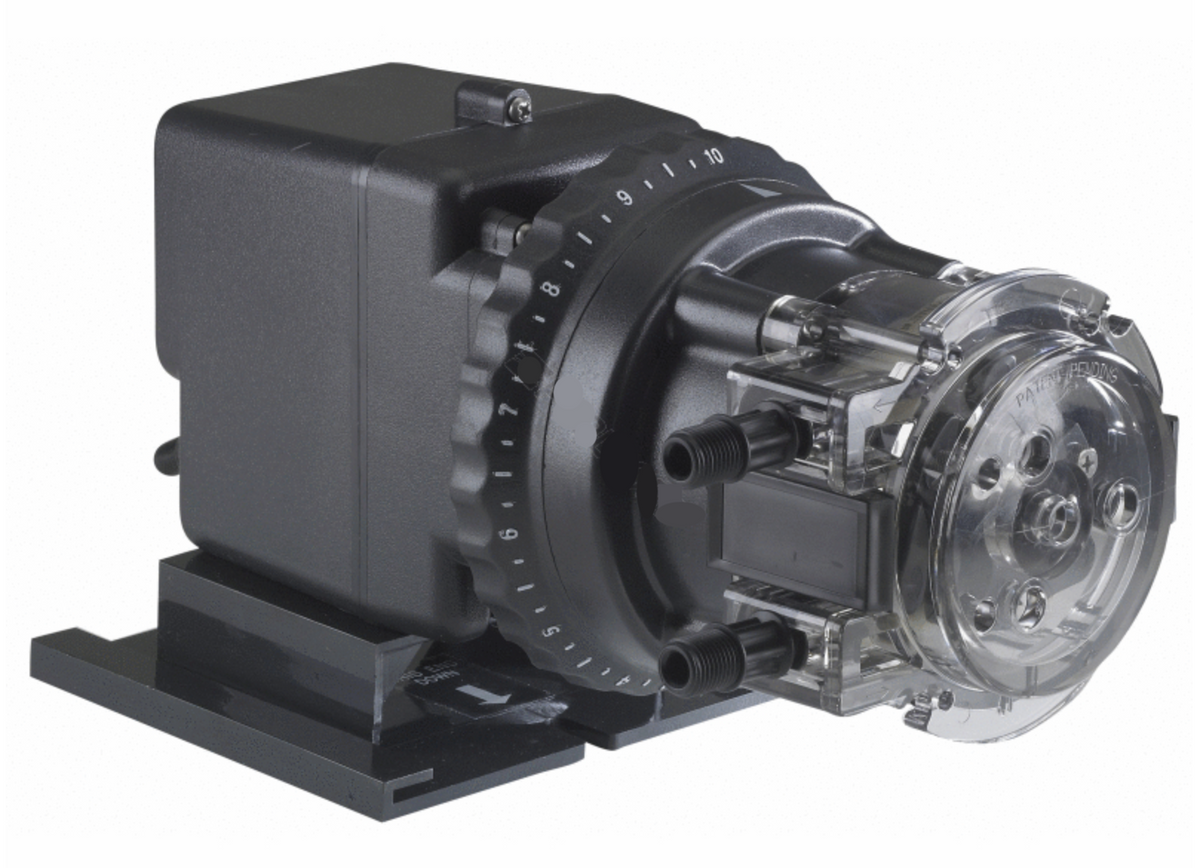

Stenner 45MJL5A1STAA Classic 45 single head adjustable chemical injection pump, 120V, 50 gpd
Shop all Stenner

Stenner Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA

Ask a questionMPN 45MJL5A1STAA
$48999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Adjustable output dial the feed anywhere from 2.5 to 50 gallons per day.
  • Up to 25 psi rated to inject against 0 to 25 psi of line pressure.
  • Single head one pump head, one chemical, the standard configuration for a chlorine or acid feed.
  • 1/4 in. tubing uses standard 1/4 in. suction and discharge tubing.
  • Polycarbonate head chemical resistant housing built for the equipment pad.
  • 120 V 60 Hz plugs into standard household power or a timer.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Stenner Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA, SKU GHS-45-805. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Stenner Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA
Stenner

Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA

$48999
Pool Season 3 in. Jumbo Chlorinating Tablets, 47251270
Pool Season

3 in. Jumbo Chlorinating Tablets, 47251270

8 lb
$5900
AquaFinesse Pool Water Care Tablets, 16 Tablets, 956330
AquaFinesse

Pool Water Care Tablets, 16 Tablets, 956330

$7099
Subtotal

Similar products

Other products people compare with this one.

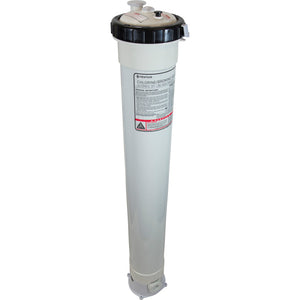

Pentair Rainbow HC-3315 R171215 commercial high capacity off-line chlorinator, 15 lb Pentair Commercial High Capacity Chlorine or Bromine Off-Line Chlorinator HC3315, 15 lbs, R171215$33499 Blue-White Industries FLEXFLO A1N20A-6T high pressure peristaltic metering pump with analog timer Blue-White Industries FLEXFLO High Pressure Metering Pump with Analog Timer 115V 60Hz, A1N20A-6T$62499 Pentair Rainbow R171240 HC-3340 automatic commercial high capacity chlorinator Pentair Rainbow Automatic Commercial High Capacity Chlorinator HC-3340, 40 lb, R171240$41599 King Technology Pool Frog Model 5400 in-line system for in ground pools up to 40,000 gallons King Technology Pool Frog Model 5400 In-Line System, Up to 40,000 Gallons, 01-01-5480$51095 Web Price Pentair 522473 chlorine tank with tank mounted pump for IntelliChem Pentair Chlorine Tank with Tank Mounted Pump for IntelliChem, 522473$54199 Hayward AC035 peristaltic chemical feed pump Hayward Peristaltic Chemical Feed Pump, AC035$32199 Stenner 45MFL5A1SUAA Classic Series single head fixed output chemical injection pump Stenner 45MFL5A1SUAA 120V 50 GPD 25 PSI .25" Fixed 1-Head Classic Pump$36099 Blue-White Industries FLEXFLO A1N30A-7T polypropylene peristaltic metering pump with analog timer Blue-White Industries FLEXFLO A1N30A-7T Peristaltic Metering Pump with Analog Timer, 60 Hz$63399 Stenner 45MJH2A1STAA single head adjustable chemical injection pump, 120V Stenner Pumps .25" Single Head Adjustable Chemical Injection Pump 100 PSI 10 GPD 120V, 45MJH2A1STAA$53099 Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A3STAA Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A3STAA$52899
Stenner Classic Series 10GPD 120V 1/4" 45M2 Pump ADJ 25PSI | 45MJL2A1STAA Stenner Classic Series 10GPD 120V 1/4" 45M2 Pump ADJ 25PSI | 45MJL2A1STAA$52099 Stenner 85MJL5A3STAA Classic Series 85M5 single head adjustable chemical feed pump, 120V Stenner Classic Series 85M5 Adjustable Chemical Feed Pump, 85 GPD, 25 PSI, 120V, 3/8 in. Tubing, 85MJL5A3STAA$50799 Stenner Classic Series 85GPD 120V .25in 85M5 Pump | 85MJL5A1STAA Stenner Classic Series 85GPD 120V .25in 85M5 Pump | 85MJL5A1STAA$49599 Stenner Classic Pump 120V 22GPD 25PSI .25" Adjustable 1-Head | 45MJL3A2STAA Stenner Classic Pump 120V 22GPD 25PSI .25" Adjustable 1-Head | 45MJL3A2STAA$53699 Stenner Classic Series 22GPD 120V 1/4" 45M3 Pump ADJ 25PSI | 45 | 45MJL3A1STAA Stenner Classic Series 22GPD 120V 1/4" 45M3 Pump ADJ 25PSI | 45MJL3A1STAA$53099 Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45 | 45MJL5A4STAA Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A4STAA$51299 Stenner Stennner Classic Series 170GPD 120V 1/4" W 170DMP5 Pump FXD 25PSI | 170FL5A1SUAA Stenner Stennner Classic Series 170GPD 120V 1/4" W 170DMP5 Pump FXD 25PSI | 170FL5A1SUAA$55099 Stenner Classic Series 5GPD 120V 1/4" 85M1 Pump ADJ 25PSI | 85M | 85MJL1A1STAA Stenner Classic Series 5GPD 120V 1/4" 85M1 Pump ADJ 25PSI | 85MJL1A1STAA$61899 Stenner Classic Series 3GPD 120V 1/4" 45M1 Pump ADJ 25PSI | 45M | 45MJL1A1STAA Stenner Classic Series 3GPD 120V 1/4" 45M1 Pump ADJ 25PSI | 45MJL1A1STAA$55899 Pentair Rainbow 300-29X offline commercial chlorinator, part R171070 Pentair Rainbow Commercial Chlorinator #300-29X, Offline, R171070$23699

Product details

The Stenner 45MJL5A1STAA is a Classic 45 series single head adjustable chemical injection pump. It is the workhorse feeder for liquid chlorine or acid on a pool system, sized for 2.5 to 50 gallons per day against up to 25 psi.

Specifications

The single pump head is adjustable, so output can be set anywhere across the 2.5 to 50 gpd range. It handles 0 to 25 psi of line pressure and uses 1/4 in. tubing on suction and discharge. The head is polycarbonate for chemical resistance, and the motor runs on 120 V 60 Hz.

On the pad

Wire it to a timer or a chemical controller output and it meters a steady, repeatable dose. Because the pump head is adjustable, the feed rate can be trimmed as the pool season changes without swapping tubes or heads.

Specifications
Brand Stenner Pumps
Manufacturer part number 45MJL5A1STAA
UPC 840034708479
Series Classic 45, 45M5
Heads Single head, adjustable
Output 2.5 to 50 gpd
Pressure 0 to 25 psi
Tubing 1/4 in.
Material Polycarbonate
Electrical 120 V, 60 Hz
Shipping weight 8.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Stenner

Stenner MCAK200 1/4 in. ferrule for chemical feed pumps, 24 pack Stenner Pumps 1/4" Ferrule, 24 Pack, MCAK200$799 Stenner Pumps MCCVDB0 Santoprene check valve duckbill Stenner Pumps MCCVDB0 Check Valve Duckbill$1099 Stenner 45MFL5A1SUAA Classic Series single head fixed output chemical injection pump Stenner 45MFL5A1SUAA 120V 50 GPD 25 PSI .25" Fixed 1-Head Classic Pump$36099 Stenner Pumps QP500-1 QuickPro roller assembly Stenner Pumps QuickPro Roller Assembly for Classic, SVP and M128 Series Pumps, QP500-1$4799 Stenner Pumps MCDBINJ injection duckbill check valve with 1/4 in. ferrule Stenner Pumps MCDBINJ Injection Duckbill Check Valve with 1/4" Ferrule, 5 Pack$2499 Stenner UCINJ38 injection check valve with 3/8 inch ferrule Stenner Pumps Injection Check Valve with 3/8 Inch Ferrule, UCINJ38$3199 Stenner Pumps PMBRPL2 rotor assembly for 45, 85 and 170 series pumps Stenner Pumps PMBRPL2 Rotor Assembly for 45, 85 and 170 Series Adjustable and Fixed Pumps$12999 Stenner Pumps AK4010W white 1/4 in x 100 ft suction and discharge tubing Stenner Pumps Suction and Discharge Tubing, 1/4 in x 100 ft, White, AK4010W$7299 Stenner MCCP205 #5 Santoprene pump tube with 1/4 inch ferrule Stenner Pumps MCCP205 Pump Tube with 1/4 Inch Ferrule, #5 Santoprene$2499 Stenner Pumps UCCP201 #1 Santoprene pump tube with 1/4 inch ferrules, 2 pack Stenner Pumps #1 Santoprene Pump Tube with 1/4" Ferrules, 2 Pack, UCCP201$4599
Stenner Pumps UCDBINJ injection check valve with 1/4 inch ferrule Stenner Pumps Injection Check Valve with 1/4 Inch Ferrule, UCDBINJ$2699 Stenner Stennner Classic Series 170GPD 120V 1/4" W 170DMP5 Pump FXD 25PSI | 170FL5A1SUAA Stenner Stennner Classic Series 170GPD 120V 1/4" W 170DMP5 Pump FXD 25PSI | 170FL5A1SUAA$55099 Stenner Classic Series 5GPD 120V 1/4" 85M1 Pump ADJ 25PSI | 85M | 85MJL1A1STAA Stenner Classic Series 5GPD 120V 1/4" 85M1 Pump ADJ 25PSI | 85MJL1A1STAA$61899 Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A3STAA Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A3STAA$52899 Stenner Classic Series 22GPD 120V 1/4" 45M3 Pump ADJ 25PSI | 45 | 45MJL3A1STAA Stenner Classic Series 22GPD 120V 1/4" 45M3 Pump ADJ 25PSI | 45MJL3A1STAA$53099 Stenner 85MJL5A3STAA Classic Series 85M5 single head adjustable chemical feed pump, 120V Stenner Classic Series 85M5 Adjustable Chemical Feed Pump, 85 GPD, 25 PSI, 120V, 3/8 in. Tubing, 85MJL5A3STAA$50799 Stenner Classic Series 10GPD 120V 1/4" 45M2 Pump ADJ 25PSI | 45MJL2A1STAA Stenner Classic Series 10GPD 120V 1/4" 45M2 Pump ADJ 25PSI | 45MJL2A1STAA$52099 Stenner Classic Series 85GPD 120V .25in 85M5 Pump | 85MJL5A1STAA Stenner Classic Series 85GPD 120V .25in 85M5 Pump | 85MJL5A1STAA$49599 Stenner Classic Series 3GPD 120V 1/4" 45M1 Pump ADJ 25PSI | 45M | 45MJL1A1STAA Stenner Classic Series 3GPD 120V 1/4" 45M1 Pump ADJ 25PSI | 45MJL1A1STAA$55899 Stenner Classic Pump 120V 22GPD 25PSI .25" Adjustable 1-Head | 45MJL3A2STAA Stenner Classic Pump 120V 22GPD 25PSI .25" Adjustable 1-Head | 45MJL3A2STAA$53699

Questions and answers

What people ask about this product, answered by our pool techs.

How much chemical can it feed?
The output is adjustable from 2.5 to 50 gallons per day.
What line pressure can it inject into?
It is rated for 0 to 25 psi. For higher pressure systems, Stenner makes higher pressure versions.
What size tubing does it take?
1/4 in. suction and discharge tubing.
What power does it need?
120 V, 60 Hz. It can run on a timer or a controller output.
