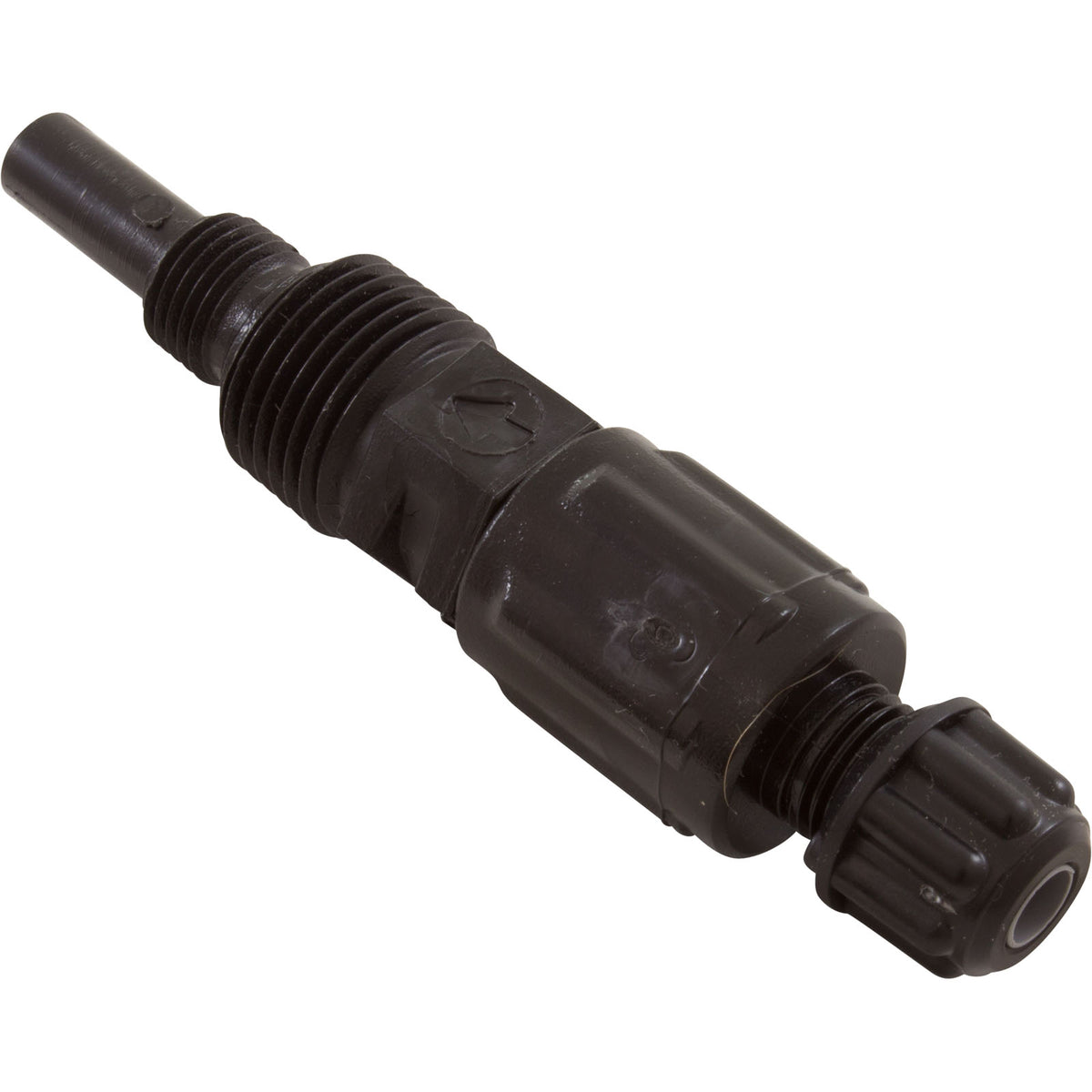

Stenner Pumps MCDBINJ injection duckbill check valve with 1/4 in. ferruleStenner Pumps MCDBINJ Injection Duckbill Check Valve with 1/4" Ferrule, 5 Pack In stock$4099
Stenner Pumps MCDBINJ injection duckbill check valve with 1/4 in. ferrule
Shop all Stenner

Stenner Pumps MCDBINJ Injection Duckbill Check Valve with 1/4" Ferrule, 5 Pack

Ask a questionMPN MCDBINJ
$4099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Five to a pack Sold as a 5 pack, which suits a service route or a pump you rebuild on a schedule.
  • Santoprene duckbill The flexible duckbill is what stops treated water pushing back up the injection line.
  • Quarter inch ferrule Built with a 1/4 in. ferrule for the injection fitting.
  • Two compatibility readings The product name lists 45, 85, 100 and 170 Series adjustable and fixed pumps plus SVP and BDF Series, while the short title says Classic and Econ pumps.
  • Modular by design Stenner pumps are built to have their wet end parts swapped out rather than repaired.
  • A wear part A duckbill that has hardened or split lets the line siphon back and the feed rate goes wrong.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Stenner Pumps MCDBINJ Injection Duckbill Check Valve with 1/4" Ferrule, 5 Pack, SKU GHS-451-4037. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Stenner Pumps MCDBINJ Injection Duckbill Check Valve with 1/4" Ferrule, 5 Pack
Stenner

Pumps MCDBINJ Injection Duckbill Check Valve with 1/4" Ferrule, 5 Pack

$4099
Stenner Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA
Stenner

Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA

$48999
Stenner Pumps MCCVDB0 Check Valve Duckbill
Stenner

Pumps MCCVDB0 Check Valve Duckbill

$1199
Stenner Pumps MCCP205 Pump Tube with 1/4 Inch Ferrule, #5 Santoprene
Stenner

Pumps MCCP205 Pump Tube with 1/4 Inch Ferrule, #5 Santoprene

$3699
Stenner Pumps Suction and Discharge Tubing, 1/4 in x 100 ft, White, AK4010W
Stenner

Pumps Suction and Discharge Tubing, 1/4 in x 100 ft, White, AK4010W

$9499
Stenner Pumps Injection Check Valve with 1/4 Inch Ferrule, UCDBINJ
Stenner

Pumps Injection Check Valve with 1/4 Inch Ferrule, UCDBINJ

$2699
Stenner Pumps Injection Check Valve with 3/8 Inch Ferrule, UCINJ38
Stenner

Pumps Injection Check Valve with 3/8 Inch Ferrule, UCINJ38

$3199
Subtotal

Similar products

Other products people compare with this one.

Rola-Chem 521170 PVC injection check valve for peristaltic metering pumps Rola-Chem Injection Check Valve, PVC, 1/4" NPT, 521170$4099 Pentair 522513Z chemical feeder injection check valve Pentair Chemical Feeder Injection Check Valve, 522513Z$3699 Hayward CAX-3511 Next Generation 1/4 inch injection check valve Hayward CAX-3511 Injection Check Valve$5499 Pentair Rainbow R172323 quarter inch tube by tube check valve with compression nuts Pentair Rainbow 1/4" Tube x Tube Check Valve with Compression Nuts, R172323$2599 Blue-White Industries C-395N-6A polypropylene tubing injection check valve Blue-White Industries Polypropylene Tubing Injection Check Valve, C-395N-6A$5999 Pentair Rainbow R172060Z chemical feeder control valve with compression nut Pentair Chlorine Valve .25 in. Tube Control Valve with Compression Nut, R172060Z$3199 Hayward CLX220EA CL series chemical feeder check valve and inlet fitting adapter assembly Hayward CL Series Pool Chemical Feeder Check Valve and Inlet Fitting Adapter Assembly, CLX220EA$2599 Pentair Rainbow R172324 spring style 1/2 inch tube by tube check valve Pentair Rainbow 1/2" Tube x Tube Check Valve, Spring Style, R172324$3899 King Technology 01-22-9411 cap with o-ring for Perform-Max in ground feeder King Technology Cap with O-ring for Perform-Max In Ground Feeder, 01-22-9411$5199 Pentair R172086Z 1/2 in. control valve for Rainbow chlorine and bromine feeders Pentair Rainbow 1/2-Inch Control Valve for Automatic Chlorine/Bromine Feeders, R172086Z$5299
King Technology 01-22-9417 cap with o-ring for in ground feeders King Technology Cap with O-Ring for 5400, 5430 and 5450 XL Pro and Mineral Hybrid In Ground Feeders, 01-22-9417$5299 Pentair R175009 half inch drain valve for Rainbow chlorinators Pentair 1/2" Drain Valve for Rainbow Chlorinators, R175009$2399 Hayward SP1500UNMPAK1 male union end connector pack for in line chlorine feeders Hayward 1-1/2" Male Union End Connector Pack for CL200 and CL220 Chlorine Feeders, SP1500UNMPAK1$2199 Rola-Chem 523250 eight inch Tygon pinch tube assembly with clamp for the RC301 peristaltic pump Rola-Chem 8" Tygon Pinch Tube Assembly with Clamp for RC301 Peristaltic Pump, 523250$2399 Rola-Chem 527159 7/16 inch plastic injection fitting for Pro Series 300 pump Rola-Chem 7/16 in. Plastic Tube Injection Fitting for Pro Series 300 Pump, 527159$2799 Hayward CLX200PA control knob assembly with o-rings Hayward Control Knob Assembly with O-Rings, CLX200PA$2999 Pentair R172022 old style chlorine control valve for Model 300 automatic chemical feeders Pentair R172022 Old Style Chlorine Control Valve$3299 Rola-Chem 523114 premium 13-1/4 in. black Norprene flex tube with clamp Rola-Chem Premium Flex Tube with Clamp 13.25 in., 523114$2799 Hayward CLX220PAK CL200 chlorine feeder accessory pack Hayward CL200 Chlorine Feeder Accessory Pack, CLX220PAK$3599 Rola-Chem Flex Tube With Clamp 13.25" | 523115 Rola-Chem Flex Tube With Clamp 13.25" | 523115$2499

Product details

The Stenner Pumps MCDBINJ is the injection duckbill check valve with a 1/4 in. ferrule, molded in Santoprene and supplied five to a pack.

What it does

The duckbill sits at the injection point and opens only under pressure from the pump. Between strokes it closes, which is what stops treated water from pushing back up the feed line. When the duckbill hardens, splits or takes a set, that one way behavior is lost, and the pump stops delivering the dose it is set for even though it is still running.

Compatibility, as the source has it

The data carries two readings and both are worth checking against your pump. The full product name lists the 45, 85, 100 and 170 Series adjustable and fixed pumps together with the SVP and BDF Series, while the shorter title says Classic and Econ pumps. Confirm MCDBINJ against your own parts list rather than going by pump family alone.

Why a five pack

Stenner wet ends are modular, and the small elastomeric parts are the ones that wear. Buying the check valve in fives suits anyone servicing several feeders or rebuilding a pump on a set interval.

Specifications
Brand Stenner Pumps
Manufacturer part number MCDBINJ
UPC 840034722857
Type Injection duckbill check valve
Material Santoprene
Ferrule size 1/4"
Sold as 5 per pack
Fits (product name) 45, 85, 100 and 170 Series adjustable and fixed pumps, SVP and BDF Series pumps
Fits (short title) Classic and Econ pumps
Shipping weight 0.06 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Stenner

Stenner 45MJL5A1STAA Classic 45 single head adjustable chemical injection pump, 120V, 50 gpd Stenner Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA$48999 Stenner MCAK200 1/4 in. ferrule for chemical feed pumps, 24 pack Stenner Pumps 1/4" Ferrule, 24 Pack, MCAK200$899 Stenner Pumps MCCVDB0 Santoprene check valve duckbill Stenner Pumps MCCVDB0 Check Valve Duckbill$1199 Stenner 45MFL5A1SUAA Classic Series single head fixed output chemical injection pump Stenner 45MFL5A1SUAA 120V 50 GPD 25 PSI .25" Fixed 1-Head Classic Pump$36199 Stenner Pumps QP500-1 QuickPro roller assembly Stenner Pumps QuickPro Roller Assembly for Classic, SVP and M128 Series Pumps, QP500-1$4799 Stenner Pumps FC5040D feed rate control with shaft for Classic 45 and 85 adjustable pumps Stenner Pumps Feed Rate Control with Shaft for Classic 45 and 85 Adjustable Pumps, FC5040D$32899 Stenner UCINJ38 injection check valve with 3/8 inch ferrule Stenner Pumps Injection Check Valve with 3/8 Inch Ferrule, UCINJ38$3199 Stenner Pumps PMBRPL2 rotor assembly for 45, 85 and 170 series pumps Stenner Pumps PMBRPL2 Rotor Assembly for 45, 85 and 170 Series Adjustable and Fixed Pumps$13699 Stenner Pumps AK4010W white 1/4 in x 100 ft suction and discharge tubing Stenner Pumps Suction and Discharge Tubing, 1/4 in x 100 ft, White, AK4010W$9499 Stenner MCCP205 #5 Santoprene pump tube with 1/4 inch ferrule Stenner Pumps MCCP205 Pump Tube with 1/4 Inch Ferrule, #5 Santoprene$3699
Stenner Pumps UCCP201 #1 Santoprene pump tube with 1/4 inch ferrules, 2 pack Stenner Pumps #1 Santoprene Pump Tube with 1/4" Ferrules, 2 Pack, UCCP201$4699 Stenner Pumps UCDBINJ injection check valve with 1/4 inch ferrule Stenner Pumps Injection Check Valve with 1/4 Inch Ferrule, UCDBINJ$2699 Stenner Stennner Classic Series 170GPD 120V 1/4" W 170DMP5 Pump FXD 25PSI | 170FL5A1SUAA Stenner Stennner Classic Series 170GPD 120V 1/4" W 170DMP5 Pump FXD 25PSI | 170FL5A1SUAA$55099 Stenner Classic Series 5GPD 120V 1/4" 85M1 Pump ADJ 25PSI | 85M | 85MJL1A1STAA Stenner Classic Series 5GPD 120V 1/4" 85M1 Pump ADJ 25PSI | 85MJL1A1STAA$65399 Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A3STAA Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A3STAA$52899 Stenner Classic Series 22GPD 120V 1/4" 45M3 Pump ADJ 25PSI | 45 | 45MJL3A1STAA Stenner Classic Series 22GPD 120V 1/4" 45M3 Pump ADJ 25PSI | 45MJL3A1STAA$58699 Stenner 85MJL5A3STAA Classic Series 85M5 single head adjustable chemical feed pump, 120V Stenner Classic Series 85M5 Adjustable Chemical Feed Pump, 85 GPD, 25 PSI, 120V, 3/8 in. Tubing, 85MJL5A3STAA$50799 Stenner Classic Series 10GPD 120V 1/4" 45M2 Pump ADJ 25PSI | 45MJL2A1STAA Stenner Classic Series 10GPD 120V 1/4" 45M2 Pump ADJ 25PSI | 45MJL2A1STAA$57599 Stenner Classic Series 85GPD 120V .25in 85M5 Pump | 85MJL5A1STAA Stenner Classic Series 85GPD 120V .25in 85M5 Pump | 85MJL5A1STAA$50599 Stenner Classic Series 3GPD 120V 1/4" 45M1 Pump ADJ 25PSI | 45M | 45MJL1A1STAA Stenner Classic Series 3GPD 120V 1/4" 45M1 Pump ADJ 25PSI | 45MJL1A1STAA$55899

Questions and answers

What people ask about this product, answered by our pool techs.

Which Stenner pumps does this fit?
The source data gives two readings. The full product name lists the 45, 85, 100 and 170 Series adjustable and fixed pumps plus the SVP and BDF Series, while the short title says Classic and Econ pumps. Match part number MCDBINJ against your pump parts list before ordering.
How many come in a pack?
Five.
What is the ferrule size?
1/4 in.
Why does the duckbill need replacing?
Santoprene hardens and takes a set over time. Once the duckbill will not close cleanly, treated water can push back up the injection line and the pump no longer delivers the dose you set.
