Stenner Classic Series 45M3 Single Head Adjustable Peristaltic Pump, 22 GPD, 120V, 1/4 in. Tubing, 25 PSI, 45MJL3A1STAA In stock$58699
Stenner Classic Series 45M3 Single Head Adjustable Peristaltic Pump, 22 GPD, 120V, 1/4 in. Tubing, 25 PSI, 45MJL3A1STAA
$58699
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- Adjustable output Feed rate control adjusts from 5 to 100 percent in 2.5 percent steps, up to 22 gallons per day.
- Peristaltic design A 3-point roller head compresses the pump tube and acts as a check valve against backflow, siphoning and overdosing.
- Self-priming Self-priming against maximum working pressure up to 25 ft of vertical lift, and it can run dry.
- 120V motor A 1/30 HP shaded pole motor, continuous duty, on 120V 60Hz.
- Three detachable parts The motor, feed rate control and pump head separate for service.
- Accessory kit Ships with connecting nuts, ferrules, an injection fitting, a suction line strainer, tubing, a spare pump tube and a mounting bracket.
Need a hand?
Bilingual support from pool professionals.
Similar products
Other products people compare with this one.
Pentair Commercial High Capacity Chlorine or Bromine Off-Line Chlorinator HC3315, 15 lbs, R171215$33499
Blue-White Industries FLEXFLO High Pressure Metering Pump with Analog Timer 115V 60Hz, A1N20A-6T$62499
Pentair Rainbow Automatic Commercial High Capacity Chlorinator HC-3340, 40 lb, R171240$41599
Stenner Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA$48999
King Technology Pool Frog Model 5400 In-Line System, Up to 40,000 Gallons, 01-01-5480$51095
Web Price
Pentair Chlorine Tank with Tank Mounted Pump for IntelliChem, 522473$54799
Hayward Peristaltic Chemical Feed Pump, AC035$32699
Stenner 120V 50 GPD 25 PSI .25" Fixed 1-Head Classic Pump, 45MFL5A1SUAA$36199
Blue-White Industries FLEXFLO Peristaltic Metering Pump with Analog Timer, 60 Hz, A1N30A-7T$63399
Stenner Pumps .25" Single Head Adjustable Chemical Injection Pump 100 PSI 10 GPD 120V, 45MJH2A1STAA$53099
Stenner Classic Series 10GPD 120V 1/4" 45M2 Pump ADJ 25PSI | 45MJL2A1STAA$57599
Stenner Classic Series 45M5 Adjustable Chemical Injection Pump, 50 GPD, 3/8 in., 120V, 25 PSI, 45MJL5A3STAA$52899
Stenner Classic Series 85M5 Adjustable Chemical Feed Pump, 85 GPD, 25 PSI, 120V, 3/8 in. Tubing, 85MJL5A3STAA$50799
Stenner Classic Series 85M5 Adjustable Chemical Injection Pump, 85 GPD, 1/4 in., 120V, 25 PSI, 85MJL5A1STAA$50599
Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A4STAA$51299
Pulsafeeder Mec-O-Matic Dolphin UD50 Peristaltic Metering Pump, 115 VAC 60 Hz, Norprene Tubing, UD50-XA-LSAUXXX$37899
Stenner Stennner Classic Series 170GPD 120V 1/4" W 170DMP5 Pump FXD 25PSI | 170FL5A1SUAA$55099
Stenner Classic Series 5GPD 120V 1/4" 85M1 Pump ADJ 25PSI | 85MJL1A1STAA$65399
Stenner Classic Series 45M1 Adjustable Chemical Injection Pump, 3 GPD, 1/4 in., 120V, 25 PSI, 45MJL1A1STAA$55899
Pentair Rainbow Commercial Chlorinator #300-29X, Offline, R171070$23699
Product details

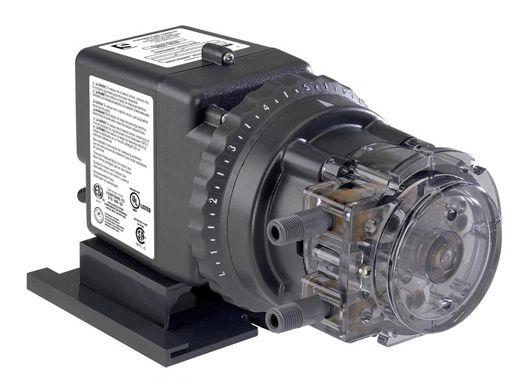

The Stenner 45MJL3A1STAA is a Classic Series 45M3 single head peristaltic metering pump with adjustable output, rated at 22 gallons per day on 120V and up to 25 PSI, with 1/4 inch white tubing.
How it works
The pump is built from three detachable parts: the motor, the feed rate control and the pump head. Output depends on the motor gear speed, the percentage set on the feed rate control and the size of the pump tube. The control adjusts from 5 to 100 percent in 2.5 percent increments. A 3-point roller design in the pump head acts as a check valve against backflow, siphoning, overdosing and loss of prime. The pump is self-priming up to 25 ft of vertical lift and can run dry.
Motor and materials
The motor is 1/30 HP, shaded pole, continuous duty, on 120V 60Hz, with an SJTOW power cord and NEMA 5/15 plug. All housings are polycarbonate. Maximum operating temperature is 125 F.
What is included
An accessory kit ships with each pump: connecting nuts, ferrules, an injection fitting, a weighted suction line strainer, a 20 ft roll of tubing, an additional pump tube, two additional latches, a mounting bracket and a manual. Pump tubes and pump heads interchange between models in the series.
| Brand | Stenner |
|---|---|
| Manufacturer part number | 45MJL3A1STAA |
| UPC | 729360024067 |
| Type | Single head adjustable peristaltic metering pump |
| Series | Classic Series 45M3 |
| Output type | Adjustable |
| Output | 1.1 to 22 gallons per day |
| Feed rate control | 5 to 100 percent in 2.5 percent increments |
| Maximum pressure | 25 PSI |
| Voltage | 120V, 60 Hz |
| Motor | 1/30 HP, shaded pole, continuous duty |
| Tubing size | 1/4 in. |
| Tubing color | White |
| Housing material | Polycarbonate |
| Maximum operating temperature | 125 F |
| Shipping weight | 9 lb |
| Ships | Parcel |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Stenner
Stenner Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA$48999
Stenner Pumps 1/4" Ferrule, 24 Pack, MCAK200$899
Stenner Pumps MCCVDB0 Check Valve Duckbill, MCCVDB0$1199
Stenner 120V 50 GPD 25 PSI .25" Fixed 1-Head Classic Pump, 45MFL5A1SUAA$36199
Stenner Pumps QuickPro Roller Assembly for Classic, SVP and M128 Series Pumps, QP500-1$4799
Stenner Pumps MCDBINJ Injection Duckbill Check Valve with 1/4" Ferrule, 5 Pack, MCDBINJ$4099
Stenner Pumps Feed Rate Control with Shaft for Classic 45 and 85 Adjustable Pumps, FC5040D$32899
Stenner Pumps Injection Check Valve with 3/8 Inch Ferrule, UCINJ38$3199
Stenner Pumps PMBRPL2 Rotor Assembly for 45, 85 and 170 Series Adjustable and Fixed Pumps, PMBRPL2$13699
Stenner Pumps Suction and Discharge Tubing, 1/4 in x 100 ft, White, AK4010W$9499
Stenner Pumps Pump Tube with 1/4 Inch Ferrule, #5 Santoprene, MCCP205$3699
Stenner Pumps #1 Santoprene Pump Tube with 1/4" Ferrules, 2 Pack, UCCP201$4699
Stenner Pumps Injection Check Valve with 1/4 Inch Ferrule, UCDBINJ$2699
Stenner Stennner Classic Series 170GPD 120V 1/4" W 170DMP5 Pump FXD 25PSI | 170FL5A1SUAA$55099
Stenner Classic Series 5GPD 120V 1/4" 85M1 Pump ADJ 25PSI | 85MJL1A1STAA$65399
Stenner Classic Series 45M5 Adjustable Chemical Injection Pump, 50 GPD, 3/8 in., 120V, 25 PSI, 45MJL5A3STAA$52899
Stenner Classic Series 85M5 Adjustable Chemical Feed Pump, 85 GPD, 25 PSI, 120V, 3/8 in. Tubing, 85MJL5A3STAA$50799
Stenner Classic Series 10GPD 120V 1/4" 45M2 Pump ADJ 25PSI | 45MJL2A1STAA$57599
Stenner Classic Series 85M5 Adjustable Chemical Injection Pump, 85 GPD, 1/4 in., 120V, 25 PSI, 85MJL5A1STAA$50599
Stenner Classic Series 45M1 Adjustable Chemical Injection Pump, 3 GPD, 1/4 in., 120V, 25 PSI, 45MJL1A1STAA$55899
Questions and answers
What people ask about this product, answered by our pool techs.
What output does the Stenner 45MJL3A1STAA deliver?
The Stenner 45MJL3A1STAA is a 22 gallon per day pump. Its feed rate control adjusts from 5 to 100 percent in 2.5 percent increments, and it works against up to 25 PSI.
How does the Stenner 45MJL3A1STAA pump chemical?
Rollers in the pump head squeeze the pump tube to move the chemical. The 3-point roller design acts as a check valve to prevent backflow, siphoning, overdosing and loss of prime.
What comes with the Stenner 45MJL3A1STAA?
An accessory kit ships with each pump: connecting nuts, ferrules, an injection fitting, a weighted suction line strainer, a 20 ft roll of tubing, an additional pump tube, two additional latches, a mounting bracket and a manual.
Can the Stenner 45MJL3A1STAA run dry?
Yes. The 45 Series pump can run dry without damage, and it is self-priming up to 25 ft of vertical lift.
