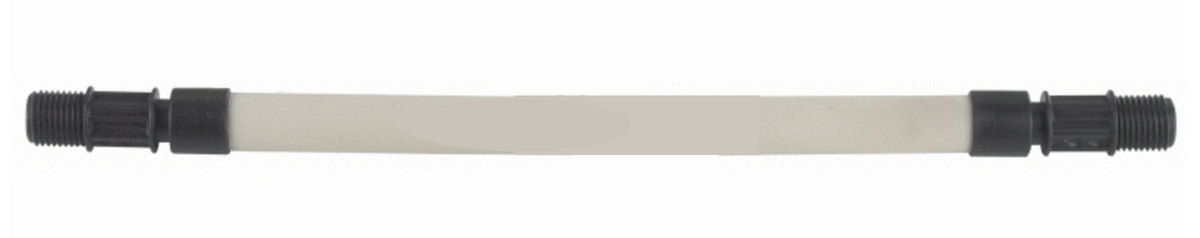

Stenner MCCP205 #5 Santoprene pump tube with 1/4 inch ferruleStenner Pumps MCCP205 Pump Tube with 1/4 Inch Ferrule, #5 Santoprene In stock$3699
Stenner MCCP205 #5 Santoprene pump tube with 1/4 inch ferrule
Shop all Stenner

Stenner Pumps MCCP205 Pump Tube with 1/4 Inch Ferrule, #5 Santoprene

Ask a questionMPN MCCP205
$3699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Stenner tube Factory part MCCP205, the tube the pump was designed around.
  • Number 5 tube size Sized #5, so it must match the tube size your pump and feed rate call for.
  • Santoprene material Santoprene tubing, one of the standard Stenner tube compounds.
  • Rated 0 to 25 psi Suited to feed points within that pressure range.
  • Quarter inch ferrule Supplied with the 1/4 inch ferrule fitted for connection to 1/4 inch tubing.
  • The wear part of the pump A peristaltic pump squeezes its tube constantly, so the tube is a scheduled replacement, not a failure.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Stenner Pumps MCCP205 Pump Tube with 1/4 Inch Ferrule, #5 Santoprene, SKU GHS-451-4007. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Stenner Pumps MCCP205 Pump Tube with 1/4 Inch Ferrule, #5 Santoprene
Stenner

Pumps MCCP205 Pump Tube with 1/4 Inch Ferrule, #5 Santoprene

$3699
Stenner Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA
Stenner

Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA

$48999
Stenner Pumps MCCVDB0 Check Valve Duckbill
Stenner

Pumps MCCVDB0 Check Valve Duckbill

$1199
Stenner Pumps MCDBINJ Injection Duckbill Check Valve with 1/4" Ferrule, 5 Pack
Stenner

Pumps MCDBINJ Injection Duckbill Check Valve with 1/4" Ferrule, 5 Pack

$4099
Stenner Pumps Suction and Discharge Tubing, 1/4 in x 100 ft, White, AK4010W
Stenner

Pumps Suction and Discharge Tubing, 1/4 in x 100 ft, White, AK4010W

$9499
Stenner Pumps Injection Check Valve with 1/4 Inch Ferrule, UCDBINJ
Stenner

Pumps Injection Check Valve with 1/4 Inch Ferrule, UCDBINJ

$2699
Stenner Pumps Injection Check Valve with 3/8 Inch Ferrule, UCINJ38
Stenner

Pumps Injection Check Valve with 3/8 Inch Ferrule, UCINJ38

$3199
Subtotal

Similar products

Other products people compare with this one.

Rola-Chem 523250 eight inch Tygon pinch tube assembly with clamp for the RC301 peristaltic pump Rola-Chem 8" Tygon Pinch Tube Assembly with Clamp for RC301 Peristaltic Pump, 523250$2399 Pentair Rainbow R172060Z chemical feeder control valve with compression nut Pentair Chlorine Valve .25 in. Tube Control Valve with Compression Nut, R172060Z$3199 Hayward CAX-3512 Santoprene feed tube, 3 by 7 inches, 31.68 GPD Hayward 3" x 7" 31.68 GPD Santoprene Feed Tube, CAX-3512$3299 Rola-Chem 527159 7/16 inch plastic injection fitting for Pro Series 300 pump Rola-Chem 7/16 in. Plastic Tube Injection Fitting for Pro Series 300 Pump, 527159$2799 Pentair Rainbow R172323 quarter inch tube by tube check valve with compression nuts Pentair Rainbow 1/4" Tube x Tube Check Valve with Compression Nuts, R172323$2599 Rola-Chem 523114 premium 13-1/4 in. black Norprene flex tube with clamp Rola-Chem Premium Flex Tube with Clamp 13.25 in., 523114$2799 Rola-Chem Flex Tube With Clamp 13.25" | 523115 Rola-Chem Flex Tube With Clamp 13.25" | 523115$2499 King Technology 01-22-9411 cap with o-ring for Perform-Max in ground feeder King Technology Cap with O-ring for Perform-Max In Ground Feeder, 01-22-9411$5199 Pentair R172086Z 1/2 in. control valve for Rainbow chlorine and bromine feeders Pentair Rainbow 1/2-Inch Control Valve for Automatic Chlorine/Bromine Feeders, R172086Z$5299 King Technology 01-22-9417 cap with o-ring for in ground feeders King Technology Cap with O-Ring for 5400, 5430 and 5450 XL Pro and Mineral Hybrid In Ground Feeders, 01-22-9417$5299
Pentair 521512 IntellipH 2 inch clamp saddle kit Pentair Clamp Saddle, 2 Inch, IntellipH Replacement, 521512$5399 Pentair Rainbow R172324 spring style 1/2 inch tube by tube check valve Pentair Rainbow 1/2" Tube x Tube Check Valve, Spring Style, R172324$3899 Pentair R172269 chlorinator feeder tube, 1/2 inch ID by 12 ft Pentair 1/2" I.D. x 12' Chlorinator Tube, R172269$3199 Pentair R172264XL old style saddle clamp for commercial chemical feeder pipe Pentair R172264XL Old Style Saddle Clamp for 3, 4 and 6 Inch Commercial Chemical Feeder Pipe$2199 Hayward CLX200PA control knob assembly with o-rings Hayward Control Knob Assembly with O-Rings, CLX200PA$2999 Stenner 20' x 1/4" ROLL SUCTION/DISCHARGE TUBING BLACK | AK4002B Stenner 20' x 1/4" ROLL SUCTION/DISCHARGE TUBING BLACK | AK4002B$1999 CMP 25280-109-200 clear glass PowerClean Ultra chlorinator cover CMP Clear Glass PowerClean Chlorinator Cover, 25280-109-200$3399 Hayward CLX200K cover o-ring for the CL200 chlorinator Hayward Cover O-Ring for CL200 Chlorinator, CLX200K$3899 CMP 26101-060-530 PowerClean Ultra and Mini chlorinator lid o-ring CMP PowerClean Ultra/Mini Lid O-Ring, 26101-060-530$1899 Pentair R172385D complete lid assembly for Rainbow HC series chlorinator Pentair Rainbow HC Series Chlorinator Lid Assembly, R172385D$3799

Product details

The Stenner MCCP205 is a #5 Santoprene pump tube supplied with a 1/4 inch ferrule, rated for 0 to 25 psi. It is the genuine Stenner tube for 45, 85, 100 and 170 Series adjustable and fixed pumps and for SVP and BDF Series pumps.

Why the tube is a consumable

A peristaltic pump has no seals, valves or diaphragm in the chemical path. Rollers squeeze a length of flexible tube, and that squeezing is what moves the chemical. The tube therefore takes the whole mechanical load of the pump every rotation, and it is expected to be replaced periodically rather than run to failure. A tube changed on schedule costs a few dollars; a tube that splits inside the pump housing puts chemical where nothing was designed to see it.

Matching the tube to the pump

Tube size sets output, so a #5 tube must go back into a pump set up for a #5 tube. The 1/4 inch ferrule connects to 1/4 inch tubing on the suction and discharge sides. Confirm both the tube size and the pressure at your injection point before ordering, since the 0 to 25 psi rating defines where this tube belongs.

Specifications
Brand Stenner Pumps
Manufacturer part number MCCP205
UPC 840034722741
Type Pump tube with ferrule
Tube size #5
Material Santoprene
Pressure rating 0-25 psi
Ferrule size 1/4 inch
Fits 45, 85, 100 and 170 Series adjustable and fixed pumps, SVP and BDF Series pumps
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Stenner

Stenner 45MJL5A1STAA Classic 45 single head adjustable chemical injection pump, 120V, 50 gpd Stenner Pumps 120V 50 GPD, 25 PSI 1/4 in. Adjustable 1-Head Classic Pump, 45MJL5A1STAA$48999 Stenner MCAK200 1/4 in. ferrule for chemical feed pumps, 24 pack Stenner Pumps 1/4" Ferrule, 24 Pack, MCAK200$899 Stenner Pumps MCCVDB0 Santoprene check valve duckbill Stenner Pumps MCCVDB0 Check Valve Duckbill$1199 Stenner 45MFL5A1SUAA Classic Series single head fixed output chemical injection pump Stenner 45MFL5A1SUAA 120V 50 GPD 25 PSI .25" Fixed 1-Head Classic Pump$36199 Stenner Pumps QP500-1 QuickPro roller assembly Stenner Pumps QuickPro Roller Assembly for Classic, SVP and M128 Series Pumps, QP500-1$4799 Stenner Pumps MCDBINJ injection duckbill check valve with 1/4 in. ferrule Stenner Pumps MCDBINJ Injection Duckbill Check Valve with 1/4" Ferrule, 5 Pack$4099 Stenner Pumps FC5040D feed rate control with shaft for Classic 45 and 85 adjustable pumps Stenner Pumps Feed Rate Control with Shaft for Classic 45 and 85 Adjustable Pumps, FC5040D$32899 Stenner UCINJ38 injection check valve with 3/8 inch ferrule Stenner Pumps Injection Check Valve with 3/8 Inch Ferrule, UCINJ38$3199 Stenner Pumps PMBRPL2 rotor assembly for 45, 85 and 170 series pumps Stenner Pumps PMBRPL2 Rotor Assembly for 45, 85 and 170 Series Adjustable and Fixed Pumps$13699 Stenner Pumps AK4010W white 1/4 in x 100 ft suction and discharge tubing Stenner Pumps Suction and Discharge Tubing, 1/4 in x 100 ft, White, AK4010W$9499
Stenner Pumps UCCP201 #1 Santoprene pump tube with 1/4 inch ferrules, 2 pack Stenner Pumps #1 Santoprene Pump Tube with 1/4" Ferrules, 2 Pack, UCCP201$4699 Stenner Pumps UCDBINJ injection check valve with 1/4 inch ferrule Stenner Pumps Injection Check Valve with 1/4 Inch Ferrule, UCDBINJ$2699 Stenner Stennner Classic Series 170GPD 120V 1/4" W 170DMP5 Pump FXD 25PSI | 170FL5A1SUAA Stenner Stennner Classic Series 170GPD 120V 1/4" W 170DMP5 Pump FXD 25PSI | 170FL5A1SUAA$55099 Stenner Classic Series 5GPD 120V 1/4" 85M1 Pump ADJ 25PSI | 85M | 85MJL1A1STAA Stenner Classic Series 5GPD 120V 1/4" 85M1 Pump ADJ 25PSI | 85MJL1A1STAA$65399 Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A3STAA Stenner Classic Series 50GPD 120V 3/8" 45M5 Pump ADJ 25PSI | 45MJL5A3STAA$52899 Stenner Classic Series 22GPD 120V 1/4" 45M3 Pump ADJ 25PSI | 45 | 45MJL3A1STAA Stenner Classic Series 22GPD 120V 1/4" 45M3 Pump ADJ 25PSI | 45MJL3A1STAA$58699 Stenner 85MJL5A3STAA Classic Series 85M5 single head adjustable chemical feed pump, 120V Stenner Classic Series 85M5 Adjustable Chemical Feed Pump, 85 GPD, 25 PSI, 120V, 3/8 in. Tubing, 85MJL5A3STAA$50799 Stenner Classic Series 10GPD 120V 1/4" 45M2 Pump ADJ 25PSI | 45MJL2A1STAA Stenner Classic Series 10GPD 120V 1/4" 45M2 Pump ADJ 25PSI | 45MJL2A1STAA$57599 Stenner Classic Series 85GPD 120V .25in 85M5 Pump | 85MJL5A1STAA Stenner Classic Series 85GPD 120V .25in 85M5 Pump | 85MJL5A1STAA$50599 Stenner Classic Series 3GPD 120V 1/4" 45M1 Pump ADJ 25PSI | 45M | 45MJL1A1STAA Stenner Classic Series 3GPD 120V 1/4" 45M1 Pump ADJ 25PSI | 45MJL1A1STAA$55899

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this tube fit?
Stenner 45, 85, 100 and 170 Series adjustable and fixed pumps, plus the SVP and BDF Series pumps.
What does the #5 mean?
It is the Stenner tube size, which sets the output of the pump. Order the same tube size your pump is currently set up for, or the feed rate will change.
What pressure can it run against?
This tube is rated 0 to 25 psi. Check the pressure at your injection point falls inside that range.
How often should the tube be changed?
A peristaltic pump works by squeezing the tube against rollers, so the tube wears from the day it goes in. Replacing it on a schedule is normal maintenance and far cheaper than a tube that splits and spills chemical into the pump housing.
