Pentair Rainbow R172324 spring style 1/2 inch tube by tube check valvePentair Rainbow 1/2" Tube x Tube Check Valve, Spring Style, R172324 In stock$3899

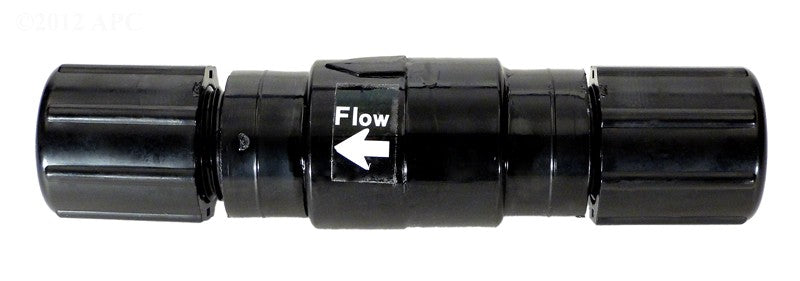

Pentair Rainbow R172324 spring style 1/2 inch tube by tube check valve
Shop all Pentair

Pentair Rainbow 1/2" Tube x Tube Check Valve, Spring Style, R172324

Ask a questionMPN R172324
$3899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pentair Rainbow part R172324 The 1/2 inch tube by tube check valve in the spring style version.
  • Spring loaded The spring holds the valve shut until flow opens it, so it seals in any orientation.
  • Tube by tube ends Both ends take 1/2 inch tubing, matching Rainbow feeder plumbing.
  • Keeps chemical out of the pipe The check valve is what stops feeder solution backing up into the return line when the pump stops.
  • Rainbow feeder parts Listed with the Rainbow automatic feeder parts for the 300 and 29x series.
  • A wear item Springs weaken and seats scale over, and a check valve that no longer holds is the usual cause of back siphoning.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Rainbow 1/2" Tube x Tube Check Valve, Spring Style, R172324, SKU RAI-451-4045. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Rainbow 1/2" Tube x Tube Check Valve, Spring Style, R172324
Pentair

Rainbow 1/2" Tube x Tube Check Valve, Spring Style, R172324

$3899
Pentair Rainbow 320 In-Line Chlorinator, R171096
Pentair

Rainbow 320 In-Line Chlorinator, R171096

$14499
Pentair Lid O-Ring, 3-3/4 in. ID (Viton), R172009
Pentair

Lid O-Ring, 3-3/4 in. ID (Viton), R172009

$999
Pentair Short Chlorinator Tube, 5/8" OD, R172091
Pentair

Short Chlorinator Tube, 5/8" OD, R172091

$1499
Pentair Rainbow 1/2-Inch Control Valve for Automatic Chlorine/Bromine Feeders, R172086Z
Pentair

Rainbow 1/2-Inch Control Valve for Automatic Chlorine/Bromine Feeders, R172086Z

$5299
Pentair Rainbow Lock Ring R172214
Pentair

Rainbow Lock Ring R172214

$2899
Pentair Rainbow Screen for 320 and 322 Automatic Chlorinator, 210396Z
Pentair

Rainbow Screen for 320 and 322 Automatic Chlorinator, 210396Z

$799
Subtotal

Similar products

Other products people compare with this one.

Pentair Rainbow R172323 quarter inch tube by tube check valve with compression nuts Pentair Rainbow 1/4" Tube x Tube Check Valve with Compression Nuts, R172323$2599 Pentair Rainbow R172060Z chemical feeder control valve with compression nut Pentair Chlorine Valve .25 in. Tube Control Valve with Compression Nut, R172060Z$3199 Pentair R175009 half inch drain valve for Rainbow chlorinators Pentair 1/2" Drain Valve for Rainbow Chlorinators, R175009$2399 Pentair R172022 old style chlorine control valve for Model 300 automatic chemical feeders Pentair R172022 Old Style Chlorine Control Valve$3299 Pentair R172385D complete lid assembly for Rainbow HC series chlorinator Pentair Rainbow HC Series Chlorinator Lid Assembly, R172385D$3699 Pentair R172317 Rainbow chlorinator diverter tee with 1-1/2 inch NPT branch Pentair Rainbow Slip x Slip x 1-1/2" NPT Diverter Tee, R172317$3199 Pentair R172321 feeder body for the Rainbow model 320 in-line automatic chemical feeder Pentair Rainbow Automatic Feeder 320, Body Only, R172321$5599 Pentair R172052 cap wrench for Rainbow chlorinator feeders Pentair Rainbow Chlorinator Cap Wrench, R172052$3599 Pentair Rainbow R172064 parts bag for Rainbow chlorinator 300 Pentair Parts Bag for Rainbow Chlorinator 300, R172064$5299 Pentair R172087 Rainbow 10 inch chlorinator extension collar Pentair Rainbow Chlorinator Extension 10", R172087$4799
Pentair R172269 chlorinator feeder tube, 1/2 inch ID by 12 ft Pentair 1/2" I.D. x 12' Chlorinator Tube, R172269$3199 Pentair Rainbow R270531 1 inch threaded union for HC series chemical feeders Pentair Rainbow 1" Threaded Union, HC Series, R270531$2799 Pentair Rainbow R172037 chlorine chamber for 300 and 320 series chlorinators Pentair Rainbow Chlorine Chamber for 300 and 320 Series Chlorinators, R172037$2399 Pentair Rainbow R172008W 3 in. threaded white chemical feeder cap Pentair Rainbow 3" Threaded White Cap, R172008W$2599 Pentair R172240 Rainbow feeder lid o-ring Pentair Rainbow Lid O-Ring, R172240$2399 Pentair FLOW METER 300/302/300-29 | R172080 Pentair FLOW METER 300/302/300-29 | R172080$3899 Pentair R172248Z 1/2 in. check valve for the Rainbow Model 320 automatic feeder Pentair 1/2" Check Valve, Rainbow Automatic Feeder 320, R172248Z$1499 Pentair R171097 Rainbow chlorinator tube support spring Pentair Rainbow Tube Support Spring, R171097$1399 Pentair R172061 elbow check valve for Rainbow chemical feeders Pentair Elbow Check Valve, R172061$1199 Pentair Rainbow R172224X black drain and vent valve Pentair Rainbow Drain Vent Valve, Black, R172224X$1099

Product details

The Pentair Rainbow R172324 is a spring style check valve with 1/2 inch tube by tube connections, listed with the Rainbow automatic chemical feeder parts for the model 300 and 29x series.

Why the check valve matters

A chemical feeder is plumbed into a line that carries pressure while the pump runs and goes still when it stops. The check valve is what keeps feeder solution moving in one direction only. Without a working check, concentrated solution can find its way back along the pipe when the system shuts down, which is hard on the equipment it reaches.

Spring style

The spring holds the valve closed until flow opens it, so the valve seals no matter how the tubing is routed. That is the difference between this version and a check that relies on gravity and has to be mounted a particular way.

Service life

Check valves in feeder plumbing are consumables. Springs weaken, seats scale up and seals harden, and the failure is quiet: everything looks normal until you notice the valve no longer holds. If yours passes water backward, replace it.

Specifications
Brand Pentair
Product line Rainbow
Manufacturer part number R172324
UPC 788379005320
Type Check valve, spring style
Size 1/2 inch
Connections Tube x tube
Fits Pentair Rainbow automatic feeder parts, models 300 and 29x
Typical use Number 300 chlorinator check valve installation
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What size is this check valve?
It is the 1/2 inch tube by tube version, in the spring style.
Which feeders does it go on?
It is listed under Pentair Rainbow automatic feeder parts for the model 300 and 29x series, and the typical application is the check valve on a number 300 chlorinator.
What is the difference between the spring style and a plain check valve?
The spring holds the poppet closed until flow pushes it open, so the valve seals regardless of how it is mounted. A plain gravity check depends on orientation.
How do I know the old one has failed?
If chemical is finding its way back toward the pump or the pipe when the system shuts off, or the valve passes water backward when you test it off the line, the seat or the spring is done.
