Blue White Industries 2.5 inch PVC Flow Meter 60-240 GPM | F-30250PBlue-White Industries F-300 Series 2-1/2 in. PVC Pipe Horizontal Flow Meter, F-30250P In stock$12999
Blue White Industries 2.5 inch PVC Flow Meter 60-240 GPM | F-30250P
Shop all Blue White Industries

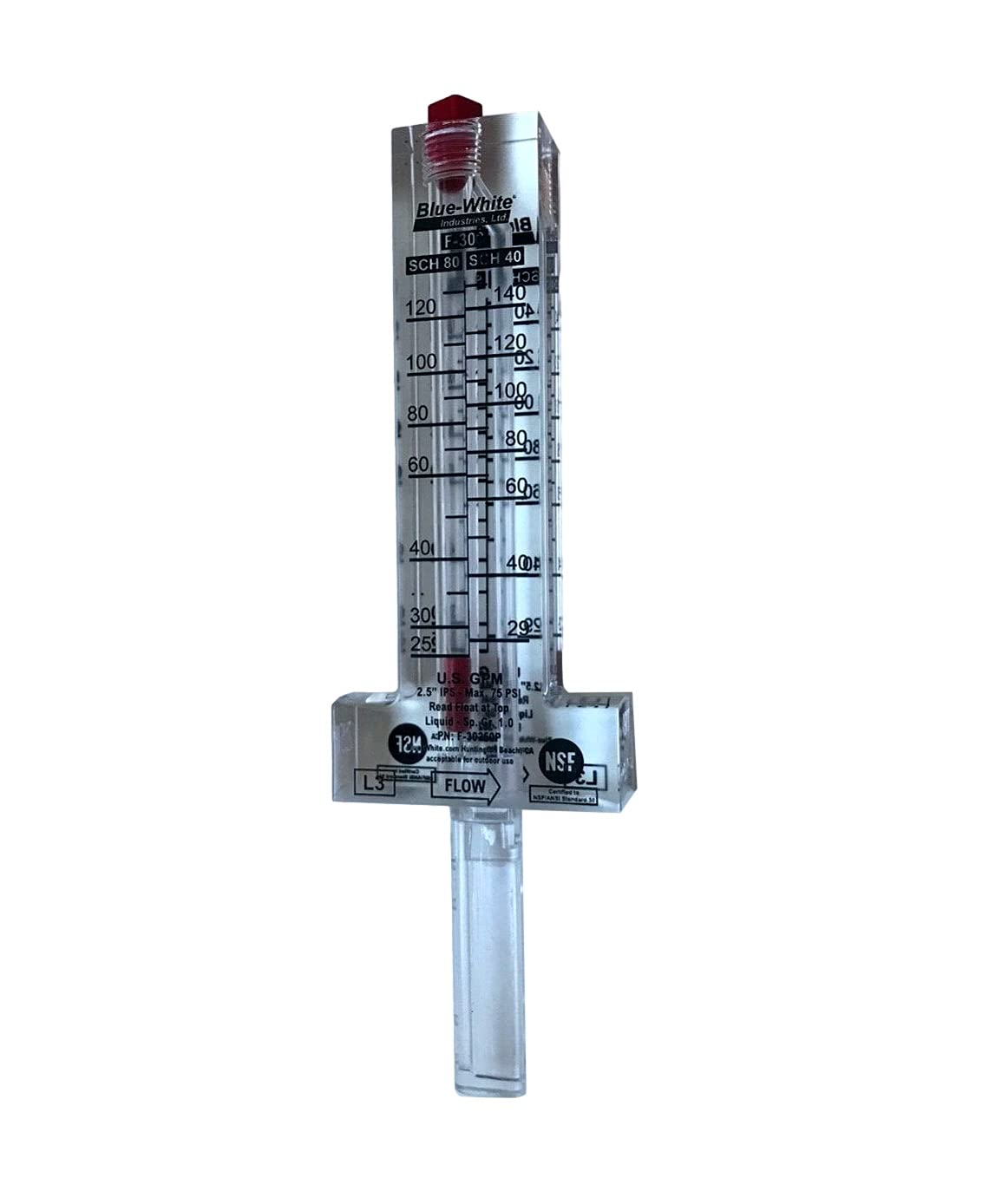

Blue-White Industries F-300 Series 2-1/2 in. PVC Pipe Horizontal Flow Meter, F-30250P

Ask a questionMPN F-30250P
$12999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pitot tube design The impact tube design mounts on existing pipe with no unions or adapters required.
  • Horizontal pipe F-300 Series meters are built for horizontal pipe and mount at the twelve o'clock position.
  • No metals in the water One-piece cast acrylic body, PVDF float and neoprene gasket keep metals out of the fluid path.
  • Salt system safe Safe to use with salt chlorine generators.
  • No power needed Reads flow mechanically, with a full scale accuracy of plus or minus 5 percent.
  • Mounting hardware Includes two stainless steel clamps and the F-3003 seal gasket.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Blue-White Industries F-300 Series 2-1/2 in. PVC Pipe Horizontal Flow Meter, F-30250P, SKU BLU-56-4037. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Blue-White Industries F-300 Series 2-1/2 in. PVC Pipe Horizontal Flow Meter, F-30250P
Blue White Industries

Blue-White Industries F-300 Series 2-1/2 in. PVC Pipe Horizontal Flow Meter, F-30250P

$12999
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1899
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$35699
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

H2Flow Controls FV-J-R FlowVis retrofit for Jandy 2 in. by 2-1/2 in. check valve body H2Flow Controls FlowVis Retrofit for Jandy 2 in. by 2-1/2 in. Check Valve Body, FV-J-R$14399 Blue-White Industries F-30200P 2 in. flowmeter, standard flow Blue-White Industries 2" Flowmeter, Standard Flow, F-30200P$12999 H2Flow Controls FVJ-R-15 FlowVis retrofit top for 1.5 in. Jandy valve bodies H2Flow Controls FlowVis Retrofit Model for 1.5" Jandy Valve Bodies, FVJ-R-15$12299 Pentair SL1DW 30/130 degree in-line pool thermometer Pentair 30/130 Degree In-line Thermometer, SL1DW$7299 Blue-White Industries F-30150P 1-1/2 inch standard flow acrylic flowmeter Blue-White Industries 1-1/2" Flowmeter, Standard Flow, F-30150P$12999 Blue-White Industries F-30300P F-300 Series 3 inch PVC flow meter Blue-White Industries F-300 Series 3" PVC Flow Meter, F-30300P$12999 Pentair SK thermometer with bushing for a skimmer lid Pentair Thermometer with Bushing, SK$6599 Blue-White Industries D-30200P 2 inch vertical downflow flow meter, clear body Blue-White Industries Vertical Downflow Flow Meter, 2", D-30200P$16499 Rola-Chem 570361T 2.5 inch PVC top mount flowmeter, 70 to 240 GPM Rola-Chem 2.5 Inch PVC Top Mount Flowmeter, 70 to 240 GPM, 570361T$8599 Rola-Chem 570361V 2.5 inch PVC vertical mount flowmeter, 70 to 240 GPM Rola-Chem 2.5 Inch PVC Vertical Mount Flowmeter, 70 to 240 GPM, 570361V$8299
Blue White Industries 1 inch PVC Flow Meter 5-35 GPM | F-30100P Blue White F-300 Series 1 in. PVC Flow Meter for Horizontal Pipe, 5-35 GPM, F-30100P$14399 Blue White Industries 6 inch PVC Flow Meter 250-1050 GPM | F-30600P Blue White F-300 Series 6 in. PVC Flow Meter for Horizontal Pipe, F-30600P$19099 Blue White Industries 4" PVC Flow Meter 125-500 GPM | F-30400P Blue White F-300 Series 4 in. PVC Flow Meter for Horizontal Pipe, F-30400P$14399 Rola-Chem 570351T 2 inch PVC top mount flowmeter reading 40 to 140 GPM Rola-Chem 2" PVC 40-140 GPM Top Mount Flowmeter, 570351T$6299 Pentair 15060-0000TZ 2 inch bottom mount pressure gauge with 1/4 inch NPT thread Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ$5199 H2Flow Controls FV-2 FlowVis flow meter with check valve for 2 in. Sch 40 PVC, GPM scale H2Flow Controls FlowVis Flow Meter with Check Valve for 2" PVC, Scale in GPM, FV-2$21999 Jandy R0556900 CJ series pressure gauge replacement kit Jandy CJ Series Pressure Gauge, R0556900$3999 Hayward 005-302-3590-00 pressure gauge for Paramount water valves Hayward Pressure Gauge For Paramount Water Valves, 005-302-3590-00$2899 H2Flow Controls FlowVis FV-15 flow meter with check valve for 1.5 inch PVC, GPM scale H2Flow Controls FlowVis Flow Meter with Check Valve, 1.5" PVC, Scale in GPM, FV-15$23599 Pentair Air Clam Shell Thermometer EZ Read Combo 136 R14120 | R141200 Pentair Air Clam Shell Thermometer EZ Read Combo 136 R14120 | R141200$2399

Product details

The Blue-White Industries F-30250P is an F-300 Series pitot tube flow meter for 2-1/2 in. PVC pipe on horizontal runs, with a one-piece cast acrylic body and a PVDF float.

What it does

The impact tube design makes the meter easy to install on existing pipe, with no unions or adapters. It measures flow from 2 to 10 feet per second, the pool industry standard, and reads flow without any power. Full scale accuracy is plus or minus 5 percent. The meter is acceptable for outdoor installations, and direct sunlight is fine.

Materials

The body is cast acrylic, the float is PVDF, the gasket is neoprene and the two pipe clamps are 300 series stainless steel. No metals touch the water, so it is safe with salt chlorine generators. The enclosure rating is NEMA 4X (IP56) and the meter is clear.

Installation

Mount the meter at the vertical (twelve o'clock) position on horizontal pipe, in a straight run as far as possible from pumps, elbows, tees and valves, because those disturbances affect accuracy. The pipe must stay full of water, and the meter measures flow in one direction only. Two stainless clamps and the F-3003 gasket are included.

Specifications
Brand Blue-White Industries
Manufacturer part number F-30250P
UPC 810006180183
Type Pitot tube flow meter
Series F-300 Series
Pipe size 2-1/2 in. IPS PVC
Pipe schedule SCH 40 and SCH 80 (ASTM D-1785)
Mounting Horizontal pipe only, top mount
Color Clear
Body Cast acrylic
Float PVDF
Gasket Neoprene
Pipe clamps 300 series stainless steel
Full scale accuracy Plus or minus 5 percent
Power None required
Max fluid temperature 190 F at 0 PSI
Includes Two stainless steel clamps and F-3003 seal gasket
Shipping weight 0.7 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Blue White Industries

Blue-White Industries F-30200P 2 in. flowmeter, standard flow Blue-White Industries 2" Flowmeter, Standard Flow, F-30200P$12999 Blue-White Industries FLEXFLO A1N20A-6T high pressure peristaltic metering pump with analog timer Blue-White Industries FLEXFLO High Pressure Metering Pump with Analog Timer 115V 60Hz, A1N20A-6T$62499 Blue-White Industries F-30150P 1-1/2 inch standard flow acrylic flowmeter Blue-White Industries 1-1/2" Flowmeter, Standard Flow, F-30150P$12999 Blue-White Industries F-30300P F-300 Series 3 inch PVC flow meter Blue-White Industries F-300 Series 3" PVC Flow Meter, F-30300P$12999 Blue-White Industries 71000-350 roller assembly for A-100N feed pumps Blue-White Industries Roller Assembly for A100N-7T, 71000-350$8999 Blue-White Industries C-395N-6A polypropylene tubing injection check valve Blue-White Industries Polypropylene Tubing Injection Check Valve, C-395N-6A$5999 Blue-White Industries A1-7T Norprene tube assembly for the A-100N peristaltic pump Blue-White Industries Norprene A-100N Tube Assembly A1-7T$5899 Blue-White Industries F-3003 gasket for acrylic flowmeters Blue-White Industries Gasket for Acrylic Flowmeter 1" to 4", F-3003$799 Blue-White Industries FLEXFLO A1N30A-7T polypropylene peristaltic metering pump with analog timer Blue-White Industries FLEXFLO Peristaltic Metering Pump with Analog Timer, 60 Hz, A1N30A-7T$63399 Blue-White Industries D-30200P 2 inch vertical downflow flow meter, clear body Blue-White Industries Vertical Downflow Flow Meter, 2", D-30200P$16499
Blue White Industries Flow Indicator 1/4 | FI-100-4V Blue White Industries Flow Indicator 1/4 | FI-100-4V$9599 Blue White Industries 6 inch PVC Flow Meter 250-1050 GPM | F-30600P Blue White F-300 Series 6 in. PVC Flow Meter for Horizontal Pipe, F-30600P$19099 Blue White Industries 4" PVC Flow Meter 125-500 GPM | F-30400P Blue White F-300 Series 4 in. PVC Flow Meter for Horizontal Pipe, F-30400P$14399 Blue White Industries 1 inch PVC Flow Meter 5-35 GPM | F-30100P Blue White F-300 Series 1 in. PVC Flow Meter for Horizontal Pipe, 5-35 GPM, F-30100P$14399

Questions and answers

What people ask about this product, answered by our pool techs.

What pipe does the Blue-White F-30250P fit?
It is made for 2-1/2 in. IPS PVC pipe and is calibrated for SCH 40 and SCH 80 pipe (ASTM D-1785).
How do I mount the F-30250P flow meter?
Mount it on horizontal pipe only, at the vertical (twelve o'clock) position, in a straight run of pipe away from pumps, elbows, tees and valves. The pipe must be full of water at all times, and the meter reads flow in one direction only.
What comes with the Blue-White F-30250P?
It includes two stainless steel pipe clamps and the F-3003 seal gasket. F-3003 is also the replacement gasket number.
Can I use the F-30250P with a salt chlorine generator?
Yes. It has no metals in the fluid path and is safe to use with salt chlorine generators. It needs no power to operate.
