Spectrum Aquatics Gallatin WP 400 Water Powered ADA Pool and Spa Lift, 400 lb, 27336$10,71099
Spectrum Aquatics Gallatin WP 400 Water Powered ADA Pool and Spa Lift, 400 lb, 27336
30 day returns · Easy, with prepaid labels provided
Quick overview
- Capacity Lifts 400 lb at 55 psi of water pressure.
- Compliance Listed as ADA and ABA compliant, and self operable from the deck and the water.
- Mount Bolts to a dual point deck anchor, purchased separately.
- Power Runs on water pressure with no battery to charge.
- Fit Handles setbacks of 18 to 30 in and water draft up to 12 in.
- Warranty Five year limited on the stainless frame and two years on parts.
Need a hand?
Frequently bought together
Gallatin WP 400 Water Powered ADA Pool and Spa Lift, 400 lb, 27336
Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW
Get your unadvertised price ›
Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue
Get your unadvertised price ›
Similar products
Other products people compare with this one.
S.R. Smith Splash! ADA Pool Lift, 400 lb, No Anchor, Radiant White, 300-0000N$8,07499
Global Pool Products C-375 Pool Access Lift, No Anchor, C375NA$6,99900
Web Price
S.R. Smith PAL2 Portable ADA Pool Lift, 300 lb, Secure-It Kit Included, Gray Mist, 202-0000$8,98099
Aqua Creek Revolution XL ADA Pool Lift, 500 lb, No Anchor, White with Blue Seat, F-REVXL$8,52800
Global Pool Products Rotational Series R-375 ADA Pool Lift, 375 lb, 360 Degree Rotation, No Anchor, R375NA$6,99900
Spectrum Aquatics Traveler BP500 ADA Pool Lift, 500 lb, Battery Powered, 360 Degree Rotation, 163330$13,14399
S.R. Smith aXs2 ADA Pool Lift, 300 lb, No Anchor, 360 Degree Rotation, Gray Mist, 310-0000N$5,07299
Aqua Creek Ranger 2 ADA Pool Lift, 350 lb, No Anchor, White Powder Coat with Blue Seat, F-RNGR2$4,23899
S.R. Smith 30in Sentry Lifeguard Chair | SLGC-30$1,05899
Shade Science Pool Buoy Floating Pool Umbrella, Tide White, PB-16011-TW$21900
Web Price
Traffic Graphix 8-Way California Safety Sign, TGPS1001$5899
Pentair Deck Jet II Replacement Nozzle, 590041$3699
Jandy Deck Jet Coverplate, Bronze, 4 Pack, R0561200$9699
Traffic Graphix 16 x 16 in. Sign, Diarrhea / Pool Gate Closed, TGDS1020$2199
CMI 3' x 100' Equipotential Bonding Grid Kit, EB31001.0 (1)
$75999
Paragon Ladder Tread 19" Vertical, 44101$9799
Perma-Cast Slide Flange, Aluminum with 4 Anchors, 1.9" Rail, PF-3119-A$3699
S.R. Smith 8' Cantilever Complete Diving Board and Base, Radiant White, 68-209-5982$2,40399
Perma-Cast 1.9" Escutcheon, Stainless Steel, PE-0019-S$1599
S.R. Smith Stainless Steel Escutcheon Plate, 1.90 in. OD Rail, EP-100F$2099
Product details

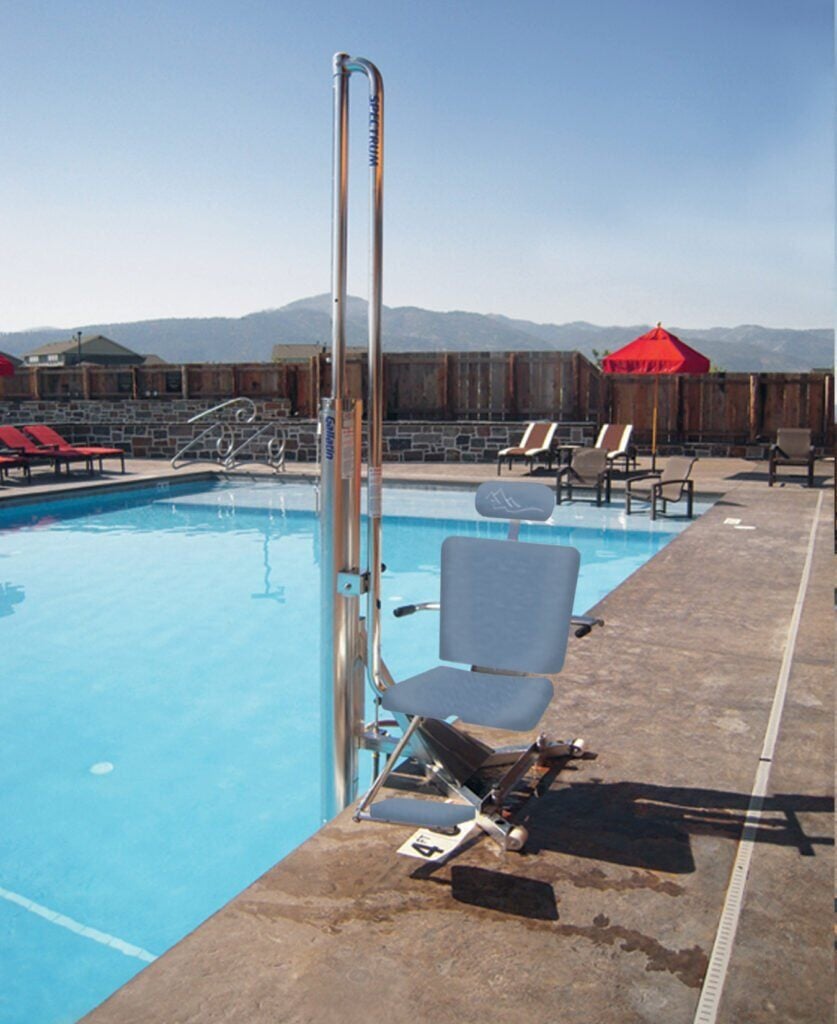

The Spectrum Aquatics Gallatin WP 400 27336 is a 400 lb water powered ADA compliant lift for in-ground pools and spas that bolts to a dual point deck anchor, purchased separately.
The Gallatin needs no battery. Water pressure drives the lift, which is rated for 400 lb at 55 psi and calls for 5 gpm at 60 psi. A user can run it alone from the deck or from the water, and the seat has lumbar support, an adjustable padded headrest, a swing out footrest and a flip up outer arm for easier transfers.
Fit
The standard unit takes anchor locations from 18 to 30 in. from the pool wall and a water draft up to 12 in. The base stand tolerates gutter variations and up to 4 in. of deck slope, and it has built in wheels so the lift can be rolled out and stored. The anchors come in two kinds, a preset anchor, 27450-00, for new construction and a retrofit anchor, 27400-00, for decks already poured. Check your measurements against Spectrum before ordering.
Warranty
Spectrum backs the stainless frame with a five year limited warranty and the parts with two years. Components made by other companies follow the warranty terms of their own manufacturers.
The anchor is a separate purchase, and the Spectrum setback and water draft guidance should be checked against your pool before the lift ships.
From Pool School
Pool Lift ConfiguratorMeasure the pool edge, compare the lifts that fit, add the anchor and accessories. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. Read ADA Pool Lift Requirements: Which Pools Need One and What the Lift Must DoWho has to provide an accessible entry, how many, and what the lift has to do. Read| Brand | Spectrum Aquatics |
|---|---|
| Model | Gallatin WP 400 |
| Manufacturer part number | 27336 |
| Lifting capacity | 400 lb at 55 psi |
| Mount | Anchored, dual point |
| Anchor | Sold separately: preset anchor 27450-00 for new construction, retrofit anchor 27400-00 |
| Setback range | 18 to 30 in. from the pool wall |
| Water draft | Up to 12 in. |
| Power | Water powered, 5 gpm at 60 psi |
| Seat | Large seat with lumbar support and adjustable padded headrest |
| Footrest | Swing out footrest with non-slip surface |
| Armrests | Flip up outer arm and non-slip grip armrest |
| Material and finish | Passivated stainless steel |
| ADA compliance | ADA and ABA compliant, self operable |
| Warranty | Frame 5 years, parts 2 years, limited |
| Shipping weight | 250 lb |
