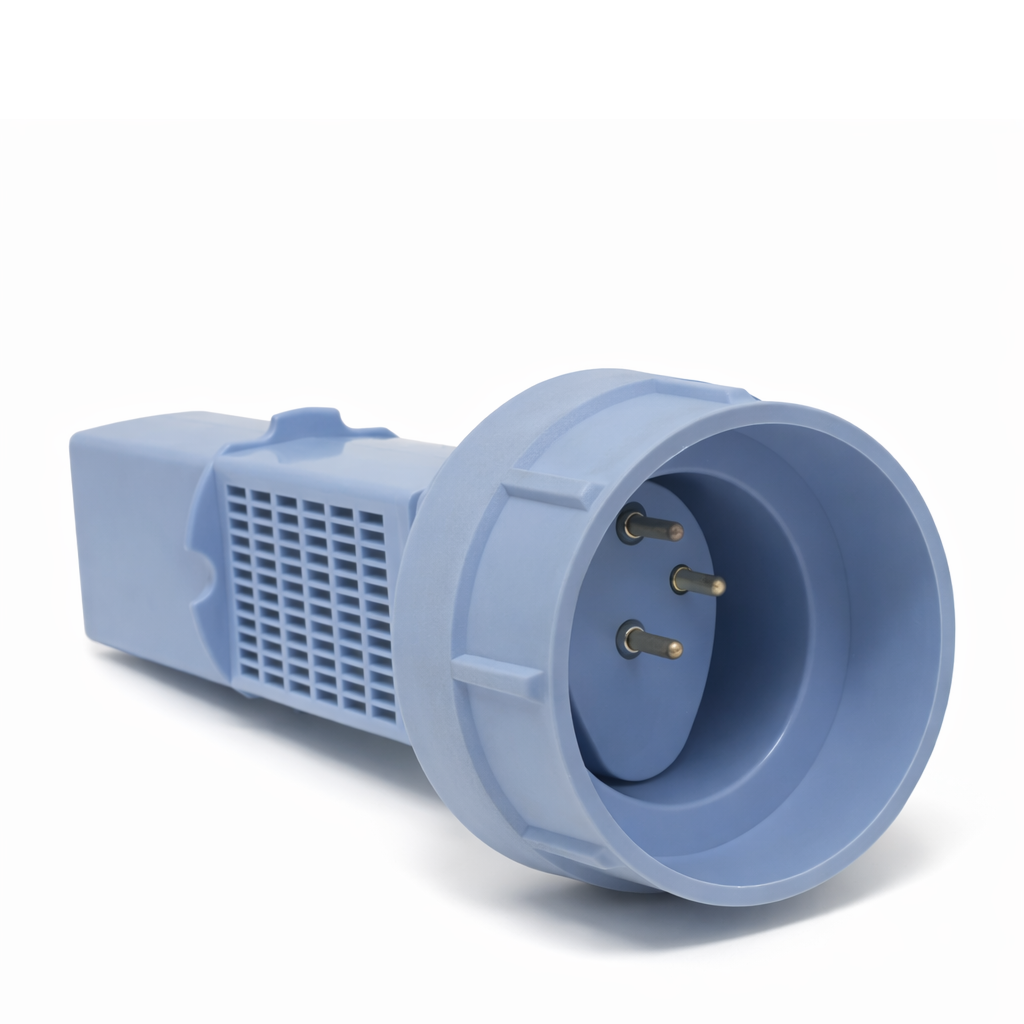

CaliMar CMARCEC54-1Y replacement salt cell for Ecomatic ESC systemsCaliMar Replacement Salt Cell Compatible with Ecomatic ESC24, ESC36, ESC48 Systems, CMARCEC54-1Y In stock$75900 Web Price
CaliMar CMARCEC54-1Y replacement salt cell for Ecomatic ESC systems
Shop all CaliMar

CaliMar Replacement Salt Cell Compatible with Ecomatic ESC24, ESC36, ESC48 Systems, CMARCEC54-1Y

Ask a questionMPN CMARCEC54-1Y
$75900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 13 titanium blades The blade pack generates chlorine for pools up to 54,000 gallons.
  • Ecomatic ESC replacement Built as a replacement for Ecomatic cell models ESC24, ESC36 and ESC48, Ecomatic model M0657USA.
  • Also runs in newer systems The same electrode is used in the ESC7000, ESC8000 and ESC9000 salt systems.
  • Salt safety sensor Shuts the unit down if salt flow is insufficient, so the cell is not run dry.
  • Auto delay at startup Holds off production while the pump primes, which protects the electrode when water and salt are not yet moving.
  • Electrode only The cell housing and the cord are sold separately, and both are worth replacing with the cell.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CaliMar Replacement Salt Cell Compatible with Ecomatic ESC24, ESC36, ESC48 Systems, CMARCEC54-1Y, SKU PSU-151848. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CaliMar Replacement Salt Cell Compatible with Ecomatic ESC24, ESC36, ESC48 Systems, CMARCEC54-1Y
CaliMar

Replacement Salt Cell Compatible with Ecomatic ESC24, ESC36, ESC48 Systems, CMARCEC54-1Y

$75900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900
Jandy

TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$29999
Hayward In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF
Hayward

In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF

$12999
Jandy AquaPure Power Interface PCB, Large Backboard with Screws, R0984100
Jandy

AquaPure Power Interface PCB, Large Backboard with Screws, R0984100

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Subtotal

Similar products

Other products people compare with this one.

CompuPool GRC/J/APURE1400-3 3 port 14 blade replacement salt cell for Jandy AquaPure 1400 CompuPool 3-Port 14-Blade Replacement Salt Cell for Jandy AquaPure System, 40,000 Gallons, GRC/J1400-3$56799 CaliMar CMARCHA40-2Y replacement salt cell for Hayward T-Cell-15, 40,000 gallons CaliMar Salt Cell Compatible with Hayward® T-Cell-15®, 2-Year Warranty, 40K Gallons, CMARCHA40-2Y5.0 (1) $54900 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,17999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$91399 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price CompuPool GRC40GH replacement salt cell with cord for Hayward T-Cell-15 systems CompuPool Salt Cell Compatible with Hayward® T-Cell-15®, with Cord, 40K Gallons, GRC40GH$56299 AutoPilot PPC1 5-blade replacement salt cell with unions and inline strainer AutoPilot OEM Replacement Salt Cell with Unions, 5-Blade, 40K Gallons, PPC1$59900 CompuPool GRC25GH clear housing replacement salt cell for Hayward T-CELL-9, with cord CompuPool Salt Cell with Cord Compatible with Hayward® T-CELL-9®, 3-Year Warranty, 25K Gallons, GRC25GH$49399 CaliMar CMARCIC40-1Y replacement salt cell compatible with IntelliChlor IC40 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC40, 40K Gallons, CMARCIC40-1Y$89900 Web Price
CaliMar CMARCFS40-1Y replacement salt cell for Zodiac Nature 2 Fusion R0503000 CaliMar Salt Cell Compatible with Zodiac Nature2 Fusion Soft R0503000, 40,000 Gallons, CMARCFS40-1Y$69900 Web Price Jandy PLC700 AquaPure PureLink three port salt cell kit with 16 ft cables Jandy AquaPure PureLink Salt Chlorine Generator Cell Kit, 12K Gallon Pools, PLC700$99900 CaliMar CMARCPC40-2Y replacement salt cell for SGS Wave and Breeze 540 and CMP Powerclean 540 systems CaliMar Replacement Salt Cell for SGS Wave & Breeze 540 Systems and CMP Powerclean 540 Systems, 40K Gallons, CMARCPC40-2Y$52900 Web Price CompuPool GRC20GH replacement salt cell for Hayward T-CELL-5 with cord CompuPool Salt Cell with Cord Compatible with Hayward® T-CELL-5, 3-Year Warranty, 20K Gallons, GRC20GH5.0 (1) $38399 Solaxx CLG125A-010 PureChlor 25K gallon replacement salt cell Solaxx PureChlor 25K Gallon Replacement Salt Cell, CLG125A-010$88399 CompuPool GRC/R/AE7 seven blade replacement salt cell for Resilience A7 and E7C, up to 60,000 gallons CompuPool Resilience 7-Blade Salt Cell Replacement, For up to 60K Gallons, GRC/R/AE7$60699 CaliMar CMARCHA15-2Y replacement salt cell for Hayward T-CELL-3, 15,000 gallons CaliMar Salt Cell Compatible with Hayward® T-CELL-3®, 15,000 Gallons, CMARCHA15-2Y$40900 Web Price CaliMar CMARCPC20-2Y replacement salt cell for SGS Wave 320, Breeze 320 and CMP Powerclean 320 CaliMar Replacement Salt Cell for SGS Wave & Breeze 320 Systems and CMP Powerclean 320 Systems, CMARCPC20-2Y$39900 Web Price CompuPool CPX24-RC CPX series replacement salt cell with 7 ft cord CompuPool OEM CPX Series Replacement Salt Cell, 30,000 Gallons with 7 ft Cord, CPX24-RC$46699 CaliMar CMARCIC20-1Y replacement salt cell compatible with IntelliChlor IC20 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC20, 20K Gallons, CMARCIC20-1Y$79900 Web Price

Product details

The CaliMar CMARCEC54-1Y is a replacement salt cell electrode for Ecomatic ESC systems. It is built to take the place of Ecomatic cell models ESC24, ESC36 and ESC48, listed by Ecomatic as model M0657USA, and the same electrode is used in the newer ESC7000, ESC8000 and ESC9000 systems.

Output and protection

Thirteen titanium blades generate chlorine for pools up to 54,000 gallons. A safety sensor shuts the unit down when salt flow is insufficient, and an auto delay holds production off at startup while the pump primes, so the electrode is not energized before water and salt are moving through it. Like the original Ecomatic electrodes, it cycles off half of the time when set to 50 percent output, which spreads the working life of the blades.

What is in the box

The electrode only. The cell housing and the cord are sold separately, and replacing all three together is the usual approach, since a tired cord or a cracked housing will undo the benefit of a new cell.

Compatibility note

CaliMar is not affiliated with Ecomatic or with Davey Water, and this cell is not made or sold by them. The Ecomatic model numbers above are given only to identify which systems the electrode fits.

From Pool School

How to Clean a Salt CellHose first, acid only on scale that stays, and each manufacturer's own mix and time limit. Read When to Replace a Salt CellThe life each manufacturer prints, what looks like a dead cell and is not, and choosing the next one. Read Generic vs OEM Salt CellsWhat you can compare on paper between the original and another manufacturer's cell, and what you cannot. Read
Specifications
Brand CaliMar
Manufacturer part number CMARCEC54-1Y
Alternate part number RE-ESC
Type Replacement salt cell electrode
Blades 13 titanium blades
Pool size Up to 54,000 gallons
Replaces Ecomatic cell models ESC24, ESC36, ESC48 (Ecomatic model M0657USA)
Also used in Ecomatic ESC7000, ESC8000, ESC9000 systems
Safety Salt flow safety sensor, auto delay for pump priming
Included Electrode only, cell housing and cord sold separately
Warranty One year
Shipping weight 3.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CaliMar

CaliMar CMARCHA40-2Y replacement salt cell for Hayward T-Cell-15, 40,000 gallons CaliMar Salt Cell Compatible with Hayward® T-Cell-15®, 2-Year Warranty, 40K Gallons, CMARCHA40-2Y5.0 (1) $54900 CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 3 HP, 230V, 2 in. Ports, CMARVSP3.0$79900 Web Price CaliMar CMARCFS40-1Y replacement salt cell for Zodiac Nature 2 Fusion R0503000 CaliMar Salt Cell Compatible with Zodiac Nature2 Fusion Soft R0503000, 40,000 Gallons, CMARCFS40-1Y$69900 Web Price CaliMar CMARSHA25-3Y complete salt chlorinator system for pools up to 25,000 gallons CaliMar Salt Chlorinator System Complete, for Up to 25,000 Gallon Pools, CMARSHA25-3Y$83900 Web Price CaliMar CMARCIC20-1Y replacement salt cell compatible with IntelliChlor IC20 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC20, 20K Gallons, CMARCIC20-1Y$79900 Web Price CaliMar CMAR15VS1.5 1.5 HP variable speed pool pump with 1.5 in. threaded ports, black housing CaliMar Variable Speed Pool Pump, 1.5 HP, 230V, 1.5 in. Ports, CMAR15VS1.5$59900 CaliMar CMARCPC40-2Y replacement salt cell for SGS Wave and Breeze 540 and CMP Powerclean 540 systems CaliMar Replacement Salt Cell for SGS Wave & Breeze 540 Systems and CMP Powerclean 540 Systems, 40K Gallons, CMARCPC40-2Y$52900 Web Price CaliMar CaliGlow Pro nicheless LED pool light with its 50 foot cord coiled beside it CaliMar CaliGlow Pro P-Series Nicheless LED Pool and Spa Light, 12V, 50 ft Cord, CMAR2L20W50P$39900 Web Price CaliMar FB2010-SF flat black supporting foot for CMAR15VS1.5 and CMARVSP3.0 variable speed pumps CaliMar Supporting Foot for CMAR15VS1.5 and CMARVSP3.0 Variable Speed Pumps, FB2010-SF$1786 CaliMar FB2010-MF black mounting foot bracket for CMAR15VS1.5 and CMARVSP3.0 variable speed pumps CaliMar Mounting Foot for CMAR15VS1.5 and CMARVSP3.0 Variable Speed Pumps, FB2010-MF$1712
CaliMar CaliGlow Pro H-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100H$49900 CaliMar CaliGlow Pro P-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro P-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100P$42900 CaliMar CaliGlow Pro J-Series nicheless LED pool light, 50 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 50 ft Cord, CMAR2L20W50J$39900 CaliMar CaliGlow Pro H-Series nicheless LED pool light, 50 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 50 ft Cord, CMAR2L20W50H$44900 CaliMar CaliGlow Pro J-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150J$49900 CaliMar CaliGlow Pro H-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150H$59900 CaliMar CaliGlow Pro P-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro P-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150P$49900 CaliMar CaliGlow Pro J-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100J$44900 CaliMar Cover O Ring FB2010CO | FB2010-CO CaliMar Cover O-Ring for CMAR15VS1.5 and CMARVSP3.0 Variable Speed Pumps, FB2010-CO$1499 CaliMar Strainer Cover Kit FB2010SCK | FB2010-SCK CaliMar Strainer Cover Kit for CMAR15VS1.5 and CMARVSP3.0 Variable Speed Pumps, FB2010-SCK$2099

Questions and answers

What people ask about this product, answered by our pool techs.

Which Ecomatic cells does this replace?
The ESC24, ESC36 and ESC48 cell models, Ecomatic model number M0657USA. The same electrode is also used in the newer ESC7000, ESC8000 and ESC9000 systems.
Does the housing and cord come with it?
No. The cell housing and the cord are sold separately. Replacing both alongside a new electrode is recommended, since they age at the same rate as the cell.
How large a pool will it chlorinate?
The 13 titanium blades produce chlorine for pools up to 54,000 gallons.
Is this a genuine Ecomatic part?
No. It is a CaliMar cell built to fit those systems. CaliMar is not affiliated with Ecomatic or Davey Water, and the model names are given only to identify what it fits.
