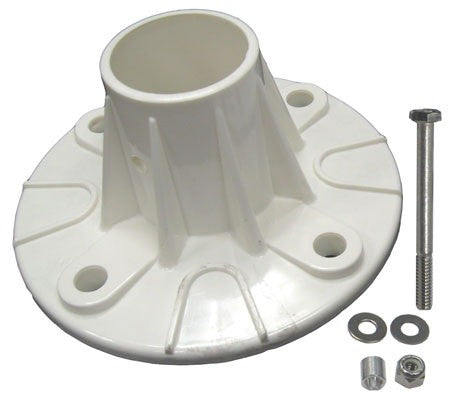

S.R. Smith 05-623 deck mounted round flange with boltS.R. Smith Deck Flange with Hardware, 05-623 In stock$4799
S.R. Smith 05-623 deck mounted round flange with bolt
Shop all S.R. Smith

S.R. Smith Deck Flange with Hardware, 05-623

Ask a questionMPN 05-623
$4799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Takes 1.9" tube Made for a rail or ladder with a 1.9 inch outside diameter.
  • Bolt included The bolt comes with the flange.
  • Anchors not included The anchors that fix the flange into the concrete deck are bought separately.
  • Four mounting holes Four holes spaced evenly on the flange bottom, 5" across opposite holes and 3-1/2" from one hole to the next.
  • Usually an inground slide part This is the flange most often specified at the deck end of an inground slide.
  • Deck mounted The round flange sits flat on the deck and receives the rail or ladder tube.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About S.R. Smith Deck Flange with Hardware, 05-623, SKU SRS-35-994. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item S.R. Smith Deck Flange with Hardware, 05-623
S.R. Smith

Deck Flange with Hardware, 05-623

$4799
Shade Science Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW
Shade Science

Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW

$24900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue
Shade Science

Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue

$21900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Poolguard PGRM-2 In-Ground Pool Alarm
American Granby

Poolguard PGRM-2 In-Ground Pool Alarm

$25899
S.R. Smith 20" U-Frame Fulcrum Cover, FC-200A-R
S.R. Smith

20" U-Frame Fulcrum Cover, FC-200A-R

$6699
Deck-O-Seal Pour Grade Joint Sealant Kit, Tan 96 oz., 4701033
Deck-O-Seal

Pour Grade Joint Sealant Kit, Tan 96 oz., 4701033

$15799
National Stock Sign Co. 41" x 47" Texas Pool Rules Sign, Plastic, TX4148
National Stock Sign

Co. 41" x 47" Texas Pool Rules Sign, Plastic, TX4148

$11199
Subtotal

Similar products

Other products people compare with this one.

Deck-O-Seal One-Step Sealing Compound 4705012, 11 oz. cartridge, gray Deck-O-Seal One-Step Sealing Compound, 11 oz. Gray, 4705012$5399 Perma-Cast PF-3119-A aluminum slide flange with four anchors for 1.9 in. rail Perma-Cast Slide Flange, Aluminum with 4 Anchors, 1.9" Rail, PF-3119-A$3799 Hayward SPX1392CA wedge bolt and washer for the SP1392 ABS anchor Hayward Wedge Bolt and Washer Replacement, SPX1392CA$2699 S.R. Smith AS-100B 4 inch deep bronze rail anchor for 1.90 inch OD tubing S.R. Smith 4" Bronze Anchor (1.90" OD), AS-100B$6299 Perma-Cast PE-8 two piece brass anchor cover with screw Perma-Cast Brass Two Piece Anchor Cover with Screw$3699 Perma-Cast PS-4019-BC 4 inch bronze anchor socket for 1.9 inch OD pool rails Perma-Cast 4" Hanover Clone Perma Socket Anchor for 1.9" OD Tubing Rails, PS-4019-BC$4599 Perma-Cast PS-6019-BC bronze Big Boy socket anchor for 1.9 inch OD tubing rails Perma-Cast Bronze Big Boy Socket Anchor for 1.9 Inch OD Tubing Rails, PS-6019-BC$6299 Inlays C622000 NO DIVING 6 by 24 inch non-skid deck tile with 4 inch letters Inlays No Diving 6x24 Tile, 4 Inch Letters, Non-Skid Deck, C622000$5099 Dunn-Rite ANCHOR11 brass deck anchor with cap for DeckVolley and DeckShoot posts Dunn-Rite ANCHOR11 Brass Anchor for DeckVolley and DeckShoot Posts$6199 Pentair 590011 deck jet accessory kit Pentair Deck Jet Accessory Kit, 590011$3199
Waterway 540-6707 gray concrete volleyball and umbrella pole holder Waterway Concrete Volleyball/Umbrella Pole Holder, Gray, 540-6707$2899 NPT DM52-2030 5 inch black 3 FT number on a 6x6 white non-skid depth marker tile NPT 5 in. Non-Skid 3 FT Depth Marker Frost Proof Tile, DM52-2030$3199 S.R. Smith AS-100P universal plastic anchor for 1.90 inch rails and games S.R. Smith Universal Plastic Anchor, 1.90", AS-100P$6199 Inlays C620060 6 FT depth marker tile, 6x6 non-skid deck tile with 4 inch numbers Inlays 6 FT Depth Marker Tile, 6x6 Non-Skid Deck, 4 Inch Numbers, C620060$2499 Deck-O-Seal 4701023 tan pour grade joint sealant, 24 oz. Deck-O-Seal 24 oz. Tan Pour Grade Joint Sealant, 4701023$6799 Pentair 590042 Deck Jet II replacement bronze cover Pentair Deck Jet II Replacement Bronze Cover, 590042$5599 S.R. Smith AS-100B-SS 4 inch 304 stainless steel residential wedge anchor S.R. Smith 4" Stainless Steel Residential Wedge Anchor, AS-100B-SS$5599 Perma-Cast Perma Cast Flush Mount Cap | PS-60-CAP Perma-Cast Perma Cast Flush Mount Cap | PS-60-CAP$2999 Poolmaster Inc. Pool Master Pool Slide Spray Kit | 36631 Poolmaster Inc. Pool Master Pool Slide Spray Kit | 36631$4699 S.R. Smith Oblong Estutcheon Plate Stainless Steel 1.9" | EP-100A S.R. Smith Oblong Estutcheon Plate Stainless Steel 1.9" | EP-100A$3799

From S.R. Smith

A white diving board at the edge of a backyard pool. Pool better. S.R. Smith

S.R. Smith lighting

S.R. Smith Treo 5W LED Color Changing RGB Light, 80' Cord, FLED-C-TR S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001 S.R. Smith RGB Treo LED Pool Light 12V, 30' Cord, FLED-C-TR-30 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN
Shop S.R. Smith equipment

S.R. Smith parts

S.R. Smith Cantilever Steel Jump Stand with Jig, Radiant White, 69-209-001 S.R. Smith 6' White Spring Assembly for 606 Cantilever Jump Stand, 69-209-026 S.R. Smith 5W Replacement RGB LED Lamp, 12VAC, FLED-LAU-C S.R. Smith 18" Commercial Mounting Kit, 67-209-903-SS
Shop S.R. Smith parts
Pool slides: a curved slide set into a rock waterfall beside a backyard poolDiving boards: a white diving board over a backyard pool
S.R. Smith makes pool slides, diving boards, ladders, rails, in-pool furniture and pool lighting.Shop all S.R. Smith

Product details

The S.R. Smith 05-623 is a deck mounted round flange for a rail or ladder with a 1.9" outside diameter. It is most often used on inground slides, and it is supplied with its bolt.

Dimensions

The flange measures 6-3/8" across at the bottom of the mounting flange and 2-3/16" across at the top, with an inside diameter of 1-15/16" at the top and an overall height of 3". There are four mounting holes spaced evenly around the flange bottom: opposite holes are 5" apart center to center, and adjacent holes are 3-1/2" apart center to center.

What is and is not included

The bolt is included. The anchors that fix the flange down into the concrete deck are not, so order those to suit the deck you are fastening into. Measure your existing hole pattern before ordering, since a flange that does not line up with the anchors already set in the deck means drilling.

Specifications
Brand S.R. Smith
Manufacturer part number 05-623
UPC 840671100575
Type Deck mounted round flange
Fits Rail or ladder with 1.9" outside diameter
Outside diameter, bottom of mounting flange 6-3/8"
Outside diameter, top of flange 2-3/16"
Inside diameter, top inside 1-15/16"
Height 3"
Mounting holes 4, spaced evenly on the flange bottom
Hole spacing, opposite holes 5" center to center
Hole spacing, adjacent holes 3-1/2" center to center
Included Bolt
Not included Deck anchors
Typical use Inground slides
Shipping weight 0.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Does it come with the deck anchors?
No. The bolt is included, but the anchors that fasten the flange into the concrete deck are not part of this listing.
What size tube does it take?
A rail or ladder with a 1.9" outside diameter. The inside diameter at the top of the flange is 1-15/16".
What is the bolt pattern?
Four holes spaced evenly on the flange bottom. Opposite holes measure 5" center to center, and one hole to the next measures 3-1/2" center to center.
What is this flange normally used for?
It is most often used on inground slides, though it is a general deck flange for a rail or a ladder with the right tube diameter.
