H2Flow Controls FlowVis FV-15-U Flow Meter with Check Valve, Velocity Scale and Union Fittings for 1.5 in. Schedule 40 Pipe, Scale in GPM$189⁹⁹

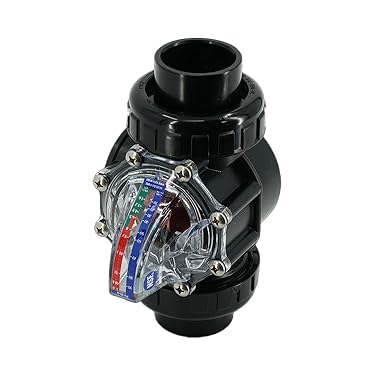

H2Flow Controls FlowVis FV-15-U flow meter with union fittings and check valve for 1.5 in. pipe

H2Flow Controls FlowVis FV-15-U Flow Meter with Check Valve, Velocity Scale and Union Fittings for 1.5 in. Schedule 40 Pipe, Scale in GPM

Name: H2Flow Controls FlowVis FV-15-U Flow Meter with Check Valve, Velocity Scale and Union Fittings for 1.5 in. Schedule 40 Pipe, Scale in GPM
Brand: H2Flow Controls
SKU: HTF-FV-15-U
Price: 189.99 USD
Availability: OutOfStock

Ask a questionMPN FV-15-U

$189⁹⁹

Out of stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

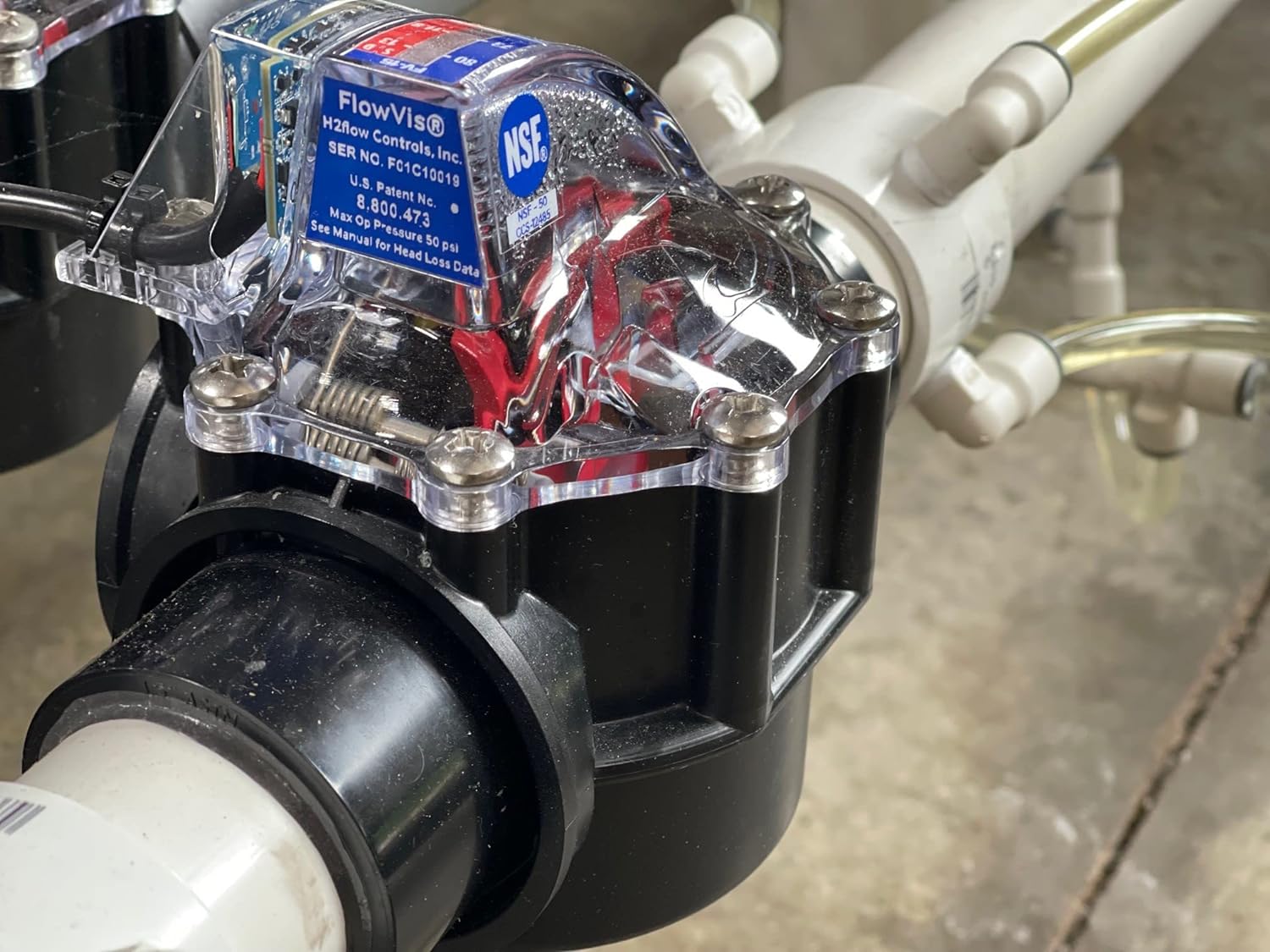

Reads flow in GPM a clear velocity scale you can read from across the pad, with no calibration needed.
Doubles as a check valve the 1.5 in. model has a check valve built in, so it replaces one fitting rather than adding one.
Union fittings union connections for 1.5 in. schedule 40 pipe make it easy to fit and to remove for service.
Accurate anywhere 98.1% or better accuracy, installed horizontally, vertically or upside down, with little or no straight pipe either side.
NSF 50 and outdoor rated NSF 50 certified and the first pool flow meter certified for outdoor use.
Upgradeable and US made accepts the FV-D digital upgrade, and is manufactured in the USA.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select H2Flow Controls FlowVis FV-15-U Flow Meter with Check Valve, Velocity Scale and Union Fittings for 1.5 in. Schedule 40 Pipe, Scale in GPM

H2Flow Controls

FlowVis FV-15-U Flow Meter with Check Valve, Velocity Scale and Union Fittings for 1.5 in. Schedule 40 Pipe, Scale in GPM

$189⁹⁹

Select

Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$17⁹⁹

Select

Hayward

Paralevel Startup Kit, 004-760-2921-00

$59⁹⁹

Select

Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$10⁹⁹

Select

Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$24⁹⁹

Select

Paramount

6 Port Water Valve Module, 004-302-4408-00

$360⁹⁹

Select

Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$191⁹⁹

Subtotal

Similar products

Other products people compare with this one.

Blue-White Industries F-30200P 2 in. flowmeter, standard flow

Blue-White Industries 2" Flowmeter, Standard Flow, F-30200P$133⁹⁹

Blue-White Industries F-30150P 1-1/2 inch standard flow acrylic flowmeter

Blue-White Industries 1-1/2" Flowmeter, Standard Flow, F-30150P$133⁹⁹

Blue-White Industries F-30300P F-300 Series 3 inch PVC flow meter

Blue-White Industries F-300 Series 3" PVC Flow Meter, F-30300P$133⁹⁹

Blue-White Industries D-30200P 2 inch vertical downflow flow meter, clear body

Blue-White Industries Vertical Downflow Flow Meter, 2", D-30200P$169⁹⁹

Blue White Industries 2.5 inch PVC Flow Meter 60-240 GPM | F-30250P$130⁹⁹

Blue White Industries 1 inch PVC Flow Meter 5-35 GPM | F-30100P$100⁹⁹

Blue White Industries 6 inch PVC Flow Meter 250-1050 GPM | F-30600P$225⁹⁹

Blue White Industries 4" PVC Flow Meter 125-500 GPM | F-30400P$147⁹⁹

Rola-Chem 570361T 2.5 inch PVC top mount flowmeter, 70 to 240 GPM

Rola-Chem 2.5 Inch PVC Top Mount Flowmeter, 70 to 240 GPM, 570361T$81⁹⁹

Pentair SL1DW 30/130 degree in-line pool thermometer

Pentair 30/130 Degree In-line Thermometer, SL1DW$74⁹⁹

Rola-Chem 570351T 2 inch PVC top mount flowmeter reading 40 to 140 GPM

Rola-Chem 2" PVC 40-140 GPM Top Mount Flowmeter, 570351T$68⁹⁹

Pentair SK thermometer with bushing for a skimmer lid

Pentair Thermometer with Bushing$67⁹⁹

Pentair 15060-0000TZ 2 inch bottom mount pressure gauge with 1/4 inch NPT thread

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ$52⁹⁹

Jandy R0556900 CJ series pressure gauge replacement kit

Jandy CJ Series Pressure Gauge, R0556900$39⁹⁹

Hayward 005-302-3590-00 pressure gauge for Paramount water valves

Hayward Pressure Gauge For Paramount Water Valves, 005-302-3590-00$29⁹⁹

Pentair Air Clam Shell Thermometer EZ Read Combo 136 R14120 | R141200$23⁹⁹

Poolstyle PS088 chrome plated pool thermometer with cord

Poolstyle Chrome Plated Thermometer with Cord, PS088$19⁹⁹

HydroTools 9228 soft top penguin floating thermometer for pools and spas

HydroTools Soft Top Penguin Floating Thermometer, 9228$18⁹⁹

Pool Pals Classic Maxi Clear Thermometer Clam Shell | TH2505PP$18⁹⁹

Pentair R141036 sinking pool thermometer with ABS case and 3 foot cord

Pentair Sinking Pool Water Thermometer with ABS Case and 3-Foot Cord, R141036$16⁹⁹

Product details

The H2Flow Controls FlowVis FV-15-U is a flow meter for 1.5 in. schedule 40 PVC, supplied with union fittings and a built in check valve. It reads in gallons per minute on a clear velocity scale and needs no calibration once it is in the line.

Accuracy without the straight pipe

FlowVis is rated at 98.1% or better accuracy across the range, and unlike most flow meters it does not depend on long straight runs to get there. It can go in horizontally, vertically or upside down with little to no straight pipe on either side, which is why it is the meter pool professionals reach for on a tight pad.

Two fittings in one

The 1.5 in., 2 in. and 2.5 in. models double as check valves, so the FV-15-U can replace an existing 1.5 in. check valve rather than adding another fitting. The union connections make it simple to install and to pull for service.

Certified and upgradeable

It is NSF 50 certified and the first pool and spa flow meter certified for outdoor use. If you later want a digital readout, the FV-D upgrade fits every FlowVis model. Manufactured in the USA.

Specifications
Brand	H2Flow Controls
Manufacturer part number	FV-15-U
UPC	850052329051
Pipe size	1.5 in. schedule 40 PVC
Connections	Union fittings
Scale	GPM, velocity scale
Check valve	Built in
Accuracy	98.1% or better
Certification	NSF 50, certified for outdoor use
Mounting orientation	Horizontal, vertical or upside down
Straight pipe requirement	Little to none
Calibration	None required
Digital upgrade	FV-D compatible
Made in	USA
Shipping weight	2 lb
Ships	Parcel

Downloads

Owners Manual

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Does it need straight pipe before and after it?

Very little or none. FlowVis is designed to read accurately with little to no straight pipe run, which is what makes it practical on a crowded equipment pad.

Can I mount it vertically?

Yes. It installs horizontally, vertically or even upside down without affecting accuracy.

Does it replace my check valve?

On the 1.5 in., 2 in. and 2.5 in. models the FlowVis body doubles as a check valve, so this FV-15-U can take the place of a separate 1.5 in. check valve.

Can I add a digital readout later?

Yes. The FV-D digital upgrade is available for every FlowVis model, including this one.
