Pulsafeeder Pulsar booster pump, part 79214, 1 HPPulsar Booster Pump for Pulsar PS-45, PS-140 and PS-500 Feeders, 1 HP, 79214 In stock$1,29899

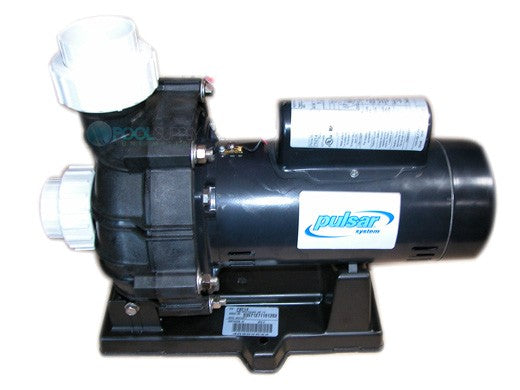

Pulsafeeder Pulsar booster pump, part 79214, 1 HP
Shop all Pulsar

Pulsar Booster Pump for Pulsar PS-45, PS-140 and PS-500 Feeders, 1 HP, 79214

Ask a questionMPN 79214
$1,29899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pulsar part 79214 The booster pump from the Pulsar feeder booster kit.
  • 1 HP Sized by Pulsar for the feeder loop.
  • 115V in a Pulsar system Ships set for 230V; move the jumper. 208V will harm it, per Pulsar.
  • About 35 psi Runs the feeder's spray and wash down nozzles.
  • Drives the venturi Draws the solution out of the feeder into the return.
  • Flow switch interlock The Pulsar control panel will not run it without flow in the return.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pulsar Booster Pump for Pulsar PS-45, PS-140 and PS-500 Feeders, 1 HP, 79214, SKU PSU-176012. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pulsar Booster Pump for Pulsar PS-45, PS-140 and PS-500 Feeders, 1 HP, 79214
Pulsar

Booster Pump for Pulsar PS-45, PS-140 and PS-500 Feeders, 1 HP, 79214

$1,29899
Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900
Jandy

TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$24599
Hayward In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF
Hayward

In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF

$12999
Jandy AquaPure Power Interface PCB, Large Backboard with Screws, R0984100
Jandy

AquaPure Power Interface PCB, Large Backboard with Screws, R0984100

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Subtotal

Similar products

Other products people compare with this one.

Zodiac DuoClear Replacement Electrode for the DuoClear 35 | W202251 Zodiac DuoClear Replacement Electrode for the DuoClear 35 | W202251$83199 AutoPilot Auto Pilot Pool Pilot Professional Power Module | 16081 AutoPilot Auto Pilot Pool Pilot Professional Power Module | 16081$66999 Stenner Pumps MCCP202 #2 Santoprene pump tube assembly with ferrules Stenner Pumps #2 Santoprene Pump Tube with .25" Ferrules for Classic and S Series Pumps, MCCP202$9099 King Technology 01-22-9417 cap with o-ring for in ground feeders King Technology Cap with O-Ring for 5400, 5430 and 5450 XL Pro and Mineral Hybrid In Ground Feeders, 01-22-9417$5299 Hayward SP1500UNMPAK1 male union end connector pack for in line chlorine feeders Hayward 1-1/2" Male Union End Connector Pack for CL200 and CL220 Chlorine Feeders, SP1500UNMPAK1$2199 Pentair R01052 lock screw for Rainbow 320 and 322 automatic feeders Pentair Lock Screw for Rainbow 320 and 322 Feeders, R01052$499 Pentair R172319 bottom o-ring for Rainbow 320 and 322 automatic chlorinators Pentair Bottom O-Ring for Rainbow 320 and 322 Feeders, New Style, R172319$399 Stenner Pumps QP255-1 #5 Santoprene QuickPro pump head, 25 PSI Stenner Pumps #5 Santoprene QuickPro Pump Head for Classic/SVP Pumps, 25 PSI, QP255-1$13599 Hayward SPX3000SV Viton cover o-ring for C250CF and C500CF chlorine feeders Hayward Cover O-Ring for C250CF and C500CF Chlorine Feeder, SPX3000SV$6899 Pentair R172086Z 1/2 in. control valve for Rainbow chlorine and bromine feeders Pentair Rainbow 1/2-Inch Control Valve for Automatic Chlorine/Bromine Feeders, R172086Z$5299
Hayward CLX200B chemical feeder cover for CL200 and CL220 chlorine feeders Hayward Chemical Feeder Cover for CL200 and CL220, CLX200B$3299 King Technology 01-22-9426 body o-ring for Perform-Max 940 and 960 feeders King Technology Body O-ring for Perform-Max 940 and 960 (Before 1992), 01-22-9426$2899 Rola-Chem 527159 7/16 inch plastic injection fitting for Pro Series 300 pump Rola-Chem 7/16 in. Plastic Tube Injection Fitting for Pro Series 300 Pump, 527159$2799 Pentair Rainbow R172037 chlorine chamber for 300 and 320 series chlorinators Pentair Rainbow Chlorine Chamber for 300 and 320 Series Chlorinators, R172037$2699 Rola-Chem 523250 eight inch Tygon pinch tube assembly with clamp for the RC301 peristaltic pump Rola-Chem 8" Tygon Pinch Tube Assembly with Clamp for RC301 Peristaltic Pump, 523250$2399 Pentair R172264XL old style saddle clamp for commercial chemical feeder pipe Pentair Old Style Saddle Clamp for 3, 4 and 6 Inch Commercial Chemical Feeder Pipe, R172264XL$2199 CMP 25376-900-500 drain plug for Powerclean chlorinators CMP Drain Plug for Powerclean Chlorinator, 25376-900-500$999 Pentair 210396Z Rainbow chlorinator check valve screen for models 320 and 322 Pentair Rainbow Screen for 320 and 322 Automatic Chlorinator, 210396Z$799 Rola-Chem 520116 7/16 inch vinyl tubing for chemical feeders Rola-Chem 7/16" Vinyl Tubing for Chemical Feeders, 520116$799 Rola-Chem 525113 7/16 inch crane washer for Pro Series 300 pump Rola-Chem 7/16" Crane Washer for Pro Series 300 Pump, 525113$599

Product details

The Pulsar 79214 is the 1 HP booster pump from the booster pump installation kit for Pulsar's PS-45, PS-140 and PS-500 calcium hypochlorite feeders. It is a feeder part. It does not circulate or filter the pool, and it is not a booster pump for a pressure side cleaner.

What it does

It runs in a 1-1/2 inch loop taken off the pool's return line. The pump raises the water to about 35 psi for the feeder's spray and wash down nozzles, and its flow through the venturi draws the solution out of the base of the feeder and back into the return.

Wiring

Pulsar wires this pump for 115V single phase only, on a circuit with a 15 amp breaker or larger, installed by a licensed electrician. It ships set for 230V, so the jumper is moved to 115V before it goes in. Pulsar warns that a 208V supply falls short and will damage the pump. In a Pulsar system the control panel powers it only when the flow switch in the return line sees flow.

Before the first start

Get water into the pump first. Pulsar's fix is to open the union on the discharge side a little until water runs out freely, tighten it, and then start the pump. Starting it dry can cost the seal.

Specifications
Brand Pulsar
Manufacturer part number 79214
Type Booster pump for a chlorine feeder
Fits Pulsar PS-45, PS-140 and PS-500 feeders, booster pump installation kit
Horsepower 1 HP
Voltage 115V single phase in a Pulsar system
As shipped Set for 230V; move the jumper for 115V. 208V service will harm the pump, by Pulsar
Circuit 15 amp breaker minimum, installed by a licensed electrician
Output About 35 psi to the feeder nozzles, and flow through the venturi
Plumbing 1-1/2 in loop off the pool return line
Interlock Runs only with flow at the flow switch; Pulsar recommends a relay to the pool pump
Source Pulsar System Installation Manual, PS-45, PS-140 and PS-500, rev.6 03/06/17
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Can I wire the Pulsar booster pump for 230V?
Not in a Pulsar system. Pulsar wires the 1 HP pump for 115V single phase only, with a 15 amp breaker or larger, installed by a licensed electrician. It leaves the factory set for 230V, so the jumper has to be moved to 115V first. Pulsar also warns that 208V service is not enough and will damage the pump.
What does the booster pump do on a Pulsar feeder?
It sits in a 1-1/2 inch loop off the pool return and raises the pressure to about 35 psi, which runs the feeder's spray and wash down nozzles. Its flow also drives the venturi that draws the solution out of the base of the feeder. It does not circulate or filter the pool.
How do I prime the Pulsar booster pump before starting it?
Get water into it first, because Pulsar says a start with no water in the volute can ruin the seal. Open the union on the discharge side a little until water runs out freely, tighten it again, and then start the pump.
Why does my Pulsar booster pump not run when the pool pump is off?
That is how it is meant to work. The Pulsar control panel powers the booster pump only when the flow switch in the return line sees flow, so it cannot run dry during a backwash or with the pool pump off. Pulsar also recommends tying its power to the pool pump through an external relay.
