Pleatco PA80 75 square foot filter cartridge for Hayward CX800REPleatco Filter Cartridge Compatible with Hayward® CX800RE, 75 Sq Ft, PA80$9499
Pleatco PA80 75 square foot filter cartridge for Hayward CX800RE
Shop all Pleatco

Pleatco Filter Cartridge Compatible with Hayward® CX800RE, 75 Sq Ft, PA80

Ask a questionMPN PA80
$9499
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Compatible with Hayward® CX800RE Fits filters that take the cartridge Hayward® supplies as the original.
  • Filtration area 75 square feet The rated media area of this element.
  • Point bonded fabric Pleatco Advanced Point Bonded filtration fabric at 4 oz per square yard.
  • Molded gasket ends Top and bottom holes are both 4 inch, open, with a molded gasket.
  • Size 8-1/2 by 17-3/8 inch Outside diameter 8-1/2 inch, overall length 17-3/8 inch.
  • Single cartridge Sold one per pack, for filters that take a single element.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pleatco Filter Cartridge Compatible with Hayward® CX800RE, 75 Sq Ft, PA80, SKU PLE-051-9125. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pleatco Filter Cartridge Compatible with Hayward® CX800RE, 75 Sq Ft, PA80
Pleatco

Filter Cartridge Compatible with Hayward® CX800RE, 75 Sq Ft, PA80

$9499
Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE
Hayward

Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE

$20299
CMP Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000
CMP

Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000

$6799
Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5
Hayward

Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5

$399
Hayward Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2
Hayward

Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2

$10299
Hayward SwimClear Lower Piping Assembly, CX3030H
Hayward

SwimClear Lower Piping Assembly, CX3030H

$14199
Hayward OEM Bulkhead O-Ring, SX200Z3
Hayward

OEM Bulkhead O-Ring, SX200Z3

$799
Subtotal

Similar products

Other products people compare with this one.

Pleatco PA131 131 sq ft replacement filter cartridge for Hayward SwimClear C5025 and C5030 Pleatco 131 Sq Ft Filter Cartridge Compatible with Hayward® SwimClear™ C5025, PA131$7703 Filbur PC-1292 90 sq ft replacement filter cartridge for Hayward CX900RE Filbur Filter Cartridge Compatible with Hayward® CX900RE, PC-1292$6599 Filbur Replacment Cartridge for Hayward SwimClear C3025 325 Sq Ft Cartridge Filter | CX580XRE C-7483 18101 PA81 | FC-1225 Filbur Cartridge Compatible with Hayward® SwimClear™ C3025 325 Sq Ft Cartridge Filter | CX580XRE C-7483 18101 PA81 | FC-1225$8399 Filbur Replacement Cartridge for Hayward Star-Clear C500 50 Sq Ft Cartridge Filter | CX500RE C-7656 15004 PA50 | FC-1240 Filbur Cartridge Compatible with Hayward® Star-Clear™ C500 50 Sq Ft Cartridge Filter | CX500RE C-7656 15004 PA50 | FC-1240$5699 Filbur Replacment Cartridge for Hayward SwimClear C4025 425 Sq Ft Cartridge Filter | CX880XRE C-7488 20601 PA106 | FC-1226 Filbur Cartridge Compatible with Hayward® SwimClear™ C4025 425 Sq Ft Cartridge Filter | CX880XRE C-7488 20601 PA106 | FC-1226$9499 Unicel C-9485 85 sq. ft. replacement filter cartridge for Hayward Star-Clear CX850RE Unicel Filter Cartridge Compatible with Hayward® Star-Clear™ CX850RE, 85 Sq. Ft., C-9485$5199 Filbur Replacement Cartridge for Hayward SwimClear C5025 525 Sq Ft PA131 | FC-1227 Filbur Cartridge Compatible with Hayward® SwimClear™ C5025 525 Sq Ft PA131 | FC-1227$11899 Filbur Replacment Cartridge for Hayward SwimClear C2025 56 Sq Ft Cartridge | FC-1223 Filbur Cartridge Compatible with Hayward® SwimClear™ C2025, 56 Sq Ft | FC-1223$7099 Filbur Replacment Cartridge for Hayward C5000 and C5020 PA126 | FC-1296 Filbur Cartridge Compatible with Hayward® C5000 and C5020 PA126 | FC-1296$12299 Hayward CX900RE 90 sq ft filter cartridge element, front view Hayward C900 Filter Cartridge Element, 90 sq ft, CX900RE$11999
Hayward CX580XRE cartridge element for SwimClear C3030 pool filters Hayward Filter Cartridge for SwimClear C3030 Pool Filter, CX580XRE$9599 Unicel C-7483 81 sq ft replacement filter cartridge for Hayward SwimClear Unicel Filter Cartridge, 81 sq ft, for Hayward® SwimClear™ C3025, C-7483$7099 Hayward CX760RE 75 square foot replacement filter cartridge for StarClear Plus Hayward Filter Cartridge, 75 Sq Ft, CX760RE$10199 Hayward CX225RE 25 sq ft replacement cartridge element for StarClear C225 filter Hayward OEM C225-Blue StarClear Plus Replacement Cartridge Element, 25 SqFt, CX225RE$5499 Unicel C-7490-4 137 sq ft replacement filter cartridge quad pack for Hayward CX1380-RE Unicel Filter Cartridge Compatible with Hayward® CX1380-RE, 137 Sq Ft, 4-Pack, C-7490-4$33099 Hayward CX100XRE SwimClear C100S 100 sq ft filter cartridge element Hayward 100 Sq. Ft. SwimClear Filter Cartridge Element, C100S, CX100XRE$14399 Hayward CX1200RE genuine 120 sq ft filter cartridge for Star-Clear Plus C-1200 Hayward Genuine Filter Cartridge, 120 sq ft, Star-Clear Plus C-1200, CX1200RE$14499 Hayward CX875REM Advantage cartridge element, 450 sq ft Hayward Advantage Cartridge Element for Cartridge Filter, 450 sq ft, CX875REM$15799 Hayward CX1390REM C6060 Microban replacement filter cartridge Hayward C6060 Microban Filter Cartridge, CX1390REM$19499 Hayward CX2020RE cartridge element for C2002 Star-Clear filter Hayward 200 sq ft Cartridge Element for C2002 Star-Clear Filter, CX2020RE$20099

Product details

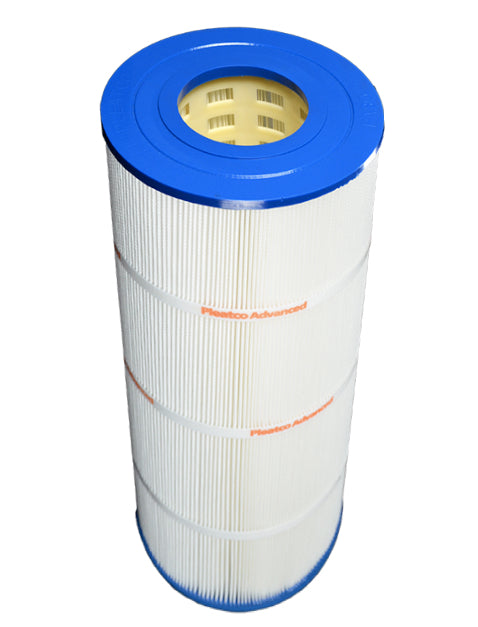

The Pleatco PA80 is a cartridge compatible with the Hayward® CX800RE, carrying 75 square feet of filter media. It measures 8-1/2 inch outside diameter and 17-3/8 inch long, with 4 inch open holes at both ends and a molded gasket on each.

The media

Pleatco uses its Advanced Point Bonded filtration fabric at 4 ounces per square yard. Point bonding holds the pleats apart so water passes through the full 75 square feet instead of the fabric collapsing onto itself under flow.

Fitment

The listing names the Hayward® Star-Clear™ II C800 and C1500. Parts listings for this cartridge also cover the Star-Clear™ II C1100. The reliable check is the number on the element already in the tank: if it reads CX800RE, this cartridge is compatible.

Specifications
Brand Pleatco
Manufacturer part number PA80
UPC 090164800004
Type Single cartridge
Compatible with Hayward® CX800RE
Filter manufacturer Hayward®
Square footage 75
Outside diameter 8-1/2"
Length 17-3/8"
Top hole 4", open with molded gasket
Bottom hole 4", open with molded gasket
Material Pleatco Advanced Point Bonded filtration fabric
Material weight 4 oz/yd
Fits Hayward® Star-Clear™ II C800, Star-Clear™ II C1500
Also listed for Hayward® Star-Clear™ II C1100
Packaging quantity 1/Pack
Shipping weight 4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pleatco

Pleatco X15-ULT-A9-Q4 Advanced Ultra filter cartridge for Jandy CL460, 4-pack Pleatco 7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4$32399 Pleatco X15-ULT-A7-Q4 Advanced Ultra 7 in. filter cartridge for Pentair Clean & Clear Plus CCP520, 4 pack Pleatco 7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4$27899 Pleatco PJAN115 115 sq ft filter cartridge for the Jandy CL 460 Pleatco 115 Sq Ft Filter Cartridge for Jandy CL 460, PJAN115$11399 Pleatco X15-ULT-A5-Q4 Advanced Ultra filter cartridge, four pack for Pentair Clean & Clear Plus 320 Pleatco 7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4$24299 Pleatco X15-ULT-A1-M Advanced Ultra Xtreme Blue A1 filter cartridge for Hayward C4025 and C4030 Pleatco Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M$12499 Pleatco PH105-4 105 sq ft filter cartridge for Harmsco Tropic Flo 100 Pleatco 105 Sq Ft Filter Cartridge, Harmsco Tropic Flo 100, BF100SC, PH105-4$12599 Pleatco PCC130-PAK4 520 sq ft filter cartridge pack Pleatco 520 Sq Ft Filter Cartridge Pack, Clean and Clear Plus 520, Crystal Water, PCC130-PAK4$38999 Pleatco PA120 120 sq ft replacement filter cartridge for Hayward Star Clear Plus C1200 Pleatco Cartridge Filter, 120 Sq Ft, PA120$11399 Pleatco PA137 137 sq ft pool filter cartridge, angled view Pleatco Filter Cartridge 137 Sq Ft, CX1380-RE, PA137$10499 Pleatco PFAB150 150 square foot filter cartridge for the PacFab Pentair FMY-150 Pleatco 150 Sq Ft Filter Cartridge, FMY-150, PFAB150$10099
Pleatco PA50 50 sq ft pool filter cartridge Pleatco 50 Sq Ft Filter Cartridge, Star-Clear C500, Pentair Purex CF-50, PA50$6499 Pleatco X15-PCC130 130 square foot filter cartridge for Pentair Clean and Clear Plus 520 Pleatco 130 Sq Ft Filter Cartridge, Clean & Clear Plus 520, X15-PCC130$13299 Pleatco PWW50L 50 sq ft filter cartridge for Waterway Teleweir Pleatco 50 Sq Ft Filter Cartridge for Waterway Teleweir, PWW50L$3699 Pleatco PSR137 replacement cartridge for Sta-Rite Posi-Flo II PTM-135 Pleatco Cartridge PTM-135 Posi-Flo II, PSR137$12399 Pleatco PA40 40 sq ft filter cartridge for Hayward C-410 and Easy Clear C400 Pleatco 40 Sq Ft Filter Cartridge, C-410, Easy Clear C400, PA40$4599 Pleatco PCS75N 75 sq ft replacement filter cartridge for Coleman Spas Pleatco 75 sq ft Filter Cartridge for Coleman Spas, PCS75N$7599 Pleatco PJAN145 145 sq ft replacement filter cartridge for the Jandy CL 580 Pleatco 145 sq ft Filter Cartridge for Jandy CL 580, PJAN145$10199 Web Price Pleatco PAP100-4 100 square foot filter cartridge for Predator 100 and Clean & Clear 100 Pleatco 100 Sq Ft Filter Cartridge for Predator 100 and Clean & Clear 100, PAP100-4$11199 Pleatco PCC60 60 sq ft pool filter cartridge Pleatco 60 sq ft Filter Cartridge, Clean & Clear Plus 240, American Quantum, PCC60$7599 Pleatco PCC80 80 sq ft pool filter cartridge for the Clean and Clear Plus 320 Pleatco 80 sq ft Filter Cartridge for Clean and Clear Plus 320, PCC80$8399

Questions and answers

What people ask about this product, answered by our pool techs.

Which Hayward® cartridge is this compatible with?
The Hayward® CX800RE.
Does it fit the Star-Clear™ II C1100?
The product listing names the Star-Clear™ II C800 and C1500, while the parts listing for this cartridge also covers the C1100. Check the CX800RE number on your existing element before ordering.
What are the dimensions?
8-1/2 inch outside diameter, 17-3/8 inch long, with 4 inch open holes top and bottom, each with a molded gasket.
How many cartridges are in the pack?
One. It is sold as a single cartridge, 1 per pack.
