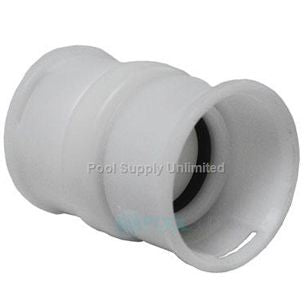

Poolvergnuegen 896584000-273 hose swivel for The PoolCleaner pressure side cleanerPoolvergnuegen Hose Swivel for The PoolCleaner 4-Wheel Pressure Cleaner, 896584000-273 In stock$3499
Poolvergnuegen 896584000-273 hose swivel for The PoolCleaner pressure side cleaner
Shop all Poolvergnuegen

Poolvergnuegen Hose Swivel for The PoolCleaner 4-Wheel Pressure Cleaner, 896584000-273

Ask a questionMPN 896584000-273
$3499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Joins hose sections Snaps between two 6 ft sections of PoolCleaner pressure hose.
  • Stops coiling Poolvergnuegen designed its swivels to keep the pressure hose from coiling and leaking at the joints.
  • Snap connection Hose couplings click into the swivel, and pulling a coupling tab out slightly reloads a clip that will not latch.
  • Five per cleaner The PoolCleaner pressure model ships with six hose sections joined by five swivels.
  • Float beside each swivel Poolvergnuegen sets a hose float directly next to each swivel.
  • Pressure model part Listed with the pressure hose, pressure float and pressure relief valve in the PoolCleaner pressure spare parts.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Poolvergnuegen Hose Swivel for The PoolCleaner 4-Wheel Pressure Cleaner, 896584000-273, SKU PVN-201-1059. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Poolvergnuegen Hose Swivel for The PoolCleaner 4-Wheel Pressure Cleaner, 896584000-273
Poolvergnuegen

Hose Swivel for The PoolCleaner 4-Wheel Pressure Cleaner, 896584000-273

$3499
Poolvergnuegen Turbine Hub with Vanes, The Pool Cleaner 2-Wheel / 4-Wheel, 896584000-365
Poolvergnuegen

Turbine Hub with Vanes, The Pool Cleaner 2-Wheel / 4-Wheel, 896584000-365

$4599
Poolvergnuegen Wheel Sub Assembly for The Pool Cleaner 2-Wheel and 4-Wheel, 896584000-051
Poolvergnuegen

Wheel Sub Assembly for The Pool Cleaner 2-Wheel and 4-Wheel, 896584000-051

$3299
Poolvergnuegen Super Super Hump Tires, All Models, 896584000-679
Poolvergnuegen

Super Super Hump Tires, All Models, 896584000-679

$7399
Poolvergnuegen Turbine Cover for The Pool Cleaner 2-Wheel and 4-Wheel, 896584000-068
Poolvergnuegen

Turbine Cover for The Pool Cleaner 2-Wheel and 4-Wheel, 896584000-068

$3499
Poolvergnuegen Front Tire with Super Humps, Concrete, 2 Pack, All Models, 896584000-143
Poolvergnuegen

Front Tire with Super Humps, Concrete, 2 Pack, All Models, 896584000-143

$6499
Poolvergnuegen Skirt Bracket for 2 Wheel and 4 Wheel Cleaners, 4 Pack, 896584000-419
Poolvergnuegen

Skirt Bracket for 2 Wheel and 4 Wheel Cleaners, 4 Pack, 896584000-419

$1899
Subtotal

Similar products

Other products people compare with this one.

Poolvergnuegen 896584000-075 front tire kit for The Pool Cleaner, two blue tires Poolvergnuegen The Pool Cleaner Front Tire, Fiberglass and Vinyl, 2 Pack, 896584000-075$4999 Poolvergnuegen The Pool Cleaner Rear Tire | 896584000-082 Poolvergnuegen The Pool Cleaner Rear Tire | 896584000-082$5099 Poolvergnuegen The Pool Cleaner White Vacuum | 896584000-228 Poolvergnuegen The Pool Cleaner White Vacuum | 896584000-228$3099 Polaris D20 genuine hose swivel for 180, 280, 380, 3900 and 480 Pro cleaners Polaris Genuine OEM Hose Swivel for 380/280/180 Pool Cleaners$2599 Polaris 9-100-3009 pressure relief valve for the Polaris 360 pool cleaner Polaris Pressure Relief Valve for 360 Pool Cleaner, 9-100-3009$1799 Polaris C17 small black idler wheel for the Polaris 280 Black Max pool cleaner Polaris Genuine OEM Small Idler Wheel for 280 Black Max Pool Cleaner$1999 Polaris R0615800 silver single side wheel for the Polaris TR35P pool cleaner Polaris Genuine OEM Single Side Wheel for TR35P Pool Cleaner, Silver, R0615800$2399 Polaris 9-100-3011 black pressure relief valve for 360 Black Max pool cleaner Polaris Pressure Relief Valve for 360 Black Max Pool Cleaner, 9-100-3011$1899 Poolvergnuegen Cone Hose 2x4x | 896584000-172 Poolvergnuegen Cone Hose 2x4x | 896584000-172$1799 Polaris R0912100 K13 all purpose zipper debris bag with tail scrubber for the Polaris 280 cleaner Polaris All Purpose Zipper Bag K13 with Tail Scrubber for 280 Pool Cleaner, R0912100$3699
Polaris 9-100-3002 genuine hose swivel for the Polaris 360 and TR36P pool cleaners Polaris 360 Genuine OEM Hose Swivel, 9-100-3002$3099 Polaris 9-100-9002 pressure relief valve for 180, 280, 380 and 3900 pressure cleaners Polaris Genuine OEM Pressure Relief Valve for 180/280/380/3900/P39/P40/TR28P Pool Cleaners, 9-100-9002$1799 Polaris D21 black ball bearing hose swivel for BlackMax 280, 380, 480 and 3900 cleaners Polaris Hose Swivel, Black$2499 Zodiac R0524800 Side B direction control device for the Baracuda MX8 suction pool cleaner Zodiac Genuine OEM Side B Direction Control Device for MX8 Suction Pool Cleaner, R0524800$4199 Polaris 9-100-9006 black pressure relief valve for BlackMax cleaners Polaris Genuine OEM Pressure Relief, All Black for BlackMax Model, 9-100-9006$1799 Pentair 360374 filter cover assembly for the Kreepy Krauly Prowler 920 pool cleaner Pentair Filter Cover Assembly for Prowler 920 Cleaner, 360374$3499 Polaris D10 feed hose float for 180, 280 and 380 pool cleaners Polaris Genuine OEM Feed Hose Float for 180/280/380 Pool Cleaners$1899 Power Vac Corp. 020-D-2100 26 in. micron filter bag for the PV2100 pool cleaner Power Vac Corp. 26" Micron Filter Bag for PV2100 Cleaner, 020-D-2100$4399 Polaris 9-100-1008 double side wheel for 380 and 360 pool cleaners Polaris Genuine OEM Double-side Wheel for 380 and 360, 9-100-1008$2399 Hayward RCX26005S wheel tube bearing for TigerShark robotic pool cleaners Hayward Wheel Tube Bearing for TigerShark Robotic Cleaners, RCX26005S$3599

Product details

The Poolvergnuegen 896584000-273 is the hose swivel for The PoolCleaner pressure side cleaner. It snaps between two 6 ft sections of pressure hose so the hose can turn at the joint instead of coiling.

What it does

The PoolCleaner pressure model steers itself through programmed turns, and the hose has to follow it around the pool. Poolvergnuegen designed its snap swivels so each joint can rotate, which keeps the hose from coiling and leaking. As supplied, the cleaner runs six hose sections joined by five of these swivels, with a float set directly beside each one.

Fitting

Push each hose coupling into the swivel until it clicks. If a coupling will not latch, pull its tab out slightly to reload the clip, then connect it again. Put the float back right next to the new swivel.

Before you order

This swivel is for the pressure side PoolCleaner, which connects to a return fitting through its relief valve, not for the 2-wheel or 4-wheel suction models. If the hose falls short of the far end of the pool, add a hose section and a swivel together; the connected hose should run half to one section longer than the distance to the farthest point from the return. The pressure hose section is part 896584000-327.

Specifications
Brand Poolvergnuegen
Manufacturer part number 896584000-273
Type Pressure hose swivel
Fits The PoolCleaner pressure side cleaner, 4-wheel pressure model
Connects Two 6 ft pressure hose sections
Connection Snap-in hose couplings
Quantity used 5 swivels joining 6 hose sections, as supplied with the cleaner
Related parts Pressure hose 896584000-327, pressure float 896584000-280, pressure relief valve 896584000-266
Shipping weight 0.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Poolvergnuegen

Poolvergnuegen 896584000-365 turbine hub with vanes for The Pool Cleaner 2-Wheel and 4-Wheel Poolvergnuegen Turbine Hub with Vanes, The Pool Cleaner 2-Wheel / 4-Wheel, 896584000-365$4599 Poolvergnuegen 896584000-679 blue super super hump tires, set of 2 Poolvergnuegen Super Super Hump Tires, All Models, 896584000-679$7399 Poolvergnuegen 896584000-051 wheel sub assembly for The Pool Cleaner Poolvergnuegen Wheel Sub Assembly for The Pool Cleaner 2-Wheel and 4-Wheel, 896584000-051$3299 Poolvergnuegen 896584000-068 turbine cover, upper body cone assembly for The Pool Cleaner Poolvergnuegen Turbine Cover for The Pool Cleaner 2-Wheel and 4-Wheel, 896584000-068$3499 Poolvergnuegen 896584000-143 front tire with super humps for concrete pools, 2 pack Poolvergnuegen Front Tire with Super Humps, Concrete, 2 Pack, All Models, 896584000-143$6499 Poolvergnuegen 2-wheel tune-up kit with tires, vanes and skirts Poolvergnuegen Tune-up Kit, 2-Wheel (2 Tires, 6 Vanes, 8 Skirts), 896584000-426$9199 Hayward 896584000-594 black Super Hump front tire for 2-wheel and 4-wheel pool cleaners Hayward Super Hump Front Tire, Black, 2 Pack, 896584000-594$6699 Poolvergnuegen 896584000-075 front tire kit for The Pool Cleaner, two blue tires Poolvergnuegen The Pool Cleaner Front Tire, Fiberglass and Vinyl, 2 Pack, 896584000-075$4999 Poolvergnuegen 896584000-419 skirt brackets, four per pack, for The Pool Cleaner cleaners Poolvergnuegen Skirt Bracket for 2 Wheel and 4 Wheel Cleaners, 4 Pack, 896584000-419$1899 Poolvergnuegen TIRE REPL BACK 4x BLACK | 896584000-563 Poolvergnuegen TIRE REPL BACK 4x BLACK | 896584000-563$5999
Poolvergnuegen Pool Cleaner Keeper Storage Rack | 896584000-501 Poolvergnuegen Pool Cleaner Keeper Storage Rack | 896584000-501$6999 Poolvergnuegen 896584000-136 steering slide assembly, left front gear drive for The PoolCleaner Poolvergnuegen Steering Slide Assembly, Left Front Gear Drive for The PoolCleaner 2X, 4X and PC, 896584000-136$6299 Poolvergnuegen XL Bag for Pressure Pool Cleaner | 896584000-297 Poolvergnuegen XL Bag for Pressure Pool Cleaner | 896584000-297$5699 Poolvergnuegen PC PRESSURE RELIEF VALVE | 896584000-266 Poolvergnuegen PC PRESSURE RELIEF VALVE | 896584000-266$4599 Poolvergnuegen The Pool Cleaner Rear Tire | 896584000-082 Poolvergnuegen The Pool Cleaner Rear Tire | 896584000-082$5099 Poolvergnuegen Rear Wheel Bearing & Drive Shaft 4xPC 896584000-12 | 896584000-129 Poolvergnuegen Rear Wheel Bearing & Drive Shaft 4xPC 896584000-12 | 896584000-129$5399 Poolvergnuegen BRACKET SKIRT 2x4x 4-KIT BLACK | 896584000-648 Poolvergnuegen BRACKET SKIRT 2x4x 4-KIT BLACK | 896584000-648$2099 Poolvergnuegen Skirts with Rollers Suc Only 2x4x | 896584000-259 Poolvergnuegen Skirts with Rollers Suc Only 2x4x | 896584000-259$2999 Poolvergnuegen GEAR SMALL DRIVE 2x4xPC | 896584000-464 Poolvergnuegen GEAR SMALL DRIVE 2x4xPC | 896584000-464$1799 Poolvergnuegen Turbine Vane Kit 2x4xPC | 896584000-167 Poolvergnuegen Turbine Vane Kit 2x4xPC | 896584000-167$2099

Questions and answers

What people ask about this product, answered by our pool techs.

Will the 896584000-273 swivel fit my PoolCleaner?
The 896584000-273 is the hose swivel for The PoolCleaner pressure side cleaner, the model that connects to a pool return fitting through a pressure relief valve. The PoolCleaner 2-wheel and 4-wheel suction cleaners plug into a suction port or skimmer instead, so confirm yours is the pressure model.
How many hose swivels does The PoolCleaner pressure cleaner use?
As supplied, The PoolCleaner pressure cleaner runs six 6 ft pressure hose sections joined by five 896584000-273 swivels. Adding a hose section to reach farther means adding a swivel as well.
How do I install the Poolvergnuegen hose swivel?
Push the couplings of two hose sections into each end of the 896584000-273 swivel until they click, then set a hose float directly beside it. If a coupling will not latch, pull its tab out slightly to reload the clip and try again.
Why does my PoolCleaner pressure hose keep coiling?
The 896584000-273 swivels between sections are what let the hose turn instead of coiling, so check that each one turns freely. Hose that was stored coiled also holds loops; lay it straight in the sun and store it straight from then on.
Ask your own question
