Madimack InverTITAN INVTIT140 inverter heat and cool pool pump, 140,000 BTUMadimack InverTitan 140,000 Heat and Cool Inverter Heat Pump, Rated 133,000 BTU/hr, INVTIT140 In stock$7,35000 Web Price

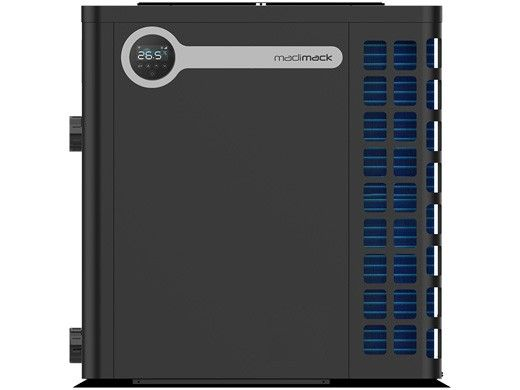

Madimack InverTITAN INVTIT140 inverter heat and cool pool pump, 140,000 BTU
Shop all Madimack

Madimack InverTitan 140,000 Heat and Cool Inverter Heat Pump, Rated 133,000 BTU/hr, INVTIT140

Ask a questionMPN INVTIT140
$7,35000 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Heats and cools One unit does both, so the pool can be warmed in spring and pulled back down in high summer.
  • Full inverter compressor A stepless DC compressor that modulates output instead of cycling on and off.
  • Runs down to 14 F Rated to operate in cold weather, which extends the swim season at both ends.
  • Built in Wi-Fi The smart app controls the unit without a trip to the equipment pad.
  • Twisted titanium exchanger More heat exchange area, and titanium stands up to pool water chemistry.
  • Quiet by design Soft start from zero amps, a twin rotary compressor and top discharge fans keep operating noise down.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Madimack InverTitan 140,000 Heat and Cool Inverter Heat Pump, Rated 133,000 BTU/hr, INVTIT140, SKU PSU-190506. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Madimack InverTitan 140,000 Heat and Cool Inverter Heat Pump, Rated 133,000 BTU/hr, INVTIT140
Madimack

InverTitan 140,000 Heat and Cool Inverter Heat Pump, Rated 133,000 BTU/hr, INVTIT140

$7,35000 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200 Raypak Crosswind V Deluxe heat and chill pool heat pump TWPH-8550EHC08, quarter view Raypak Crosswind V Deluxe Heat and Chill, 137,000 BTU with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHC08$5,40800 Madimack InverELITE INVELITE084 84,000 BTU inverter heat and cool pump Madimack InverElite 84,000 Heat and Cool Inverter Heat Pump, Rated 76,000 BTU/hr, INVELITE084$6,23000 Web Price Glacier Pool Coolers GPC-215 Iceburg pool cooler Glacier Pool Coolers Iceburg Pool Cooler, up to 45,000 Gallons, GPC-215$4,31399 Pentair 460934 UltraTemp 140 heat pump, 143K BTU 230V, almond cabinet Pentair UltraTemp 140 Heat Pump 143K BTU 230V, Almond, 460934$6,47099 Pentair UltraTemp HeatCool Pump 140K BTU Heat 80K BTU Cool | 460958 Pentair UltraTemp HeatCool Pump 140K BTU Heat 80K BTU Cool | 460958$6,54399 Madimack InverTITAN Inverter Heat & Cool Pump 90,000 BTU | INVTIT090 Madimack InverTitan 90,000 Heat and Cool Inverter Heat Pump, Rated 80,000 BTU/hr, INVTIT090$5,00000 Web Price Madimack InverELITE Inverter Heat & Cool Pump 110,000 BTU 230V 1 Ph 60Hz - 14.8 ~ 6.6 COP | IEV2110 Madimack InverElite 116,000 Heat and Cool Inverter Heat Pump, Rated 105,000 BTU/hr, INVELITE1100$6,90000 Web Price Madimack InverTITAN Inverter Heat & Cool Pump 112,000 BTU | INVTIT112 Madimack InverTitan 112,000 Heat and Cool Inverter Heat Pump, Rated 107,000 BTU/hr, INVTIT112$5,79000 Web Price Pentair UltraTemp 120Q Quiet High Performance Heat Pump 120K BTU Titanium Heat Exchanger Digital Controls | 460833 Pentair UltraTemp 120Q Quiet High Performance Heat Pump 120K BTU Titanium Heat Exchanger Digital Controls | 460833$5,24899
Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400 Raypak Compact Series Digital Pool Heat Pump Titanium 62K BTU | 16635 Raypak Compact Series Digital Pool Heat Pump Titanium 62K BTU | 016635$3,44900 Web Price Raypak Crosswind 65-I heat and cool pool heat pump, 65,000 BTU Raypak Crosswind Heat Pump 65-I Heat & Cool, 65,000 BTU, Spiral Titanium Heat Exchanger, Digital Controls, 017741$3,13700 Glacier Pool Coolers GPC-210 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 30,000 Gallons, GPC-210$3,11899 Madimack InverECO Inverter Heat & Cool Pump 66,000 BTU | INVECO660 Madimack InverEco 66,000 Heat and Cool Inverter Heat Pump, Rated 61,000 BTU/hr, INVECO660$3,11500 Web Price Glacier Pool Coolers GPC-25 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 20,000 Gallons, GPC-25$3,03599 Hayward HeatPro W3HP50HA2 horizontal fan swimming pool heat pump Hayward HeatPro 47,000 BTU Horizontal Fan Swimming Pool Heat Pump, W3HP50HA2$2,99900 Web Price Moov MI650 inverter variable speed pool heat pump, 65K BTU Moov MI650 Inverter Variable Speed Heat Pump, Rated 61,500 BTU/hr, MI650$2,89900 Web Price Moov MI500 50K BTU inverter variable speed pool heat pump Moov MI500 Inverter Variable Speed Heat Pump, Rated 45,500 BTU/hr, MI500$2,39900 Web Price Raypak 017740 Crosswind 50-I-R heat and cool pump, front view Raypak Crosswind 50-I-R Heat & Cool Pump, 50,000 BTUH, Spiral Titanium Heat Exchanger, Digital Controls, 017740$2,27700

Product details

The Madimack InverTITAN INVTIT140 is a 140,000 BTU inverter heat pump that both heats and cools a pool, running on 230V single phase at 60 Hz with a COP range of 14.6 down to 6.0.

Heating and cooling in one unit

Integrating both functions means the same equipment that brings the pool up in spring can take the edge off it in the height of summer. The unit is rated to keep working down to 14 F outside, so the heating season runs well past what an uninverted heat pump manages.

What the inverter does

A full stepless DC compressor modulates its output rather than switching on and off at full tilt. Paired with an electronic expansion valve that Madimack credits with a 20 percent higher COP, and a twisted titanium heat exchanger with roughly 40 percent more exchange area, the result is a unit that holds temperature at part load instead of hammering the electrical supply in bursts.

Noise and build

Soft start brings the unit up from zero amps, which Madimack rates as far quieter at startup. A twin rotary compressor, top discharge fans and the company sound suppression treatment keep running noise low. The casing is marine grade aluminium alloy, and reverse cycle defrosting detects frost during operation and switches over automatically.

Specifications
Brand Madimack
Manufacturer part number INVTIT140
Series InverTITAN
Type Inverter pool heat pump, heat and cool
Model InverTitan 140,000
Heat output 133,000 BTU/hr at 80F air, 80F water, 80 percent humidity, by the manufacturer
COP 5.2 at 80/80/80; 4.9 at 80F air, 63 percent humidity; 4.2 at 50F air, 63 percent humidity
Heat output at 80F air, 63 percent humidity 119,000 BTU/hr
Heat output at 50F air, 63 percent humidity 58,000 BTU/hr
Cooling 69,000 BTU/hr, by Madimack
Electrical 208 to 230 V, single phase, 60 Hz, hardwired, 3 x 6 AWG
Minimum circuit ampacity 50 A
Maximum overcurrent protection 80 A
Power input 0.89 to 6.84 kW at 80F air
Maximum current 40 A
Refrigerant R-410A
Heat exchanger Titanium in PVC
Water connections 2 in
Water flow 35.1 to 67.1 GPM, plus or minus 20 percent
Operating air temperature 14 to 109F
Set point range 64 to 104F
Dimensions 39.1 x 31.7 x 41.5 in
Net weight 315.3 lb
Shipping weight 407.9 lb
Note Madimack says its table is for reference and the nameplate on the unit governs
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Madimack

Madimack InverELITE INVELITE084 84,000 BTU inverter heat and cool pump Madimack InverElite 84,000 Heat and Cool Inverter Heat Pump, Rated 76,000 BTU/hr, INVELITE084$6,23000 Web Price Madimack InverChlor MC250 inverter salt chlorine generator system Madimack InverChlor MC250 Inverter Salt Generator System, Up to 25K Gallons, MC250NA$1,84000 Web Price Madimack InverTITAN Inverter Heat & Cool Pump 112,000 BTU | INVTIT112 Madimack InverTitan 112,000 Heat and Cool Inverter Heat Pump, Rated 107,000 BTU/hr, INVTIT112$5,79000 Web Price Madimack InverTITAN Inverter Heat & Cool Pump 90,000 BTU | INVTIT090 Madimack InverTitan 90,000 Heat and Cool Inverter Heat Pump, Rated 80,000 BTU/hr, INVTIT090$5,00000 Web Price Madimack InverECO Inverter Heat & Cool Pump 66,000 BTU | INVECO660 Madimack InverEco 66,000 Heat and Cool Inverter Heat Pump, Rated 61,000 BTU/hr, INVECO660$3,11500 Web Price Madimack InverELITE Inverter Heat & Cool Pump 110,000 BTU 230V 1 Ph 60Hz - 14.8 ~ 6.6 COP | IEV2110 Madimack InverElite 116,000 Heat and Cool Inverter Heat Pump, Rated 105,000 BTU/hr, INVELITE1100$6,90000 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

How many BTU is the Madimack INVTIT140?
133,000 BTU/hr at 80F air, 80F water and 80 percent humidity, by Madimack's table. The number in the model name is the nominal size. A heat pump's rating depends on the air it breathes. The manufacturers rate at 80F air, 80F water and 80 percent humidity, and the figure falls as the air cools: the rows on this page give all three of the standard points.
Does the Madimack INVTIT140 cool the pool?
Yes. Madimack rates it at 69,000 BTU/hr of cooling.
What electrical supply does the Madimack INVTIT140 need?
208 to 230 V, single phase, 60 Hz, hardwired, 3 x 6 AWG. Madimack gives a minimum circuit ampacity of 50 A and maximum overcurrent protection of 80 A.
How cold can it be outside for the Madimack INVTIT140?
Madimack gives an operating air temperature of 14 to 109F.
What refrigerant is in the Madimack INVTIT140?
R-410A, by Madimack's table, with a titanium heat exchanger in PVC.
What size pool is the Madimack INVTIT140 for?
Our pool heater size calculator works out the BTU a pool needs from its surface, the rise you want and the wind, and says which of these figures to compare it with.
