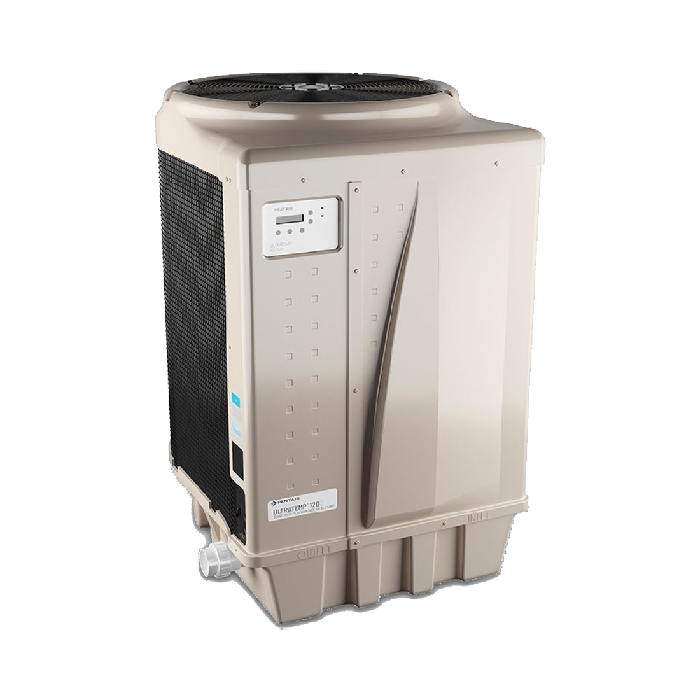

Pentair 460934 UltraTemp 140 heat pump, 143K BTU 230V, almond cabinetPentair UltraTemp 140 Heat Pump 143K BTU 230V, Almond, 460934 In stock$6,59999
Pentair 460934 UltraTemp 140 heat pump, 143K BTU 230V, almond cabinet
Shop all Pentair

Pentair UltraTemp 140 Heat Pump 143K BTU 230V, Almond, 460934

Ask a questionMPN 460934
$6,59999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Dual thermostats Digital controls hold separate setpoints, which is what a pool and spa combination needs to avoid overheating and wasted energy.
  • AutoSet temperature control Standard on the UltraTemp. It watches water temperature and starts and stops the pump as needed, overriding the time clock to hold the setting.
  • Plain English display The LCD control board runs a menu driven readout in full words, so there are no fault codes to look up.
  • Self diagnostics The control software monitors the system continuously and reports problems rather than leaving you guessing.
  • Titanium tubing The refrigerant to water tubing is titanium, the material that stands up to pool water and salt.
  • Automation ready Built to pair with IntelliTouch and EasyTouch, which move the heat pump instructions and displays onto the central controller.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair UltraTemp 140 Heat Pump 143K BTU 230V, Almond, 460934, SKU PUR-15-0934. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair UltraTemp 140 Heat Pump 143K BTU 230V, Almond, 460934
Pentair

UltraTemp 140 Heat Pump 143K BTU 230V, Almond, 460934

$6,59999
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000 Web Price Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800 Web Price Raypak Crosswind V Deluxe heat and chill pool heat pump TWPH-8550EHC08, quarter view Raypak Crosswind V Deluxe Heat and Chill, 137,000 BTU with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHC08$5,20000 Web Price Madimack InverELITE INVELITE084 84,000 BTU inverter heat and cool pump Madimack InverElite 84,000 Heat and Cool Inverter Heat Pump, Rated 76,000 BTU/hr, INVELITE084$6,23000 Web Price Madimack InverTITAN INVTIT140 inverter heat and cool pool pump, 140,000 BTU Madimack InverTitan 140,000 Heat and Cool Inverter Heat Pump, Rated 133,000 BTU/hr, INVTIT140$7,35000 Web Price Glacier Pool Coolers GPC-215 Iceburg pool cooler Glacier Pool Coolers Iceburg Pool Cooler, up to 45,000 Gallons, GPC-215$4,09199 Pentair UltraTemp HeatCool Pump 140K BTU Heat 80K BTU Cool | 460958 Pentair UltraTemp HeatCool Pump 140K BTU Heat 80K BTU Cool | 460958$6,54399 Madimack InverTITAN Inverter Heat & Cool Pump 90,000 BTU | INVTIT090 Madimack InverTitan 90,000 Heat and Cool Inverter Heat Pump, Rated 80,000 BTU/hr, INVTIT090$5,00000 Web Price Madimack InverELITE Inverter Heat & Cool Pump 110,000 BTU 230V 1 Ph 60Hz - 14.8 ~ 6.6 COP | IEV2110 Madimack InverElite 116,000 Heat and Cool Inverter Heat Pump, Rated 105,000 BTU/hr, INVELITE1100$6,90000 Web Price Madimack InverTITAN Inverter Heat & Cool Pump 112,000 BTU | INVTIT112 Madimack InverTitan 112,000 Heat and Cool Inverter Heat Pump, Rated 107,000 BTU/hr, INVTIT112$5,79000 Web Price
Raypak Compact Series Digital Pool Heat Pump Titanium 62K BTU | 16635 Raypak Compact Series Digital Pool Heat Pump Titanium 62K BTU | 016635$3,44900 Web Price Pentair UltraTemp 120Q Quiet High Performance Heat Pump 120K BTU Titanium Heat Exchanger Digital Controls | 460833 Pentair UltraTemp 120Q Quiet High Performance Heat Pump 120K BTU Titanium Heat Exchanger Digital Controls | 460833$5,24899 Glacier Pool Coolers GPC-210 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 30,000 Gallons, GPC-210$3,11899 Madimack InverECO Inverter Heat & Cool Pump 66,000 BTU | INVECO660 Madimack InverEco 66,000 Heat and Cool Inverter Heat Pump, Rated 61,000 BTU/hr, INVECO660$3,11500 Web Price Glacier Pool Coolers GPC-25 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 20,000 Gallons, GPC-25$3,03599 Hayward HeatPro W3HP50HA2 horizontal fan swimming pool heat pump Hayward HeatPro 47,000 BTU Horizontal Fan Swimming Pool Heat Pump, W3HP50HA2$2,99900 Web Price Raypak Crosswind 65-I heat and cool pool heat pump, 65,000 BTU Raypak Crosswind Heat Pump 65-I Heat & Cool, 65,000 BTU, Spiral Titanium Heat Exchanger, Digital Controls, 017741$2,90000 Moov MI650 inverter variable speed pool heat pump, 65K BTU Moov MI650 Inverter Variable Speed Heat Pump, Rated 61,500 BTU/hr, MI650$2,89900 Web Price Moov MI500 50K BTU inverter variable speed pool heat pump Moov MI500 Inverter Variable Speed Heat Pump, Rated 45,500 BTU/hr, MI500$2,39900 Web Price Raypak 017740 Crosswind 50-I-R heat and cool pump, front view Raypak Crosswind 50-I-R Heat & Cool Pump, 50,000 BTUH, Spiral Titanium Heat Exchanger, Digital Controls, 017740$2,06500 Web Price

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair UltraTemp 140, part number 460934, is a 143,000 BTU pool heat pump on 230 volt single phase power, finished in almond. It heats by moving heat out of the air rather than burning fuel, which is why a heat pump costs less to run over a season than a gas heater of similar output.

Control

The digital control board carries dual thermostats, so a pool and spa combination can be held at two different setpoints without overheating either one. AutoSet temperature control is standard: it watches the water and calls the pump on and off as needed, overriding the time clock so the water holds temperature instead of only heating during a scheduled filter run. The LCD readout uses full word messages rather than codes, and the self diagnostic software keeps watch on the system in the background. The heat pump is ETL listed.

Built to last outdoors

The cabinet is a corrosion resistant composite rather than sheet metal, which is the part of a heat pump that usually looks tired first on a pad exposed to sun and pool chemistry. The refrigerant to water tubing is titanium, the material chosen for salt water and aggressive chemistry.

Installation and automation

Plumbing connections are 2 inch, matching most residential equipment pads. If the pool already runs on IntelliTouch or EasyTouch, the UltraTemp is designed to join it, and its instructions and displays move onto the central control system alongside the rest of the pad.

Specifications
Brand Pentair
Manufacturer part number 460934
Model UltraTemp 140
UPC 788379859794
Type Pool heat pump
Heat output 145,000 BTU/hr at 80F air, 80F water, 80 percent humidity, by the maker
COP 5.8 at 80/80/80; 5.6 at 80F air, 63 percent humidity; 4.0 at 50F air, 63 percent humidity
Heat output at 80F air, 63 percent humidity 135,000 BTU/hr
Heat output at 50F air, 63 percent humidity 90,000 BTU/hr
Electrical 230 V, single phase, 60 Hz
Breaker 50 A
Heat exchanger Titanium
Dimensions 39 x 31 x 44.5 in, by Pentair
Color Almond
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

How many BTU is the Pentair UltraTemp 140, 460934?
145,000 BTU/hr at 80F air, 80F water and 80 percent humidity, by Pentair's brochure. A heat pump's rating depends on the air it breathes. The makers rate at 80F air, 80F water and 80 percent humidity, and the figure falls as the air cools: the rows on this page give all three of the standard points.
What breaker does the Pentair 460934 need?
50 A, on 230 V single phase, by Pentair's brochure.
What is the heat exchanger on the Pentair 460934?
Titanium, which Pentair says is corrosion resistant.
What is the difference between UltraTemp 460934 and 460958?
460958 is the heat and cool version. Pentair rates 460934 at 145,000 BTU/hr of heat and 460958 at 140,000, plus 71,000 BTU/hr of cooling.
What size pool is the Pentair 460934 for?
Our pool heater size calculator works out the BTU a pool needs from its surface, the rise you want and the wind, and says which of these figures to compare it with.
