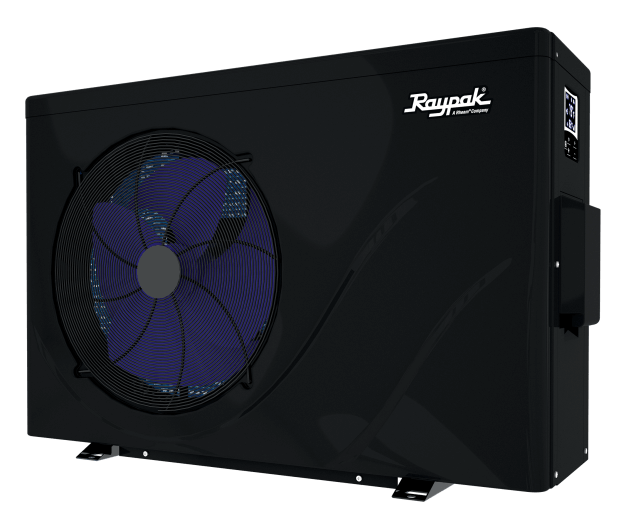

Raypak Crosswind 65-I heat and cool pool heat pump, 65,000 BTURaypak Crosswind Heat Pump 65-I Heat & Cool, 65,000 BTU, Spiral Titanium Heat Exchanger, Digital Controls, 017741 In stock$2,90000

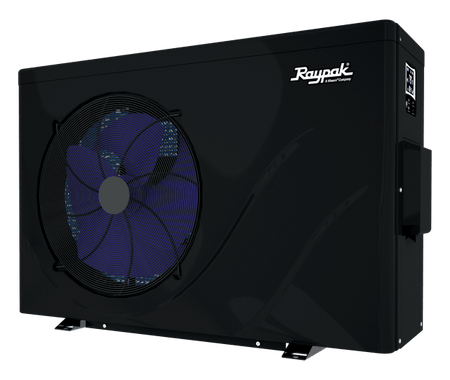

Raypak Crosswind 65-I heat and cool pool heat pump, 65,000 BTU
Shop all Raypak

Raypak Crosswind Heat Pump 65-I Heat & Cool, 65,000 BTU, Spiral Titanium Heat Exchanger, Digital Controls, 017741

Ask a questionMPN 017741
$2,90000
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Heats and cools 65,000 BTU of heating, with a cooling mode for pools that run too warm in summer.
  • Inverter technology The compressor adjusts its speed to the load instead of cycling on and off, which cuts energy use.
  • Spiral titanium heat exchanger Titanium stands up to pool and spa water chemistry.
  • Digital controls Set a temperature and the Crosswind holds it.
  • Quiet Inverter operation keeps noise low next to the pool and patio.
  • Compact cabinet A smaller footprint makes it easier to place on the equipment pad.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak Crosswind Heat Pump 65-I Heat & Cool, 65,000 BTU, Spiral Titanium Heat Exchanger, Digital Controls, 017741, SKU RHM-15-7132. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak Crosswind Heat Pump 65-I Heat & Cool, 65,000 BTU, Spiral Titanium Heat Exchanger, Digital Controls, 017741
Raypak

Crosswind Heat Pump 65-I Heat & Cool, 65,000 BTU, Spiral Titanium Heat Exchanger, Digital Controls, 017741

$2,90000
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800 Web Price Raypak 017740 Crosswind 50-I-R heat and cool pump, front view Raypak Crosswind 50-I-R Heat & Cool Pump, 50,000 BTUH, Spiral Titanium Heat Exchanger, Digital Controls, 017740$2,06500 Web Price Raypak Crosswind V TWPH-5550EHT08 102,000 BTU pool heat pump, quarter view Raypak Crosswind V Heat Pump, 102,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-5550EHT08$4,30000 Web Price Moov MI650 inverter variable speed pool heat pump, 65K BTU Moov MI650 Inverter Variable Speed Heat Pump, Rated 61,500 BTU/hr, MI650$2,89900 Web Price Hayward HeatPro W3HP50HA2 horizontal fan swimming pool heat pump Hayward HeatPro 47,000 BTU Horizontal Fan Swimming Pool Heat Pump, W3HP50HA2$2,99900 Web Price Moov MI500 50K BTU inverter variable speed pool heat pump Moov MI500 Inverter Variable Speed Heat Pump, Rated 45,500 BTU/hr, MI500$2,39900 Web Price Glacier Pool Coolers GPC-215 Iceburg pool cooler Glacier Pool Coolers Iceburg Pool Cooler, up to 45,000 Gallons, GPC-215$4,31399 Glacier Pool Coolers GPC-210 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 30,000 Gallons, GPC-210$3,11899 Glacier Pool Coolers GPC-25 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 20,000 Gallons, GPC-25$3,03599 Madimack InverECO Inverter Heat & Cool Pump 66,000 BTU | INVECO660 Madimack InverEco 66,000 Heat and Cool Inverter Heat Pump, Rated 61,000 BTU/hr, INVECO660$3,11500 Web Price
Raypak Compact Series Digital Pool Heat Pump Titanium 62K BTU | 16635 Raypak Compact Series Digital Pool Heat Pump Titanium 62K BTU | 016635$3,44900 Web Price Raypak Crosswind V Deluxe heat and chill pool heat pump, quarter view Raypak Crosswind V Deluxe Heat and Chill, 115,000 BTU with Titanium Heat Exchanger and Digital Controls, TWPH-6550EHC08$4,80000 Web Price Madimack InverTITAN Inverter Heat & Cool Pump 90,000 BTU | INVTIT090 Madimack InverTitan 90,000 Heat and Cool Inverter Heat Pump, Rated 80,000 BTU/hr, INVTIT090$5,00000 Web Price Pentair UltraTemp 120Q Quiet High Performance Heat Pump 120K BTU Titanium Heat Exchanger Digital Controls | 460833 Pentair UltraTemp 120Q Quiet High Performance Heat Pump 120K BTU Titanium Heat Exchanger Digital Controls | 460833$5,24899 Madimack InverTITAN Inverter Heat & Cool Pump 112,000 BTU | INVTIT112 Madimack InverTitan 112,000 Heat and Cool Inverter Heat Pump, Rated 107,000 BTU/hr, INVTIT112$5,79000 Web Price Madimack InverELITE INVELITE084 84,000 BTU inverter heat and cool pump Madimack InverElite 84,000 Heat and Cool Inverter Heat Pump, Rated 76,000 BTU/hr, INVELITE084$6,23000 Web Price Pentair UltraTemp HeatCool Pump 140K BTU Heat 80K BTU Cool | 460958 Pentair UltraTemp HeatCool Pump 140K BTU Heat 80K BTU Cool | 460958$6,54399 Pentair 460934 UltraTemp 140 heat pump, 143K BTU 230V, almond cabinet Pentair UltraTemp 140 Heat Pump 143K BTU 230V, Almond, 460934$6,59999 Madimack InverELITE Inverter Heat & Cool Pump 110,000 BTU 230V 1 Ph 60Hz - 14.8 ~ 6.6 COP | IEV2110 Madimack InverElite 116,000 Heat and Cool Inverter Heat Pump, Rated 105,000 BTU/hr, INVELITE1100$6,90000 Web Price Madimack InverTITAN INVTIT140 inverter heat and cool pool pump, 140,000 BTU Madimack InverTitan 140,000 Heat and Cool Inverter Heat Pump, Rated 133,000 BTU/hr, INVTIT140$7,35000 Web Price

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Product details

The Raypak Crosswind 65-I is a 65,000 BTU inverter heat pump that heats and cools pool and spa water. Instead of running flat out and cycling off, the inverter adjusts the compressor speed to match the demand, which is what makes the Crosswind both quieter and cheaper to run than a fixed speed heat pump.

Built around titanium

The heat exchanger is a spiral titanium coil, the material of choice for pool and spa water because it shrugs off chlorine and salt. Digital controls set and hold the water temperature.

Fits where others do not

The cabinet is compact, which simplifies placement on a crowded equipment pad. It runs on 208/230V, 60Hz. This is the 65-I-R, part number 017741, and it ships by freight.

Specifications
Brand Raypak
Manufacturer part number 017741
Model Crosswind 65-I (65-I-R)
UPC 840891042426
Type Inverter pool heat pump, heat and cool
Heat output 61,000 BTU/hr at 80F air, 80F water, 80 percent humidity, by the manufacturer
COP 5.7 at 80/80/80; 5.3 at 80F air, 63 percent humidity; 4.1 at 50F air, 63 percent humidity
Heat output at 80F air, 63 percent humidity 57,650 BTU/hr
Heat output at 50F air, 63 percent humidity 24,500 BTU/hr
Electrical 208 to 230 V, single phase, 60 Hz
Power input 1.55 kW
Minimum circuit amps 20 A
Breaker 25 A maximum
Heat exchanger Spiral titanium
Water connections 1-1/2 in PVC unions
Water flow 28.5 to 37.5 GPM
Cabinet Weatherproof plastic
Controls LCD digital
Shipping weight 157 lb
Warranty 1 year labor, 2 years parts, by Raypak
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000 Web Price Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800 Web Price Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900 Web Price Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4199 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

How many BTU is the Raypak Crosswind 65-I-R?
61,000 BTU/hr at 80F air, 80F water and 80 percent humidity, by Raypak's catalog. A heat pump's rating depends on the air it breathes. The manufacturers rate at 80F air, 80F water and 80 percent humidity, and the figure falls as the air cools: the rows on this page give all three of the standard points.
What breaker does the Raypak Crosswind 65-I-R need?
25 A maximum, with a minimum circuit of 20 A, on 208 to 230 V single phase, by Raypak's catalog.
Does the Crosswind 65-I-R cool as well as heat?
Yes. Raypak lists heat and cool mode as standard on the 50-I and 65-I.
What size pool is the Crosswind 65-I-R for?
Our pool heater size calculator works out the BTU a pool needs from its surface, the rise you want and the wind, and says which of these figures to compare it with.
What warranty does Raypak give the Crosswind 65-I-R, 017741?
One year labor and two years parts, by Raypak's catalog.
