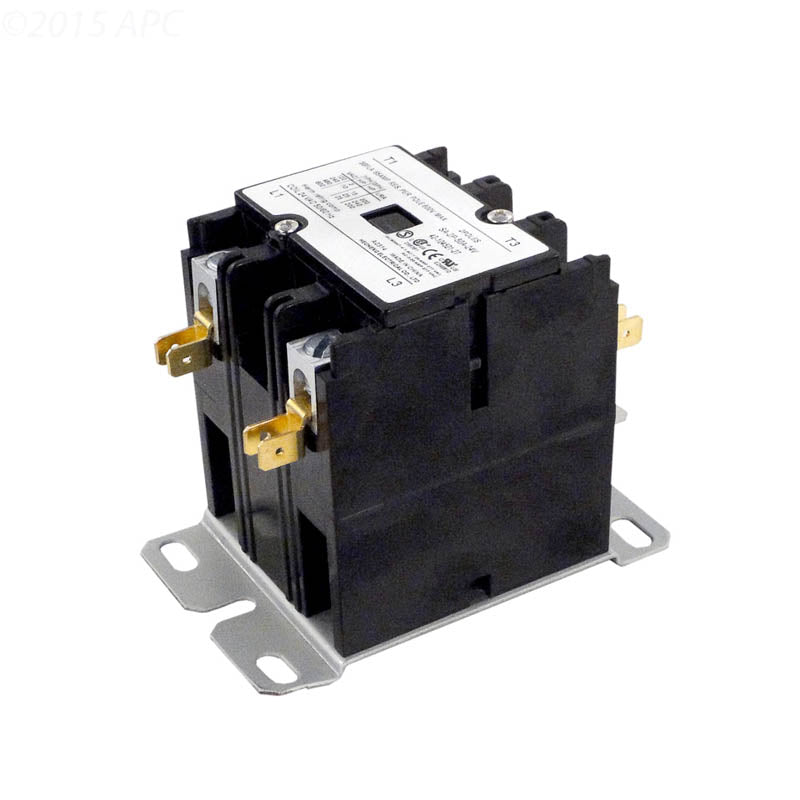

Raypak H000043 50 amp contactor for model 5100, 6100 and 5100Ti pool heatersRaypak 50 Amp Contactor for Model 5100, 6100, 5100Ti Pool Heaters, H000043 In stock$6299
Raypak H000043 50 amp contactor for model 5100, 6100 and 5100Ti pool heaters
Shop all Raypak

Raypak 50 Amp Contactor for Model 5100, 6100, 5100Ti Pool Heaters, H000043

Ask a questionMPN H000043
$6299
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Raypak Factory contactor H000043, matched to these models.
  • 50 amp rating Sized for the current these units draw, so a lower rated substitute is not a safe swap.
  • Three models covered Listed for the Raypak model 5100, 6100 and 5100Ti pool heaters.
  • Switches the main load The contactor is the heavy relay that connects power when the control board calls for heat.
  • Contacts wear out Pitted or welded contacts are a classic cause of a unit that will not start, or one that will not shut off.
  • Cheaper than chasing symptoms A failing contactor mimics bigger faults, so it is worth ruling out early.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak 50 Amp Contactor for Model 5100, 6100, 5100Ti Pool Heaters, H000043, SKU RAY-151-1227. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak 50 Amp Contactor for Model 5100, 6100, 5100Ti Pool Heaters, H000043
Raypak

50 Amp Contactor for Model 5100, 6100, 5100Ti Pool Heaters, H000043

$6299
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347
Raypak

Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347

$29699
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329
Raypak

100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329

$10299
Raypak Water Flow Switch for Crosswind Pool Heaters, 018146F
Raypak

Water Flow Switch for Crosswind Pool Heaters, 018146F

$13599
Raypak Water Unions and O-Ring for Crosswind Pool Heaters, 018155F
Raypak

Water Unions and O-Ring for Crosswind Pool Heaters, 018155F

$15199
Raypak Water Pressure Switch for Model 5100, 6100, 5100ti Pool Heater, H000025
Raypak

Water Pressure Switch for Model 5100, 6100, 5100ti Pool Heater, H000025

$4899
Raypak 5450/6450/8450 Heat Pump Switch Decal Membrane, H000326
Raypak

5450/6450/8450 Heat Pump Switch Decal Membrane, H000326

$8299
Subtotal

Similar products

Other products people compare with this one.

Raypak H000078 low pressure switch for heat pump pool heaters Raypak H000078 Low Pressure Switch for 2350, 3350, 4350, 5350, 6350 and 8350 Heat Pumps$6799 Raypak H000077 12 ton TX valve for R8350 and P8350 heat pump pool heaters Raypak 12 Ton TX Valve for R8350/P8350 Heat Pump Pool Heater, H000077$35999

Product details

The Raypak H000043 is the 50 amp contactor used in the model 5100, 6100 and 5100Ti pool heaters. It is the genuine Raypak part.

What it does

A contactor is a heavy duty relay. The control side of the unit sends a small signal to the contactor coil, the coil pulls a set of large contacts closed, and full line current flows through to the main load. Every heat cycle passes through those contacts.

How it fails

Making and breaking high current arcs the contact faces. Over years they pit, carbon up, and either stop conducting or, at the other extreme, weld themselves shut. A heater that will not start when it calls for heat, or one that will not stop when it should, points straight at the contactor.

Use the right part

The 50 amp rating is only part of the story. Coil voltage, terminal arrangement and mounting all have to match, which is why the Raypak part number is the sensible replacement rather than a generic contactor of the same amperage.

Specifications
Brand Raypak
Manufacturer part number H000043
UPC 840891025443
Type Contactor
Rating 50 amp
Fits Raypak model 5100, 6100, 5100Ti pool heaters
Shipping weight 2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5199 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000 Web Price Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$25199 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800 Web Price Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900 Web Price Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4799 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$86999 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$37499 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which units does it fit?
Raypak lists H000043 for the model 5100, 6100 and 5100Ti pool heaters.
What does the contactor do?
It is the heavy duty relay that connects line power to the main load. A low current signal from the control energizes the coil, which pulls the contacts closed and passes the full current through.
Can I use a different 50 amp contactor?
Use the Raypak part. The rating is only one factor, and coil voltage, mounting and terminal layout all have to match for the replacement to drop in.
How do I know the contactor has failed?
Two patterns. If the coil is dead or the contacts are burnt open, the unit never starts when it calls for heat. If the contacts have welded closed, the unit will not shut off when it should.
Ask your own question
