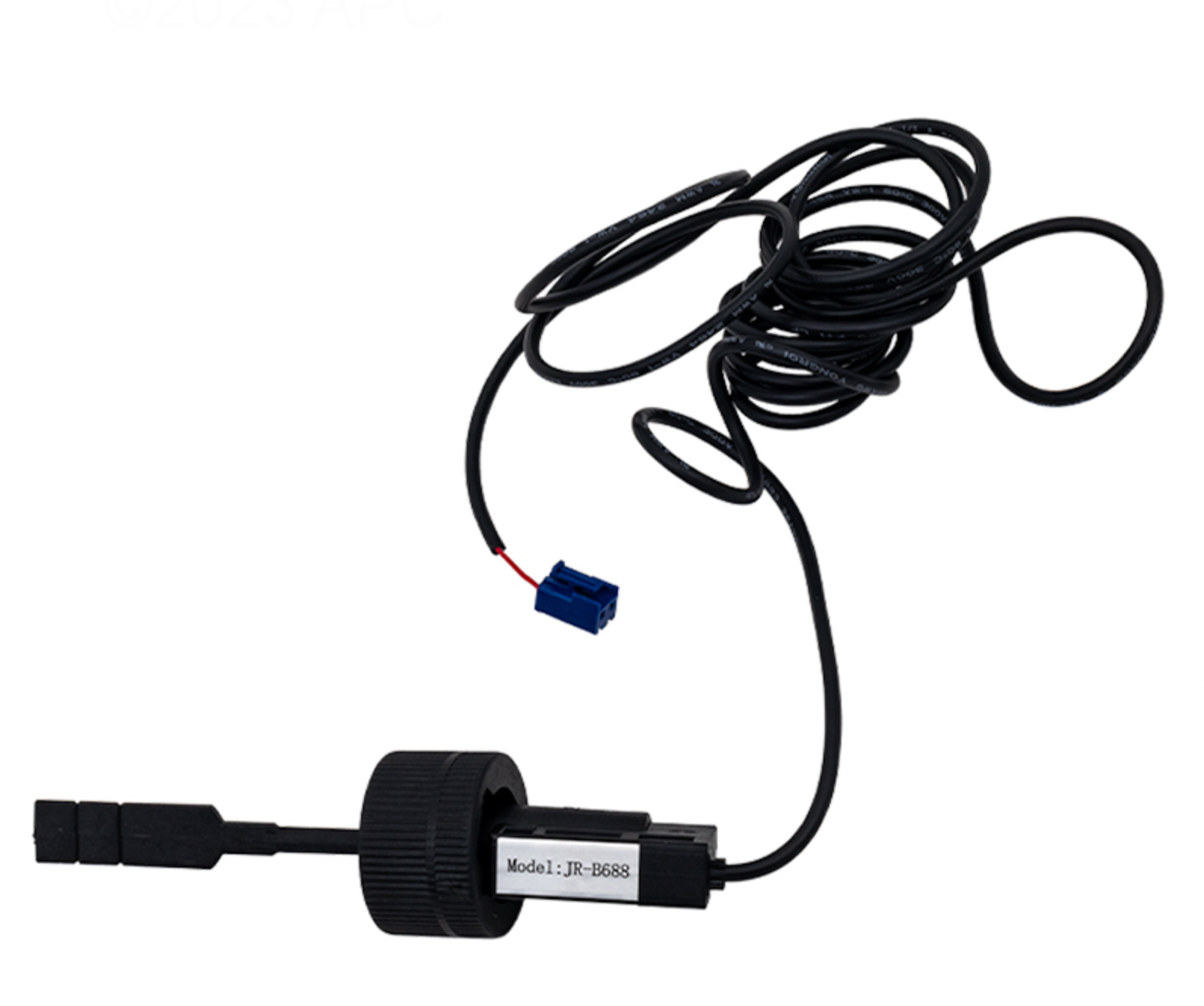

Raypak 018146F water flow switch for Crosswind pool heatersRaypak Water Flow Switch for Crosswind Pool Heaters, 018146F In stock$13999
Raypak 018146F water flow switch for Crosswind pool heaters
Shop all Raypak

Raypak Water Flow Switch for Crosswind Pool Heaters, 018146F

Ask a questionMPN 018146F
$13999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits seven Crosswind models I-30, I-40, I-50, I-65, O-40, O-50 and O-65.
  • Genuine Raypak Factory part 018146F, the switch the heater was built with.
  • Safety interlock The flow switch tells the heater there is water moving before it allows the unit to fire.
  • Common no heat cause A failed switch reads no flow even when the pump is running, and the heater will not start.
  • Built for the inverter platform The Crosswind uses inverter technology to hold pool temperature quietly and efficiently, and it will not run without a working flow signal.
  • Indoor and outdoor models The I series and the O series Crosswind heaters both use this switch.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak Water Flow Switch for Crosswind Pool Heaters, 018146F, SKU RAY-151-7681. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak Water Flow Switch for Crosswind Pool Heaters, 018146F
Raypak

Water Flow Switch for Crosswind Pool Heaters, 018146F

$13999
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347
Raypak

Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347

$29699
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329
Raypak

100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329

$10699
Raypak Water Unions and O-Ring for Crosswind Pool Heaters, 018155F
Raypak

Water Unions and O-Ring for Crosswind Pool Heaters, 018155F

$15699
Raypak Water Pressure Switch for Model 5100, 6100, 5100ti Pool Heater, H000025
Raypak

Water Pressure Switch for Model 5100, 6100, 5100ti Pool Heater, H000025

$4999
Raypak 5450/6450/8450 Heat Pump Switch Decal Membrane, H000326
Raypak

5450/6450/8450 Heat Pump Switch Decal Membrane, H000326

$8599
Raypak H000078 Low Pressure Switch for 2350, 3350, 4350, 5350, 6350 and 8350 Heat Pumps
Raypak

H000078 Low Pressure Switch for 2350, 3350, 4350, 5350, 6350 and 8350 Heat Pumps

$6999
Subtotal

Similar products

Other products people compare with this one.

Raypak H000043 50 amp contactor for model 5100, 6100 and 5100Ti pool heaters Raypak 50 Amp Contactor for Model 5100, 6100, 5100Ti Pool Heaters, H000043$6499 Raypak H000077 12 ton TX valve for R8350 and P8350 heat pump pool heaters Raypak 12 Ton TX Valve for R8350/P8350 Heat Pump Pool Heater, H000077$37099

Product details

The Raypak 018146F is the water flow switch for Crosswind pool and spa heaters. It is a genuine Raypak product and fits Crosswind models I-30, I-40, I-50, I-65, O-40, O-50 and O-65.

What it does

The flow switch is a safety interlock. It has to see water moving through the heater before the control will let the unit run. That protects the heat exchanger from firing against still water, and it is why a heater with a failed switch simply refuses to start.

Diagnosing it

A no flow message with the pump running points at low flow first: a dirty filter, a partly closed valve, a low water level or a blocked impeller. If the plumbing checks out and flow is good, the switch has failed and a new one puts the heater back in service.

About the Crosswind

The Crosswind is built around inverter technology that adjusts continuously to hold pool temperature, which is what makes it quiet and efficient. That control depends on knowing water is moving, so the flow switch is not an optional part of the system.

Specifications
Brand Raypak
Manufacturer part number 018146F
UPC 840891044109
Type Water flow switch
Part type Pool heater part
Fits Raypak Crosswind I-30, I-40, I-50, I-65, O-40, O-50, O-65
Shipping weight 0.38 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5699 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000 Web Price Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$25899 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800 Web Price Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$33499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900 Web Price Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4899 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$42099 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8499 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10699 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$93899 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$84199 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,33299 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$38699 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which heaters does this switch fit?
Raypak Crosswind models I-30, I-40, I-50, I-65, O-40, O-50 and O-65.
What does a water flow switch do?
It confirms water is moving through the heater. Until it closes, the heater will not fire, which protects the unit from running dry.
My Crosswind says no flow but the pump is running. Is this the part?
It is the first thing to check, along with a dirty filter, a closed valve or a low water level. If the plumbing is clear and flow is good, the switch itself is the likely fault.
Is this a genuine Raypak part?
Yes. It is Raypak OEM part 018146F.
