AquaCal HeatWave SuperQuiet IceBreaker SQ200R heat and cool pump, front viewAquaCal HeatWave SuperQuiet IceBreaker SQ200R Heat & Cool Pump, SQ200ARDSPBPA$6,45000 Web Price

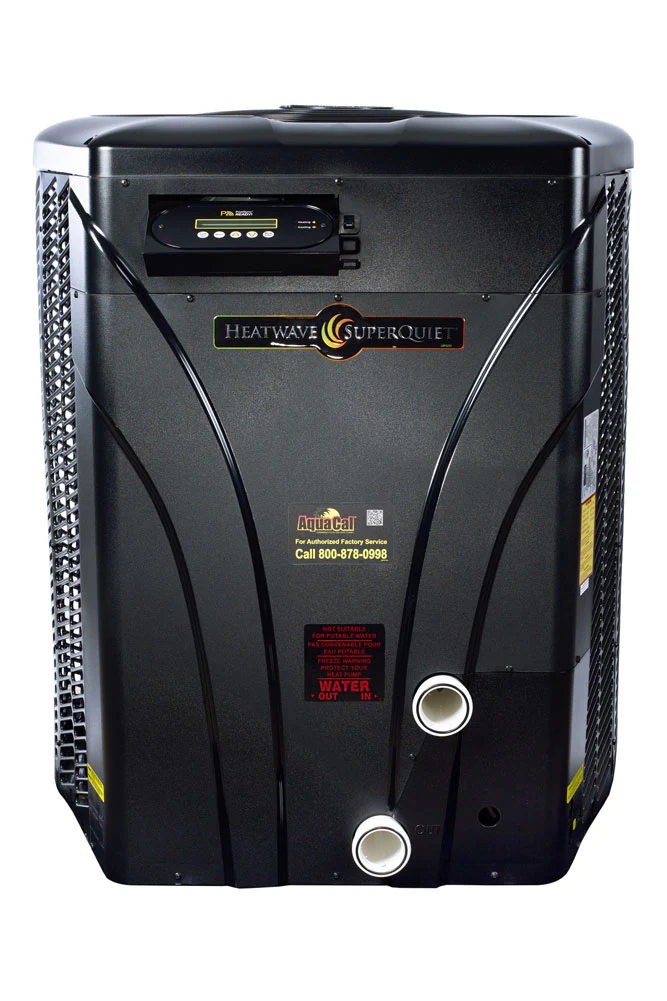

AquaCal HeatWave SuperQuiet IceBreaker SQ200R heat and cool pump, front view
Shop all AquaCal

AquaCal HeatWave SuperQuiet IceBreaker SQ200R Heat & Cool Pump, SQ200ARDSPBPA

Ask a questionMPN SQ200ARDSPBPA
$6,45000 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
Out of stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 138K BTU heat and cool One unit heats the pool in cool weather and chills it in hot weather.
  • ThermoLink titanium heat exchanger Patented exchanger whose flow characteristics let the pool pump run at lower RPM.
  • Only 2 PSI at 45 GPM Low restriction keeps it compatible with two speed and variable speed pumps.
  • SuperQuiet series The quietest line AquaCal builds.
  • 3 phase power 208-230V 60Hz three phase supply; confirm your service before ordering.
  • Pairs with a variable speed pump Lower pump RPM through the exchanger means lower running cost.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About AquaCal HeatWave SuperQuiet IceBreaker SQ200R Heat & Cool Pump, SQ200ARDSPBPA, SKU PSU-203098. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item AquaCal HeatWave SuperQuiet IceBreaker SQ200R Heat & Cool Pump, SQ200ARDSPBPA
AquaCal

HeatWave SuperQuiet IceBreaker SQ200R Heat & Cool Pump, SQ200ARDSPBPA

$6,45000 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000 Web Price Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800 Web Price Raypak Crosswind V Deluxe heat and chill pool heat pump TWPH-8550EHC08, quarter view Raypak Crosswind V Deluxe Heat and Chill, 137,000 BTU with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHC08$5,20000 Web Price Madimack InverELITE INVELITE084 84,000 BTU inverter heat and cool pump Madimack InverElite 84,000 Heat and Cool Inverter Heat Pump, Rated 76,000 BTU/hr, INVELITE084$6,23000 Web Price Madimack InverTITAN INVTIT140 inverter heat and cool pool pump, 140,000 BTU Madimack InverTitan 140,000 Heat and Cool Inverter Heat Pump, Rated 133,000 BTU/hr, INVTIT140$7,35000 Web Price Glacier Pool Coolers GPC-215 Iceburg pool cooler Glacier Pool Coolers Iceburg Pool Cooler, up to 45,000 Gallons, GPC-215$4,31399 Pentair 460934 UltraTemp 140 heat pump, 143K BTU 230V, almond cabinet Pentair UltraTemp 140 Heat Pump 143K BTU 230V, Almond, 460934$6,47099 Pentair UltraTemp HeatCool Pump 140K BTU Heat 80K BTU Cool | 460958 Pentair UltraTemp HeatCool Pump 140K BTU Heat 80K BTU Cool | 460958$6,54399 Madimack InverTITAN Inverter Heat & Cool Pump 90,000 BTU | INVTIT090 Madimack InverTitan 90,000 Heat and Cool Inverter Heat Pump, Rated 80,000 BTU/hr, INVTIT090$5,00000 Web Price Madimack InverELITE Inverter Heat & Cool Pump 110,000 BTU 230V 1 Ph 60Hz - 14.8 ~ 6.6 COP | IEV2110 Madimack InverElite 116,000 Heat and Cool Inverter Heat Pump, Rated 105,000 BTU/hr, INVELITE1100$6,90000 Web Price
Madimack InverTITAN Inverter Heat & Cool Pump 112,000 BTU | INVTIT112 Madimack InverTitan 112,000 Heat and Cool Inverter Heat Pump, Rated 107,000 BTU/hr, INVTIT112$5,79000 Web Price Pentair UltraTemp 120Q Quiet High Performance Heat Pump 120K BTU Titanium Heat Exchanger Digital Controls | 460833 Pentair UltraTemp 120Q Quiet High Performance Heat Pump 120K BTU Titanium Heat Exchanger Digital Controls | 460833$5,24899 Raypak Compact Series Digital Pool Heat Pump Titanium 62K BTU | 16635 Raypak Compact Series Digital Pool Heat Pump Titanium 62K BTU | 016635$3,44900 Web Price Glacier Pool Coolers GPC-210 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 30,000 Gallons, GPC-210$3,11899 Madimack InverECO Inverter Heat & Cool Pump 66,000 BTU | INVECO660 Madimack InverEco 66,000 Heat and Cool Inverter Heat Pump, Rated 61,000 BTU/hr, INVECO660$3,11500 Web Price Glacier Pool Coolers GPC-25 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 20,000 Gallons, GPC-25$3,03599 Hayward HeatPro W3HP50HA2 horizontal fan swimming pool heat pump Hayward HeatPro 47,000 BTU Horizontal Fan Swimming Pool Heat Pump, W3HP50HA2$2,99900 Web Price Raypak Crosswind 65-I heat and cool pool heat pump, 65,000 BTU Raypak Crosswind Heat Pump 65-I Heat & Cool, 65,000 BTU, Spiral Titanium Heat Exchanger, Digital Controls, 017741$2,90000 Moov MI650 inverter variable speed pool heat pump, 65K BTU Moov MI650 Inverter Variable Speed Heat Pump, Rated 61,500 BTU/hr, MI650$2,89900 Web Price Moov MI500 50K BTU inverter variable speed pool heat pump Moov MI500 Inverter Variable Speed Heat Pump, Rated 45,500 BTU/hr, MI500$2,39900 Web Price

Product details

The AquaCal HeatWave SuperQuiet IceBreaker SQ200R is a 138K BTU heat pump that both heats and cools the pool, built with AquaCal's ThermoLink titanium heat exchanger and wired for three phase 208-230V 60Hz service. Part number SQ200ARDSPBPA.

Made to run with a variable speed pump

The patented ThermoLink exchanger has flow characteristics that let the pool pump run at lower RPM. Its hydraulic design adds only 2 PSI at 45 GPM, so two speed and variable speed pumps move enough water through the heat pump without stepping up to a costly speed. That is where the running cost savings come from.

Quiet, and reversible

SuperQuiet is AquaCal's low noise line. The IceBreaker version adds cooling, so the same unit that extends the season in spring and fall can pull the water temperature down in the heat of summer.

Before you order

This model needs three phase 208-230V 60Hz power. It ships by freight, so plan for a truck delivery and check the unit on arrival.

Specifications
Brand AquaCal
Manufacturer part number SQ200ARDSPBPA
Model SQ200R
Series HeatWave SuperQuiet IceBreaker
Function Heat and cool
Output 138K BTU
Heat exchanger ThermoLink titanium
Electrical 3 phase, 208-230V, 60Hz
Pressure drop 2 PSI at 45 GPM
Shipping weight 350 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Does it cool as well as heat?
Yes. The IceBreaker is the heat and cool version, so it can chill the pool in summer as well as heat it in the shoulder seasons.
What power does it need?
Three phase, 208-230V, 60Hz. If your panel is single phase, this is not the right unit.
Will it work with a variable speed pump?
Yes. The ThermoLink exchanger adds only 2 PSI at 45 GPM, so the pool pump can run at low RPM and still move enough water through the heat pump.
How does it ship?
By freight on a pallet. Have someone available to receive it and inspect for damage before signing.
Ask your own question
