Jandy R0840300 TruClear 11K cell side cable assembly with wire connectorJandy TruClear Cable Assembly and Cell Side Wire Connector, R0840300 In stock$11199
Jandy R0840300 TruClear 11K cell side cable assembly with wire connector
Shop all Jandy

Jandy TruClear Cable Assembly and Cell Side Wire Connector, R0840300

Ask a questionMPN R0840300
$11199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Jandy OEM the R0840300 cable, not a spliced substitute.
  • Cell side connection the cable and connector that plug into the TruClear cell.
  • For the TruClear the TRUCLEAR11K salt chlorinator, which Jandy rates for pools up to 35,000 gallons.
  • Replaces a damaged lead fixes a chewed, corroded or heat damaged cell cable without replacing the cell.
  • Connector included the cell side wire connector comes on the assembly.
  • Direct swap fits in place of the original cable.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy TruClear Cable Assembly and Cell Side Wire Connector, R0840300, SKU R0840300. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy TruClear Cable Assembly and Cell Side Wire Connector, R0840300
Jandy

TruClear Cable Assembly and Cell Side Wire Connector, R0840300

$11199
Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900
Jandy

TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$29999
Jandy AquaPure Power Interface PCB, Large Backboard with Screws, R0984100
Jandy

AquaPure Power Interface PCB, Large Backboard with Screws, R0984100

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
CompuPool 3-Port 14-Blade Replacement Salt Cell for Jandy AquaPure System, 40,000 Gallons, GRC/J1400-3
CompuPool

3-Port 14-Blade Replacement Salt Cell for Jandy AquaPure System, 40,000 Gallons, GRC/J1400-3

$56799
Subtotal

Similar products

Other products people compare with this one.

Jandy R0621900 winterizing cap for the Pro Series TruClear chlorine generating system Jandy Winterizing Cap for Pro Series TruClear Chlorine Generating System, R0621900$7199 Jandy R0737500 flow switch assembly for AquaPure Ei Series salt chlorine generator cells, product photo Jandy AquaPure Ei Series Flow Switch Assembly for APURE35 Salt Chlorine Generator Cells, R0737500$14399 Jandy R0447500 PureLink wiring harness, back PCB to DC cord Jandy Wiring Harness, PureLink, Back PCB to DC Cord, R0447500$6599 Jandy R0404400 AquaPure control box bottom decal Jandy AquaPure Control Box Bottom Decal, R0404400$6199 Jandy R0694100 o-ring for the Pro Series TruClear salt cell Jandy O-Ring for TruClear Cell, R0694100$1899 Jandy R0802300 TruClear saltwater chlorinator replacement PCB assembly Jandy TruClear PCB Replacement Assembly for Saltwater Chlorinator, R0802300$41899 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999 Jandy R0694000 housing for the Pro Series TruClear chlorine generating system Jandy Housing for TruClear Chlorine Generating System, R0694000$18699 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Jandy R0768200 AquaPure Ei Series locking ring Jandy AquaPure Ei Locking Ring, R0768200$3099
Jandy R0452100 2 in. union and universal tailpiece kit for AquaPure 3-port salt cells Jandy 2" Union/Universal Tailpiece, R0452100$2799 Jandy SP3P AquaPure 2 inch 3-port spool piece and cleaning kit Jandy AquaPure Spool Piece & Cleaning Kit, SP3P$19899

Product details

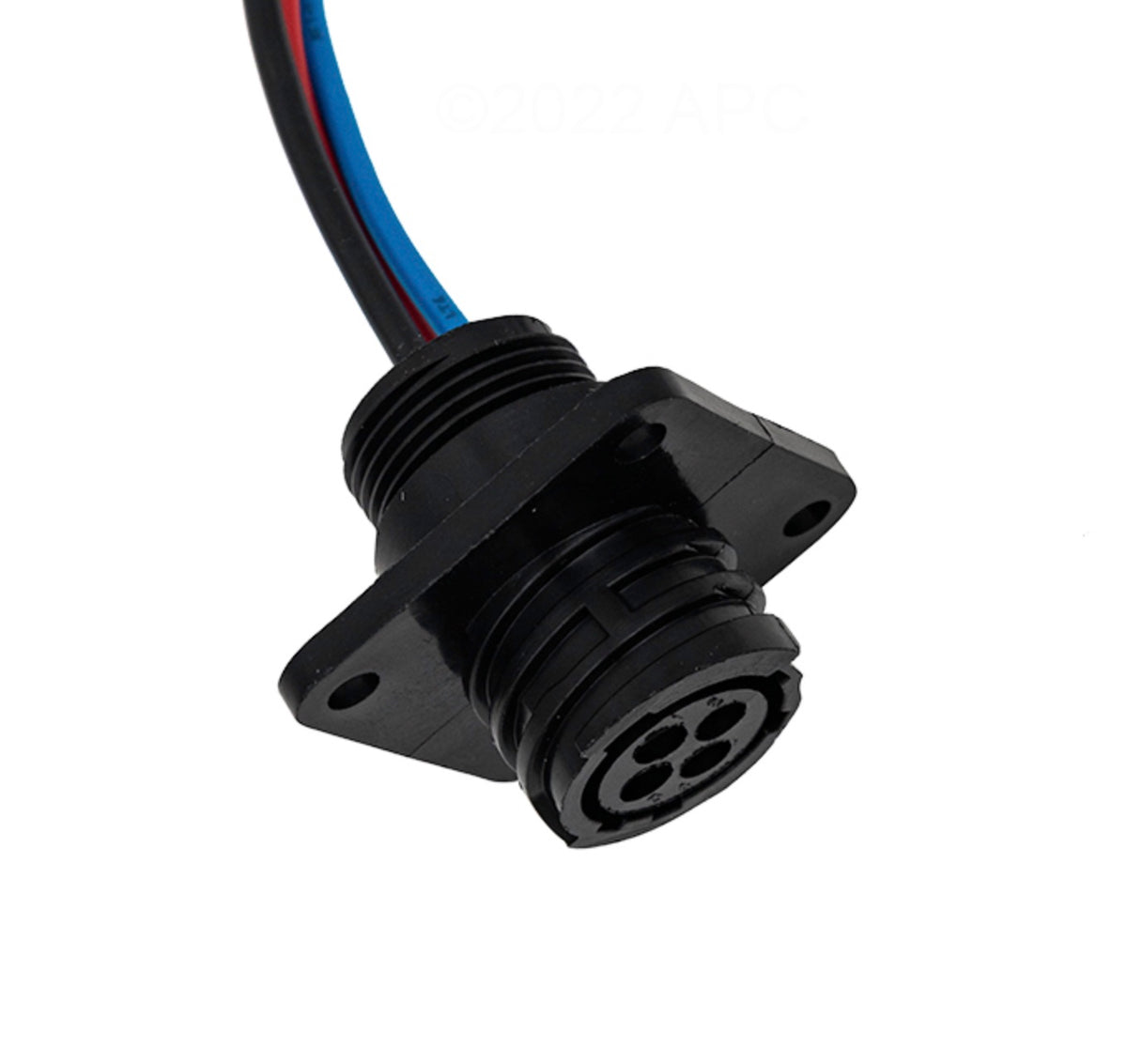

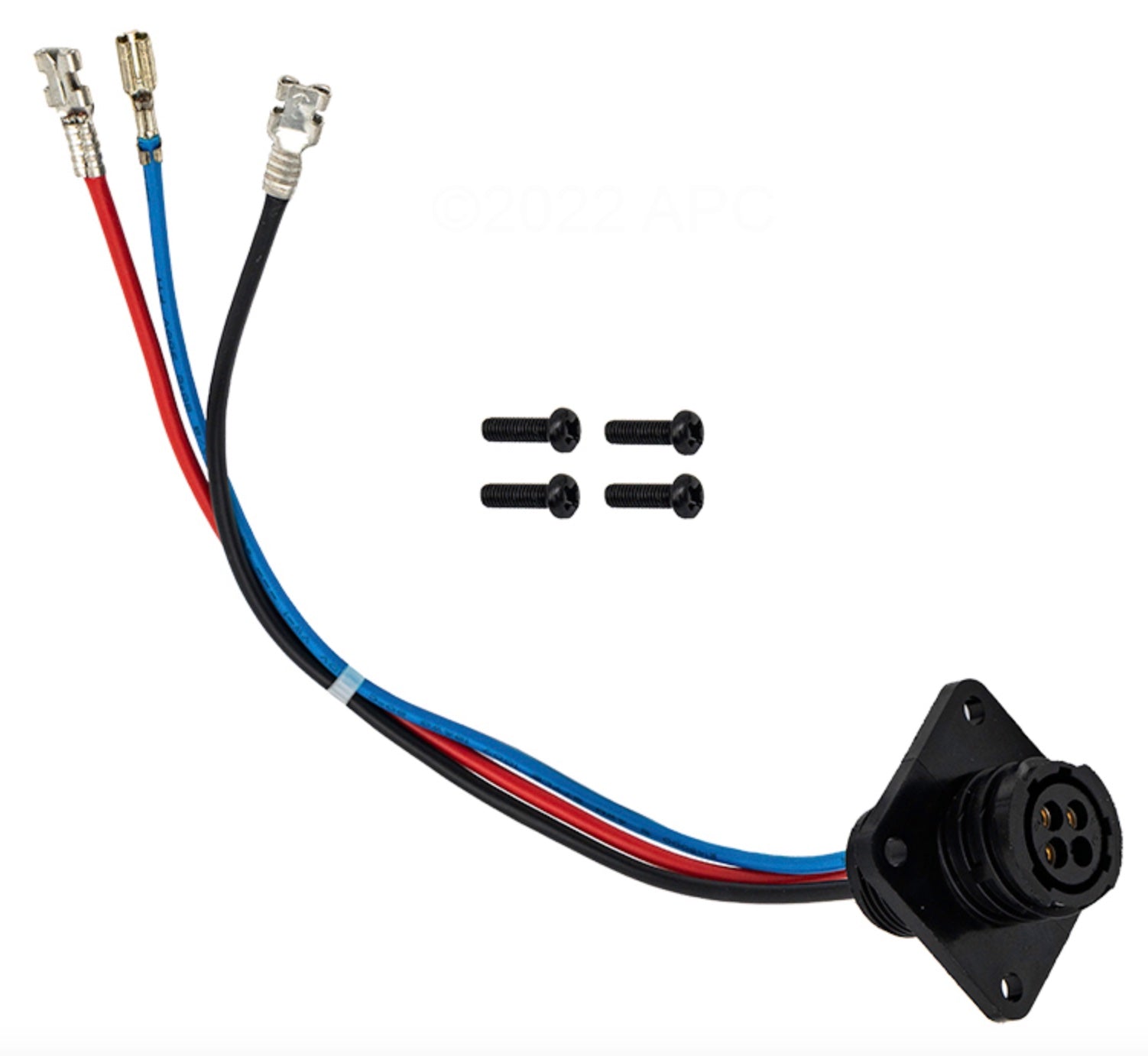

The Jandy R0840300 is the TruClear cable assembly with the cell side wire connector, for the Jandy TruClear salt chlorinator (model TRUCLEAR11K). It is a Jandy part for the electrical connection on the cell side of the system.

How the TruClear connects

Jandy describes the TruClear cell as removable, with an attached cord and a tool-free twist-lock connector for the electrical connection to the power pack. Jandy's manual says the cell must be installed horizontally with the cord facing upwards, so that flammable gases cannot build up around it.

Before you order

Confirm that you have a TruClear before ordering. Jandy lists the TruClear cell (R0693900), cell housing (R0694000), O-ring (R0694100) and power pack (R0802200) as separate parts, so this cable assembly is not any of those. A TruClear treats pools up to 35,000 gallons, produces 18.4 g of chlorine an hour and runs on 120 or 240 VAC.

From Pool School

When to Replace a Salt CellThe life each manufacturer prints, what looks like a dead cell and is not, and choosing the next one. Read How to Clean a Salt CellHose first, acid only on scale that stays, and each manufacturer's own mix and time limit. Read
Specifications
Brand Jandy
Manufacturer part number R0840300
Type Cable assembly with cell side wire connector
Fits Jandy TruClear 11K salt chlorinator
Side Cell side
Genuine OEM Yes
TruClear model TRUCLEAR11K
TruClear pool size Up to 35,000 gallons per unit
Shipping weight 1.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900 Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$29999 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$76899 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy AquaPure Power Interface PCB, Large Backboard with Screws, R0984100$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$91399 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24999 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33199 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

Which chlorinator is this cable for?
The Jandy TruClear 11K.
Is the connector included?
Yes. The cell side wire connector is part of the assembly.
Do I have to replace the cell too?
Not if the cell itself is working. A damaged cable is a common cause of a cell that reads as disconnected, and this replaces just the cable.
Is this the cell side or the power center side?
The cell side. It is the lead that connects to the TruClear cell.
Ask your own question
