Intermatic 300W | 120V to 12V Transformer | PX300Intermatic 300W Pool and Spa Safety Transformer, 120V Input, 12 to 14V Output, Beige Steel Enclosure, PX300 In stock$15699
Intermatic 300W | 120V to 12V Transformer | PX300
Shop all Intermatic

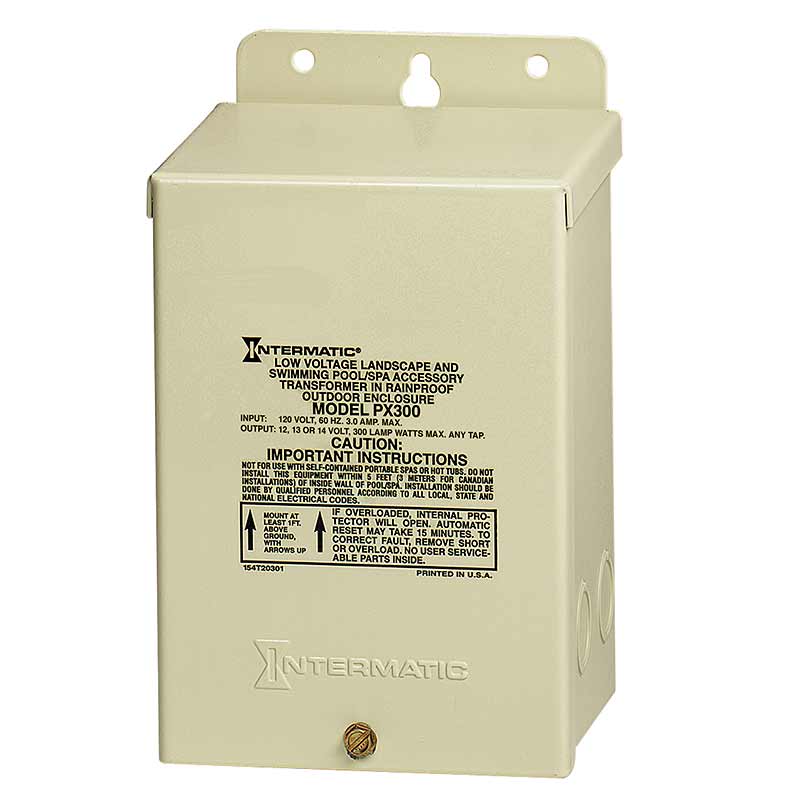

Intermatic 300W Pool and Spa Safety Transformer, 120V Input, 12 to 14V Output, Beige Steel Enclosure, PX300

Ask a questionMPN PX300
$15699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 300 watt safety transformer Supplies 12 volts to pool and spa lights, submersible fixtures and outdoor garden lights.
  • 120V input, 12 to 14V output Output is 12, 13 or 14 volts, selected by the input connections.
  • Grounded safety shield A grounded shield between the primary and secondary windings assures safe operation.
  • Built-in circuit protection An integral automatic reset protector disconnects power in case of defect or overload.
  • NEC 680.23 Complies with NEC 680.23 requirements for underwater luminaires.
  • Weather ready enclosure Two piece steel enclosure with a light beige powder coat finish, mounting brackets top and bottom, and wiring knockouts.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic 300W Pool and Spa Safety Transformer, 120V Input, 12 to 14V Output, Beige Steel Enclosure, PX300, SKU INT-30-745. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic 300W Pool and Spa Safety Transformer, 120V Input, 12 to 14V Output, Beige Steel Enclosure, PX300
Intermatic

300W Pool and Spa Safety Transformer, 120V Input, 12 to 14V Output, Beige Steel Enclosure, PX300

$15699
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7099
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Intermatic On/Off Trippers Set, 156T1978A
Intermatic

On/Off Trippers Set, 156T1978A

$1199
Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121
Intermatic

Heavy Duty 15 Amp Outdoor Timer, P1121

$5499
Intermatic Safety Transformer, 100W, Steel Enclosure, Beige, PX100
Intermatic

Safety Transformer, 100W, Steel Enclosure, Beige, PX100

$12540
Subtotal

Similar products

Other products people compare with this one.

Intermatic 100W 120V to 12V Transformer Stainless Housing | PX100S Intermatic 100W Pool and Spa Safety Transformer, 120V Input, 12 to 14V Output, Stainless Steel Enclosure, PX100S$18099

Product details

The Intermatic PX300 is a 300 watt pool and spa safety transformer with 120V input and 12, 13 or 14V output, in a beige steel enclosure with built-in circuit protection.

What it does

The PX300 is designed to supply 12 volts to pool and spa lights, submersible fixtures and outdoor garden lights. A grounded shield between the primary and secondary windings assures safe operation, and the output voltage is selectable depending on the input connections. It complies with NEC 680.23 requirements for underwater luminaires.

Protection and construction

An integral automatic reset protector disconnects power in case of defect or overload. The transformer is made with a two bobbin process and is vacuum impregnated to resist moisture. The two piece steel enclosure carries an electrostatically applied light beige finish, with the high and low voltage compartments fully exposed when the cover is removed.

Installation notes

Mounting brackets are at the top and bottom of the case. Knockouts are provided for wiring: four on the bottom, two on the right side, one on the left side and one on the back.

Before you order

Add up the wattage of the lights on the circuit and make sure the total stays within the 300 watt rating of the transformer.

Specifications
Brand Intermatic
Manufacturer part number PX300
UPC 078275024106
Type Pool and spa safety transformer
Power 300 W
Input voltage 120 V
Output voltage 12, 13 or 14 V, selected by the input connections
Enclosure Steel, electrostatically applied light beige finish
Mounting Mounting brackets top and bottom
Knockouts 4 bottom, 2 right side, 1 left side, 1 back
Protection Built-in automatic reset circuit protection
Code Complies with NEC 680.23 for underwater luminaires
Shipping weight 11 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9299 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7099 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$5999 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic Safety Transformer, 100W, Steel Enclosure, Beige, PX100$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5499 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$26699 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$26999 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12399 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11199 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$33099 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13499 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor, AG3000$9199 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5099 Intermatic PS3000 surge protector for pool and spa equipment Intermatic Surge Protector for Pool and Spa Equipment, 120/240V, PS3000$11599 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$36399

Questions and answers

What people ask about this product, answered by our pool techs.

What is the Intermatic PX300 used for?
The Intermatic PX300 is a 300 watt safety transformer that supplies 12 volts to pool and spa lights, submersible fixtures and outdoor garden lights.
What are the input and output voltages of the PX300?
The Intermatic PX300 takes 120V input and puts out 12, 13 or 14 volts. The output voltage is selected by how the input is connected.
Does the PX300 have overload protection?
Yes. The Intermatic PX300 has built-in circuit protection, an integral automatic reset protector that disconnects power in case of defect or overload.
How is the Intermatic PX300 mounted and wired?
The PX300 has mounting brackets at the top and bottom and knockouts for wiring: four on the bottom, two on the right side, one on the left side and one on the back.
