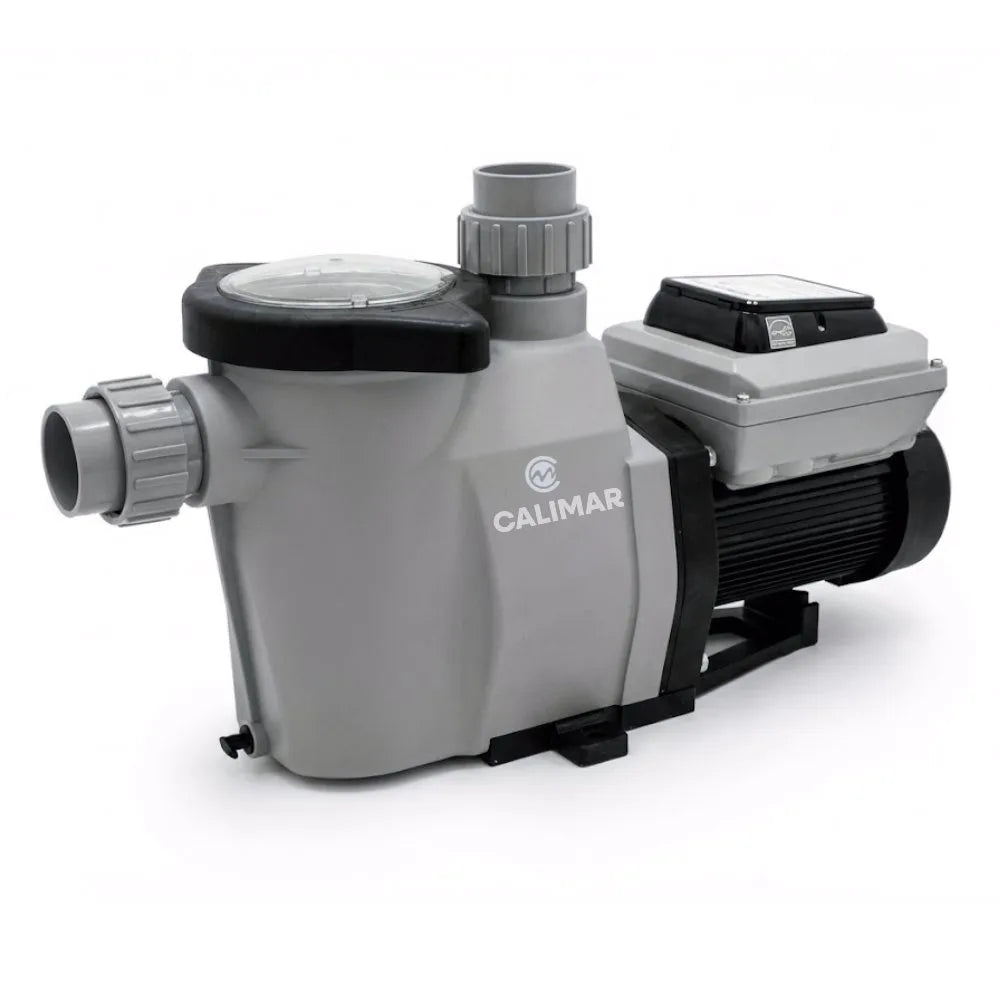

CaliMar CMARVSP1.0 variable speed pool pump with clear strainer lid, 2 in. union connections and top mounted drive housing1 HP Variable Speed 2 in. Threaded Ports CaliMar Pool Pump, 230V, CMARVSP1.0 In stock$64900 Web Price
Overall pickCaliMar CMARVSP1.0 variable speed pool pump with clear strainer lid, 2 in. union connections and top mounted drive housing
Shop all CaliMar

1 HP Variable Speed 2 in. Threaded Ports CaliMar Pool Pump, 230V, CMARVSP1.0

Ask a questionMPN CMARVSP1.0
$64900 $899.99 28% OFF Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Variable speed, 450 to 3450 RPM, so filtration runs slow and quiet and full speed is there when you need it.
  • ENERGY STAR 2.0 listed with a WEF rating of 7.5, the figure most utility rebate programs are written against.
  • Permanent magnet TEFC motor runs cooler and quieter than the induction motor it replaces.
  • 2 in. threaded ports match standard inground plumbing on both suction and discharge.
  • Clear lid, quarter turn lock over a large strainer basket, so clearing leaves needs no tools.
  • Corrosion proof thermoplastic body with a stainless steel shaft and a carbon to ceramic mechanical seal.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About 1 HP Variable Speed 2 in. Threaded Ports CaliMar Pool Pump, 230V, CMARVSP1.0, SKU PSU-199914. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item 1 HP Variable Speed 2 in. Threaded Ports CaliMar Pool Pump, 230V, CMARVSP1.0
CaliMar

1 HP Variable Speed 2 in. Threaded Ports Pool Pump, 230V, CMARVSP1.0

$64900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Polaris 3/4 HP Booster Pump, Complete, PB4-60
Polaris

3/4 HP Booster Pump, Complete, PB4-60

$57599
Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz
Balboa Instruments

Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz

$34699
Polaris Quick Connect Install Kit for Booster Pumps, New Style, R0617100
Polaris

Quick Connect Install Kit for Booster Pumps, New Style, R0617100

$6499
Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S
Balboa

Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S

$36899
Speck Pumps 95-X Single Speed Pool Pump, 7.5 HP 3 Phase, IG273-1750F-000
Speck

Pumps 95-X Single Speed Pool Pump, 7.5 HP 3 Phase, IG273-1750F-000

$5,37400 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Subtotal

Similar products

Other products people compare with this one.

Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo EC-015583 1 HP TEFC pool pump Pentair WhisperFlo 1 HP 115-230V Total Enclosed Fan Cooled Pump, EC-015583$95900 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 2" Threaded Ports, 3HP, CMARVSP3.0$79900 Web Price Hayward W3SP1580X15 Power-Flo LX 1.5 HP above ground pool pump with 6 ft cord Hayward 1.5 HP Power-Flo LX Pump with 6' Cord, W3SP1580X15$41900 Hayward W3SP1580 Power-Flo LX 1 HP 115 V above ground pool pump with 3 ft cord Hayward 1 HP Power-Flo LX Pump with 3' Cord, W3SP1580$39900 Hayward W3SP2605X7 Super Pump 3/4 HP up rated inground pool pump Hayward Super Pump .75 HP UR 115/230V, W3SP2605X7$79900 Web Price CaliMar CMARVSP2.0 2 HP variable speed pool pump with 2 in. threaded ports CaliMar Variable Speed Pool Pump 2 in. Threaded Ports 2HP, CMARVSP2.0$74900 Web Price CMI REV-SS REV single speed primary pool pump, 2 HP CMI REV Single Speed Primary Pool Pump 2 HP, REV-SS$84299 Hayward W3SP1593 Power-Flo Matrix 1.5 HP above ground pool pump with cord Hayward Power-Flo Matrix 1.5HP Pump with 6' Cord, W3SP1593$52900 Web Price
Hayward W3SP1592 PowerFlo Matrix 1 HP above ground pool pump with cord Hayward PowerFlo Matrix 1 HP Above Ground Pool Pump with Cord, W3SP1592$50900 Web Price Waterway Hi-Flo II SD-10-2-N two speed above ground pool pump with NEMA cord Waterway Hi-Flo II 2 Speed Above Ground Pool Pump with 3' NEMA Cord, 1 THP, SD-10-2-N$35499 Hayward Power-Flo Matrix W3SP15932S 1.5 HP two speed above ground pool pump with switch Hayward Power-Flo Matrix 1.5 HP 2 Speed with Switch, W3SP15932S$62900 Web Price Moov MP15VSP dual voltage variable speed inverter pool pump, 1.2 HP Moov VSP Dual Voltage Inverter Pump, 1.2 HP, 115/230V, MP15VSP$89900 Aqua-Flo Flo-Master XP2 2.5 hp 230v two speed spa pump, part 06125000-1040 Aqua Flo Flo-Master XP2, 2.5 hp 230v, 2-Speed Pump, 06125000-1040$45699 Hayward Max-Flo XL 1.0 HP max-rated inground pool pump Hayward Max-Flo XL, 1.0 HP Max-Rated, W3SP2307X10$74900 Web Price Waterway Hi-Flo II SD-10-1-N above ground pool pump and trap with 3' NEMA cord Waterway Hi-Flo II Above Ground Pool Pump and Trap with 3' NEMA Cord, .95 HP, SD-10-1-N$38299 Waterway 3420610-10 Hi-Flo 1.5 HP two speed 115V side discharge pump Waterway 1.5 HP Hi-Flo Pump, 2 Speed, 115V, 48 Frame, Side Discharge, 3420610-10$42999 CaliMar CaliFlow variable speed pool pump, 1 HP, 230V, CMARCFVSP2010 CaliMar CaliFlow Variable Speed Pool Pump, 1 HP, 230V, CMARCFVSP2010$74900 Web Price Aqua-Flo 02107000-1010 Flo-Master FMHP side discharge 48 frame 2 speed pump Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$32799

Product details

The CaliMar CMARVSP1.0 is a 1 HP variable speed pump built for inground pools, spas, water features and fountains. Thick walled body castings, engineered hydraulics and a heavy duty totally enclosed fan cooled motor are what let it run a full season on a pad that sees sun, rain and chlorine.

Why variable speed matters

A single speed pump moves water at one rate whether you are filtering overnight or vacuuming. This one runs anywhere from 450 to 3450 RPM, so filtration happens slowly and quietly for most of the day and full speed is reserved for cleaning and backwashing. Moving the same water more slowly uses far less power, which is why the pump carries a WEF rating of 7.5 and is listed under ENERGY STAR 2.0. That listing is also what most utility rebate programs are written against.

Built to stay serviceable

The permanent magnet motor produces less noise and vibration than the induction motors it replaces. Wetted components are molded from corrosion proof reinforced thermoplastic, the shaft is stainless steel and the mechanical seal uses American designed carbon to ceramic sealing faces. A large strainer basket sits under a clear engineered polymer lid that stays transparent instead of clouding, and the lid locks with a quarter turn, so checking the basket is a ten second job rather than a tool job.

Before you order

This model is specified at 230V single phase, 10A, so confirm the circuit at the pump pad is 230V. Suction and discharge are 2 in. threaded ports, the standard size on inground systems. The pump is self priming and carries a NEMA Type 3 environmental rating for outdoor installation.

Specifications
Brand CaliMar
Manufacturer part number CMARVSP1.0
Pump type Variable speed, self priming
Horsepower 1 HP
Motor type Permanent magnet, totally enclosed fan cooled (TEFC)
Speed range 450 to 3450 RPM
Input voltage 230V
Input frequency Single phase, 50 or 60 Hz
Input current 10A
Maximum continuous load 3 HP
WEF rating 7.5
Energy certification ENERGY STAR 2.0 listed
Environmental rating NEMA Type 3
Threaded port size 2 in., suction and discharge

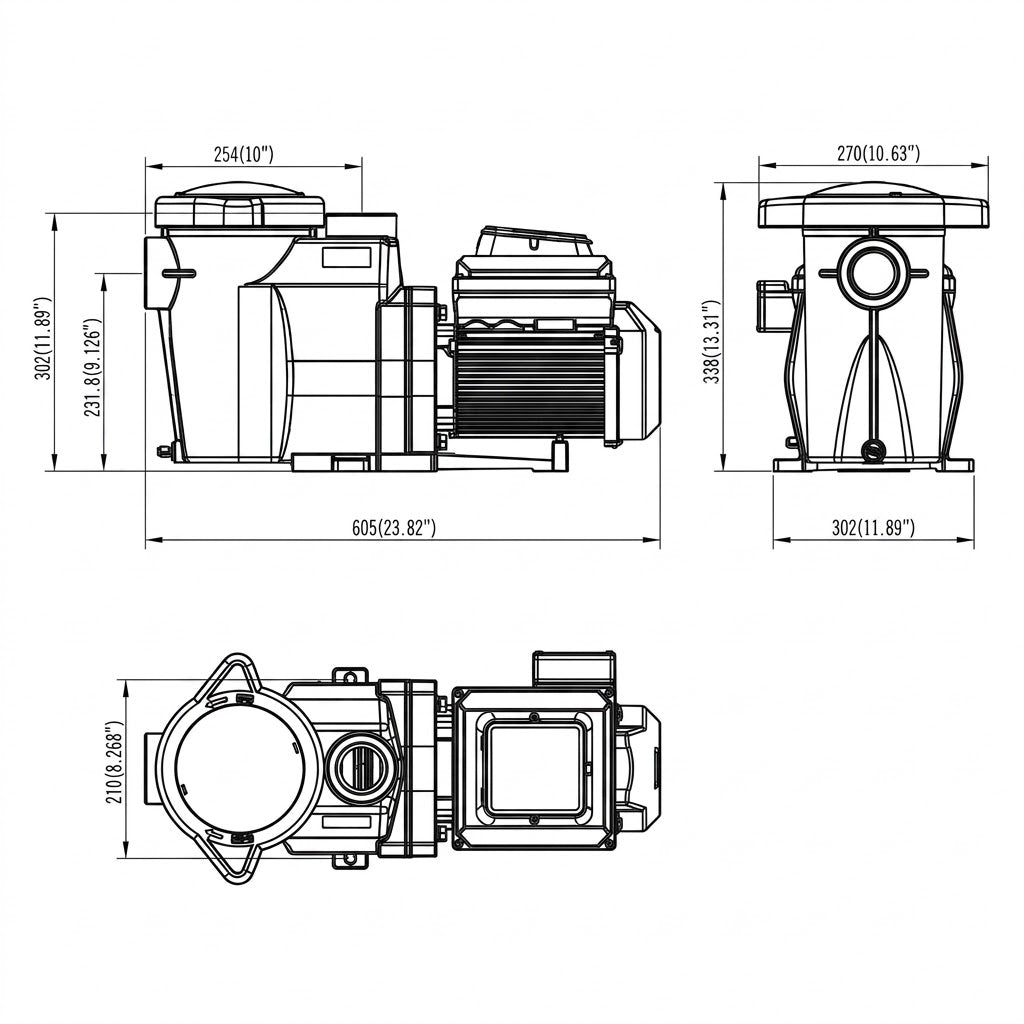

Overall length 23.82 in. (605 mm)
Overall width 10.63 in. (270 mm)
Overall height 13.31 in. (338 mm)
Body material Corrosion proof reinforced thermoplastic
Shaft Stainless steel
Mechanical seal Carbon to ceramic
Lid Clear engineered polymer, quarter turn lock
Strainer basket Large capacity, tool free access
Suitable for Inground pools, spas, water features, fountains
Shipping weight 31.35 lb

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CaliMar

CaliMar CMAR-CELL-PIPE straight pipe bypass dummy cell for Hayward salt cells CaliMar Straight Pipe Bypass Dummy Cell for Hayward Salt Cells, CMAR-CELL-PIPE$3299 CaliMar CMAR15VS1.5 1.5 HP variable speed pool pump with 1.5 in. threaded ports, black housing CaliMar Variable Speed Pool Pump, 1.5 in. Threaded Ports, 1.5 HP, CMAR15VS1.5$59900 CaliMar CMARCPC40-2Y replacement salt cell for SGS Wave and Breeze 540 and CMP Powerclean 540 systems CaliMar Replacement Salt Cell for SGS Wave & Breeze 540 Systems and CMP Powerclean 540 Systems, 40K Gallons, CMARCPC40-2Y$52900 Web Price CaliMar CaliGlow Pro H-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100H$49900 CaliMar CaliGlow Pro P-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro P-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100P$42900 CaliMar CaliGlow Pro J-Series nicheless LED pool light, 50 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 50 ft Cord, CMAR2L20W50J$39900 CaliMar CaliGlow Pro H-Series nicheless LED pool light, 50 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 50 ft Cord, CMAR2L20W50H$44900 CaliMar CaliGlow Pro J-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150J$49900 CaliMar CaliGlow Pro H-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150H$59900 CaliMar CaliGlow Pro P-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro P-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150P$49900
CaliMar CaliGlow Pro J-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100J$44900 CaliMar Cover O Ring FB2010CO | FB2010-CO CaliMar Cover O Ring FB2010CO | FB2010-CO$1599 CaliMar Strainer Cover Kit FB2010SCK | FB2010-SCK CaliMar Strainer Cover Kit FB2010SCK | FB2010-SCK$2199 CaliMar Repl Cell for CompuPool CPSC24 Up 26K Gal. CMARCCE30-3Y | CMARCCE30-1Y CaliMar Repl Cell for CompuPool CPSC24 Up 26K Gal. CMARCCE30-3Y | CMARCCE30-1Y$45900 Web Price CaliMar CaliNav360 Cordless Inground Robotic Pool Cleaner | CMARNAV360-5Y CaliMar CaliNav360 Cordless Inground Robotic Pool Cleaner | CMARNAV360-5Y$59900 Web Price CaliMar Salt Cell Replacement AutoPilot Model RC-52 SC-60 PPC4 | CMARCAP52-2Y CaliMar Salt Cell Replacement AutoPilot Model RC-52 SC-60 PPC4 | CMARCAP52-2Y$61900 Web Price CaliMar Repl Cell for CompuPool CPSC36 Up 40K Gal. CMARCCE40-3Y | CMARCCE40-1Y CaliMar Repl Cell for CompuPool CPSC36 Up 40K Gal. CMARCCE40-3Y | CMARCCE40-1Y$68900 Web Price CaliMar FB2030-M 3 HP 230 volt replacement pool pump motor CaliMar Replacement Motor, 230V 3HP, FB2030-M$15699 CaliMar FB2030-MD motor drive CaliMar Motor Drive FB2030-MD$29799 CaliMar CMARSHA15-3Y salt chlorinator system for inground pools up to 15,000 gallons CaliMar Salt Chlorinator System for Inground Pools up to 15,000 Gallons, CMARSHA15-3Y$72900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Will this fit my existing plumbing?
Suction and discharge are both 2 in. threaded ports, which is the standard size on inground systems, so most pads take it without adapters. Measure the footprint and the height of your union centers before ordering. Older pumps sat at different heights and a short length of pipe is sometimes needed to line the new pump up with the existing runs.
Does it have to be wired for 230V?
Yes. This model is specified at 230V single phase, 10A. Confirm what the circuit at the pump pad actually is before ordering, and have an electrician change it if it is not 230V. Variable speed pumps are also commonly required to be on their own circuit, so check local code.
What does the WEF rating of 7.5 mean?
WEF is the weighted energy factor, the gallons a pump moves per watt hour across a weighted duty cycle. Higher is better. At 7.5 with an ENERGY STAR 2.0 listing this pump meets the bar most utility rebate programs set for variable speed pumps, though each program keeps its own approved model list, so check yours before you count on a rebate.
Is it noticeably quieter than a single speed pump?
At filtration speeds, yes. The permanent magnet motor produces less vibration than an induction motor, and most of the noise from a pool pump scales with how fast the water is moving. Running at 1200 to 1800 RPM for the bulk of the day is where both the quiet and the savings come from.
