iGarden P Series Variable Speed Inverter Pool Pump, In Ground and Above Ground, 115V/230V$564⁹⁹

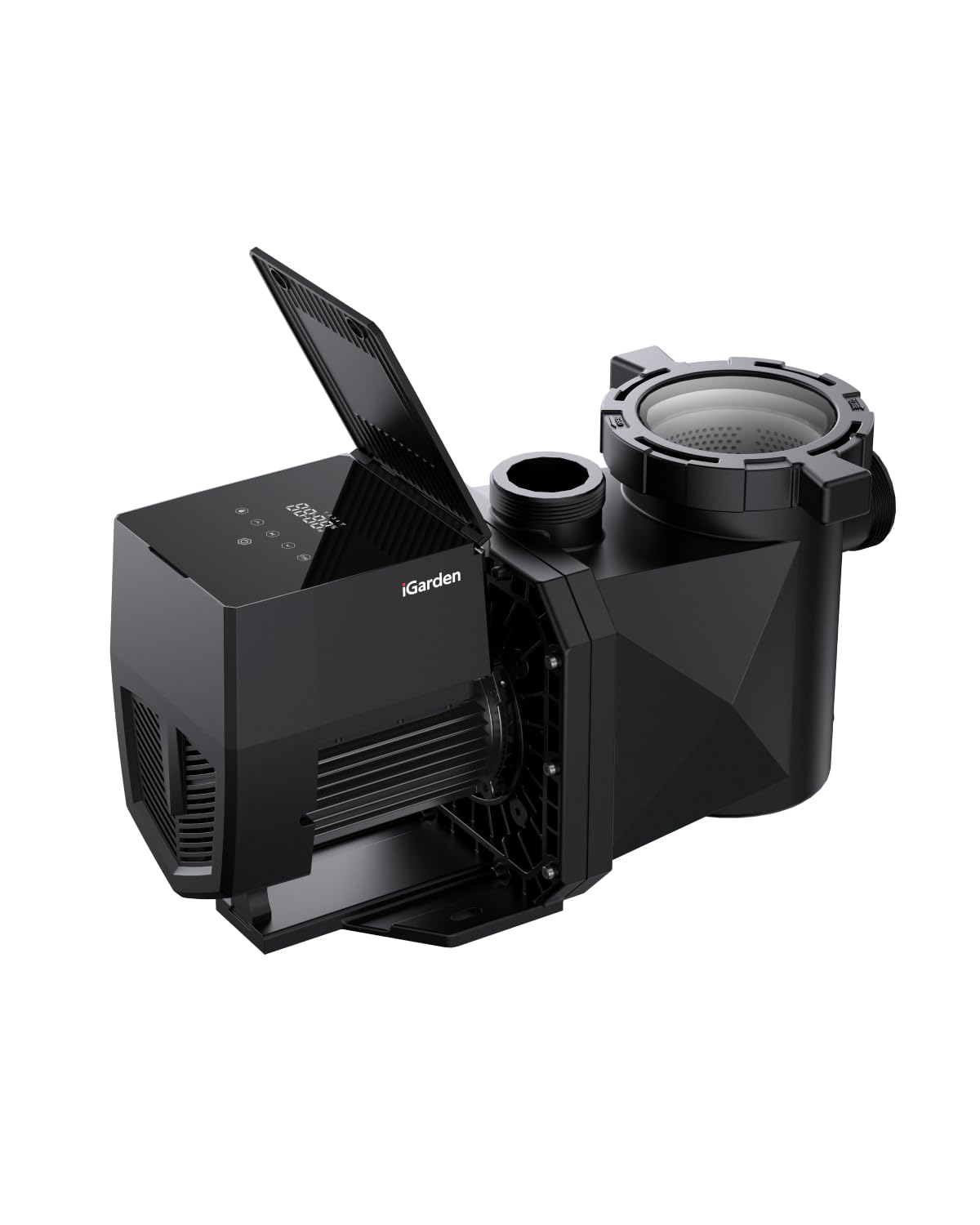

iGarden P Series variable speed inverter pool pump, black, with the touchscreen lid open

Shop all iGarden

iGarden P Series Variable Speed Inverter Pool Pump, In Ground and Above Ground, 115V/230V, P08 Model, 0.85 HP

Ask a questionMPN DB19DV

$564⁹⁹

Model

FREE Delivery

Out of stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

IE4 brushless inverter motor A permanent magnet motor under inverter control, the basis of iGarden's claim of over 10 times the energy efficiency of a single speed pump.
36 dBA iGarden's noise figure for the P Series, against about 70 dBA for a single speed pump.
Full touchscreen A waterproof glass panel with no buttons to wear: speed, four daily timers, one touch backwash and a live power reading.
Wi-Fi and the iGarden app Speed, timers and power use from a phone on a 2.4 GHz network, and the pump can be shared with the family.
115V or 230V One pump for either supply; it senses the voltage. The P11 and P15 give their full output on 230V.
Three sizes P08 at 101 GPM, P11 at 118 GPM and P15 at 136 GPM maximum, each with two 2 in. unions in the box.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select iGarden P Series Variable Speed Inverter Pool Pump, In Ground and Above Ground, 115V/230V

iGarden

P Series Variable Speed Inverter Pool Pump, In Ground and Above Ground, 115V/230V

P08 Model, 0.85 HP

$564⁹⁹

Select

Polaris

3/4 HP Booster Pump, Complete, PB4-60

$558⁹⁹

Select

Balboa Instruments

Balboa Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz, 1070021

$309⁹⁹

Select

Pentair

HydroBoost Booster Pump 115/230V 60Hz, 360526

$531⁹⁹

Select

Balboa

Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S

$338⁹⁹

Subtotal

Similar products

Other products people compare with this one.

Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V

Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $748⁰⁰

CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black

CaliMar Variable Speed Pool Pump, 3 HP, 230V, 2 in. Ports, CMARVSP3.0$799⁰⁰ Web Price

Hayward W3SP1580X15 Power-Flo LX 1.5 HP above ground pool pump with 6 ft cord

Hayward 1.5 HP Power-Flo LX Pump with 6' Cord, W3SP1580X15$419⁰⁰

Hayward W3SP1580 Power-Flo LX 1 HP 115 V above ground pool pump with 3 ft cord

Hayward 1 HP Power-Flo LX Pump with 3' Cord, W3SP1580$399⁰⁰

Hayward W3SP2605X7 Super Pump 3/4 HP up rated inground pool pump

Hayward Super Pump .75 HP UR 115/230V, W3SP2605X7$799⁰⁰ Web Price

CMI REV-SS REV single speed primary pool pump, 2 HP

CMI REV Single Speed Primary Pool Pump 2 HP, REV-SS$817⁹⁹

Hayward W3SP1593 Power-Flo Matrix 1.5 HP above ground pool pump with cord

Hayward Power-Flo Matrix 1.5HP Pump with 6' Cord, W3SP1593$529⁰⁰ Web Price

Hayward W3SP1592 PowerFlo Matrix 1 HP above ground pool pump with cord

Hayward PowerFlo Matrix 1 HP Above Ground Pool Pump with Cord, W3SP1592$509⁰⁰ Web Price

Waterway Hi-Flo II SD-10-2-N two speed above ground pool pump with NEMA cord

Waterway Hi-Flo II 2 Speed Above Ground Pool Pump with 3' NEMA Cord, 1 THP, SD-10-2-N$363⁹⁹

Hayward Power-Flo Matrix W3SP15932S 1.5 HP two speed above ground pool pump with switch

Hayward Power-Flo Matrix 1.5 HP 2 Speed with Switch, W3SP15932S$629⁰⁰ Web Price

Aqua-Flo Flo-Master XP2 2.5 hp 230v two speed spa pump, part 06125000-1040

Aqua Flo Flo-Master XP2, 2.5 hp 230v, 2-Speed Pump, 06125000-1040$442⁹⁹

Aqua-Flo Circ-Master CMHP 1/15 HP 115V side discharge circulation pump

Aqua-Flo Circ-Master 1/15 HP 115V CMHP, 02093000-2010$282⁹⁹

Hayward Max-Flo XL 1.0 HP max-rated inground pool pump

Hayward Max-Flo XL, 1.0 HP Max-Rated, W3SP2307X10$749⁰⁰ Web Price

Waterway Hi-Flo II SD-10-1-N above ground pool pump and trap with 3' NEMA cord

Waterway Hi-Flo II Above Ground Pool Pump and Trap with 3' NEMA Cord, .95 HP, SD-10-1-N$324⁹⁹

Waterway 3420610-10 Hi-Flo 1.5 HP two speed 115V side discharge pump

Waterway 1.5 HP Hi-Flo Pump, 2 Speed, 115V, 48 Frame, Side Discharge, 3420610-10$417⁹⁹

Aqua-Flo 02107000-1010 Flo-Master FMHP side discharge 48 frame 2 speed pump

Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$353⁹⁹

CaliMar CaliFlow variable speed pool pump, 1 HP, 230V, CMARCFVSP2010

CaliMar CaliFlow Variable Speed Pool Pump, 1 HP, 230V, 2 in. Ports, CMARCFVSP2010$749⁰⁰ Web Price

Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D$388⁹⁹

Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010$366⁹⁹

Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D$496⁹⁹

About the iGarden P Series pump

iGarden Pool Pump P Series. Always silent. Always saving. The pump beside an infinity pool, with five features: IE4 DC brushless motor, only 36 dBA, 5 years protection, 2 modes to choose, full touchscreen.

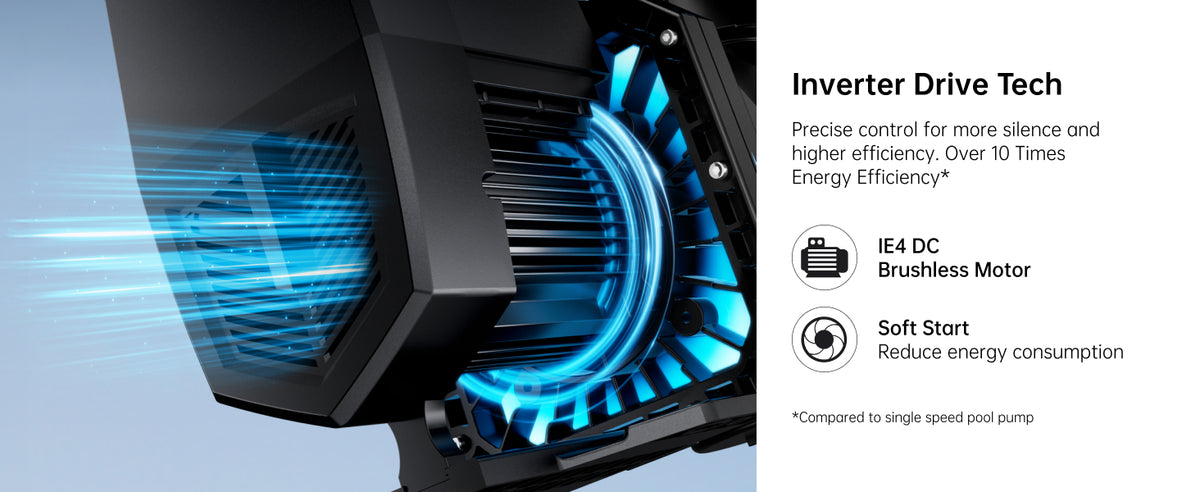

Inverter drive tech: precise control for more silence and higher efficiency, over 10 times energy efficiency compared to a single speed pool pump. IE4 DC brushless motor. Soft start reduces energy consumption.

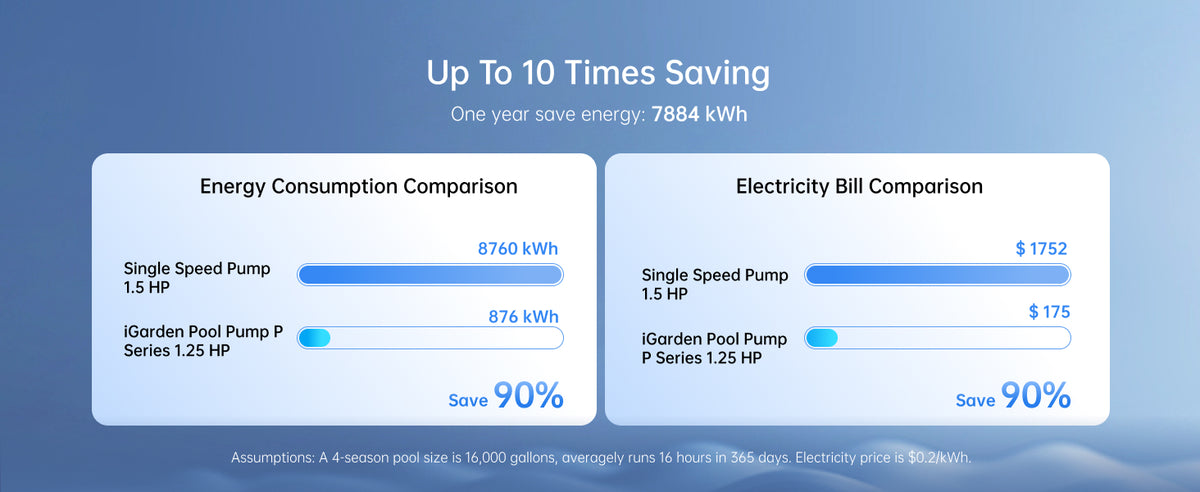

Up to 10 times saving, 7,884 kWh a year: iGarden's comparison of a 1.5 HP single speed pump at 8,760 kWh against the P Series 1.25 HP at 876 kWh, for a 16,000 gallon pool run 16 hours a day all year at 20 cents per kWh.

Only 36 dBA, quiet as a whisper: the iGarden P Series at 36 dBA against a single speed pump at 70 dBA, with a dog asleep beside the pump.

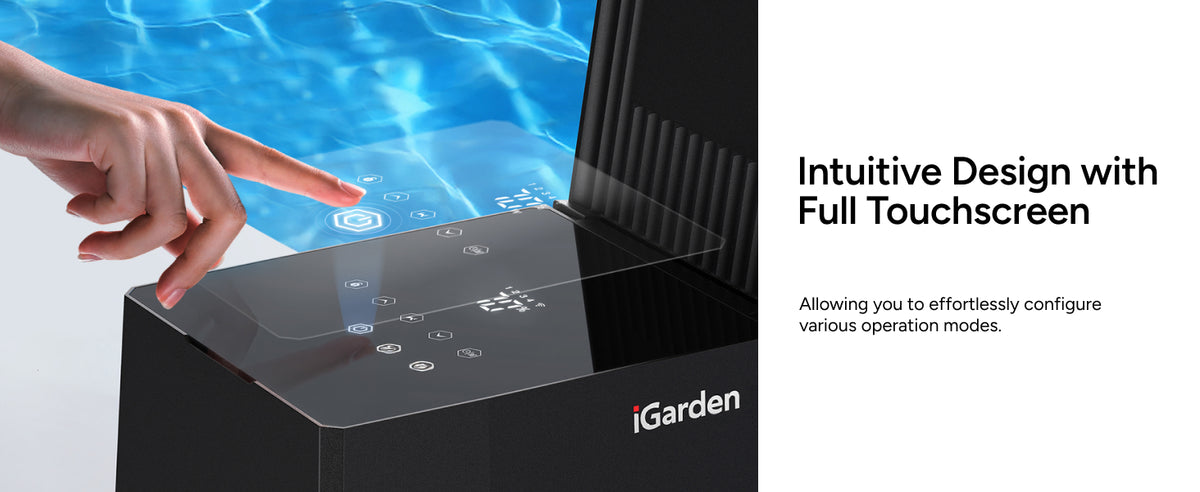

Intuitive design with full touchscreen, allowing you to effortlessly configure various operation modes.

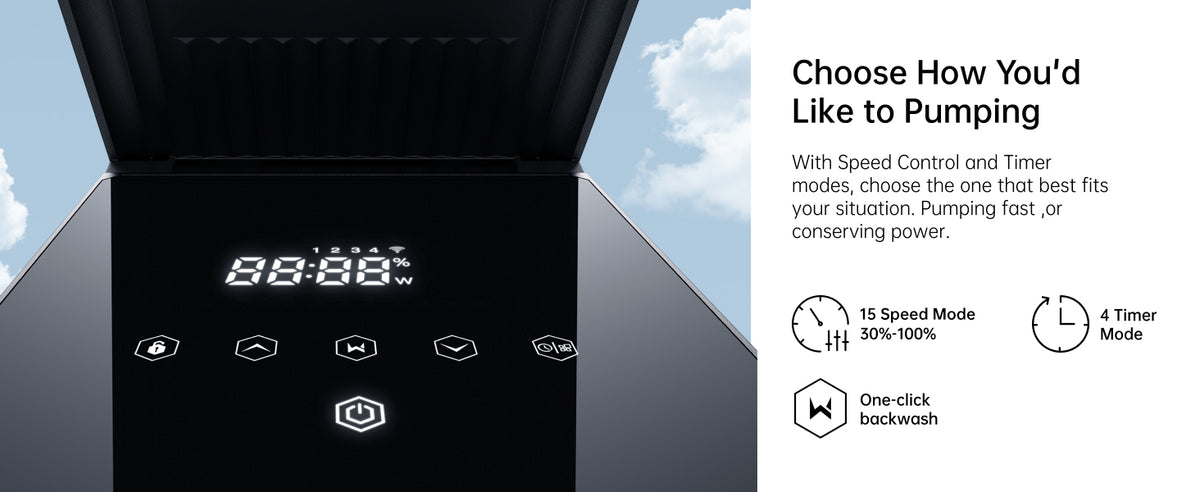

Choose how you would like to pump: speed control and timer modes. 15 speed mode from 30 to 100 percent, 4 timer mode, one click backwash.

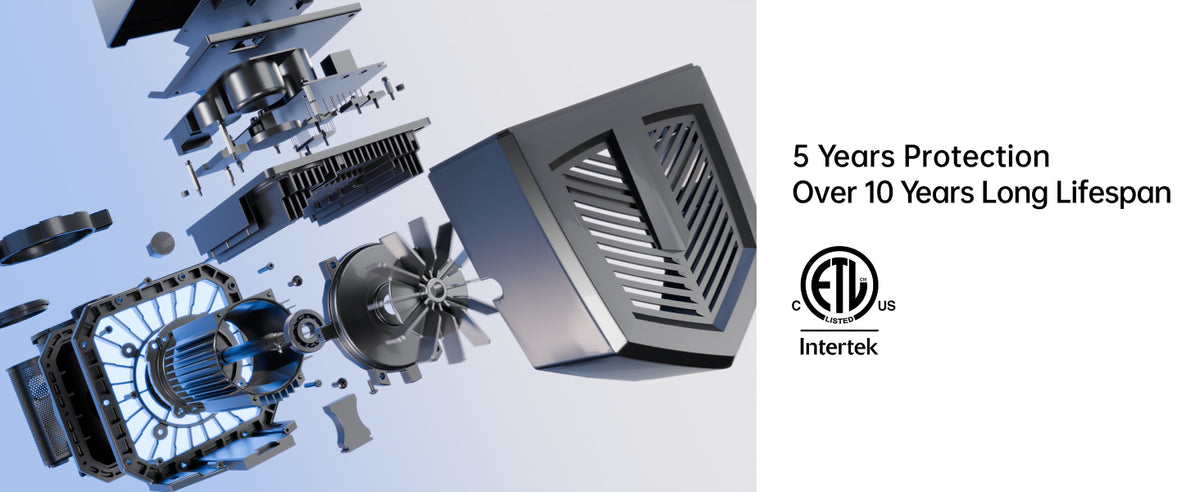

5 years protection, over 10 years long lifespan: an exploded view of the pump. ETL listed, Intertek.

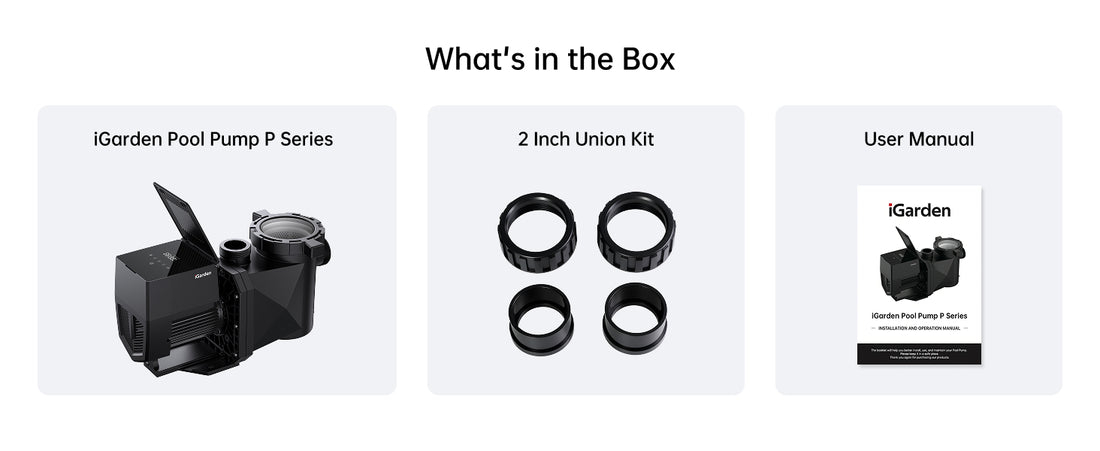

What's in the box

iGarden Pool Pump P Series
Two 2 in. union kits, a nut and a tailpiece each
Installation and operation manual

Product details

The iGarden P Series is a variable speed inverter pool pump for permanently installed in ground and above ground pools, built around an IE4 DC brushless motor and made in three sizes: P08, P11 and P15. All three run on 115V or 230V, carry a full touchscreen on the motor end, connect to the iGarden app over Wi-Fi, and come with two 2 in. unions in the box.

Three sizes

Model	iGarden rating	THP at 230V (115V)	Maximum flow at 230V (115V)	Maximum head	Part number
P08	0.85 HP	0.85 THP (0.85 THP)	101 GPM (101 GPM)	56 ft	DB19DV
P11	1.25 HP	1.20 THP (1.05 THP)	118 GPM (110 GPM)	62 ft	DB23DV
P15	1.75 HP	1.65 THP (1.25 THP)	136 GPM (123 GPM)	67 ft	DB28DV

The P08 gives the same output on either voltage. The P11 and P15 give their full output on 230V and a little less on 115V, which matters if the equipment pad only has 115V. Our pool pump size calculator works out the flow your pool needs from its volume and turnover.

The motor and the drive

An IE4 DC brushless motor on an inverter drive runs at the speed you set, from 30 to 100 percent in 5 percent steps, with a soft start. iGarden puts its energy use at over 10 times better than a single speed pump. Its own comparison runs a 1.5 HP single speed pump against the P11 for 16 hours a day on a 16,000 gallon pool at 20 cents per kWh and gets 8,760 kWh a year against 876. Your figure depends on your rate, your hours and how low a speed turns your pool over. iGarden rates the noise at 36 dBA.

Controls

The touchscreen locks after a minute and unlocks with a three second press. From it you set the running speed, four daily timers (a start, an end and a speed for each), a one touch backwash at full speed, and a live power reading. Every start primes the pump on its own, counting down from 1,500 seconds until it senses water, and it then settles at 80 percent until you change it. The iGarden app adds the same controls, more timers, power statistics and sharing with the family on a 2.4 GHz Wi-Fi network. For automation, a seven pin connector gives four digital inputs (stop, 100, 80 and 40 percent) and RS485 Modbus.

Installation

It is wired to a GFCI protected circuit with copper conductors; the pump accepts 115V or 230V and senses which. The manufacturer's rules: no more than 6.5 ft above the water level, at least 6 ft from the inside of the pool walls, 6 in. of air around the motor, indoors or in the shade, and bonded with 8 AWG copper. Plumb it with 2 in. pipe, keep any elbow at least 14 in. from the inlet, and use only the supplied unions on the pump body. Fill the strainer before the first start; it is not built to run dry. Salt pools up to 3.5 percent salt are fine. It is not for storable pools.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read

Specifications
Brand	iGarden
Manufacturer	Fairland (Aquagem Manufacturing Limited)
Model	P08
Manufacturer part number	DB19DV
Also listed as	P08DV
Series	iGarden Pool Pump P Series
Type	Variable speed inverter pool pump
Pool type	Permanently installed in ground and above ground pools
Horsepower	0.85 HP, iGarden's rating
Total horsepower at 230V	0.85 THP
Total horsepower at 115V	0.85 THP
Maximum flow at 230V	101 GPM (6,060 GPH)
Maximum flow at 115V	101 GPM
Maximum head	56 ft
Voltage	115V or 230V, 60 Hz; the pump senses the supply
Motor	IE4 DC brushless permanent magnet motor on an inverter drive, soft start
Insulation and enclosure	Class F, IP55
Noise	36 dBA, iGarden's figure
Speed range	30 to 100 percent in 5 percent steps, 15 speeds
Timers	4 a day on the pump, more in the app
Priming	Self priming on every start, up to 1,500 seconds; lift up to 6.5 ft
Backwash	One touch, 180 seconds at full speed by default; adjustable 0 to 1,500 seconds and 80 to 100 percent
Controls	Full touchscreen, locks after a minute idle
Connectivity	Wi-Fi on a 2.4 GHz network with the iGarden app, Bluetooth pairing
External control	4 digital inputs (stop, 100, 80 and 40 percent) and RS485 Modbus on a 7 pin connector
Inlet and outlet	Two 2 in. unions included; 1.5 in. unions from the manufacturer
Pump body threads	2 in. internal (G2) and 2 in. external (FBT2)
Maximum water temperature	122°F (50°C)
Salt water	Yes, up to 3.5 percent (35 g/L)
Ambient temperature	14°F to 108°F (-10°C to 42°C), indoors or in the shade
Housing	Corrosion resistant polymer
Dimensions	23.3 in. long, 9.5 in. wide, 11.4 in. high (593 x 240 x 290 mm)
Certification	ETL listed by Intertek, cETLus
Included	Pump, two 2 in. union kits, installation and operation manual
Warranty	5 years, replacement rather than repair, as iGarden states for the P Series
Shipping weight	35.3 lb

Downloads

Installation and Operation Manual

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Which iGarden P Series model do I need, P08, P11 or P15?

By the flow your pool needs. iGarden's manual gives maximum flow at 230V of 101 GPM for the P08, 118 GPM for the P11 and 136 GPM for the P15, at 56, 62 and 67 ft of maximum head. On 115V the P11 and P15 fall to 110 and 123 GPM. iGarden does not publish pool sizes for them, so size by turnover: the P08 suits a smaller pool or an above ground pool, the P15 a large pool or one with a long plumbing run, a spa or a water feature. Our pump size calculator gives the flow for your volume.

Does it run on 115V or 230V?

Either. The pump senses the supply voltage, and the manual rates every model at both. The P08 gives the same output on each; the P11 and P15 give their full output on 230V and a little less on 115V. It is wired to a GFCI protected circuit with copper conductors, by an electrician, with no extension cord.

Can I use it on an above ground pool?

Yes, on a permanently installed one. iGarden rates the P Series for in ground and above ground pools that are built in place, and for hot tubs and spas with water under 122°F. It is not for storable pools that come down for the winter. The pump can sit up to 6.5 ft above the water level and must be at least 6 ft from the inside of the pool walls.

Does it work with a salt water pool?

Yes. The manufacturer rates it for salt concentrations up to 3.5 percent, or 35 grams per liter, well above the 3,000 to 4,000 ppm a residential salt chlorinator runs at.

How do I control it: from the pump, a phone or my automation system?

All three. The touchscreen on the pump sets the speed, four daily timers, the backwash and a live power reading. The iGarden app, paired over Bluetooth and a 2.4 GHz Wi-Fi network, does the same from a phone and adds more timers, power statistics and sharing with family. For automation, a seven pin connector carries four digital inputs (stop, 100, 80 and 40 percent, the three speeds adjustable) and RS485 Modbus. Digital inputs take priority over RS485, and both over the panel.

Does it prime itself?

Yes. Every start runs a self priming cycle that counts down from 1,500 seconds and stops as soon as the pump senses it is full of water, then rechecks for 30 seconds before settling at 80 percent speed. Fill the strainer with water before the first start all the same; the manual says a dry run damages the mechanical seal, and the pump shuts down on a no water or loss of prime error (E207, E209). Self priming can be turned off in the parameters.

What pipe size does it take?

Two 2 in. unions come in the box, one for the inlet and one for the outlet, and the manufacturer recommends 2 in. pipe. The pump body has a 2 in. internal thread, and 1.5 in. unions are available from the manufacturer. Keep any elbow at least 14 in. from the inlet, and use only the supplied unions on the pump body.

What is the warranty?

iGarden states a 5 year warranty on the P Series, with a replacement rather than a repair if a unit fails, from the date of purchase. Consumable parts such as the strainer basket and o rings are not main components. Keep your order as proof of purchase.
