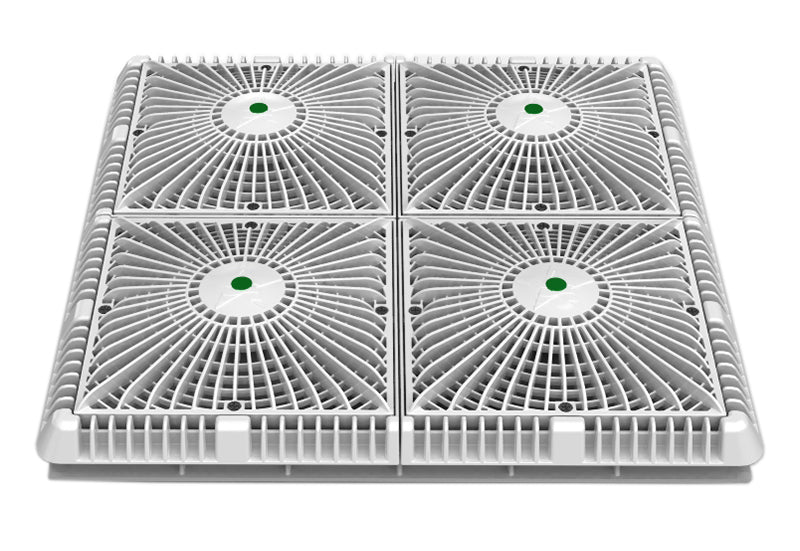

AquaStar P18101 white 18 in. square mud frame with four star suction outlet coversAquaStar 18 in. Square Mud Frame with Four 9 in. Star Suction Covers, White, P18101 In stock$28499
AquaStar P18101 white 18 in. square mud frame with four star suction outlet covers
Shop all AquaStar

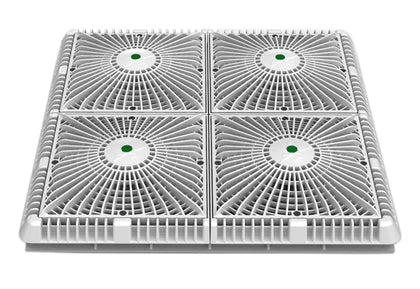

AquaStar 18 in. Square Mud Frame with Four 9 in. Star Suction Covers, White, P18101

Ask a questionMPN P18101
$28499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete frame and cover set An 18 in. square mud frame with four 9 in. square star pattern suction outlet covers and vented riser rings in one assembly.
  • Rated flow The assembly is rated for 740 GPM at 1.5 fps across a combined 160.8 sq. in. opening.
  • Stainless hardware Mounts with number 316 stainless steel screws for corrosion resistance in wet, chlorinated service.
  • Retrofit friendly Designed to safely and easily retrofit onto existing 18 in. square, 3/4 in. deep mud frames.
  • VGB compliance button A molded button identifies VGB 2008 compliance from the deck or underwater.
  • Five year replacement interval Manufacturer guidance calls for replacing the cover assembly every five years from the date of installation.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About AquaStar 18 in. Square Mud Frame with Four 9 in. Star Suction Covers, White, P18101, SKU API-25-5301. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item AquaStar 18 in. Square Mud Frame with Four 9 in. Star Suction Covers, White, P18101
AquaStar

18 in. Square Mud Frame with Four 9 in. Star Suction Covers, White, P18101

$28499
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

CMP 25506-320-800 32 inch white channel main drain replacement cover, top view CMP 32" Channel Main Drain Replacement Cover with Screws, White, 25506-320-800$15999 CMP 25506-320-000 32 inch white VGB unblockable channel main drain and sump CMP 32" White VGB Unblockable Channel Main Drain and Sump, 25506-320-000$15899 Paramount MDX-R3 concrete gray VGB compliant debris drain without sump Paramount Grey MDXR3 Debris Drain without Sump, 004262823402$20099 Pentair 288102 light gray AVSC single suction pebble top channel drain Pentair Light Gray AVSC Single Suction Pebble Top Channel Drain, 288102$36699 Paramount MDX-R3 white adjustable safety debris drain without sump for concrete pools Paramount MDX-R3 Adjustable Safety Debris Drain without Sump, Concrete, White, 004-262-8234-01$20099 Waterway 640-1360V 32 inch 3-port plaster sump main drain with diamond grate Waterway 32" 3-Port Plaster Sump Main Drain with Diamond Grate, 640-1360V$22599 Neptune Benson Lawson Aquatics 18 in. by 18 in. white flat drain grate Neptune Benson Lawson Aquatics Drain Grate 18" x 18", White, MLD-GO-1818-WT1$33499 Little Giant 506274 Big John 6-CIM-R submersible sump pump, 1/3 HP Little Giant 506274 Submersible Sump Pump 6-CIM-R, 1/3 HP, 115V with 25' Cord$27599 AquaStar 32CDFL101 32 inch white channel drain with three port sump and flat grate cover AquaStar 32" Channel Drain with Sump and Cover, White, 32CDFL101$25099 AquaStar 32CDFLFR101 32 inch white channel drain flat grate and frame AquaStar 32" White Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover and Frame, 32CDFLFR101$17399
AquaStar 32CDFLFR103 32 inch light gray channel drain cover and frame AquaStar 32" Channel Drain Cover and Frame, Light Gray, 32CDFLFR103$17499 AquaStar 32CDFL105 32 inch dark gray channel drain with flat grate suction outlet cover AquaStar 32" Dark Gray Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover, 32CDFL105$26399 AquaStar 32CDFL102 32 inch black channel drain with flat grate cover AquaStar 32" Black Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover, 32CDFL102$25699 Hayward WGX1033BHF2 18 by 18 inch high flow drain cover with inner frame Hayward 18" x 18" High Flow Drain Cover with Inner Frame, WGX1033BHF2$25499 AquaStar 32PD101 anti entrapment suction outlet cover in white with manufactured sump AquaStar Anti Entrapment Suction Outlet Cover with Manufactured Sump, White, 32PD101$33399 AquaStar WAV12WR101 12 inch square Wave suction outlet cover in white AquaStar 12" Square Wave Anti-Entrapment Suction Outlet Cover, White, WAV12WR101$16999 AquaStar 1216101 white square anti-entrapment suction outlet cover with mud frame AquaStar 16 in. Square Anti-Entrapment Suction Outlet Cover with Mud Frame, White, 1216101$21899 AquaStar FC101 20 inch Full Circle suction outlet cover with one-port sump, white AquaStar 20" Full Circle Suction Outlet Cover with One-Port Sump, White, FC101$34799 AquaStar 32in Channel Drain Flat Anti-Entrapment | 32CDFLFR105 AquaStar 32in Channel Drain Flat Anti-Entrapment | 32CDFLFR105$16999 AquaStar WAV9WR101SSB white 9 in. square suction outlet cover AquaStar 9 in. Square Wave Suction Outlet Cover, White, WAV9WR101SSB$33299

Product details

The AquaStar P18101 is an 18 in. square mud frame fitted with four 9 in. square star pattern suction outlet covers and vented riser rings, built to the VGB Series anti-entrapment standard.

Fit and flow

The frame retrofits onto standard 18 in. square, 3/4 in. deep mud frames using the same 8-1/4 in. center to center screw spacing, so it can replace an older four-cover grid assembly without new concrete work. Combined, the four covers open 160.8 sq. in. of flow area and the assembly is rated for 740 GPM at 1.5 fps.

Materials and compliance

The covers are molded from UV-resistant engineered polymer, tested to ASTM G154 for UV exposure, and the assembly meets ANSI/APSP 16-2011 and NSF 50-2008 national standards. A molded VGB compliance button on each cover lets an inspector confirm 2008 anti-entrapment compliance from the deck or underwater. Mounting screws are number 316 stainless steel for long service life in pool water.

Before you order

Replace the suction outlet cover assembly every five years from the date of installation, per the manufacturer's guidance.

Specifications
Brand AquaStar
Manufacturer part number P18101
UPC 883612073927
Type 18 in. square mud frame with four 9 in. square suction outlet covers
Color White
Includes Vented riser rings (VGB Series) and number 316 stainless steel mounting screws
Fits Standard 18 in. square suction outlet frames with 8-1/4 in. center to center screw holes
Sump depth 6 in.
Flow rating 740 GPM at 1.5 fps, 160.8 sq. in. total opening
Standards ANSI/APSP 16-2011 and NSF 50-2008 national standards, tested to ASTM G154 for UV exposure
Shipping weight 8.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from AquaStar

AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,00000 AquaStar DIV0101 2 in. x 1.5 in. white return diverter plate AquaStar 2 in. x 1.5 in. White Return Diverter Plate, DIV0101$1699 AquaStar PF35CART 250 sq ft replacement cartridge for the Pipeline PF35000 filter AquaStar Pipeline 250 sqft 31" Cartridge Filter Replacement, PF35CART$15199 AquaStar A10RCFR101 10 inch white universal round main drain cover with adapter kit AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101$6799 AquaStar PF27CART 200 sq ft replacement cartridge for the PipeLine PF27000 filter AquaStar Pipeline 200 Sq Ft 24 in. Filter Cartridge Replacement, PF27CART$16199 AquaStar WAV9WR101 9 inch by 9 inch white Wave suction cover with frame and riser AquaStar 9" x 9" Wave Suction Cover with Frame and Riser, White, WAV9WR101$14499 AquaStar SKWD105 Flow Star skimmer weir plate assembly in dark gray AquaStar Flow Star Skimmer Weir, Dark Gray, SKWD105$2299 AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3599 AquaStar UNHT20 high temperature 2 inch threaded union AquaStar High Temperature 2" Threaded Union, UNHT20$2999 AquaStar SKZ214 ZarStar large skimmer basket AquaStar ZarStar Skimmer Basket, SKZ214$8899
AquaStar SKWD101 Flow Star skimmer weir plate assembly in white AquaStar Flow Star Skimmer Weir Plate, SKWD101$2399 AquaStar WAV18WRNF101 18 by 18 inch white Square Wave suction outlet cover set AquaStar 18" x 18" White Square Wave Suction Outlet Cover Set, WAV18WRNF101$52899 AquaStar 8MF101 8 inch white round MoFlow suction outlet cover with mud frame AquaStar 8" White Round MoFlow Suction Outlet Cover and Mud Frame, 8MF101$3099 AquaStar GV14 14 inch Gyro-Vac Flex multi directional pool vacuum head AquaStar 14" Gyro-Vac Flex Vacuum Head, GV14$19799 AquaStar R9MF101 9 inch square white MoFlow retrofit suction outlet cover AquaStar 9" Square White MoFlow Retrofit Suction Outlet Cover, R9MF101$7399 AquaStar 32CDFLNFK101 32 in. white channel drain flat grate suction outlet AquaStar 32 in. White Channel Drain Flat Grate Suction Outlet, Without Frame, 32CDFLNFK101$14099 AquaStar SK6 white skimmer basket with stainless steel handle AquaStar Skimmer Basket with Stainless Steel Handle$1899 AquaStar GV22 22 inch Gyro-Vac Flex vacuum head AquaStar 22" Gyro-Vac Flex Vacuum Head, GV22$28799 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3599 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3499

Questions and answers

What people ask about this product, answered by our pool techs.

Will the P18101 fit my existing suction outlet frame?
It is designed to retrofit onto standard 18 in. square mud frames that are 3/4 in. deep, using the same 8-1/4 in. center to center screw pattern.
What flow rate is the P18101 rated for?
The complete four-cover assembly is rated for 740 GPM at 1.5 fps across a 160.8 sq. in. opening.
What hardware comes with it?
The P18101 includes vented riser rings and mounts with number 316 stainless steel screws.
How often should I replace this cover?
The manufacturer recommends replacing the suction outlet cover assembly every five years from its installation date.
