AquaStar 32CDFL103VGB LT GRAY 32" CHANNEL DRAIN W/3PORT SUMP | 32CDFL103AquaStar 32 in. Channel Drain with Three-Port Sump and Flat Grate, Anti-Entrapment, Light Gray, 32CDFL103 In stock$18899
AquaStar 32CDFL103VGB LT GRAY 32" CHANNEL DRAIN W/3PORT SUMP | 32CDFL103
Shop all AquaStar

AquaStar 32 in. Channel Drain with Three-Port Sump and Flat Grate, Anti-Entrapment, Light Gray, 32CDFL103

Ask a questionMPN 32CDFL103
$18899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Flat grate cover A 32 in. channel drain with a flat grate, from the VGB Series.
  • Three-port sump Ports are 2.5 in. OD at the bottom and 2 in. FPT inside, with two 2 in. plugs included.
  • Certified and listed Conforms to APSP/ANSI/ICC-16 2017 and NSF/ANSI/CAN 50.
  • Unblockable design AquaStar lists it as needing no second drain or SVRS.
  • Conceals existing sump The cover conceals an existing sump.
  • Replace every five years Replace the drain cover every five years from the date of installation.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About AquaStar 32 in. Channel Drain with Three-Port Sump and Flat Grate, Anti-Entrapment, Light Gray, 32CDFL103, SKU API-25-1302. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item AquaStar 32 in. Channel Drain with Three-Port Sump and Flat Grate, Anti-Entrapment, Light Gray, 32CDFL103
AquaStar

32 in. Channel Drain with Three-Port Sump and Flat Grate, Anti-Entrapment, Light Gray, 32CDFL103

$18899
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1899
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$35699
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

CMP 25506-320-100 32 in. white PVC channel drain cover and frame CMP 32-Inch PVC Channel Drain Cover and Frame, White, 25506-320-100$13699 CMP 25506-320-800 32 inch white channel main drain replacement cover, top view CMP 32" Channel Main Drain Replacement Cover with Screws, White, 25506-320-800$16299 CMP 25506-320-000 32 inch white VGB unblockable channel main drain and sump CMP 32" White VGB Unblockable Channel Main Drain and Sump, 25506-320-000$15899 Hayward WGX1032BHF2 12 in. square high flow main drain grate with inner frame Hayward 12" Square Grate with Inner Frame, WGX1032BHF2$10599 CMP 25506-324-100 black cover and frame for 32 inch channel main drain CMP Black Cover and Frame for 32" Channel Main Drain, 25506-324-100$13999 Paramount MDX-R3 concrete gray VGB compliant debris drain without sump Paramount Grey MDXR3 Debris Drain without Sump, 004262823402$24599 AquaStar 32CDFLNFK101 32 in. white channel drain flat grate suction outlet AquaStar 32 in. White Channel Drain Flat Grate Suction Outlet, Without Frame, 32CDFLNFK101$11399 Paramount MDX-R3 white adjustable safety debris drain without sump for concrete pools Paramount MDX-R3 Adjustable Safety Debris Drain without Sump, Concrete, White, 004-262-8234-01$24599 SuperPro SG6404720 V 12 in. square white anti-vortex main drain frame and grate SuperPro 12" x 12" Square White Anti-Vortex Main Drain Frame and Grate, SG6404720 V$11099 Waterway 640-1360V 32 inch 3-port plaster sump main drain with diamond grate Waterway 32" 3-Port Plaster Sump Main Drain with Diamond Grate, 640-1360V$22599
Little Giant 506274 Big John 6-CIM-R submersible sump pump, 1/3 HP Little Giant Submersible Sump Pump 6-CIM-R, 1/3 HP, 115V with 25' Cord, 506274$27599 Hayward WG1154AVPAK2 deluxe dual suction outlet, 2 inch by 2 inch, for concrete pools Hayward Deluxe Dual Suction Outlet 2" x 2", WG1154AVPAK2$10999 AquaStar 32CDFL101 32 inch white channel drain with three port sump and flat grate cover AquaStar 32" Channel Drain with Sump and Cover, White, 32CDFL101$24899 Hayward WG1049AVPAK2 2" x 1-1/2" suction outlet main drain, two pack Hayward 2" x 1-1/2" Suction Outlet/Main Drain (2 Pack), WG1049AVPAK2$10999 AquaStar 32CDFLFR101 32 inch white channel drain flat grate and frame AquaStar 32" White Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover and Frame, 32CDFLFR101$15399 Hayward Paramount SDX2 004162223101 white safety drain cover for concrete pools Hayward Paramount SDX2 White Safety Drain for Concrete Pools, 2 Pack, 004162223101$12499 AquaStar 32CDFLFR103 32 inch light gray channel drain cover and frame AquaStar 32" Channel Drain Cover and Frame, Light Gray, 32CDFLFR103$17099 AquaStar 32CDFL105 32 inch dark gray channel drain with flat grate suction outlet cover AquaStar 32" Dark Gray Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover, 32CDFL105$25799 Hayward WG1051AVPAK2 main drain with anti vortex grate, white, pack of 2 Hayward 8" Main Drain with AV Grate, Pack of 2, WG1051AVPAK2$9499 AquaStar 32CDFL102 32 inch black channel drain with flat grate cover AquaStar 32" Black Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover, 32CDFL102$25299

Product details

The AquaStar 32CDFL103 is a 32 in. channel drain with a three-port PVC sump and a flat grate, an anti-entrapment suction outlet cover in light gray from the VGB Series.

What it does

The cover is certified, listed and labeled in conformance with APSP/ANSI/ICC-16 2017 and NSF/ANSI/CAN 50. AquaStar lists it as unblockable, so no second drain or SVRS is required, and the cover conceals an existing sump.

Sump and ports

The sump has three ports. The bottom port is 2.5 in. OD and 2 in. ID S/S, and an inside port is 2 in. threaded FPT. Two 2 in. threaded plugs are included. The strong PVC sump does not require transitional glue. It is designed for use with a 2 in. hydrostatic relief valve, part number HVxxx, and a disposable plastic insert keeps debris out and retains the sump shape during pre-gunite and plaster work.

Materials and service life

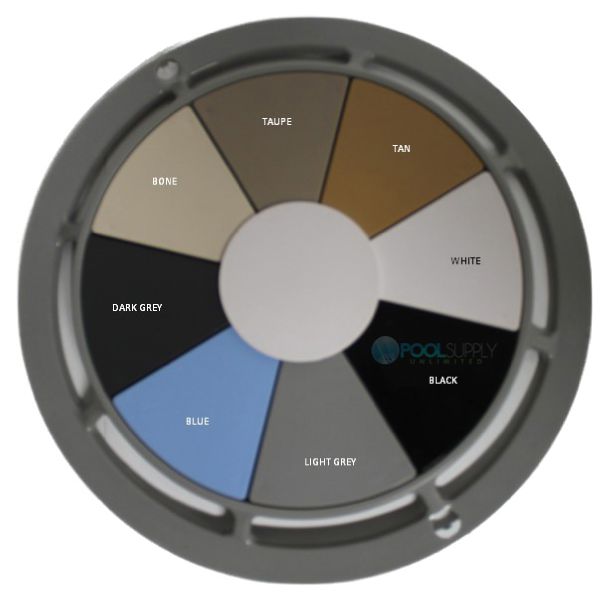

The cover is made from UV-resistant engineered polymers and fastened with #316 stainless steel screws. The xxx on AquaStar part numbers is the color number. Replace the drain cover every five years from the date of installation.

Specifications
Brand AquaStar
Manufacturer part number 32CDFL103
UPC 883612014708
Type Anti-entrapment channel drain with three-port sump and flat grate
Length 32 in.
Color Light gray
Series VGB Series
Ports Bottom 2.5 in. OD, 2 in. ID S/S; inside 2 in. FPT; two 2 in. threaded plugs included
Relief valve Designed for use with 2 in. hydrostatic relief valve
Screws #316 stainless steel
Standards APSP/ANSI/ICC-16 2017, NSF/ANSI/CAN 50
Shipping weight 5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from AquaStar

AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,00000 AquaStar DIV0101 2 in. x 1.5 in. white return diverter plate AquaStar 2 in. x 1.5 in. White Return Diverter Plate, DIV0101$1599 AquaStar PF35CART 250 sq ft replacement cartridge for the Pipeline PF35000 filter AquaStar Pipeline 250 sqft 31" Cartridge Filter Replacement, PF35CART$16199 AquaStar A10RCFR101 10 inch white universal round main drain cover with adapter kit AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101$6399 AquaStar PF27CART 200 sq ft replacement cartridge for the PipeLine PF27000 filter AquaStar Pipeline 200 Sq Ft 24 in. Filter Cartridge Replacement, PF27CART$13799 AquaStar WAV9WR101 9 inch by 9 inch white Wave suction cover with frame and riser AquaStar 9" x 9" Wave Suction Cover with Frame and Riser, White, WAV9WR101$14499 AquaStar SKWD105 Flow Star skimmer weir plate assembly in dark gray AquaStar Flow Star Skimmer Weir, Dark Gray, SKWD105$2299 AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3499 AquaStar UNHT20 high temperature 2 inch threaded union AquaStar High Temperature 2" Threaded Union, UNHT20$2999 AquaStar SKZ214 ZarStar large skimmer basket AquaStar ZarStar Skimmer Basket, SKZ214$8299
AquaStar SKWD101 Flow Star skimmer weir plate assembly in white AquaStar Flow Star Skimmer Weir Plate, SKWD101$2399 AquaStar WAV18WRNF101 18 by 18 inch white Square Wave suction outlet cover set AquaStar 18" x 18" White Square Wave Suction Outlet Cover Set, WAV18WRNF101$30999 AquaStar 8MF101 8 inch white round MoFlow suction outlet cover with mud frame AquaStar 8" White Round MoFlow Suction Outlet Cover and Mud Frame, 8MF101$3099 AquaStar GV14 14 inch Gyro-Vac Flex multi directional pool vacuum head AquaStar 14" Gyro-Vac Flex Vacuum Head, GV14$18199 AquaStar R9MF101 9 inch square white MoFlow retrofit suction outlet cover AquaStar 9" Square White MoFlow Retrofit Suction Outlet Cover, R9MF101$7399 AquaStar 32CDFLNFK101 32 in. white channel drain flat grate suction outlet AquaStar 32 in. White Channel Drain Flat Grate Suction Outlet, Without Frame, 32CDFLNFK101$11399 AquaStar SK6 white skimmer basket with stainless steel handle AquaStar Skimmer Basket with Stainless Steel Handle, SK6$1899 AquaStar GV22 22 inch Gyro-Vac Flex vacuum head AquaStar 22" Gyro-Vac Flex Vacuum Head, GV22$28499 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3499 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3499

Questions and answers

What people ask about this product, answered by our pool techs.

What is the AquaStar 32CDFL103?
It is a 32 in. channel drain with a three-port PVC sump and a flat grate, an anti-entrapment suction outlet cover in light gray.
Does the AquaStar 32CDFL103 need a second drain?
AquaStar lists it as unblockable, so no second drain or SVRS is required.
What are the ports on the AquaStar 32CDFL103?
The bottom port is 2.5 in. OD and 2 in. ID S/S, and an inside port is 2 in. threaded FPT. Two 2 in. threaded plugs are included.
What does the xxx in AquaStar part numbers mean?
The last digits of an AquaStar part number are the color number. In 32CDFL103 the 103 marks light gray.
