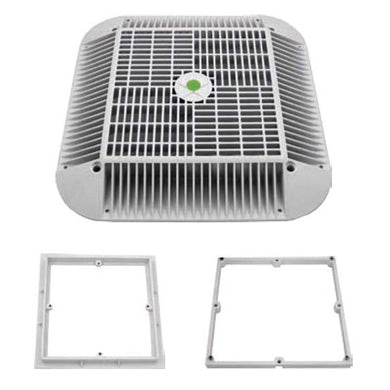

AquaStar 16" Square Anti-Entrapment Suction Outlet Cover, Mud Frame and Retro-Adapter Sub-Frame for 12" Square 3/4" Deep Retrofits (VGB Series) White | 1216101
Regular price
$192.48
Call for Help & Best Pricing!
Speak directly with a pool guru that's ready to help!
888-751-8084 Live Chat
Product Description

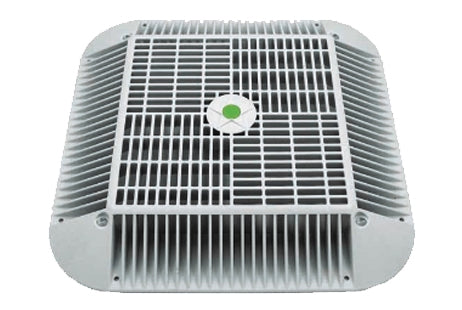

⌄16" Square Anti-Entrapment Suction Outlet Cover
Features
- For single or multiple drain use (see installation instructions)
- Single – 3" sump depth Floor: 460 GPM at 1.46 fps Wall: 445 GPM at 1.4 fps
- Floor/wall: 472.2 GPM at 1.5 fps Floor/wall: 314.8 GPM at 1.0 fps
- When 1.0 or 1.5 fps installations are not required, always use the lower tested flow rate
- 101 square inch opening
- Easily and safely retrofits most brands’ existing 12" frame with epoxy or screws or both; cover anchors into in-molded brass inserts in frame with four fine thread machine screws

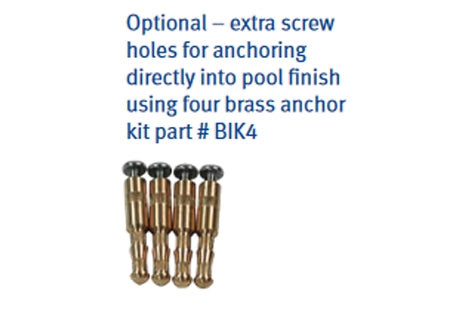

- Ideal for retrofitting over all existing sumps/frames up to 15" by anchoring directly into pool finish (plaster, tile, fiberglass, etc.) using four brass anchors and stainless screws in kit #BIK4
- Trademarked VGB compliance button easily identifies VGB 2008 compliant cover
- #316 stainless steel screws
- Manufactured from superior UV-resistant engineered polymers
- All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure
- Replace every five years from date of installation
- 4 per case
- Fits: AquaStar (p/n 12xxx, pre-VGB €œflat€?); Pentair (#1 selling) with¾" deep existing frames and four screw hole pattern
- Use R1216xxx for 1" deep frames (Hayward, Waterway, American Pre-fab, CMP

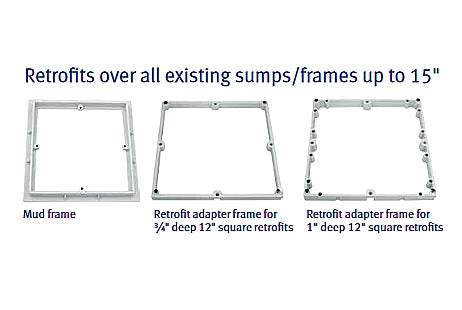

- Retrofits over all existing sumps/frames up to 15"
- The xxx in all AquaStar part numbers is the color number
