AquaStar 18in Square Mud Frame Square Wave | WAV18WR101AquaStar 18 in. Square Mud Frame with Four 9 in. Square Wave Suction Outlet Covers, Vented Riser Rings, White, WAV18WR101 In stock$39999
AquaStar 18in Square Mud Frame Square Wave | WAV18WR101
Shop all AquaStar

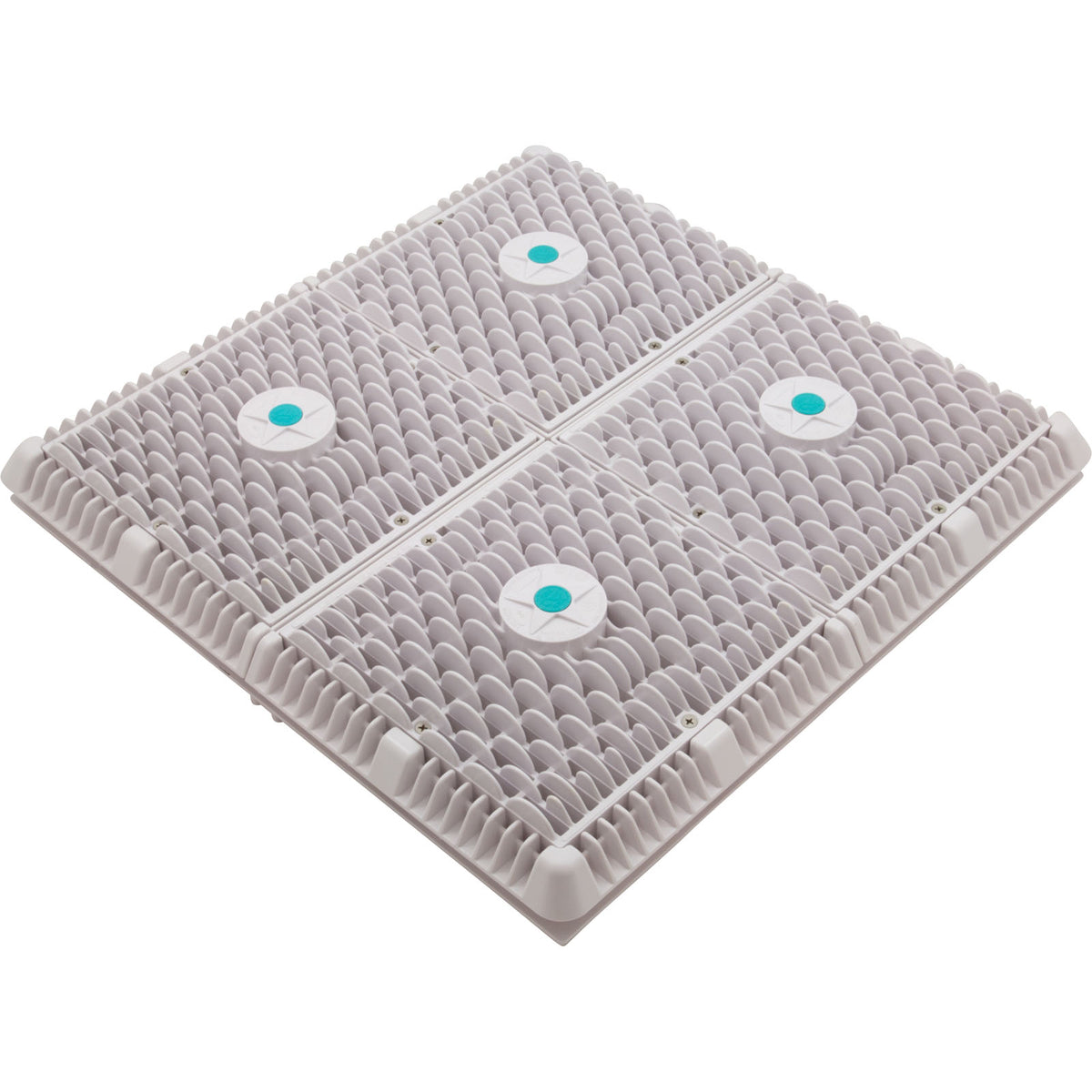

AquaStar 18 in. Square Mud Frame with Four 9 in. Square Wave Suction Outlet Covers, Vented Riser Rings, White, WAV18WR101

Ask a questionMPN WAV18WR101
$39999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Four 9 in. covers An 18 in. square mud frame holds four 9 in. Square Wave anti-entrapment covers.
  • Vented riser rings The covers are set on vented riser rings.
  • Flow rating Single floor or wall: 628 GPM at 1.1 fps.
  • 176.8 square inch opening The total cover opening is 176.8 square inches.
  • VGB compliance button A trademarked button identifies a VGB 2008 compliant cover from the deck and underwater.
  • Retrofits 18 in. frames Easily retrofits to 18 in. square, 3/4 in. deep frames.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About AquaStar 18 in. Square Mud Frame with Four 9 in. Square Wave Suction Outlet Covers, Vented Riser Rings, White, WAV18WR101, SKU API-25-1943. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item AquaStar 18 in. Square Mud Frame with Four 9 in. Square Wave Suction Outlet Covers, Vented Riser Rings, White, WAV18WR101
AquaStar

18 in. Square Mud Frame with Four 9 in. Square Wave Suction Outlet Covers, Vented Riser Rings, White, WAV18WR101

$39999
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1899
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$1099
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$35699
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Paramount MDX-R3 concrete gray VGB compliant debris drain without sump Paramount Grey MDXR3 Debris Drain without Sump, 004262823402$24599 Pentair 288102 light gray AVSC single suction pebble top channel drain Pentair Light Gray AVSC Single Suction Pebble Top Channel Drain, 288102$38599 Paramount MDX-R3 white adjustable safety debris drain without sump for concrete pools Paramount MDX-R3 Adjustable Safety Debris Drain without Sump, Concrete, White, 004-262-8234-01$24599 AquaStar WAV18WRNF101 18 by 18 inch white Square Wave suction outlet cover set AquaStar 18" x 18" White Square Wave Suction Outlet Cover Set, WAV18WRNF101$30999 Waterway 640-1360V 32 inch 3-port plaster sump main drain with diamond grate Waterway 32" 3-Port Plaster Sump Main Drain with Diamond Grate, 640-1360V$22599 Neptune Benson Lawson Aquatics 18 in. by 18 in. white flat drain grate Neptune Benson Lawson Aquatics Drain Grate 18" x 18", White, MLD-GO-1818-WT1$33499 Little Giant 506274 Big John 6-CIM-R submersible sump pump, 1/3 HP Little Giant Submersible Sump Pump 6-CIM-R, 1/3 HP, 115V with 25' Cord, 506274$27599 AquaStar 32CDFL101 32 inch white channel drain with three port sump and flat grate cover AquaStar 32" Channel Drain with Sump and Cover, White, 32CDFL101$24899 AquaStar 32CDFL105 32 inch dark gray channel drain with flat grate suction outlet cover AquaStar 32" Dark Gray Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover, 32CDFL105$25799 AquaStar 32CDFL102 32 inch black channel drain with flat grate cover AquaStar 32" Black Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover, 32CDFL102$25299
Hayward WGX1033BHF2 18 by 18 inch high flow drain cover with inner frame Hayward 18" x 18" High Flow Drain Cover with Inner Frame, WGX1033BHF2$25999 AquaStar WAV12WR103SSB 12 inch square Wave suction outlet cover in light gray with sump AquaStar 12" Square Wave Suction Outlet Cover with 3" Socket Sump and 4" Spigot, Light Gray, WAV12WR103SSB$55399 AquaStar 32PD101 anti entrapment suction outlet cover in white with manufactured sump AquaStar Anti Entrapment Suction Outlet Cover with Manufactured Sump, White, 32PD101$34199 AquaStar 32CDFL103VGB LT GRAY 32" CHANNEL DRAIN W/3PORT SUMP | 32CDFL103 AquaStar 32 in. Channel Drain with Three-Port Sump and Flat Grate, Anti-Entrapment, Light Gray, 32CDFL103$20099 AquaStar 32" Channel Drain Anti-Entrapment | 32CDAV101 AquaStar 32 in. Channel Drain with Three-Port Sump, Anti-Entrapment Suction Outlet Cover, White, 32CDAV101$25699 AquaStar FC101 20 inch Full Circle suction outlet cover with one-port sump, white AquaStar 20" Full Circle Suction Outlet Cover with One-Port Sump, White, FC101$34199 AquaStar P18101 white 18 in. square mud frame with four star suction outlet covers AquaStar 18 in. Square Mud Frame with Four 9 in. Star Suction Covers, White, P18101$28499 AquaStar WAV9WR101SSB white 9 in. square suction outlet cover AquaStar 9 in. Square Wave Suction Outlet Cover, White, WAV9WR101SSB$33299 AquaStar 12" Square Wave Suction Outlet Cover with Vented Riser | WAV12WR103 AquaStar 12 in. Square Wave Suction Outlet Cover with Vented Riser Ring and Mud Frame, VGB, Light Gray, WAV12WR103$17499 AquaStar 32CDFLFR103 32 inch light gray channel drain cover and frame AquaStar 32" Channel Drain Cover and Frame, Light Gray, 32CDFLFR103$17099

Product details

The AquaStar WAV18WR101 is an 18 in. square mud frame with four 9 in. Square Wave anti-entrapment suction outlet covers and vented riser rings, in white, from the VGB Series.

What it does

For a single floor or wall installation, the covers are rated at 628 GPM at 1.1 fps, with a minimum sump depth of 6 in. and a 176.8 square inch opening. A trademarked VGB compliance button identifies the cover as VGB 2008 compliant, from the deck and underwater.

Fit and compatibility

The set easily and safely retrofits to 18 in. square frames that are 3/4 in. deep.

Materials and service life

The covers, frame and #316 stainless steel screws meet or exceed the ANSI/APSP 16-2011 and NSF/ANSI 50-2009a standards, with ASTM G154 UV testing exposure, and are made from UV-resistant engineered polymers. Replace the covers every five years from the date of installation. The xxx in AquaStar part numbers is the color number.

Specifications
Brand AquaStar
Manufacturer part number WAV18WR101
UPC 0883612025407
Type Square mud frame with four Square Wave anti-entrapment covers and vented riser rings
Frame size 18 in. square
Cover size Four 9 in. covers
Color White
Series VGB Series
Flow, single floor or wall 628 GPM at 1.1 fps
Opening 176.8 square inches
Minimum sump depth 6 in.
Screws #316 stainless steel
Also listed as WAV18101
Shipping weight 9.8 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from AquaStar

AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,00000 AquaStar DIV0101 2 in. x 1.5 in. white return diverter plate AquaStar 2 in. x 1.5 in. White Return Diverter Plate, DIV0101$1599 AquaStar PF35CART 250 sq ft replacement cartridge for the Pipeline PF35000 filter AquaStar Pipeline 250 sqft 31" Cartridge Filter Replacement, PF35CART$16199 AquaStar A10RCFR101 10 inch white universal round main drain cover with adapter kit AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101$6399 AquaStar PF27CART 200 sq ft replacement cartridge for the PipeLine PF27000 filter AquaStar Pipeline 200 Sq Ft 24 in. Filter Cartridge Replacement, PF27CART$13799 AquaStar WAV9WR101 9 inch by 9 inch white Wave suction cover with frame and riser AquaStar 9" x 9" Wave Suction Cover with Frame and Riser, White, WAV9WR101$14499 AquaStar SKWD105 Flow Star skimmer weir plate assembly in dark gray AquaStar Flow Star Skimmer Weir, Dark Gray, SKWD105$2299 AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3499 AquaStar UNHT20 high temperature 2 inch threaded union AquaStar High Temperature 2" Threaded Union, UNHT20$2999 AquaStar SKZ214 ZarStar large skimmer basket AquaStar ZarStar Skimmer Basket, SKZ214$8299
AquaStar SKWD101 Flow Star skimmer weir plate assembly in white AquaStar Flow Star Skimmer Weir Plate, SKWD101$2399 AquaStar WAV18WRNF101 18 by 18 inch white Square Wave suction outlet cover set AquaStar 18" x 18" White Square Wave Suction Outlet Cover Set, WAV18WRNF101$30999 AquaStar 8MF101 8 inch white round MoFlow suction outlet cover with mud frame AquaStar 8" White Round MoFlow Suction Outlet Cover and Mud Frame, 8MF101$3099 AquaStar GV14 14 inch Gyro-Vac Flex multi directional pool vacuum head AquaStar 14" Gyro-Vac Flex Vacuum Head, GV14$18199 AquaStar R9MF101 9 inch square white MoFlow retrofit suction outlet cover AquaStar 9" Square White MoFlow Retrofit Suction Outlet Cover, R9MF101$7399 AquaStar 32CDFLNFK101 32 in. white channel drain flat grate suction outlet AquaStar 32 in. White Channel Drain Flat Grate Suction Outlet, Without Frame, 32CDFLNFK101$11399 AquaStar SK6 white skimmer basket with stainless steel handle AquaStar Skimmer Basket with Stainless Steel Handle, SK6$1899 AquaStar GV22 22 inch Gyro-Vac Flex vacuum head AquaStar 22" Gyro-Vac Flex Vacuum Head, GV22$28499 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3499 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3499

Questions and answers

What people ask about this product, answered by our pool techs.

What comes in the AquaStar WAV18WR101?
It is an 18 in. square mud frame with four 9 in. Square Wave anti-entrapment suction outlet covers and vented riser rings, in white.
What flow is the AquaStar WAV18WR101 rated for?
For a single floor or wall installation it is rated at 628 GPM at 1.1 fps, with a 6 in. minimum sump depth and a 176.8 square inch opening.
Will the AquaStar WAV18WR101 retrofit an existing frame?
It retrofits easily and safely to 18 in. square frames that are 3/4 in. deep.
How often should the AquaStar WAV18WR101 be replaced?
AquaStar says to replace the covers every five years from the date of installation.
