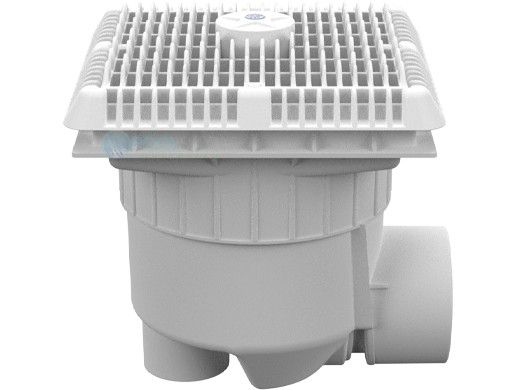

AquaStar WAV9WR101SSB white 9 in. square suction outlet coverAquaStar 9 in. Square Wave Suction Outlet Cover, White, WAV9WR101SSB In stock$33299
AquaStar WAV9WR101SSB white 9 in. square suction outlet cover
Shop all AquaStar

AquaStar 9 in. Square Wave Suction Outlet Cover, White, WAV9WR101SSB

Ask a questionMPN WAV9WR101SSB
$33299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Square wave sump design Molded from UV-resistant engineered polymer as a 9 in. square suction outlet cover with an integrated sump body.
  • Dual port sizing The side port has a 3 in. socket with a 4 in. spigot, and the bottom port steps down to a 2 in. socket with a 2-1/2 in. spigot.
  • VGB compliance button A molded button on the cover face marks it as compliant with the VGB 2008 anti-entrapment standard, visible from the deck or underwater.
  • Testing and winterizing caps included Ships with a 3 in. and a 2 in. NPT cap, each fitted with an O-ring, for pressure testing the line or closing it for the season.
  • Meets national safety standards Built to meet ANSI/APSP 16-2011 and NSF/ANSI 50-2009A national standards for suction outlet fittings.
  • UV tested polymer The engineered polymer housing is tested to ASTM G154 for UV exposure so the white finish holds up outdoors.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About AquaStar 9 in. Square Wave Suction Outlet Cover, White, WAV9WR101SSB, SKU API-25-2186. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item AquaStar 9 in. Square Wave Suction Outlet Cover, White, WAV9WR101SSB
AquaStar

9 in. Square Wave Suction Outlet Cover, White, WAV9WR101SSB

$33299
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$36099
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19199
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2499
Hide 12" Pool Deck Skimmer Lid Kit, 1" to 1-1/4" Material Depth (3 cm), HSL12-1.2
Hide

12" Pool Deck Skimmer Lid Kit, 1" to 1-1/4" Material Depth (3 cm), HSL12-1.2

$30000 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Subtotal

Similar products

Other products people compare with this one.

Paramount 004-302-4408-00 6 port water valve module for in-floor cleaning systems Paramount 6 Port Water Valve Module, 004-302-4408-00$36099 Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hide HSL12-1.2 12 in. square pool deck skimmer lid kit for 1 to 1-1/4 in. inlay Hide 12" Pool Deck Skimmer Lid Kit, 1" to 1-1/4" Material Depth (3 cm), HSL12-1.2$30000 Web Price Hide HSL12-2.5 12 in. square pool deck skimmer lid kit with paver inlay Hide 12" Pool Deck Skimmer Lid Kit, 2-1/4" to 2-1/2" Material Depth (6 cm), HSL12-2.5$30000 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3699
CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward SP-1082 Skimmers, 27182-352-000$3399 H2Flow Controls FV-J-R FlowVis retrofit for Jandy 2 in. by 2-1/2 in. check valve body H2Flow Controls FlowVis Retrofit for Jandy 2 in. by 2-1/2 in. Check Valve Body, FV-J-R$14799 Kafko 19-0165-1 Equator 1008 skimmer lid, 9-1/2 in. outside diameter Kafko Equator 1008 Skimmer Lid 9-1/2" OD, 19-0165-1$2499 Jandy 4715 Neverlube 3-port diverter valve, 1-1/2 in. x 2 in., top view Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715$7399 Pentair Compool 263028 three port diverter valve, 2 in. x 2.5 in. Pentair Three Port Diverter Valve 2" x 2.5", 263028$5999 Baker Hydro WC624070A replacement skimmer weir door with clips Baker Hydro Replacement Weir Door, WC624070A$5199 Jandy 7056 check valve flapper assembly rebuild kit Jandy Check Valve Kit for 1.5 in. to 2.5 in. Check Valve Body, 7056$7399 Hayward SP1084 complete skimmer for vinyl and fiberglass pools with white square lid Hayward Complete Skimmer Vinyl/Fiberglass 2" FPT, Square Lid, White, SP1084$20399 Infusion VRFTHWH venturi return inlet fitting, white, front view Infusion Inlet Fitting, Return Line Venturi Jet, White, VRFTHWH$2399 Hayward SPX1082K skimmer weir flap door, 7-3/4 in. wide Hayward Pool Skimmer Weir Flap Door 7-3/4 in., SPX1082K$3199

Product details

The AquaStar WAV9WR101SSB is a 9 in. square suction outlet cover with a built in sump, molded in white engineered polymer with a 3 in. socket and 4 in. spigot side port and a 2 in. socket and 2-1/2 in. spigot bottom port.

Built for anti-entrapment compliance

The cover carries the trademarked VGB compliance button, a raised marker that lets an inspector confirm VGB 2008 anti-entrapment compliance from the deck or underwater without pulling the cover. The housing is manufactured from UV-resistant engineered polymer and is tested to ASTM G154 for UV exposure, and the assembly is built to meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009A national standards for suction outlet fittings.

What is included

The WAV9WR101SSB ships with a 3 in. and a 2 in. NPT cap, each fitted with an O-ring, so the same fitting can be pressure tested during plumbing rough-in or capped off for winterizing.

Specifications
Brand AquaStar
Manufacturer part number WAV9WR101SSB
UPC 883612100418
Type 9 in. square suction outlet cover with sump
Color White
Side port 3 in. socket and 4 in. spigot
Bottom port 2 in. socket and 2-1/2 in. spigot
Included caps 3 in. and 2 in. NPT caps with O-ring for pressure testing and winterizing
Standards ANSI/APSP 16-2011 and NSF/ANSI 50-2009A, tested to ASTM G154 for UV exposure
Shipping weight 7 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from AquaStar

AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$106499 AquaStar DIV0101 2 in. x 1.5 in. white return diverter plate AquaStar 2 in. x 1.5 in. White Return Diverter Plate, DIV0101$1699 AquaStar PF35CART 250 sq ft replacement cartridge for the Pipeline PF35000 filter AquaStar Pipeline 250 sqft 31" Cartridge Filter Replacement, PF35CART$18399 AquaStar A10RCFR101 10 inch white universal round main drain cover with adapter kit AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101$6999 AquaStar PF27CART 200 sq ft replacement cartridge for the PipeLine PF27000 filter AquaStar Pipeline 200 Sq Ft 24 in. Filter Cartridge Replacement, PF27CART$16699 AquaStar WAV9WR101 9 inch by 9 inch white Wave suction cover with frame and riser AquaStar 9" x 9" Wave Suction Cover with Frame and Riser, White, WAV9WR101$14999 AquaStar SKWD105 Flow Star skimmer weir plate assembly in dark gray AquaStar Flow Star Skimmer Weir, Dark Gray, SKWD105$2399 AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3699 AquaStar UNHT20 high temperature 2 inch threaded union AquaStar High Temperature 2" Threaded Union, UNHT20$3099 AquaStar SKZ214 ZarStar large skimmer basket AquaStar ZarStar Skimmer Basket, SKZ214$9099
AquaStar SKWD101 Flow Star skimmer weir plate assembly in white AquaStar Flow Star Skimmer Weir Plate, SKWD101$2399 AquaStar WAV18WRNF101 18 by 18 inch white Square Wave suction outlet cover set AquaStar 18" x 18" White Square Wave Suction Outlet Cover Set, WAV18WRNF101$54499 AquaStar 8MF101 8 inch white round MoFlow suction outlet cover with mud frame AquaStar 8" White Round MoFlow Suction Outlet Cover and Mud Frame, 8MF101$2499 AquaStar GV14 14 inch Gyro-Vac Flex multi directional pool vacuum head AquaStar 14" Gyro-Vac Flex Vacuum Head, GV14$20499 AquaStar R9MF101 9 inch square white MoFlow retrofit suction outlet cover AquaStar 9" Square White MoFlow Retrofit Suction Outlet Cover, R9MF101$7699 AquaStar 32CDFLNFK101 32 in. white channel drain flat grate suction outlet AquaStar 32 in. White Channel Drain Flat Grate Suction Outlet, Without Frame, 32CDFLNFK101$13599 AquaStar SK6 white skimmer basket with stainless steel handle AquaStar Skimmer Basket with Stainless Steel Handle$1999 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3699 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3799 AquaStar PipeLine PLF27000 cartridge filter for pools up to 27,000 gallons AquaStar PipeLine Cartridge Filter for Pools up to 27,000 Gallons, PLF27000$93000 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What size fittings does the WAV9WR101SSB use?
The side port takes a 3 in. socket with a 4 in. spigot, and the bottom port steps down to a 2 in. socket with a 2-1/2 in. spigot.
Does the cover include anything for winterizing?
Yes. A 3 in. and a 2 in. NPT cap, each with an O-ring, ship with the WAV9WR101SSB for pressure testing the plumbing or capping it off for winter.
What color is this suction outlet cover?
The WAV9WR101SSB is molded in white engineered polymer.
What safety standards does it meet?
It is built to ANSI/APSP 16-2011 and NSF/ANSI 50-2009A national standards and carries the VGB compliance button that marks anti-entrapment covers.
