Jandy BWVL-NVL 2-in-1 NeverLube backwash valve with pre-plumbed unionsJandy 2-in-1 NeverLube Backwash Valve with Pre-Plumbed Unions, BWVL-NVL$21199

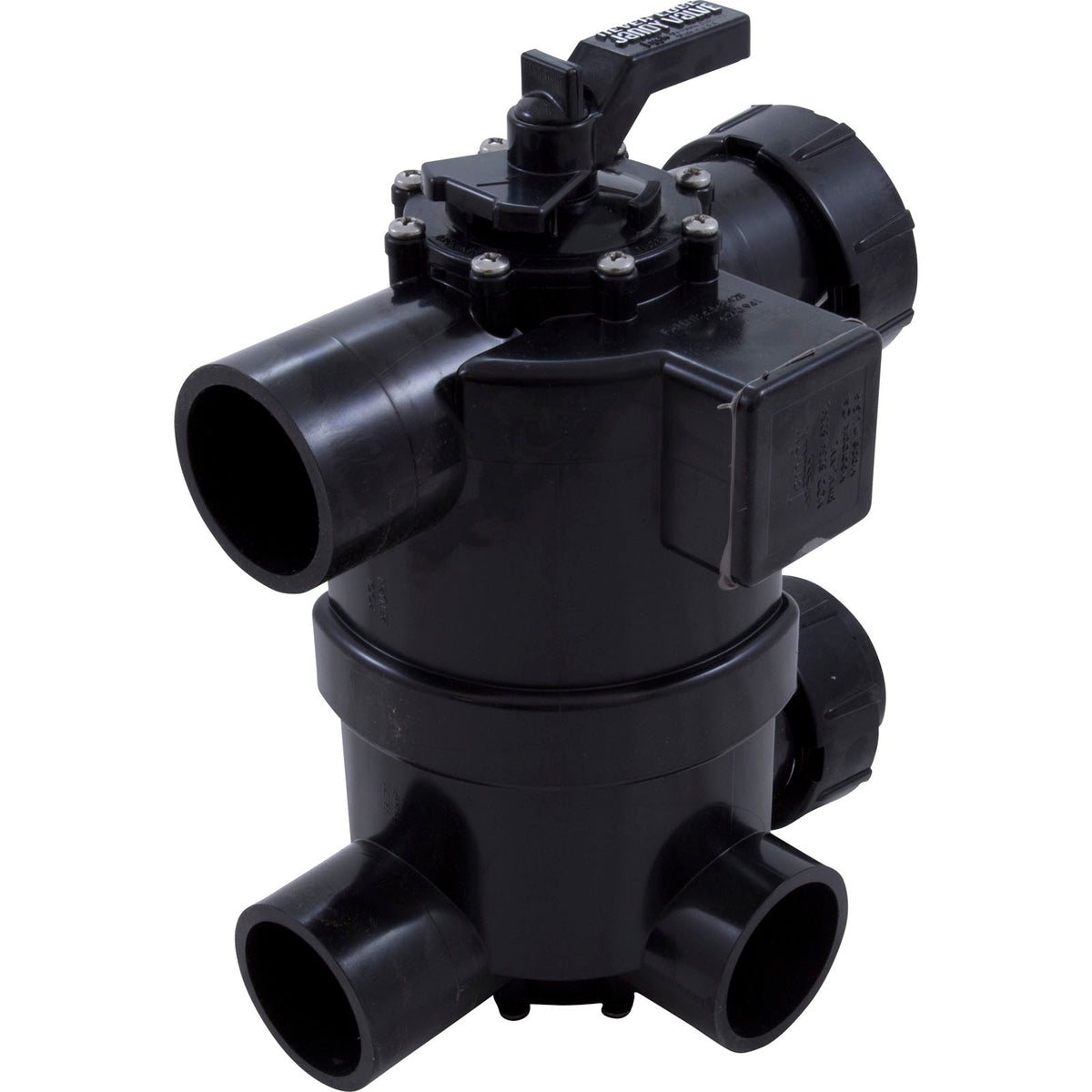

Jandy BWVL-NVL 2-in-1 NeverLube backwash valve with pre-plumbed unions
Shop all Jandy

Jandy 2-in-1 NeverLube Backwash Valve with Pre-Plumbed Unions, BWVL-NVL

Ask a questionMPN BWVL-NVL
$21199
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 2-in-1 backwash valve Combines the backwash and rinse valve functions in one body.
  • NeverLube design Uses Jandy NeverLube valve construction rather than a lubricated seal.
  • Pre-plumbed unions Ships with a universal union kit already plumbed to the valve.
  • Fits DEV48 and DEV60 filters Sized for Jandy Pro Series DEV48 and DEV60 filters.
  • Fits JS60 and JS100 filters Also sized for Jandy Pro Series JS60 and JS100 filters.
  • Sold individually Ships as one complete valve and union assembly, part number BWVL-NVL.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy 2-in-1 NeverLube Backwash Valve with Pre-Plumbed Unions, BWVL-NVL, SKU TLD-06-130. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy 2-in-1 NeverLube Backwash Valve with Pre-Plumbed Unions, BWVL-NVL
Jandy

2-in-1 NeverLube Backwash Valve with Pre-Plumbed Unions, BWVL-NVL

$21199
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Jandy

Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500

$69499
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$15299
Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506
Pentair

Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506

$20999
Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80
Jandy

2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80

$32799
Pentair Genuine OEM Clamp Kit with Tension Control, 190003
Pentair

Genuine OEM Clamp Kit with Tension Control, 190003

$31099
Subtotal

Similar products

Other products people compare with this one.

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799
Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Pentair 98209800 high flow manual air relief valve assembly with pressure gauge Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800$3999 Pentair 154714Z Triton II 2 in. internal bulkhead assembly Pentair Genuine OEM 2 in. Triton II Bulkhead Kit, 154714Z$15299 SuperPro 81060BU side mount pool filter pressure gauge with indicator needle SuperPro Side Mount Pressure Gauge with Indicator, 81060BU$1799 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly, 272568Z$15699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Pentair 178546Z replacement tank lid for 150 and 200 sq ft Clean & Clear RP cartridge filters Pentair 150 sq ft and 200 sq ft Clean & Clear Replacement Tank Lid, 178546Z$15299 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037$25399 Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$43537

Product details

The Jandy BWVL-NVL is a 2-in-1 NeverLube backwash valve, pre-plumbed with a universal union kit, for Jandy Pro Series DEV48, DEV60, JS60 and JS100 filters.

What it does

A 2-in-1 backwash valve combines the backwash and rinse functions in a single valve body, rather than using two separate valves, so cleaning the filter and rinsing the system afterward is handled from one valve. The NeverLube design is Jandy backwash valve construction that does not rely on a lubricated seal.

Fit and compatibility

The BWVL-NVL is sized for Jandy Pro Series DEV48 and DEV60 filters, as well as JS60 and JS100 filters. It ships pre-plumbed with a universal union kit already attached, so the unions do not need to be assembled and glued separately during installation.

Before you order

Confirm your filter is a Jandy Pro Series DEV48, DEV60, JS60 or JS100 before ordering, since other Jandy filter models use a different backwash valve.

Specifications
Brand Jandy
Manufacturer part number BWVL-NVL
UPC 052337029018
Type 2-in-1 backwash valve, NeverLube design
Includes Pre-plumbed universal union kit
Fits Jandy Pro Series DEV48, DEV60, JS60 and JS100 filters
Shipping weight 9.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$139500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$122900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$104900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299

Questions and answers

What people ask about this product, answered by our pool techs.

What does the BWVL-NVL do?
It is a 2-in-1 Jandy NeverLube backwash valve that combines the backwash and rinse functions in one valve body.
What filters does it fit?
It fits Jandy Pro Series DEV48 and DEV60 filters, as well as JS60 and JS100 filters.
Does it include the unions?
Yes, the BWVL-NVL ships pre-plumbed with a universal union kit already attached.
What is NeverLube?
NeverLube is the Jandy backwash valve construction used in the BWVL-NVL, built without relying on a lubricated seal.
Ask your own question
