Pentair 59023500 FNS Plus 36 sq ft complete DE grid element assemblyPentair FNS Plus Filter Element Assembly Complete 36 Sqft, 59023500 In stock$36899

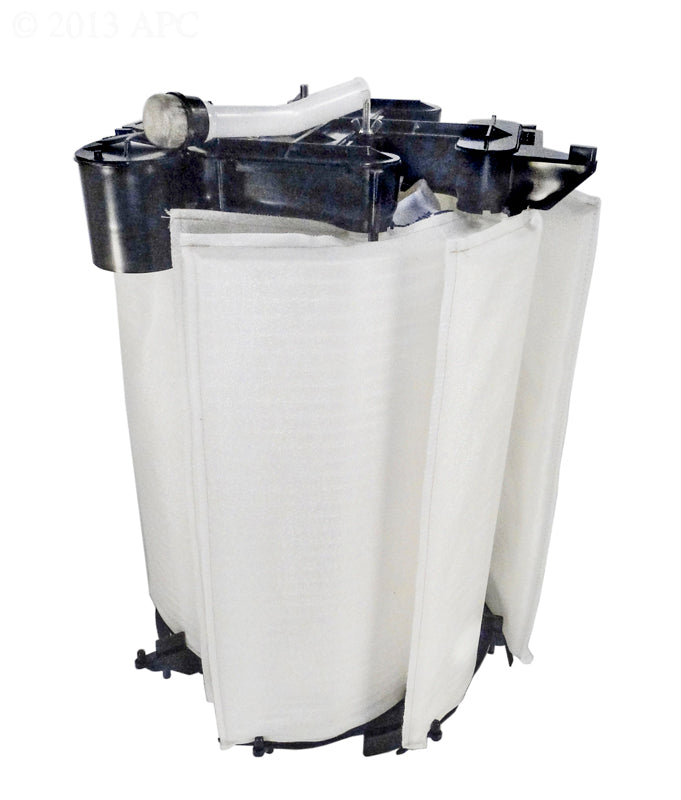

Pentair 59023500 FNS Plus 36 sq ft complete DE grid element assembly
Shop all Pentair

Pentair FNS Plus Filter Element Assembly Complete 36 Sqft, 59023500

Ask a questionMPN 59023500
$36899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete internal manifold, grids, grid retainer and thru rod come as one assembled unit.
  • 36 square feet the element set for the 36 sq ft FNS Plus DE filter.
  • Drop in lift the old assembly out, set this one in, no rebuilding grid by grid.
  • Genuine Pentair OEM part 59023500 from the FNS Plus parts list.
  • Fresh grid fabric new grids hold DE evenly and restore flow that torn or blinded grids have lost.
  • Sized for the tank grid heights and manifold match the FNS Plus 36 tank, not a generic fit.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair FNS Plus Filter Element Assembly Complete 36 Sqft, 59023500, SKU AMP-051-4017. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair FNS Plus Filter Element Assembly Complete 36 Sqft, 59023500
Pentair

FNS Plus Filter Element Assembly Complete 36 Sqft, 59023500

$36899
Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800
Pentair

Genuine OEM High Flow Manual Air Relief Valve, 98209800

$3999
Pentair Genuine OEM Clamp Kit with Tension Control, 190003
Pentair

Genuine OEM Clamp Kit with Tension Control, 190003

$31099
Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152
Pentair

2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152

$30799
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400
Pentair

Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400

$40599
Pentair OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z
Pentair

OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z

$6299
Pentair 60 Sq Ft Element Assembly Complete, 59023300
Pentair

60 Sq Ft Element Assembly Complete, 59023300

$45899
Subtotal

Similar products

Other products people compare with this one.

Pentair 59023800 complete 24 sqft DE filter grid assembly Pentair 24 sqft Grid Assembly Complete, 59023800$41799

Product details

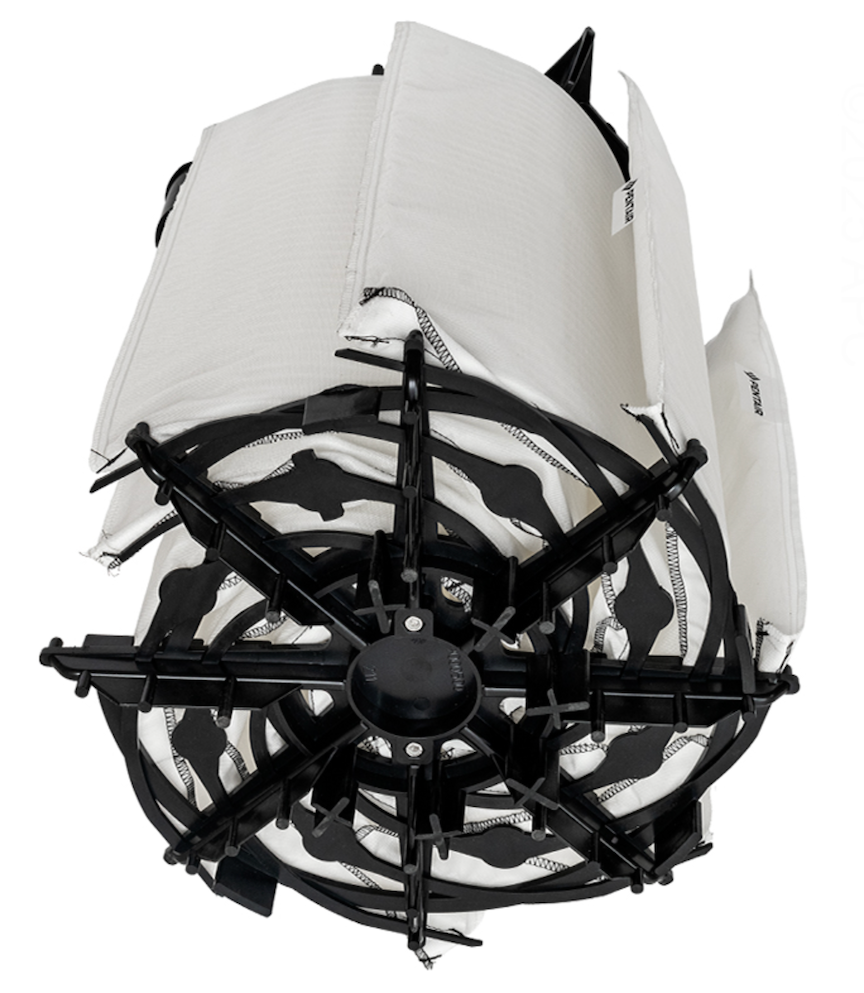

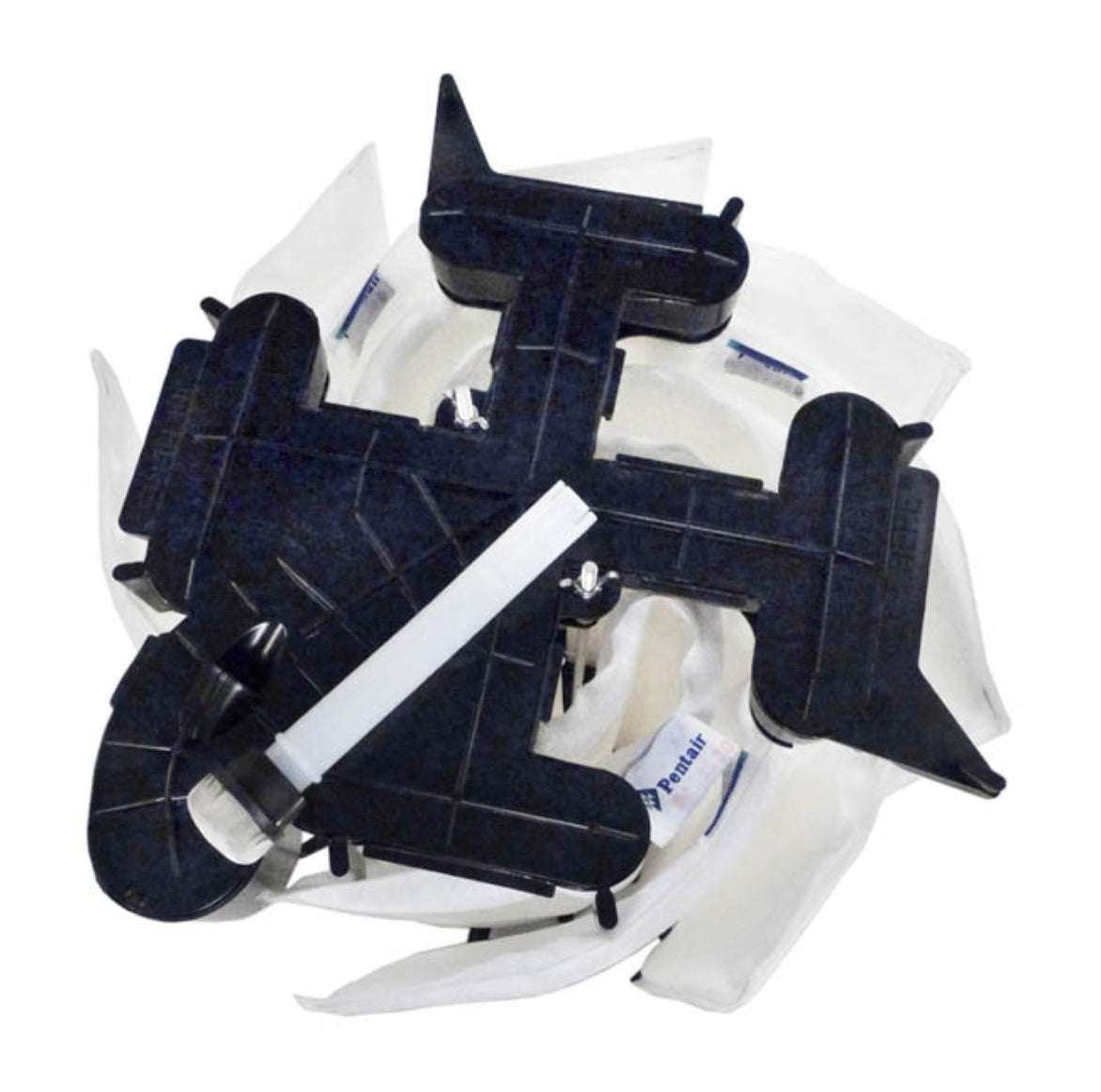

The Pentair 59023500 is the complete internal grid assembly for the 36 sq ft FNS Plus DE filter. Rather than a loose set of grids to fit one at a time, it arrives as the whole element: manifold, grids, grid retainer and thru rod, assembled and ready to set into the tank.

When to replace the element

DE grids wear over years of backwashing and acid washing. Torn fabric lets DE pass back to the pool, blinded fabric shortens the cycle between cleanings, and a cracked manifold bypasses the grids altogether. If more than one or two grids are past saving, replacing the assembly as a unit is faster than rebuilding and gets the filter back to its rated flow in one step.

Fit

This assembly is sized for the 36 sq ft FNS Plus tank. The 48 and 60 sq ft models take taller grids and a different part number, so check the label on your tank before ordering. It is the genuine Pentair part listed on the FNS Plus parts diagram.

Specifications
Brand Pentair
Manufacturer part number 59023500
UPC 788379681722
Type DE filter element assembly, complete
Filter area 36 sq ft
Fits Pentair FNS Plus 36 sq ft DE filter
Included Manifold, grids, grid retainer, thru rod
Shipping weight 23 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What is included in the assembly?
The manifold, the full set of grids, the grid retainer and the thru rod, already assembled. It is the entire internal element for the filter.
Which filter does it fit?
The Pentair FNS Plus DE filter in the 36 sq ft size. The 48 and 60 sq ft FNS Plus filters use taller grid assemblies with their own part numbers.
Can I just replace one torn grid instead?
You can buy individual grids, but if several grids are worn or the manifold is cracked, the complete assembly is the quicker and often the better value repair.
How do I know the grids need replacing?
Signs are DE returning to the pool, short cycles between backwashes even after a thorough clean, and grid fabric that is torn, brittle or coated with a scale that a cleaner will not remove.
